Pto Shaft With Wide Angle Joint
  • Pto Shaft With Wide Angle JointPto Shaft With Wide Angle Joint

Pto Shaft With Wide Angle Joint

Raydafon Guoup's PTO Shaft With Wide Angle Joint delivers unmatched flexibility and durability for heavy-duty agricultural and industrial applications. Crafted from high-strength steel, this advanced joint enables smooth power transfer at extreme angles, reducing wear and enhancing efficiency. Ideal for farmers, contractors, and machinery operators, it tackles tough terrains and complex setups with ease. Experience fewer breakdowns and increased productivity, solving common alignment issues. Its unique wide-angle design outperforms standard shafts, ensuring reliable performance in demanding conditions. Trust Raydafon Guoup for precision engineering that boosts your operations—order now to elevate your equipment's capability!
Introducing our brand new Pto Shaft With Wide Angle Joint, a product designed for a wide range of applications. With a 1 year warranty, this product is ideally suited for use in a diverse range of industries, including hotels, garment shops, building material shops, manufacturing plants, machinery repair shops, food & beverage factories, farms, restaurants, home use, retail, food shops, printing shops, construction works, energy & mining, food & beverage shops, and others. With a weight of 20 KG, this Pto Shaft With Wide Angle Joint is easily transportable and can be showcased in any location. We provide a comprehensive machinery test report and a video outgoing-inspection for your convenience. This product is a new addition to our 2020 catalogue and is sure to be a hit with our customers.

Why Choose a PTO Shaft with Wide Angle Joint?

Choosing a Pto Shaft With Wide Angle Joint for use in your agricultural machinery offers a host of benefits, including:
  1. Protection Against Overload Damage: The Pto Shaft acts as a safeguard, disconnecting the power transmission when the torque exceeds a safe threshold. This protects both the tractor and implement from potential mechanical damage.
  2. Equipment Longevity: By limiting excessive torque, the Pto Shaft reduces wear and tear on equipment, thereby extending the lifespan of both the tractor and attached implements.
  3. Enhanced Safety: The Pto Shaft helps prevent accidents that could result from mechanical failures or sudden stops in machinery operation.
  4. Easy Maintenance and Replacement: PTO shafts are generally easy to maintain and replace, making them a user-friendly addition to your machinery.
  5. Versatility in Application: Pto Shafts can be used with a wide range of implements, increasing the versatility of your tractor.
  6. Customizable Settings: Many Pto Shafts offer adjustable settings, allowing them to be customized to the specific torque requirements of different implements.

Applications of the PTO Shaft with Wide Angle Joint

The Pto Shaft With Wide Angle Joint is an essential component in modern agricultural machinery, providing enhanced protection and efficiency across various applications, such as:
    1. Rotary Tillers and Cultivators: Pto Shafts are crucial for these implements, protecting the equipment from damage if the tiller blades hit rocks or hard soil.
Pto Shaft With Wide Angle Joint
  1. Balers: In balers, Pto Shafts prevent damage to the machinery if a jam occurs during the baling process.
  2. Mowers and Rotary Cutters: Pto Shafts protect mowers and cutters from overload when cutting through dense vegetation or encountering hidden obstacles.
  3. Harvesting Equipment: For combines and forage harvesters, Pto Shafts safeguard against damage caused by blockages or the harvesting of unevenly distributed crops.
  4. Seed Drills and Planters: These implements benefit from Pto Shafts by preventing damage when encountering underground obstacles or in situations of mechanical overfeeding.
  5. Manure Spreaders: Pto Shafts are important in these machines to handle situations where the spreading mechanism might become clogged or overloaded.
Pto Shaft With Wide Angle Joint

Agricultural PTO Shaft Torque Limiter Types

In agricultural machinery, PTO shaft torque limiters are crucial for protecting equipment from damage due to torque overload. There are various types of PTO shaft torque limiters, each designed to cater to different operational needs and specifications:
    1. Shear Bolt Torque Limiter: This type utilizes a shear bolt that breaks under excessive torque, disconnecting the drive between the tractor and implement.
Pto Shaft With Wide Angle Joint

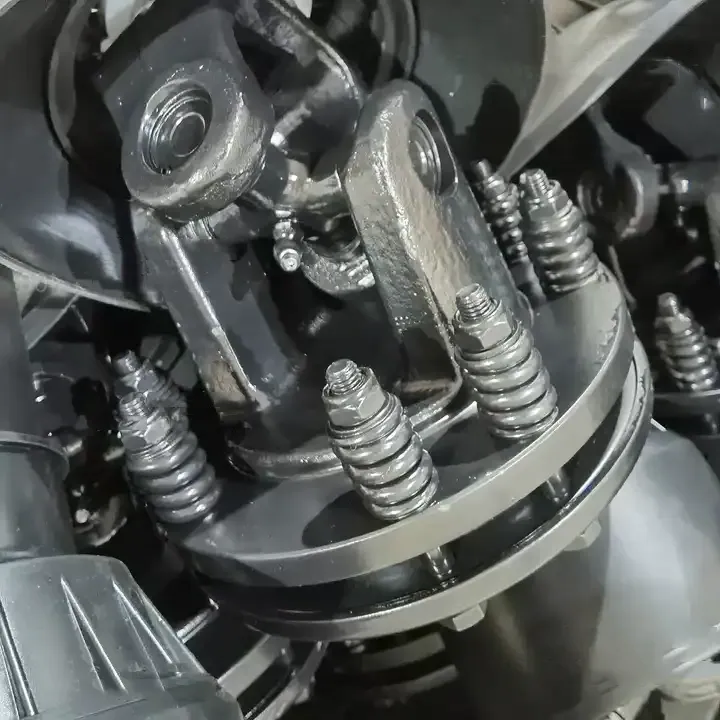

  1. Friction Clutch Torque Limiter: Friction clutch limiters slip when the torque exceeds a preset level, allowing it to absorb the excess force without breaking.
  2. Ratchet Torque Limiter: Features a ratcheting mechanism that allows rotation in one direction and locks or slips in the opposite direction when overloaded.
  3. Overrunning Clutch Torque Limiter: Allows free rotation in one direction and engages the clutch in the other. It can also incorporate a torque-limiting feature to disconnect under overload.
Pto Shaft With Wide Angle Joint

Agricultural PTO Shaft with Wide Angle Joint Troubleshooting

Troubleshooting issues with an agricultural PTO shaft equipped with a torque limiter involves identifying and addressing common problems that can affect its performance. Here are some typical issues and their potential solutions:
    1. Torque Limiter Engaging Too Frequently: This could be due to over-sensitivity, improper adjustment, or the implement being too heavy for the tractor. Adjust the torque limiter settings according to the manufacturer's specifications and ensure that the implement is appropriate for the tractor's power capacity.
Pto Shaft With Wide Angle Joint
  1. Torque Limiter Fails to Engage: This could be due to worn out components, incorrect settings, or mechanical failure. Check for worn parts and replace them, ensure the torque settings are correct, and inspect for mechanical faults and repair as necessary.
  2. PTO Shaft Vibration or Noise: This could be due to misalignment, damaged U-joints, or imbalance in the shaft. Align the PTO shaft correctly, inspect and replace any damaged U-joints, and balance the shaft if necessary.
  3. Difficulty in Attaching or Detaching the Shaft: This could be due to misalignment, damaged yokes, or seized parts. Ensure proper alignment, replace any damaged components, and lubricate moving parts to ease attachment and detachment.
  4. Excessive Wear on the Torque Limiter: This could be due to continuous operation under high load or improper settings. Adjust the torque limiter to match the load requirements, replace worn parts, and avoid operating the machinery consistently at maximum capacity.
  5. PTO Shaft Not Transmitting Power: This could be due to a broken shear bolt (if present), or the torque limiter is disengaged. Check and replace the shear bolt, and reset or engage the torque limiter.

Maintenance and Care of the PTO Shaft with Wide Angle Joint

Maintaining and caring for an agricultural PTO shaft with torque limiter is essential for ensuring the longevity, safety, and efficiency of the equipment. Here??s a comprehensive guide on how to properly maintain this crucial component:
  1. Regular Inspection: Regularly inspect the PTO shaft and torque limiter for signs of wear, damage, or corrosion, especially on the moving parts and joints. Verify that the torque limiter settings are correctly adjusted according to the specifications and the requirements of the implement being used.
  2. Lubrication: Keep all universal joints, bearings, and other moving parts well-lubricated with the appropriate grease to ensure smooth operation and to prevent premature wear.
  3. Cleaning: Regularly clean the PTO shaft and torque limiter to prevent the buildup of dirt, debris, and rust, which can impair their functionality.
  4. Checking and Adjusting Torque Limiter: Periodically test the torque limiter to ensure it is functioning correctly. It should disengage when the torque exceeds the set limit. Adjust the torque settings if they are not in line with operational requirements or if the equipment has been modified or is being used for different tasks.
  5. Replacing Worn Parts: Inspect for and replace any worn or damaged components immediately, such as shear pins, springs, or friction discs in the torque limiter.
  6. Proper Storage: When not in use, store the PTO shaft in a dry, clean environment to prevent rust and corrosion.

Why Choose Raydafon's Agricultural PTO Shaft with Torque Limiter?

Raydafon specializes in developing, manufacturing, and marketing PTO shafts, agricultural gearboxes, PTO shaft accessories, PTO shaft u-joints, torque limiters, PTO shaft tubes, PTO shaft yokes, PTO shaft adaptors, industrial cardan shafts, car driveshafts, u-joint coupling shafts, and more. With an annual turnover of 60 million RMB, 9 Million Dollars, and increasing year by year, our products have gained a great reputation from customers all over the world.We are the top professional OEM supplier for many agricultural implement factories in the domestic market. Raydafon Driveshaft insists on our principles: Quality first, Deliver quickly, and Price Competitive. We already have the CE, TS/16949, and ISO9001 certificates with systematic manufacturing equipment and a QC team to guarantee our quality and delivery. We warmly welcome every friend to visit us and establish a mutually beneficial long-term relationship cooperation. Currently, our company exports its products to its valued customers in more than 50 countries in 5 continents of the world. Having the best-in-class brands in its product range, Raydafon continues its activities with the aim of becoming a global company in the fields it works.Pto Shaft With Wide Angle JointWith our professionalism, international certifications, customized services, advanced production facilities, and excellent after-sales services, we are confident in our ability to meet and exceed your expectations.Author: Yjx
Hot Tags: PTO Shafts with Wide Angle Joints, Custom Wide Angle PTO Shafts, High Quality PTO Shaft Manufacturer
