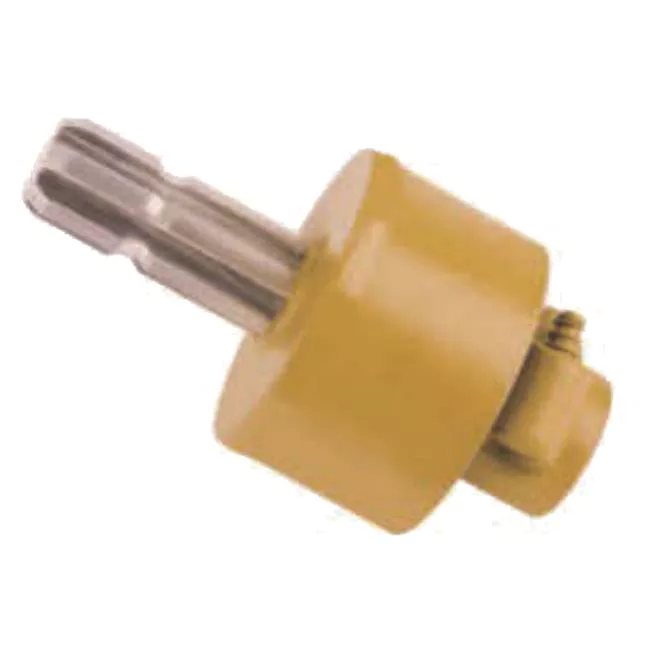

RAS1 Series Overrunning Clutch for PTO Shaft

The overrunning clutch allows any implement to free-wheel to a stop. Any implement with a large rotating mass may need overload protection by allowing it to free-wheel to a stop. The clutch prevents the machine from driving the tractor when the PTO drive shaft has stopped. The overrunning clutch direction is dependent on the application, the normal tractor PTO direction is clockwise. Overrunning clutches do not absorb any energy, so start-up overloads must be absorbed by other means.

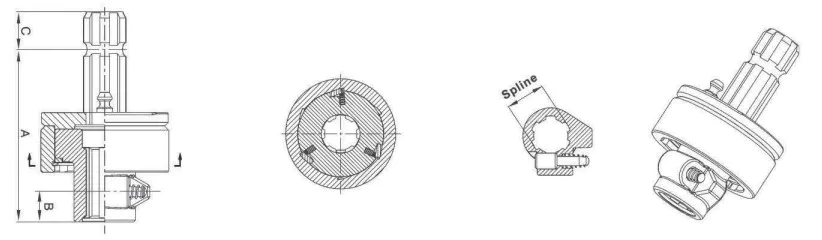

Series	Max Torque(Nm)	Spline(Female)	Spline(Male)	A(mm)	B(mm)	C(mm)
RAS1	2400	1 3/8" Z6	1 3/8" Z6	142	21	38

Performance Advantage of Overrunning Clutch

◆ Allows inertia from implement to dissipate without putting load back through the tractor or system.◆ Easy maintenance.◆ Smooth operation.◆ Offered in various driveshaft sizes and hub configurations.◆ Easier connection by enabling the shaft to be aligned with the tractor PTO spline.

Design Features of Overrunning Clutch

◆ Overrunning clutch is offered in two differentconfigurations – for both clockwise (R) and counter-clockwise (L) overrunning directions.◆• The counterclockwise version is recognized by the groove.

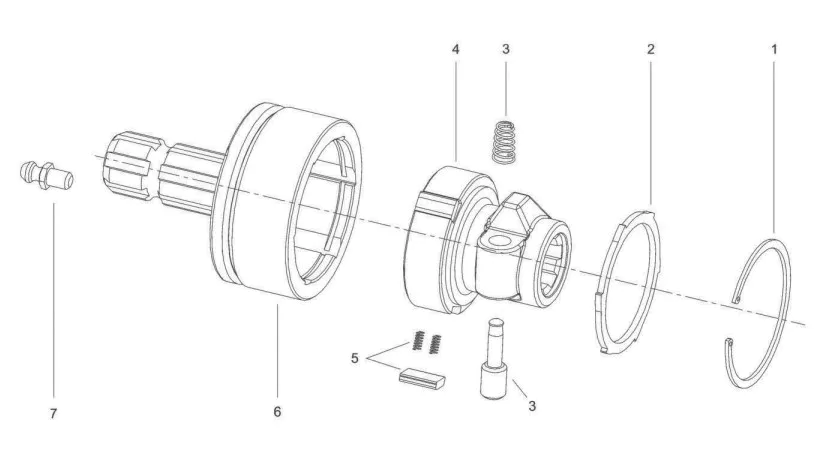

1. Circlip
2. Retaining washer
3. Pushpin kit
4. Hub
5. Prong kit
6. Housing with the splined yoke
7. Grease nipple

We also supply PTO shafts & Agricultural Gearboxes.

The agricultural gearbox and PTO shaft are two components of a tractor that work together to transmit power. The PTO shaft rotates at 540 to 1,000 rpm. The agricultural gearbox and PTO shaft are connected by yokes at both ends. Depending on the application, they may have a higher or lower torque rating. As a professional agricultural machinery parts supplier, we also offer a wide range of agricultural gearboxes for sale. Contact us now to get more info!
