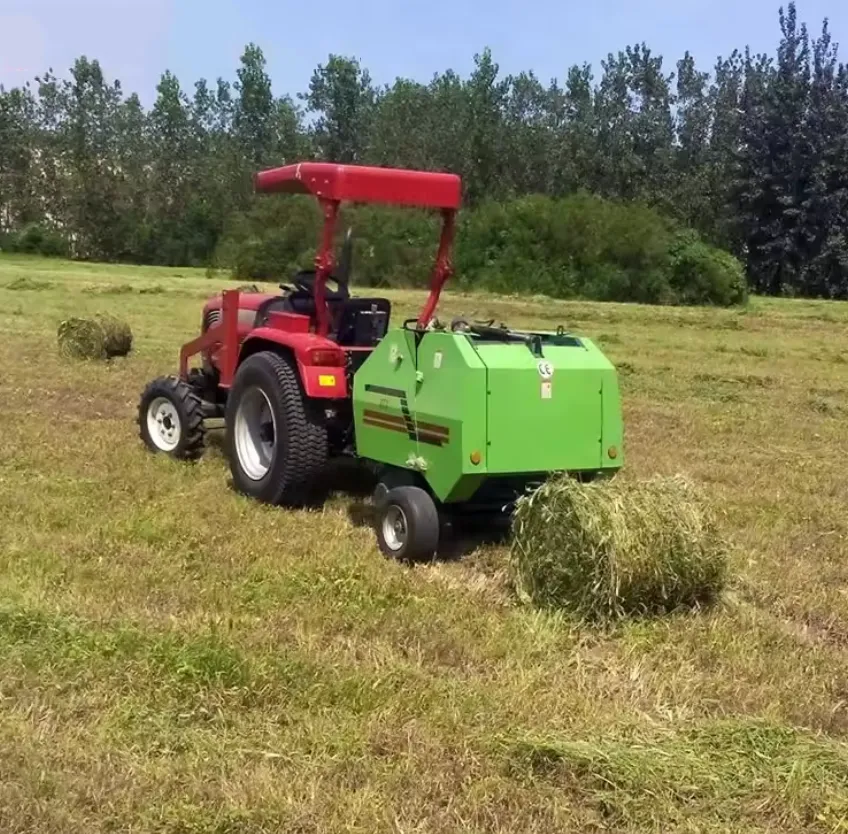

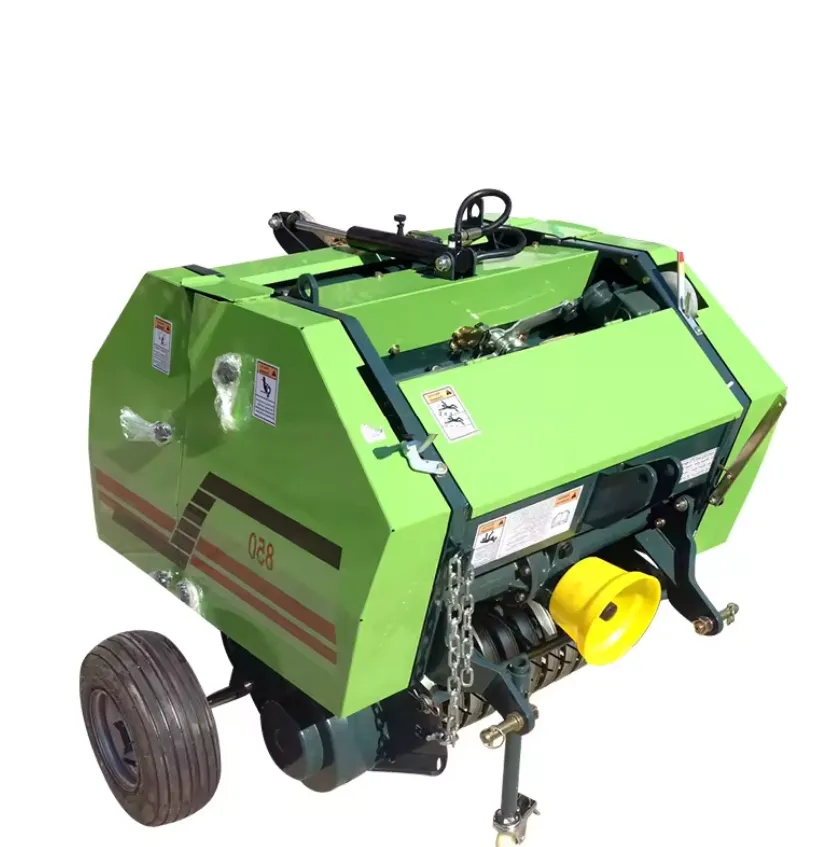

Raydafon Mini Hay Baler 850 Walking Tractor

The Raydafon Mini Hay Baler 850 walking tractor is a round baler type. It operates at a speed of 2-5km/h and is brand new. The model numbers are RXYK0850 and RXYK0870, and it is suitable for baling hay, cornstalk, wheat, and rice straw. The mini hay baler has dimensions of 1300x1300x1350mm, weighs 390kg, and comes with a 1-year warranty. Engineers are available for overseas service, and the product holds CE and ISO certifications. The pickup width is 800mm, and it has a working efficiency of 80-120 bales/hour. The PTO is 540rpm, and it requires a tractor power of 18-50HP. The bale size can be either 500x700mm or 610x700mm, while the tire size is 16x6.5-8-4pr.

Advantages of the Raydafon Mini Hay Baler 850 Walking Tractor

The Raydafon Mini Hay Baler 850 walking tractor offers numerous advantages that make it a superior choice for agricultural operations. Here are six key benefits:

1. Compact and Lightweight: The mini hay baler is compact in size and lightweight, making it easy to handle and maneuver in various field conditions.
2. High Efficiency: With an operating speed of 2-5km/h and the ability to produce 80-120 bales per hour, this baler significantly enhances productivity.
3. Wide Application: This baler is versatile and can be used to bale various types of materials, including hay, cornstalk, wheat, and rice straw.
4. Quality Assurance: The product comes with a 1-year warranty and after-sales service, providing peace of mind for users.
5. International Certification: The baler holds CE and ISO certifications, guaranteeing its quality and compliance with international standards.
6. Easy Maintenance: The design and construction of the baler facilitate easy maintenance, ensuring its longevity and optimal performance.

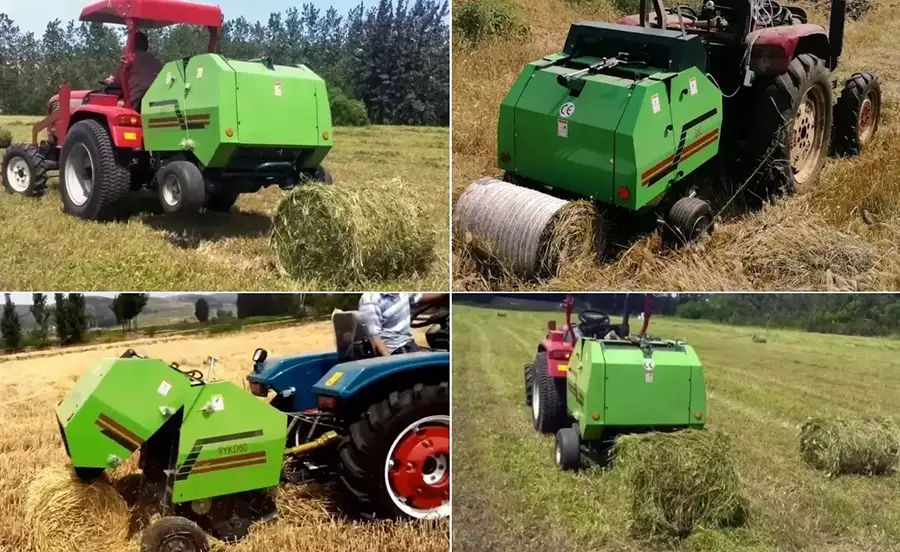

Applications of the Raydafon Mini Hay Baler 850 Walking Tractor

The Raydafon Mini Hay Baler 850 walking tractor is not only versatile but also highly functional in various applications. Here are six prominent applications:

1. Haying: The baler is primarily used for baling hay during the haymaking season, making it an essential tool for small to medium-sized farms.
2. Cornstalk Baling: After the corn harvest, the baler can be used to bale cornstalks, helping to clean the field and prepare it for the next planting cycle.
3. Wheat Straw Baling: The baler is also suitable for baling wheat straw, providing an efficient way to manage post-harvest residues.
4. Rice Straw Baling: Rice straw can be a challenge to manage, but with this baler, users can easily bale and store or transport the straw.
5. Landscaping: In landscaping applications, the baler can be used to gather and bale grass clippings, leaves, and other yard waste for easy disposal or composting.
6. Biomass Production: The baler is also useful in biomass production, where it can be used to bale agricultural residues for use as biofuel.

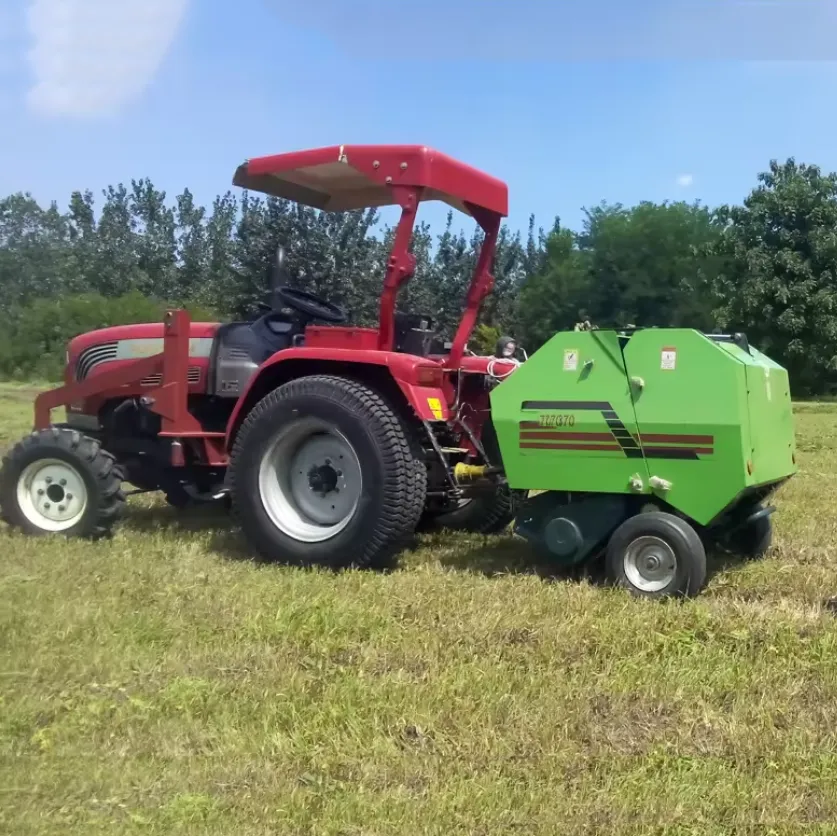

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler operates by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the Raydafon Mini Hay Baler 850 Walking Tractor

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel. Besides, we have abundant financial resources and two advanced casting, forging, machining, heat treatment, and lacquering production lines, and we use CAD computer-aided design system. Our production technology is strong and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. We have accumulated more than ten years of experience in production, and mainly produce farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines, which are set up by the main tractor manufacturers in China. Our main products are PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

In addition to the wide range of products we offer, our company takes pride in our professionalism, international certifications, customized services, state-of-the-art production facilities, and exceptional after-sales services. Here are some key reasons to choose Raydafon's mini hay round baler:

• Professionalism: Our team consists of highly skilled technicians and R&D personnel with extensive experience in agricultural machinery development and production.
• International Certifications: Our products conform to international standards and have earned numerous certifications, including CE and ISO, giving our customers confidence in the quality and reliability of our products.
• Customized Services: We understand that each farming operation is unique, so we offer customized services to meet the specific needs of our clients. This includes customizing machinery specifications and providing tailored solutions.

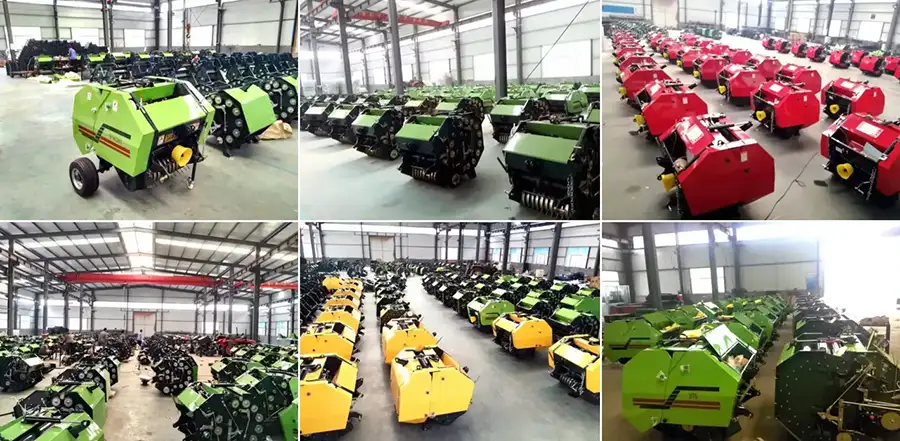

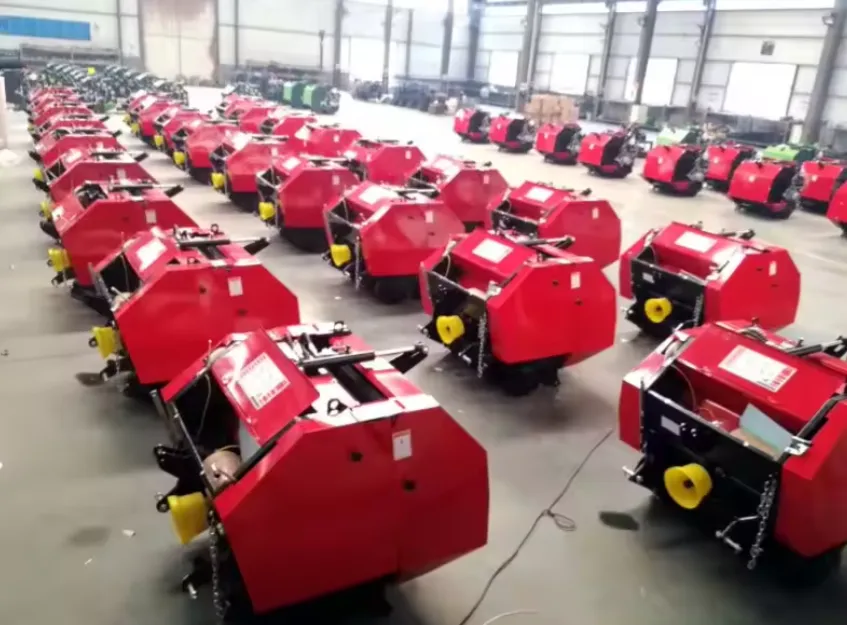

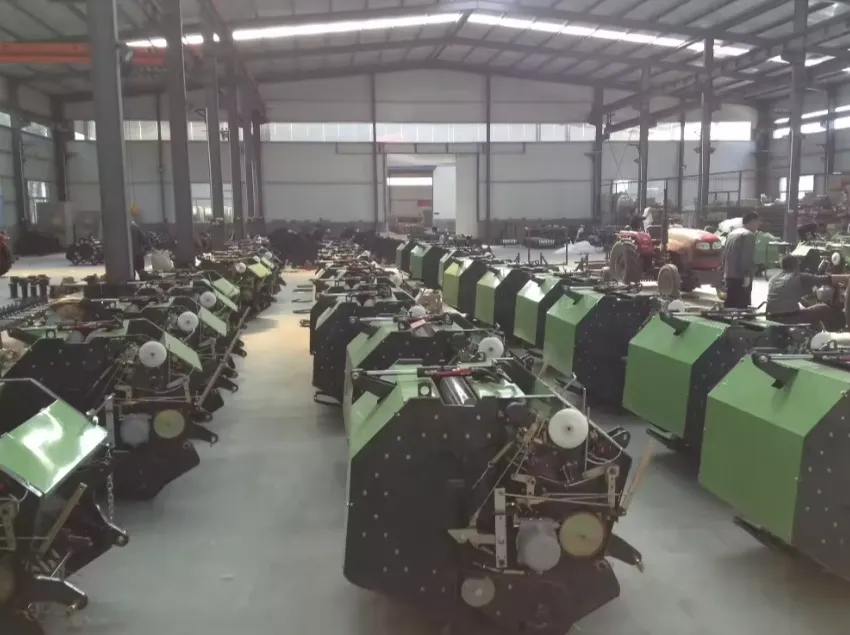

• Production Facilities: Our company has advanced production lines equipped with high-tech machinery, including lathing, milling, planing, stamping, cutting plate, and electric welding machines, ensuring efficient and high-quality production.
• After-Sales Services: We offer comprehensive after-sales services, including training on how to install and use our machinery, as well as overseas engineer services. We also ensure quick response and fast action in distinguishing and sending spare parts by DHL.

Author: Yjx
