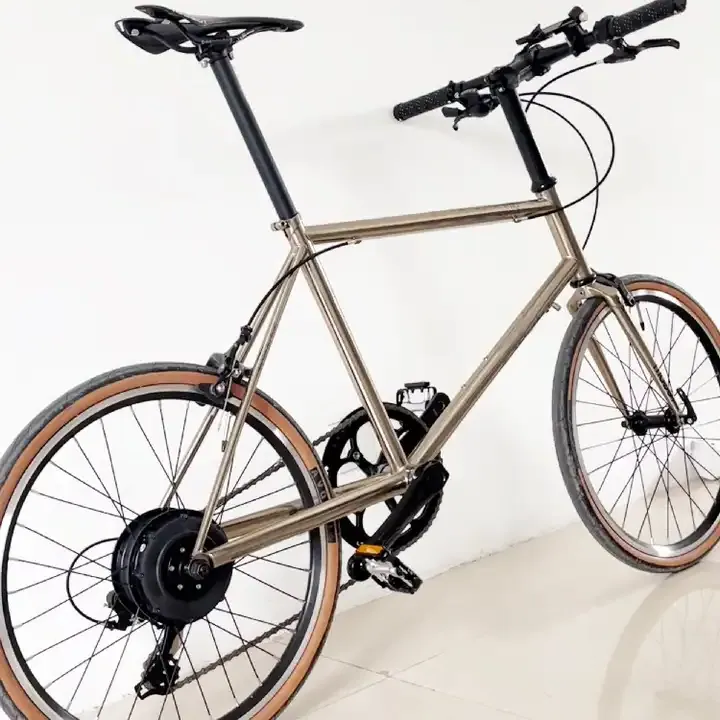

Raydafon New P130 Rear Hub Motor Built-in Battery Wireless All-In-One Motor for Electric Bicycle

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]Upgrade your biking experience with the Raydafon new P130 rear hub motor. This all-in-one motor for electric bicycles is designed with an integrated battery and wireless capabilities. It showcases a sleek brushless design and is available in two stylish colors - black and silver. The model number for this innovative product is the ALL-IN-ONE motor. Its precise dimensions are a diameter of 143mm±1mmand a width of 135±2mm. The rated output power is 250W, with a battery capacity of 210Wh. The maximum output torque is 30Nm, and the display options include a wireless display or an App. With an efficiency of >90%, a rated revolution of 160-260 r/min, and a weight of 2.7 kg, this motor offers superior performance and portability.

P130 ALL-IN-ONE Rear Hub Motor Specifications

Item No.	P130SWXRDC30/P130SWXRC30
Diameter	143mm±1mm
Width	135±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Free-wheel types	Cassette & Whirl
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM

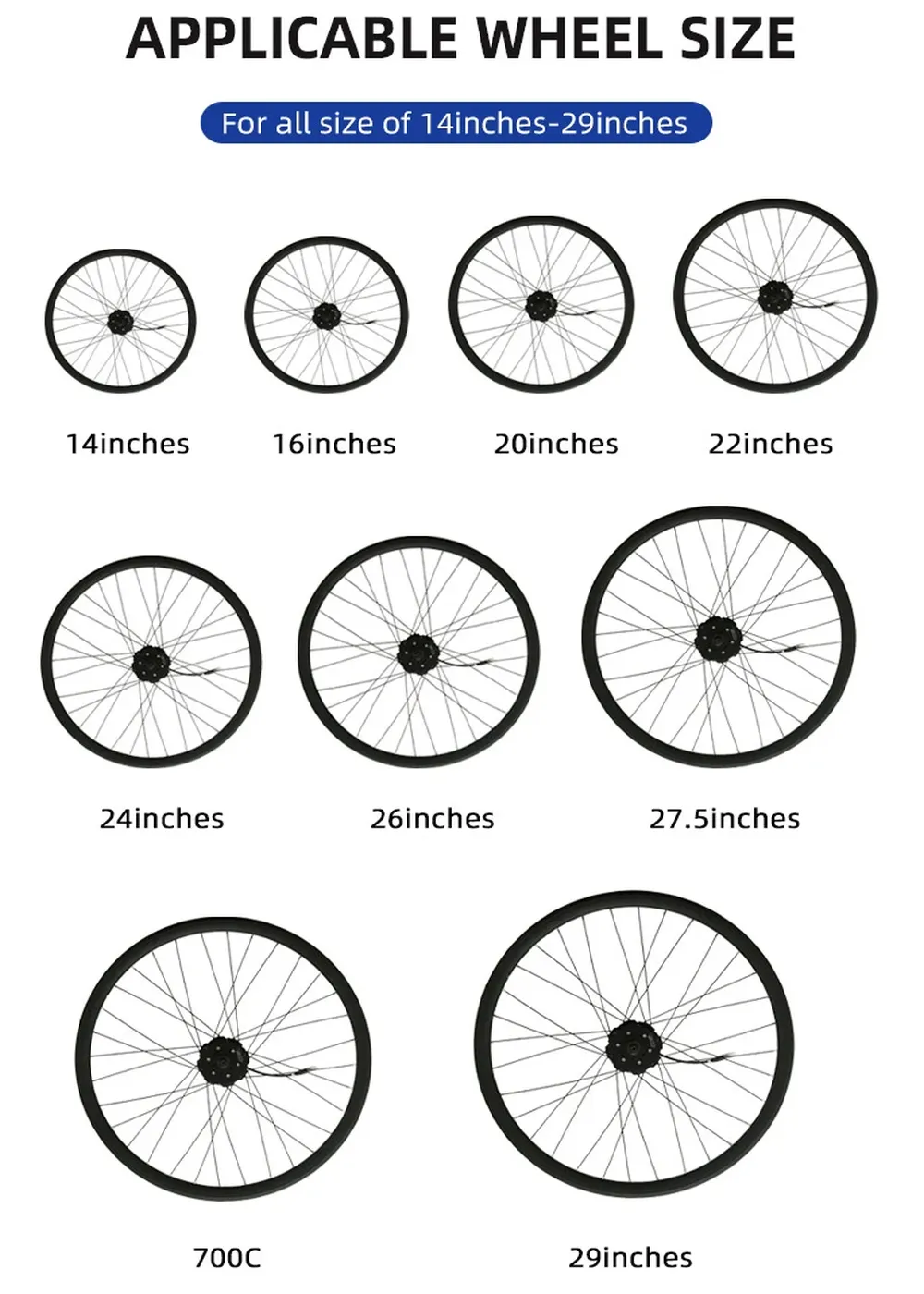

Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.7KGS

P130 ALL-IN-ONE Rear Hub Motor Dimension

Advantages of the P130 ALL-IN-ONE Rear Hub Motor

The ALL-IN-ONE Rear Hub Motor offers a multitude of advantages that enhance the performance of your electric bicycle:

1. Built-in 7Ah battery, controller, and sensor: The integrated design simplifies installation and reduces the number of separate components you need to manage.
2. Dynamic torque sensing system: This feature allows the motor to adjust its output based on the rider's input, providing a smooth and responsive riding experience.
3. Slope induction system: This system adjusts the motor's output when climbing hills, making it easier to tackle steep inclines.
4. Support for extended range battery: The motor can be paired with an extended range battery to increase your e-bike's travel distance on a single charge.
5. GPS positioning support: This feature enables location tracking for added security and convenience.
6. Wireless control: You can control the motor's settings wirelessly via a dedicated App, providing a seamless and intuitive user experience.

Our company can manufacture this cutting-edge product, offering premium quality and reliable performance.

Applications of the ALL-IN-ONE Rear Hub Motor

The P30/P160 ALL-IN-ONE Rear Hub Motor is a specific model of a rear hub motor designed for electric bicycles. This type of motor is commonly used in e-bikes for various applications:

1. Electric Bike Conversion: The P30/P160 motor can be used to convert a regular pedal bicycle into an electric bike. By installing the motor in the rear hub, it provides propulsion and assists the rider while pedaling, enhancing the overall riding experience.
2. Commuting: Electric bicycles equipped with the P30/P160 motor are ideal for commuting. The motor provides assistance, making it easier to cover longer distances and tackle hilly terrain. Commuters can arrive at their destination faster and without exerting excessive effort.
3. Eco-friendly Transportation: Electric bikes powered by the P30/P160 motor offer a green transportation option. They produce zero emissions, reducing the carbon footprint compared to traditional vehicles. This makes them an environmentally friendly alternative for short to medium-distance commuting.
4. Recreational Riding: The P30/P160 motor can enhance recreational riding experiences. Whether it's exploring off-road trails or enjoying leisurely rides, the motor provides additional power and assistance, allowing riders to tackle challenging terrain or extend their riding range.
5. Cargo and Delivery Services: Electric cargo bikes equipped with the P30/P160 motor can be used for various commercial purposes. They are suitable for delivery services, allowing businesses to transport goods efficiently in urban areas where traffic and parking can be challenging.
6. Fitness and Health: While e-bikes assist with propulsion, they still require the rider to pedal. The P30/P160 motor can be used to find a balance between exercise and assistance. Riders can choose the level of motor assistance based on their fitness level and desired workout intensity.

How Does the ALL-IN-ONE Rear Hub Motor for Ebike System Work?

The ALL-IN-ONE Rear Hub Motor for e-bike system, like the P30/P160 motor, typically consists of several integrated components that work together to provide electric assistance to the rider:

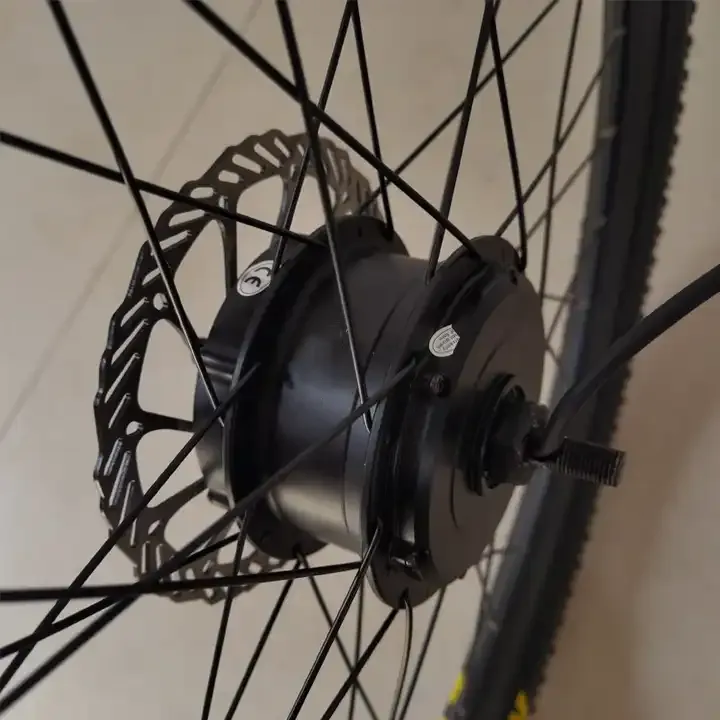

1. Motor: The heart of the system is the rear hub motor, which is built into the wheel hub. The motor is responsible for generating the necessary torque and power to propel the e-bike forward. In the case of the ALL-IN-ONE Rear Hub Motor, it combines the motor, controller, and battery in a single unit.
2. Controller: The controller is an essential component that manages the operation of the motor. It receives input from various sources, such as the rider's input, sensors, and throttle, and determines the power output and assistance level. It regulates the flow of electric current from the battery to the motor, controlling the speed and torque.
3. Battery: The system is powered by a battery pack, typically lithium-ion, which stores and supplies electrical energy to the motor. The battery is usually mounted on the e-bike frame or integrated into the rear rack. It provides the necessary voltage and current to drive the motor and can be recharged using a charger connected to a power source.
4. Sensors: The system may include various sensors to provide feedback and optimize the motor's performance. Common sensors include speed sensors, which measure the e-bike's speed, and torque sensors, which detect the rider's pedaling force. These sensors provide input to the controller, allowing it to adjust the motor assistance based on the rider's needs and the selected assistance level.
5. User Interface: The e-bike system often includes a user interface or display mounted on the handlebar. This interface allows the rider to select different power modes, monitor battery level, and access other relevant information. It may also include buttons or a throttle to control the level of electric assistance provided by the motor.
6. Electric Assistance: When the rider begins to pedal, the sensors detect the pedaling force and send a signal to the controller. Based on the rider's input and the selected power mode, the controller determines the appropriate level of electric assistance. The motor then engages and provides additional torque to assist the rider's pedaling effort, propelling the e-bike forward.

Choose the Right ALL-IN-ONE Rear Hub Motor for Electric Bicycle

Choosing the right ALL-IN-ONE Rear Hub Motor for an electric bicycle depends on several factors:

1. Power and Torque: Evaluate the power and torque output of the motor. Higher power and torque ratings generally provide better acceleration and climbing abilities. Consider your intended use, such as commuting or off-road riding, and choose a motor that offers sufficient power for your needs.
2. Battery Voltage and Capacity: The motor's performance is closely linked to the battery. Check the voltage and capacity of the battery that is recommended or compatible with the motor. Higher voltage batteries generally offer more power and range. Consider your desired riding distance and choose a battery capacity that suits your needs.
3. Assistance Modes: Different motors offer various assistance modes, such as pedal-assist (PAS) or throttle control. Determine which mode you prefer and ensure that the motor supports it. Additionally, check if the motor has multiple power levels or programmable settings to adjust the assistance level according to your riding preferences.
4. Compatibility: Ensure that the motor is compatible with your bicycle frame and wheel size. Check the motor's dimensions and specifications, especially the axle width, to ensure a proper fit. Some motors are designed for specific wheel sizes (e.g., 14", 24", 29"), so choose a motor that matches your wheel size.
5. Weight: Consider the weight of the motor as it affects the overall weight distribution of the e-bike. A heavier motor may affect the handling and maneuverability of the bike. Find a balance between power and weight, depending on your specific requirements.
6. Integration and Ease of Installation: ALL-IN-ONE Rear Hub Motors are designed for easy installation and integration. Consider the installation process and whether it requires any specific tools or expertise. Look for motors that offer a plug-and-play installation and have clear instructions or support available.

Maintenance of the ALL-IN-ONE Rear Hub Motor

Proper maintenance of an ALL-IN-ONE Rear Hub Motor for an electric bicycle is important to ensure its longevity and optimal performance:

1. Regular Cleaning: Keep the motor clean and free from dirt, dust, and debris. Use a soft cloth or brush to wipe away any buildup on the motor housing. Avoid using excessive water or high-pressure cleaners, as they can damage the motor's electrical components.
2. Check and Tighten Bolts: Periodically inspect the motor and its mounting bolts to ensure they are secure. Over time, vibrations from riding can cause bolts to loosen. Use appropriate tools to tighten any loose bolts, following the manufacturer's recommended torque specifications.
3. Lubrication: Some ALL-IN-ONE Rear Hub Motors may require periodic lubrication. Refer to the manufacturer's guidelines for recommendations on lubricating the motor's internal gears or bearings. Use the appropriate lubricant specified by the manufacturer.
4. Battery Maintenance: The battery is an integral part of the electric bicycle system. Follow the battery manufacturer's guidelines for maintenance, charging, and storage. Regularly check the battery connections to ensure they are clean and secure. Clean any corrosion on the battery terminals using a battery terminal cleaner or a mixture of baking soda and water.
5. Sensor Alignment: If your motor utilizes sensors for pedal-assist or other functions, periodically check their alignment. Ensure that the sensors are properly positioned and not obstructed.
6. Inspect Wiring: Check the wiring connections leading to and from the motor for any signs of damage, fraying, or loose connections. If you notice any issues, have them repaired or replaced by a qualified technician or follow the manufacturer's guidelines for troubleshooting.
7. Brake Adjustment: If your motor features regenerative braking, ensure that the brake system is properly adjusted. Follow the manufacturer's instructions for adjusting the brake pads and ensuring they make proper contact with the braking surface. This will optimize the regenerative braking feature and improve overall efficiency.

Why Choose Raydafon's ALL-IN-ONE Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.
