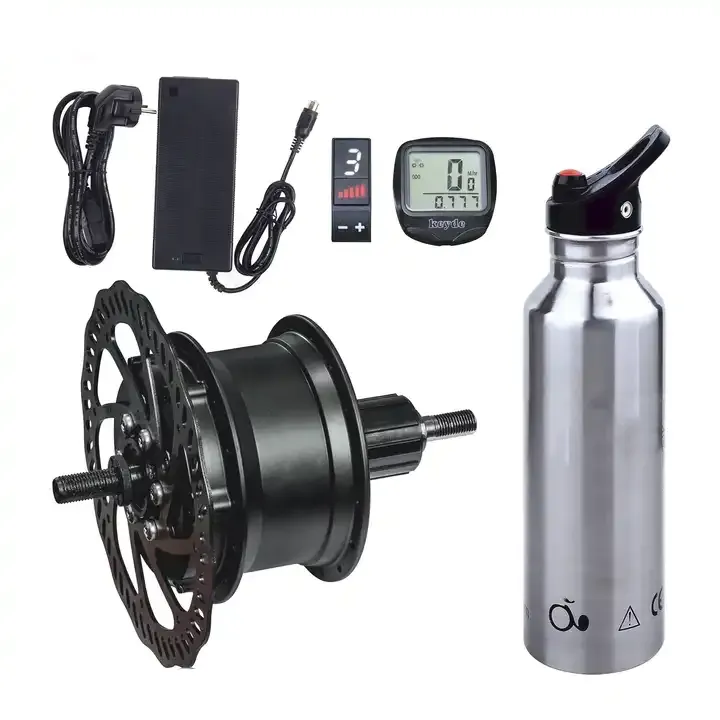

Raydafon P100 Powerful Rear Hub Motor Kit 500wbldc motor Electric Bicycle Motor

Experience a new level of power and performance with the Raydafon P100 Powerful Rear Hub Motor Kit. This highly efficient motor kit is designed for electric bicycles and offers an impressive output power of up to 500W. The P100 model comes in a sleek black/silver design, and its brushless style ensures smooth operation and longevity. The motor has a rated voltage of 24/33/36V and an efficiency of more than 90%. Weighing just 1.8kg, it's lightweight yet powerful, making it an excellent choice for e-bike enthusiasts.

Specifications of P100 Rear Hub Motor for E-bike

Item No.	P100SWXRDC36/P100SWXRC36
Diameter	103mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Free-wheel types	Cassette body
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Rated power	250W
Max. power	500W
Max. torque	30N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞89%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	1.8KG

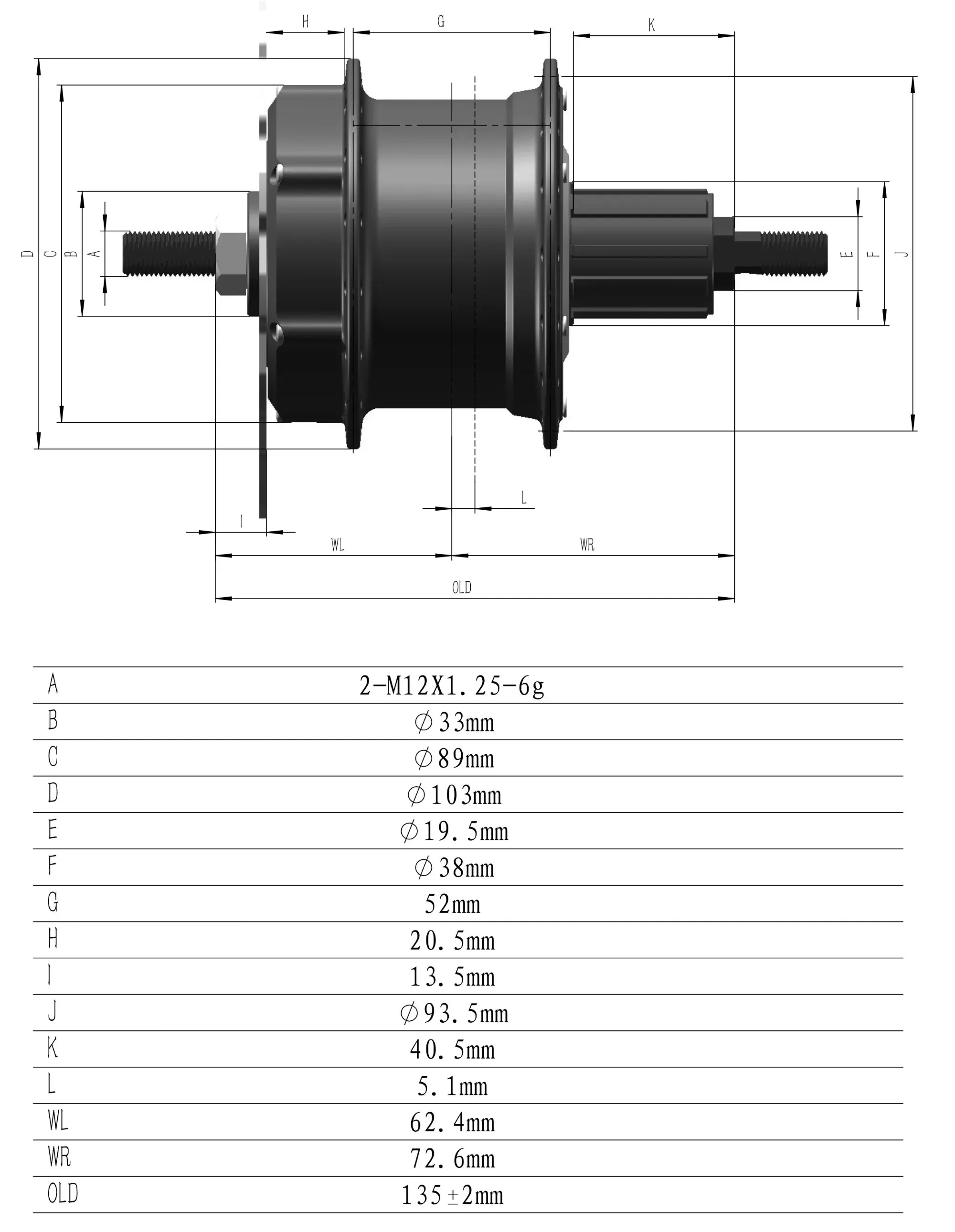

Dimension of P100 Rear Hub Motor for E-bike

Advantages of the Raydafon P100 Rear Hub Motor Kit

The Raydafon P100 Rear Hub Motor Kit boasts several advanced features that set it apart from other e-bike motors in the market:

1. Built-in controller and sensor: The integrated controller and sensor system allows for smooth operation and precise control.
2. Dynamic torque sensing system: This feature ensures optimal power delivery based on the rider's pedaling force, providing a comfortable and efficient riding experience.
3. Slope induction system: The motor automatically adjusts its power output when climbing slopes, ensuring consistent performance on varying terrains.
4. Maximum power 750W, torque exceeds 40N??m: The motor is powerful enough to handle steep climbs and heavy loads, making it ideal for a variety of e-bike applications.
5. Efficiency greater than 90%: The P100's high efficiency means less energy is wasted, resulting in longer battery life and riding range.
6. Wireless control: The motor supports wireless communication for convenient control and monitoring.

With these advanced features, the Raydafon P100 Rear Hub Motor Kit is a solid choice for your next e-bike upgrade or build project.

Applications of the P100/P110 Rear Hub Motor

The P100/P110 rear hub motor is versatile and can cater to various e-bike applications:

1. Commuting: The motor provides reliable power for daily commuting, making rides easier and faster.
2. Urban transportation: Electric bikes fitted with the P100/P110 motor are perfect for navigating through city traffic quickly and efficiently.
3. Cargo bikes: The motor's power and torque are ideal for hauling groceries, packages, or other bulky items.
4. Recreational riding: Whether exploring off-road trails or enjoying a countryside ride, the motor enhances the overall experience.
5. Touring and long-distance rides: The motor offers assistance during challenging terrains and long distances, reducing rider fatigue.
6. E-bike sharing services: The motor's reliability and efficiency make it suitable for e-bike sharing programs.

Regardless of your e-bike needs, the P100/P110 rear hub motor is up to the task.

How Does the P100/P110 Rear Hub Motor for Ebike System Work?

The P100/P110 rear hub motor combines mechanical and electrical components to provide propulsion and assist the rider. Here's a general overview of how the system works:

1. Motor: Located in the rear wheel hub, the motor is powered by a battery and controlled by an electronic controller.
2. Battery: The battery supplies electrical energy to the motor. The P100/P110 motor is designed to work with specific battery systems for optimal performance.
3. Controller: The electronic controller, or the brain of the e-bike system, determines how much assistance to provide based on the rider's input and the selected power mode.
4. Sensors: Sensors monitor the rider's pedaling effort, speed, or torque, providing feedback to the controller to adjust the motor assistance accordingly.
5. Assistance Modes: Multiple assistance modes such as eco, normal, and high power are available. The rider can select the desired mode based on their preferences or riding conditions.
6. Operation: When the rider starts pedaling, the sensors detect the input and send signals to the controller. The controller then activates the motor, providing additional torque and propulsion.

With its advanced features, the P100/P110 rear hub motor offers a smooth and efficient e-bike riding experience.

Choose the Right P100/P110 Rear Hub Motor for Electric Bicycle

When choosing the right P100/P110 rear hub motor for your electric bicycle, consider the following factors:

1. Power and Torque: The power and torque output of the motor determine how much assistance it can provide and how well it can handle various riding conditions.
2. Voltage and Battery Compatibility: Ensure that the motor's voltage rating is compatible with the battery you plan to use.
3. Wheel Size: Ensure that the rear hub motor is compatible with your bicycle's wheel size.
4. Efficiency and Range: Consider the motor's efficiency and how it affects your e-bike's range.
5. Weight and Size: Consider the weight and size of the rear hub motor. A lighter and more compact motor can improve the handling and maneuverability of your electric bicycle.
6. Riding Style and Terrain: Consider your riding style and the type of terrain you'll be traversing. A motor with higher torque and power output may be more suitable for steep hills or off-road trails, while a motor with moderate power may be sufficient for urban commuting or casual rides.

By considering these factors, you can choose the right P100/P110 rear hub motor that best fits your needs and riding style.

Maintenance of the P100/P110 Rear Hub Motor

Proper maintenance of the P100/P110 rear hub motor is essential to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Keep it clean: Regularly clean the motor area to remove dirt, dust, and debris.
2. Check the wiring: Periodically inspect the wiring connections of the motor to ensure they are secure and free from any damage.
3. Lubrication: Some rear hub motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines or user manual to determine if lubrication is necessary.
4. Battery maintenance: Follow the manufacturer's guidelines for battery maintenance, including proper charging practices and storage.
5. Regular inspections: Periodically inspect the motor for any signs of damage and address them promptly to prevent further damage.
6. Firmware updates: Some rear hub motors may have firmware that can be updated for improved performance or bug fixes.

By following these maintenance tips, you can ensure that your P100/P110 rear hub motor continues to perform at its best.

Why Choose Raydafon's P100/P110 Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our company has introduced professional production and testing equipment and advanced production lines, and we have established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. We welcome global distributors to visit and negotiate, and we look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

Raydafon P100 Rear Hub Motor: The Ideal Choice for Your E-bike

Whether you're looking to upgrade your existing e-bike or build a new one, the Raydafon P100 Rear Hub Motor Kit is an excellent choice. It offers powerful performance, advanced features, and high efficiency, making it suitable for a variety of e-bike applications. At Raydafon, we're committed to providing high-quality e-bike parts that deliver exceptional performance and value. Choose the Raydafon P100 Rear Hub Motor Kit for your next e-bike project and experience the difference.Author: Yjx
