Raydafon P110 Motor Electric Bicycle Motor Small Electric Bike Rear Hub Motor for Ebike

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]The Raydafon P110 rear hub motor is a remarkable piece of technology, enhancing the performance of electric bicycles. This small, yet powerful, motor is designed with a brushless mechanism, ensuring maximum efficiency and longevity. Its unique design offers a sleek appearance, available in black or silver, and integrates seamlessly into your e-bike setup. The P110 model boasts a diameter of 112±1mm and widths of 135, 142, and 148mm, making it a versatile choice for various e-bike models.

Specifications of P110 Rear Hub Motor for E-bike

Item No.	P110SWXRDC36/P110SWXRC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Free-wheel types	Cassette & Whirl
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM

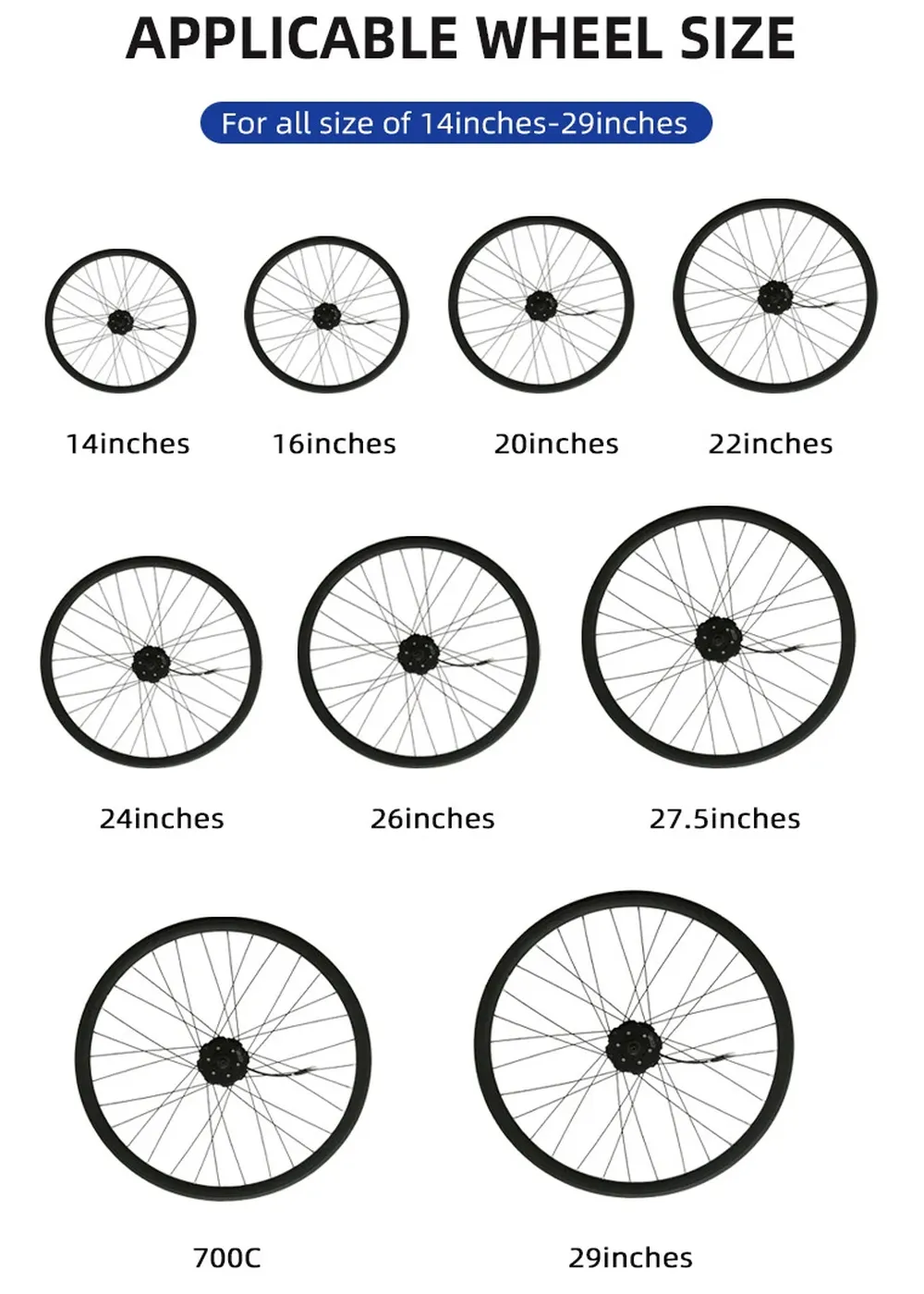

Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.4KG

Dimension of P110 Rear Hub Motor for E-bike

Advantages of the Raydafon P110 Rear Hub Motor

The P110 rear hub motor has numerous features that set it apart from other motors in the market:

1. Built-in controller and sensor: The motor's built-in controller and sensor provide precise control and feedback, ensuring optimal performance at all times.
2. Dynamic torque sensing system: This system allows the motor to adjust its output based on the rider's input, providing a seamless and smooth riding experience.
3. Slope induction system: This feature aids in uphill rides, adjusting the motor's output to make climbing easier and less strenuous.
4. Maximum power and torque: With a maximum power output of 750W and a torque exceeding 40N·m, the P110 motor is capable of powering through challenging terrains and conditions.
5. High efficiency: With an efficiency rating of more than 90%, this motor ensures that your e-bike's battery is utilized to its fullest potential.
6. Wireless control: The P110 motor supports wireless control, allowing for easy and convenient operation.

These features make the P110 rear hub motor a top choice for e-bike enthusiasts and manufacturers. With our advanced production techniques and commitment to quality, we are capable of producing this high-performance motor.

Applications of the P110 Rear Hub Motor

The P110 rear hub motor is a versatile component that can significantly enhance the performance of electric bicycles in various applications. Here are some typical uses and advantages of this exceptional motor:

1. Commuting: The P110 rear hub motor provides reliable and efficient power for daily commuting, assisting riders in tackling hills and long distances.
2. Urban transportation: E-bikes equipped with the P110 motor offer a convenient and eco-friendly alternative to cars, enabling swift navigation through traffic.
3. Cargo bikes: The motor's high torque output is ideal for cargo bikes designed for heavy loads, making it easier to transport goods.
4. Recreational riding: Whether off-road exploring or enjoying a leisurely countryside ride, the P110 motor provides extra power, making rides more enjoyable and less strenuous.
5. Touring and long-distance rides: For adventures on challenging terrains or vast distances, the P110 motor offers assistance, reducing fatigue and maintaining a consistent pace.
6. E-bike sharing services: The durability and efficiency of the P110 motor make it suitable for e-bike sharing programs, ensuring a smooth ride for multiple users.

How Does the P110 Rear Hub Motor for Ebike System Work?

The P110 rear hub motor integrates seamlessly into an e-bike system, working in tandem with several mechanical and electrical components to provide propulsion and assist the rider. The following is an overview of how the system works:

1. Motor: Located in the rear wheel hub, the P110 motor is powered by a battery and controlled by an electronic controller.
2. Battery: The battery supplies electrical energy to the motor. Compatibility with the battery system is crucial for optimal performance.
3. Controller: The electronic controller receives input from sensors, determining how much assistance to provide based on the rider's input and the selected power mode.
4. Sensors: Sensors monitor the rider's pedaling effort, speed, or torque, providing feedback to the controller to adjust the motor assistance accordingly.
5. Assistance Modes: The P110 motor offers multiple assistance modes, allowing the rider to select the desired level of assistance based on their preferences or riding conditions.
6. Operation: When the rider starts pedaling, the sensors detect the input and send signals to the controller, which activates the motor and delivers power to the rear hub, assisting the rider's pedaling effort.

Choose the Right P110 Rear Hub Motor for Your Electric Bicycle

Selecting the right P110 rear hub motor for your electric bicycle involves considering several factors:

1. 1. Power and Torque: The power and torque output of the motor determine how much assistance it can provide and how well it can handle various riding conditions.
   2. Voltage and Battery Compatibility: Ensure that the motor's voltage rating is compatible with the battery you intend to use.
   3. Wheel Size: Ensure that the rear hub motor is compatible with your bicycle's wheel size.
   4. Efficiency and Range: The motor's efficiency affects your e-bike's range. A more efficient motor helps maximize your battery's capacity.
   5. Weight and Size: Consider the weight and size of the rear hub motor. A lighter and more compact motor can improve the handling and maneuverability of your e-bike.
   6. Riding Style and Terrain: Consider your riding style and the type of terrain you'll be traversing. A motor with higher torque and power output may be more suitable for challenging conditions.

Proper Maintenance of the P110 Rear Hub Motor

Maintaining the P110 rear hub motor is crucial to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Keep it clean: Regularly clean the motor area to remove dirt, dust, and debris.
2. Check the wiring: Periodically inspect the wiring connections of the motor to ensure they are secure and free from any damage.
3. Lubrication: Some rear hub motors may require lubrication for smooth operation. Apply lubricant sparingly and avoid getting it on other components.
4. Battery maintenance: Follow the manufacturer's guidelines for battery maintenance, including proper charging practices and storage.
5. Regular inspections: Periodically inspect the motor for any signs of damage, such as cracks, dents, or loose parts. Check the spokes and rim of the rear wheel to ensure they are in good condition.
6. Firmware updates: Some rear hub motors may have firmware that can be updated for improved performance or bug fixes.

Why Choose Raydafon's P110 Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co., Ltd. is a leader in the development, manufacturing, and marketing of high-end electric bicycle parts. Our products, including the P110 rear hub motor, are CE-certified and protected by independent intellectual property rights. Our in-house design and development, combined with advanced production techniques, ensure the highest quality. Whether you're seeking to upgrade your bike or are interested in contributing to environmental protection, Raydafon is the ideal choice.Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.Author: Yjx.
