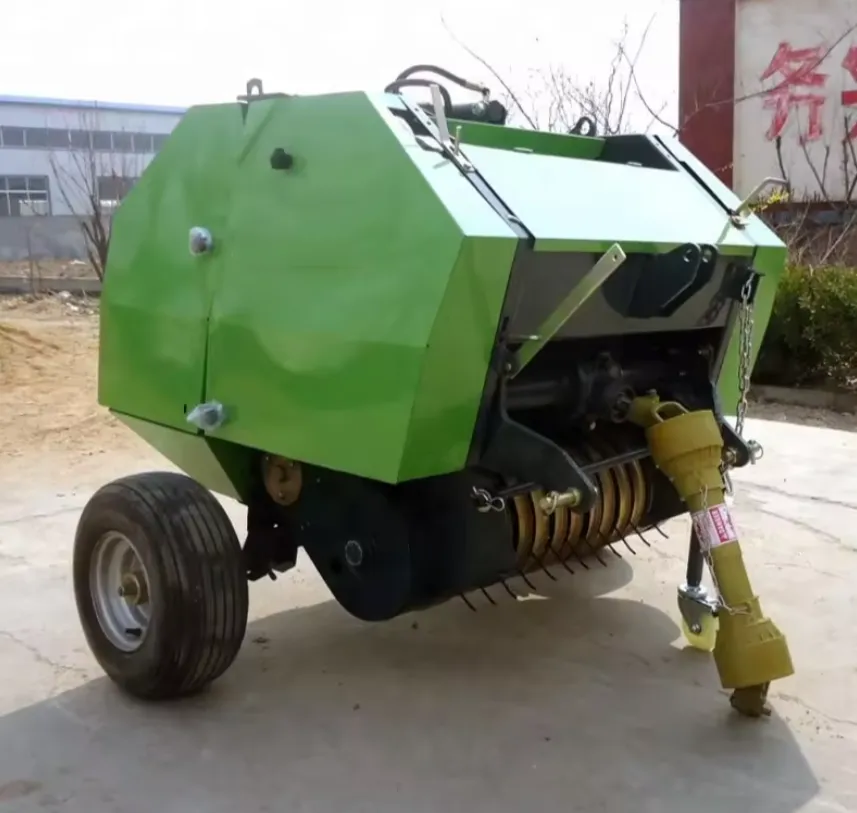

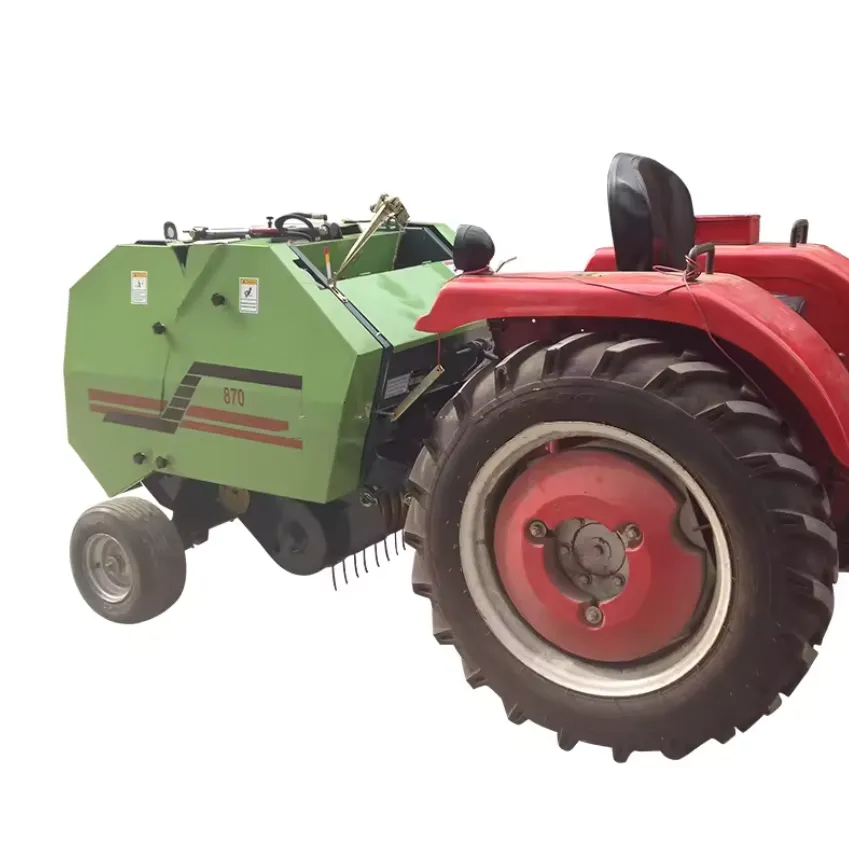

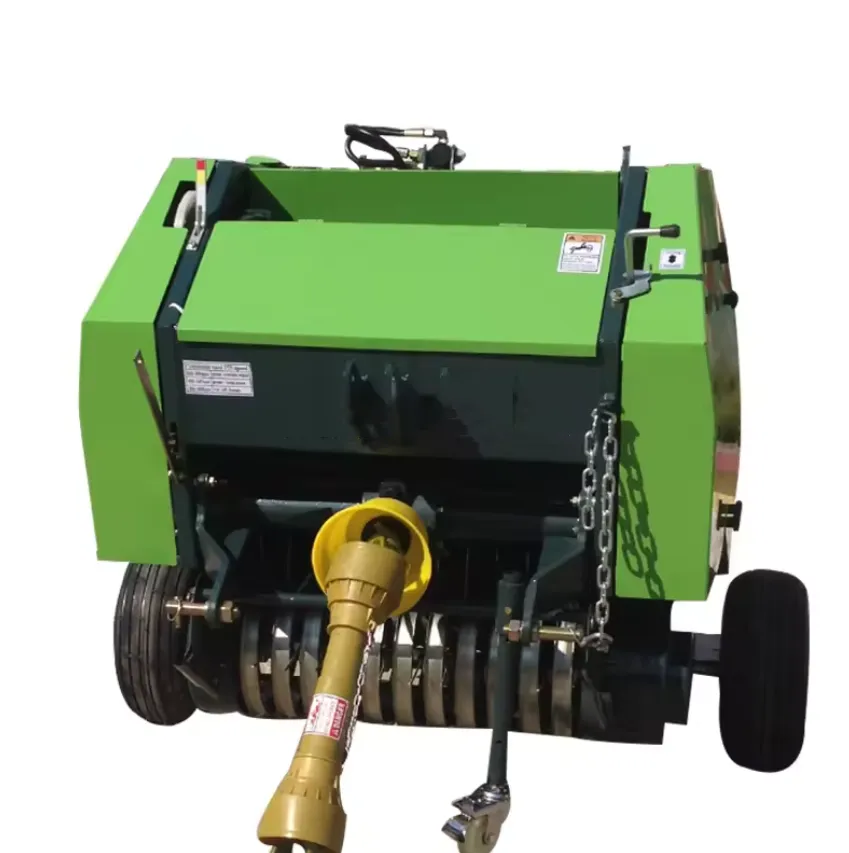

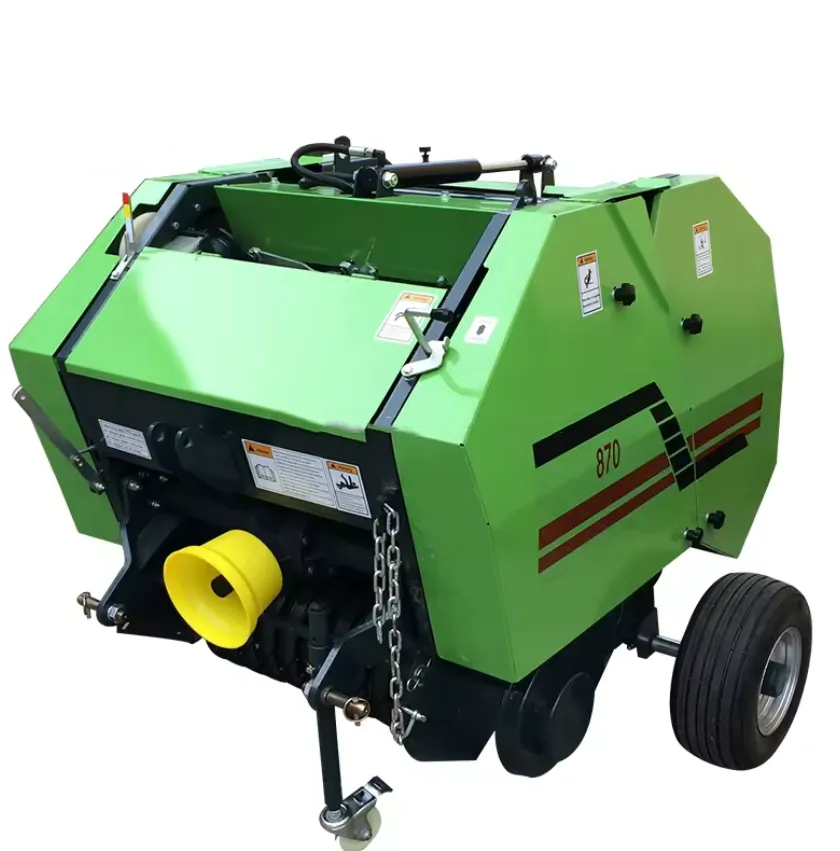

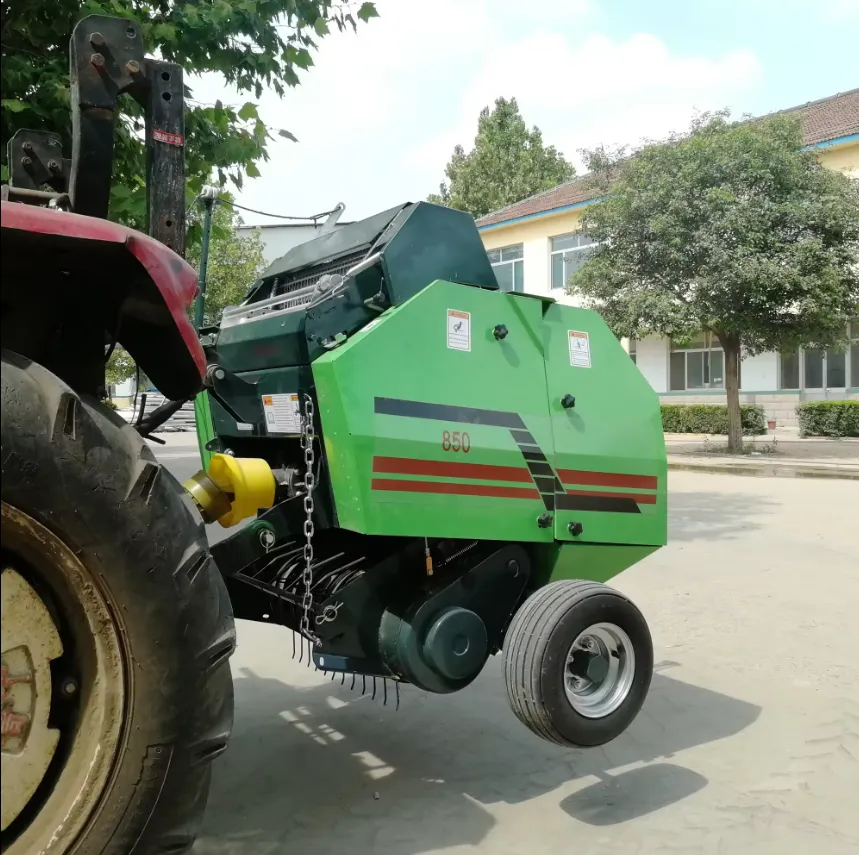

Raydafon RXYK Series Mini Hay Baler for Agricultural Hay Baling

[embed]https://youtu.be/pihgFul5F-c[/embed] Perfect for small-scale farming operations, the Raydafon RXYK series mini hay baler offers efficiency and reliability in the production of high-quality round bales. Encased in an iron crate for secure shipping, this versatile machine features an advanced design and structure, with a CE certificate to attest to its standards of safety and quality. The RXYK Series Mini Hay Baler is an innovative agricultural machine designed for efficient hay baling. It is specifically designed to cater to the needs of small-scale farmers and agricultural operations. The mini hay baler offers a compact and portable solution for conveniently baling hay in smaller quantities. This series of mini hay balers is equipped with advanced features and technology to streamline the baling process and maximize productivity. Despite its smaller size, the RXYK Mini Hay Baler maintains high performance and durability, ensuring reliable operation even in demanding conditions.

Advantages of the Raydafon RXYK Series Mini Hay Baler

There are numerous benefits to choosing the Raydafon RXYK series mini hay baler for your baling needs. Here are six that stand out:

• Superior Design and Structure: This machine comes with an advanced design and structure, capable of producing high-quality round bales. In 2011, it passed the CE certificate, a testament to its safety and quality standards.
• Comprehensive Components: The Raydafon RXYK series mini hay baler comprises the main machine, pickup part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, and three-point linkage. It can operate in tandem with a 15-90hp tractor via a PTO shaft.
• Reliable and Accurate: The entire working program of this machine is successive, accurate, and reliable. It produces round grass bales that are compact on the outside and loose on the inside, ensuring good air permeability.
• Versatile Application: This machine can bale a range of materials, including hay, grass, wheat, silage, alfalfa, and other types of straw.
• Weather-Resistant: The Raydafon RXYK series mini hay baler can resist wind, rain, and snow under open storage. This feature is convenient for long-term storage and long-distance transportation.
• Effective Use: This machine is especially beneficial for the prompt harvest of pasture in agricultural and pastoral areas, the effective use of crop stalks, and disaster countering and livestock protection.

Applications of the Raydafon RXYK Series Mini Hay Baler

The Raydafon RXYK series mini hay baler is a versatile tool with a wide range of applications. Here are six key uses:

1. Agricultural Baling: This machine is ideal for baling various types of agricultural waste, such as hay, grass, wheat straw, silage, and alfalfa.
2. Livestock Feeding: The bales produced by this machine are perfect for feeding livestock in rural and pastoral areas.
3. Landscape Maintenance: It can also be used for landscape maintenance, collecting and baling grass cuttings and leaves for easy disposal or composting.
4. Recycling: The Raydafon RXYK series mini hay baler can be used to recycle paper, cardboard, and other materials into compact bales for easy handling and transportation.
5. Waste Management: This machine can help manage agricultural waste effectively, reducing the environmental impact and making the most of available resources.
6. Storage and Transportation: The compact, high-quality bales produced by this machine are easy to store and transport, making it a valuable tool for farmers and agricultural businesses.

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler operates by attaching the baler to the rear of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

• Preparing the Tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
• Hitching the Baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
• Adjusting Settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
• Operating the Pickup Attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
• Bale Formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
• Bale Ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the Raydafon RXYK Series Mini Hay Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. is a leading name in the field of agricultural machinery. Renowned for product quality and superior customer service, Raydafon provides top-notch equipment designed with the end user in mind. Our main products are PTO shafts, agricultural gearboxes, flail mower, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Here are several reasons why you should consider Raydafon's mini hay round baler for your agricultural needs:

1. Professionalism: Raydafon boasts a team of highly skilled professionals committed to delivering quality products and services. Our staff includes 20 technical staff members and five senior R&D personnel, all of whom are dedicated to providing you with the best possible solutions for your needs.
2. International Certifications: Our products meet international standards, with certifications from recognized bodies. This ensures that you get equipment that is safe, reliable, and durable.
3. Customized Services: Raydafon understands that every customer's needs are unique, which is why we offer customized services. We work with you to understand your specific requirements and deliver a product that meets these needs.
4. Advanced Production Facilities: Our company operates advanced casting, forging, machining, heat treatment, and lacquering production lines. We use CAD computer-aided design systems to ensure precision in our products.
5. After-Sales Services: At Raydafon, we believe in going the extra mile for our customers. Our after-sales service includes lifetime repair service and spare parts provision. We promise to provide you with the solution you need in a timely manner.
