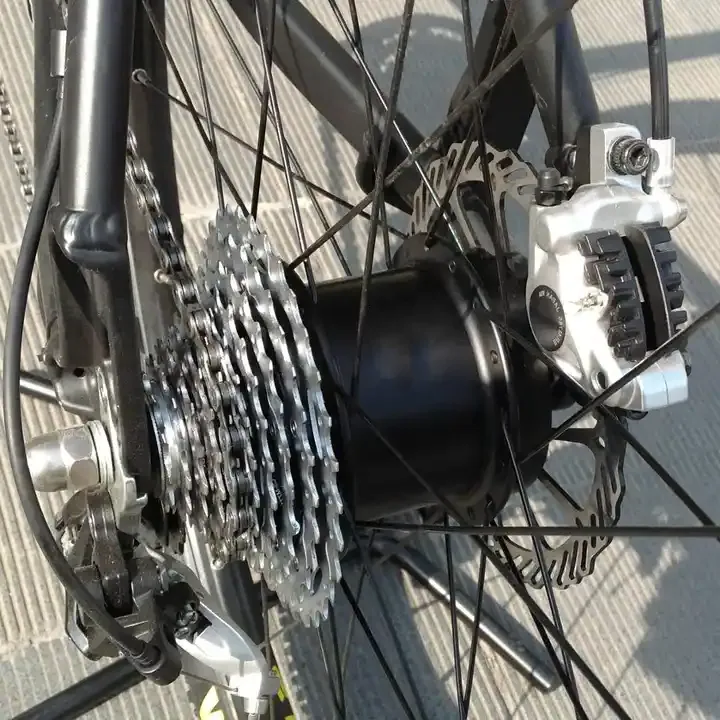

Raydafon S100 Rear Hub Motor: An Essential Component for Your E-Bike

Welcome to the world of electric bikes, where Raydafon's S100 rear hub motor plays a significant role. The S100 is designed for 14-inch, 16-inch, 20-inch, 26-inch, and 29-inch ebikes, offering versatile solutions for different bike sizes. It operates at a voltage of 36V and has a brushless design, offering efficient and reliable performance. The S100 is available in black and silver colors, suiting different aesthetic preferences. Featuring a diameter of 102??1mm and a width of 135??2mm, it is compact yet powerful. The motor has a rated output power of 250W and can reach a maximum output power of 300W. Its maximum output torque is 30Nm, delivering excellent performance when you need it the most. It operates at a rated voltage of 24V, 33V, or 36V and boasts an efficiency of ??88%. The motor operates at a rated revolution of 160-260 r/min and weighs only 1.7 kg, making it a lightweight addition to your e-bike.

The Advantages of the S100 Rear Hub Motor

The S100 rear hub motor shines with its distinct competitive advantages. These are:

1. Built-in controller and sensor: This feature simplifies the wiring and setup process, making it easy to install and maintain.
2. Light weight: Weighing only 1.7 kg, it doesn??t add significant weight to your e-bike, ensuring easy handling and maneuverability.
3. Small size: Its compact design allows it to fit snugly into the rear wheel hub without altering the aesthetics of your bike.
4. Super-silent: The S100 operates quietly, offering a peaceful and enjoyable riding experience.
5. High efficiency and long life: With an efficiency rating of ??88%, it optimizes battery use, enabling you to ride longer distances. Its robust construction ensures a long lifespan.

6. Optional wireless communication: This feature allows for easy control and monitoring of the motor's performance using a wireless device.

At Raydafon, we are proud to produce this innovative rear hub motor, ensuring top-quality manufacturing processes and stringent quality checks for each unit we deliver.

Applications of the S100 Rear Hub Motor

The S100 rear hub motor finds application in a variety of scenarios. Here are some of its common uses:

1. Electric Bicycles: The S100 motor is commonly used in electric bicycles to provide pedal-assist or full electric propulsion. It offers a seamless and efficient electric riding experience.
2. Commuting: E-bikes equipped with the S100 motor are ideal for commuting, providing additional power to reach destinations quickly and effortlessly, especially over hilly terrain or long distances.
3. City Riding: The S100 motor is well-suited for navigating city streets. Its torque and power enable effortless acceleration from a standstill and easy maneuvering through traffic. Its quiet operation ensures a smooth and unobtrusive riding experience in urban environments.
4. Cargo Bikes: Cargo bikes benefit from the S100 motor's high torque output. The motor allows easy transportation of groceries, equipment, or other bulky items without excessive physical effort.
5. Recreational Riding: E-bikes equipped with the S100 motor are popular among riders who enjoy leisurely rides in various terrains. Whether it's exploring off-road trails or cruising along scenic routes, the motor provides the necessary power and assistance to make recreational riding enjoyable and less strenuous.
6. Touring and Long-Distance Riding: For riders embarking on long-distance tours or bikepacking adventures, the S100 rear hub motor is a reliable choice. It provides consistent power to assist riders during extended rides, enabling them to cover greater distances with less fatigue.

How Does the S100 Rear Hub Motor for Ebike System Work?

The S100 rear hub motor operates on the principle of a brushless direct current (BLDC) motor. Here's a step-by-step guide on how it works:

1. Motor Construction: The S100 rear hub motor, typically housed within the rear wheel hub of an e-bike, consists of several key components: a stator, rotor, magnets, and coils.
2. Magnetic Field Creation: The stator is connected to the e-bike's battery and controller. When electric current flows through the coils, it creates a magnetic field within the motor. This interacts with the magnetic field generated by the rotor's magnets.
3. Electromagnetic Forces: The interaction of the magnetic fields generates electromagnetic forces, causing the rotor to rotate and spin the rear wheel of the e-bike.
4. Power and Control: The e-bike's controller regulates the power to the motor by adjusting the current flowing through the coils. It receives input from the rider and determines the level of assistance or power required. The controller also monitors parameters like speed, temperature, and battery level for safe and efficient operation.
5. Pedal-Assist and Throttle Modes: The S100 rear hub motor can operate in different modes. In pedal-assist mode, the motor provides assistance based on the rider's pedaling effort. In throttle mode, the rider controls the speed of the e-bike without pedaling.
6. Regenerative Braking (optional): Some e-bike systems with the S100 rear hub motor feature regenerative braking. When the brakes are applied, the motor acts as a generator, converting kinetic energy back into electrical energy to extend the e-bike's range.

Choosing the Right S100 Rear Hub Motor for Your Electric Bicycle

When choosing the right S100 rear hub motor for an electric bicycle, consider the following factors:

1. Power and Torque: The power and torque output of the motor determine its level of assistance and performance. If you anticipate riding on hilly terrain or carrying heavy loads, consider a motor with higher torque and power capabilities.
2. Voltage and Battery Compatibility: Ensure that the motor is compatible with the voltage of your e-bike's battery. Mismatched voltage can lead to compatibility issues and potentially damage the motor or battery.
3. Wheel Size and Compatibility: The S100 rear hub motor comes in different wheel sizes. Ensure the motor matches the size of your e-bike's rear wheel. Also, consider the compatibility of the motor with your bike's dropout width and axle type.
4. Efficiency and Range: A motor with good efficiency affects the e-bike's overall range. Higher efficiency motors provide longer battery life and allow you to ride farther on a single charge.
5. Noise and Smoothness: Consider the noise level and smoothness of the motor's operation. A quieter motor provides a more pleasant riding experience, particularly in urban environments.

Maintaining the S100 Rear Hub Motor

Proper maintenance of the S100 rear hub motor can ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor clean by regularly wiping off dirt, dust, and debris. Avoid using strong chemicals or high-pressure water, as they can damage the motor's components.
2. Inspect and Tighten Fasteners: Check and tighten all fasteners regularly to ensure they are secure. Loose fasteners can cause vibrations and potentially lead to damage or malfunction of the motor.
3. Check Wiring Connections: Examine the wiring connections between the motor, battery, and controller. Look for any loose or frayed wires and ensure all connections are secure.
4. Lubrication: Some rear hub motors may require lubrication for smooth operation. Consult the manufacturer's guidelines to determine the recommended lubricant to use.
5. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, including proper charging procedures and regular checks for any signs of damage or deterioration.
6. Wheel Truing: If you notice any wheel wobbling or unevenness, seek assistance from a professional bike mechanic or e-bike shop for wheel truing.
7. Regular Inspections: Periodically inspect the motor for signs of wear, damage, or unusual noise. If you notice any abnormalities, consult a professional for further assessment and maintenance.

Why Choose Raydafon's S100 Rear Hub Motor for Your Electric Bicycle?

At Raydafon Electric Technology Co Ltd, we are dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by several domestic and international intellectual property rights. We have introduced professional production and testing equipment, established advanced production lines, and implemented a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. Our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. These are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking high-end electrical components of electric bicycles, still worried about traffic jams, and would like to contribute to environmental protection, we sincerely welcome global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

Author: Yjx
