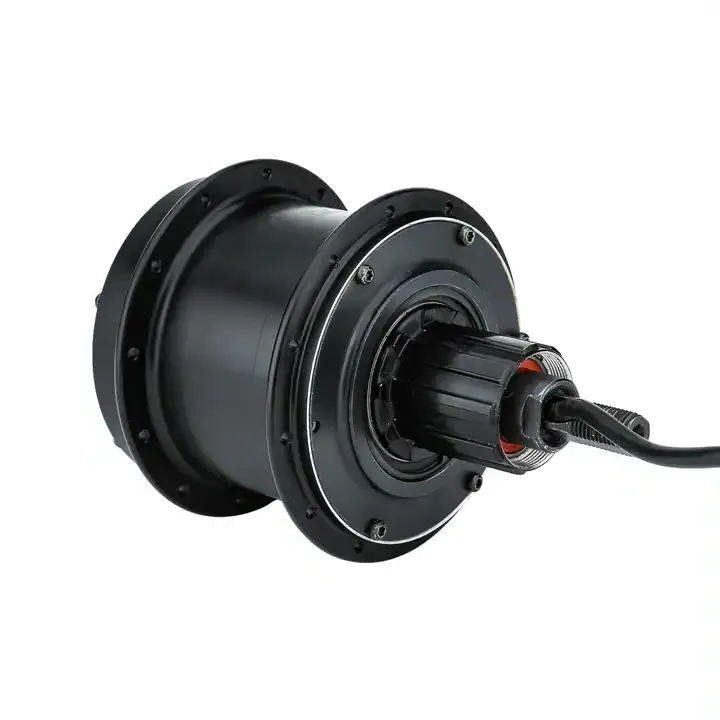

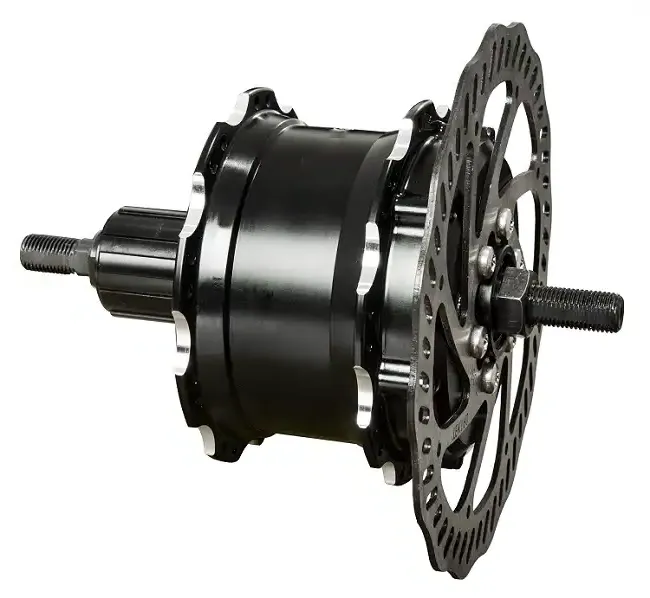

Raydafon S100 Rear Hub Motor with Controller: Small Light Brushless Motor with Wireless Control

The Raydafon S100 Rear Hub Motor is a high-performance, brushless motor designed for electric bicycles. Sporting a compact size, lightweight design, and wireless control capability, this motor offers an efficient and reliable solution for e-bike propulsion. Its specifications include a 36V voltage, black/silver color, 102??1mm diameter, 135??2mm width, 250W rated output power, 300W maximum output power, and a maximum output torque of 30Nm. The motor demonstrates an impressive efficiency of ??88%, a rated revolution of 160-260 r/min, and a weight of 1.7kg.

Advantages of the S100 Rear Hub Motor

The S100 Rear Hub Motor brings an array of benefits to the table, making it an ideal choice for e-bike systems:

1. Built-in Controller and Sensor: The motor comes with an integrated controller and sensor, offering smooth and responsive performance.
2. Lightweight: Weighing only 1.7kg, the S100 motor does not add significant weight to the e-bike, ensuring a comfortable riding experience.
3. Small Size: The compact design of the motor allows for easy integration into the e-bike's rear wheel hub without affecting the bike's aesthetics or balance.
4. Super-silent: The S100 operates quietly, providing a peaceful and enjoyable ride.
5. High Efficiency and Long Life: With an efficiency of ??88%, this motor ensures optimal usage of battery power, resulting in longer rides. It is also designed for longevity, offering reliable performance over time.
6. Optional Wireless Communication: The motor can be optionally equipped with wireless control, offering convenient and intuitive operation.

Applications of the S100 Rear Hub Motor

The S100 Rear Hub Motor is versatile and can be used in a variety of e-bike applications:

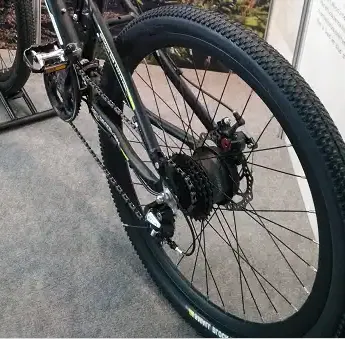

1. Electric Bicycles: The motor is widely used in electric bicycles, providing pedal-assist or full electric propulsion. It's easy to integrate into the rear wheel hub, offering an efficient riding experience.
2. Commuting: E-bikes equipped with the S100 motor are perfect for commuting. The motor helps riders reach their destinations quickly and effortlessly, especially on hilly terrains or long distances.
3. City Riding: The motor is ideal for city streets. Its torque and power enable riders to accelerate and maneuver through traffic with ease. The quiet operation ensures a smooth ride in urban environments.
4. Cargo Bikes: Cargo bikes benefit from the high torque output of the S100 motor. Its robust performance facilitates the transportation of heavy items without excessive physical effort.
5. Recreational Riding: E-bikes with the S100 motor are popular among leisure riders. Whether it's exploring off-road trails or scenic routes, the motor ensures an enjoyable and less strenuous ride.
6. Touring and Long-Distance Riding: The S100 motor is a reliable choice for long-distance tours or bikepacking adventures. It provides consistent power, enabling riders to cover greater distances with less fatigue.

How Does the S100 Rear Hub Motor for Ebike System Work?

The S100 Rear Hub Motor operates on the principle of a brushless direct current (BLDC) motor. Here's how it works:

1. Motor Construction: The S100 motor is housed within the rear wheel hub of an e-bike. It consists of a stator, rotor, magnets, and coils. The stator contains the copper windings, while the rotor is the rotating part of the motor.
2. Magnetic Field Creation: When electric current flows through the coils, it creates a magnetic field. The magnets on the rotor generate their own magnetic field, interacting with the stator's field.
3. Electromagnetic Forces: The interaction of the magnetic fields generates electromagnetic forces, causing the rotor to rotate and spin the rear wheel of the e-bike.
4. Power and Control: The e-bike's controller regulates the power by adjusting the current flowing through the coils. It receives input from the rider and determines the level of assistance required.
5. Pedal-Assist and Throttle Modes: The S100 motor can operate in pedal-assist and throttle modes. The motor provides assistance based on the rider's pedaling effort or throttle position.
6. Regenerative Braking: Some e-bike systems with the S100 motor feature regenerative braking. When the brakes are applied, the motor acts as a generator, converting kinetic energy back into electrical energy and feeding it back into the battery.

Choosing the Right S100 Rear Hub Motor for Electric Bicycles

When selecting the right S100 Rear Hub Motor for an electric bicycle, consider these factors:

1. Power and Torque: The power and torque output of the motor will determine its performance and assistance level. If you anticipate riding on hilly terrains or carrying heavy loads, a motor with higher torque and power capabilities is advisable.
2. Voltage and Battery Compatibility: Ensure that the motor's voltage is compatible with the e-bike's battery. Mismatched voltage can lead to compatibility issues or potential damage to the motor or battery.
3. Wheel Size and Compatibility: The S100 motor comes in different wheel sizes to accommodate various e-bike configurations. Ensure that the motor matches the size of your e-bike's rear wheel and is compatible with your bike's dropout width and axle type.
4. Efficiency and Range: A motor with good efficiency will affect the e-bike's overall range. Higher efficiency motors offer longer battery life and allow you to ride farther on a single charge.
5. Noise and Smoothness: Consider the noise level and smoothness of the motor. A quieter motor provides a more pleasant riding experience, especially in urban environments.

Maintaining the S100 Rear Hub Motor

Proper maintenance of the S100 Rear Hub Motor can ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor clean by regularly wiping off dust and debris. Use a soft cloth and mild soap. Avoid strong chemicals or high-pressure water.
2. Inspect and Tighten Fasteners: Check and tighten all fasteners periodically. Loose fasteners can cause vibrations and potentially damage the motor.
3. Check Wiring Connections: Examine the wiring connections between the motor, battery, and controller. Look for any loose or frayed wires. If there are any issues, consult a qualified technician.
4. Lubrication: Some motors may require lubrication. Consult the manufacturer's guidelines and use the recommended lubricant sparingly, avoiding the brake surfaces.
5. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, including proper charging procedures and regular checks for damage.
6. Wheel Truing: If you notice any wheel wobbling, the wheel may need truing. Seek professional assistance for wheel truing to ensure it's done correctly.
7. Regular Inspections: Inspect the motor periodically for signs of wear, damage, or unusual noise. If you notice any issues, consult a professional.

Why Choose Raydafon's S100 Rear Hub Motor for Electric Bicycles?

Raydafon Electric Technology Co Ltd. is a leading provider of high-end electric bicycle parts. Our products are designed and developed in-house and protected by numerous domestic and international intellectual property rights. We have introduced professional production and testing equipment, advanced production lines, and a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

Author: Yjx
