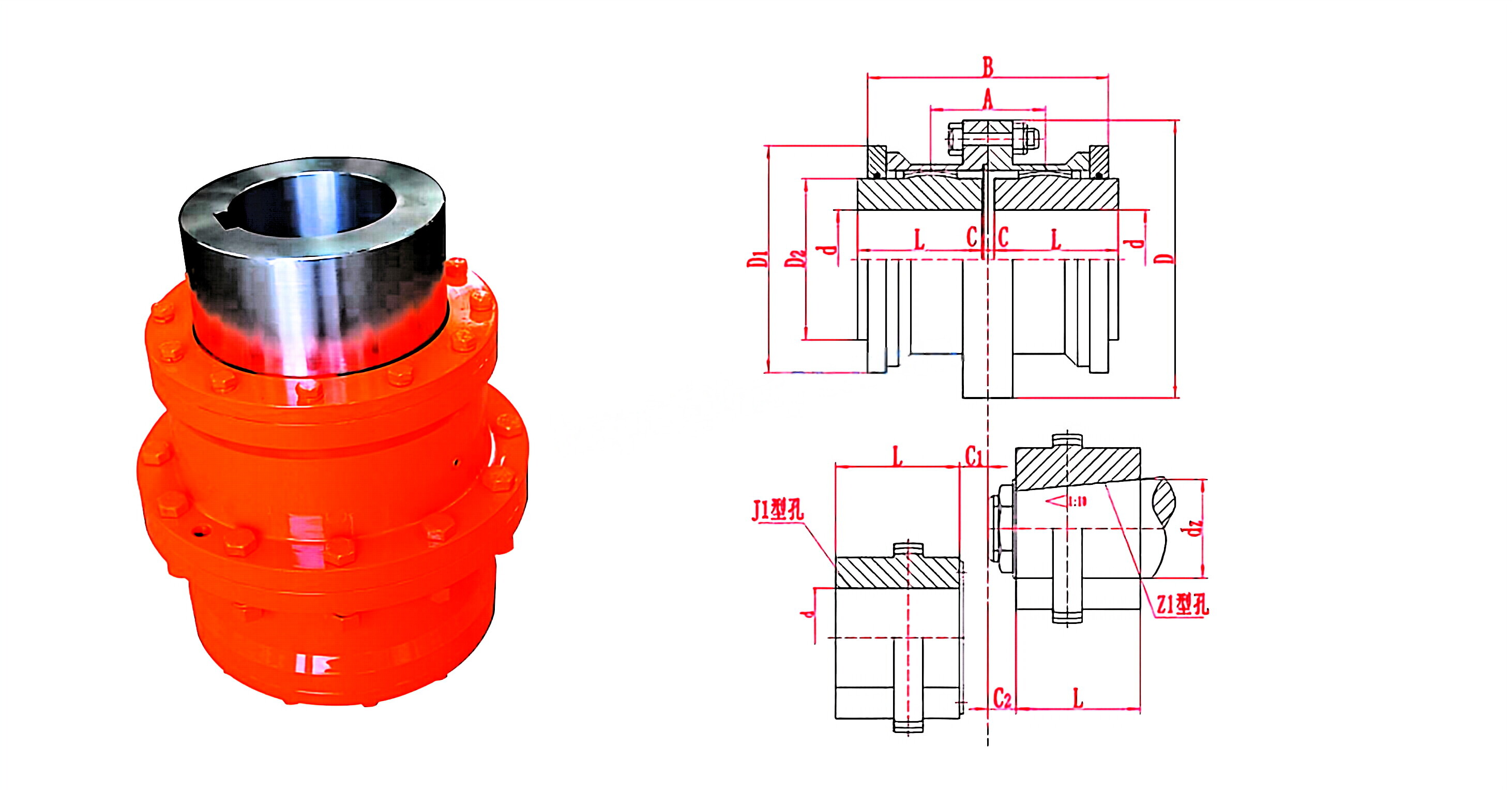

RDF-GIICL Series Gear Coupling

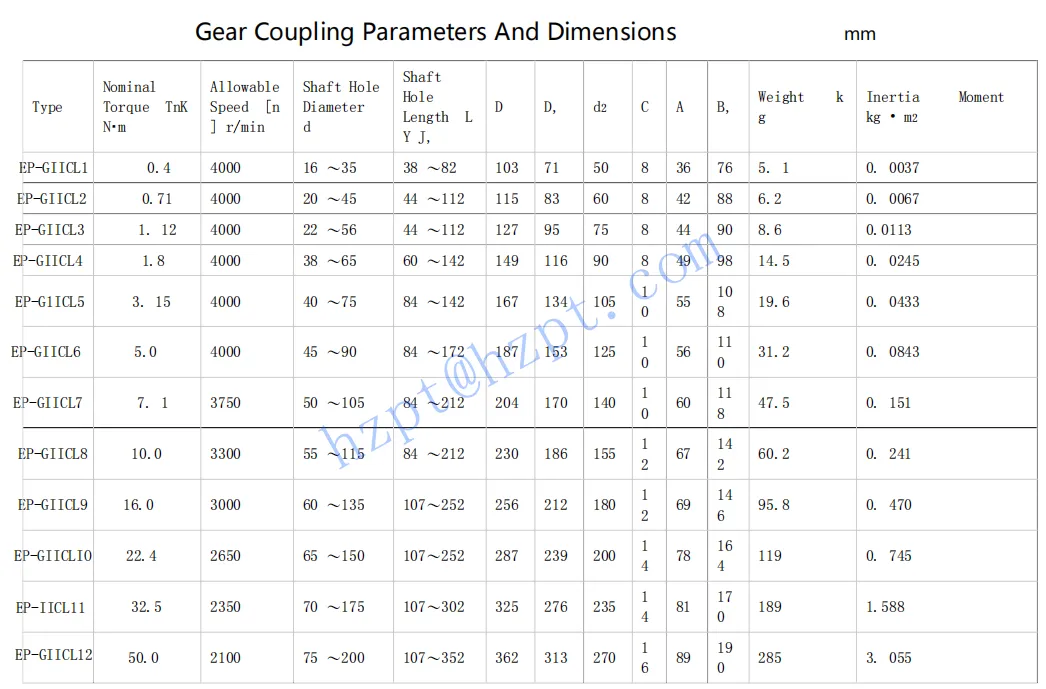

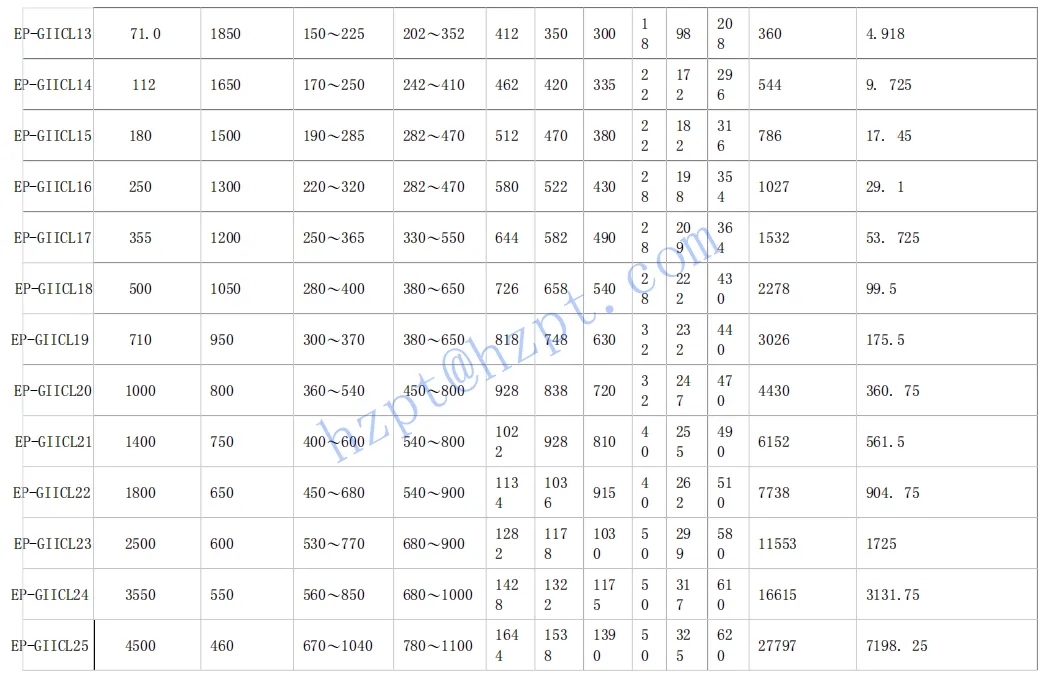

Note: 1. The weight and moment of inertia of the coupling are calculated according to the type J hole.2. It is recommended to choose the length of J-shaped hole.3. Nitriding and surface quenching shall be agreed in the contract.The RDF-GIICL Drum Gear Coupling is engineered for connecting two horizontal coaxial drive shaft systems, offering exceptional performance even when there is a relative angular offset between the shafts. This innovative coupling design ensures reliable power transmission while accommodating misalignments, making it an ideal solution for various industrial applications.

Key Features

1. Angular Offset Compensation

The unique drum tooth design of the RDF-GIICL coupling enables it to effectively compensate for angular misalignments between the shafts. This feature is crucial in maintaining efficient operation in systems where precise alignment is challenging due to installation conditions or operational dynamics.

2. Wide Operating Temperature Range

This gear coupling is designed to perform reliably in a diverse range of environments, with an operating temperature range of -20°C to +80°C. This temperature resilience makes it suitable for various applications, from cold environments to those with moderate heat exposure.

3. Robust Torque Transmission

The RDF-GIICL Drum Gear Coupling is capable of transmitting nominal torque values ranging from 0.4 to 4500 kN·m. This broad torque capacity allows it to be utilized in both light-duty and heavy-duty applications, ensuring adaptability across different industrial sectors.

4. Durable Construction

Manufactured from high-quality materials, the RDF-GIICL coupling is built to withstand the rigors of demanding operational conditions. Its robust construction contributes to a long service life, reducing the need for frequent replacements and maintenance.

5. Versatile Applications

This coupling is suitable for a variety of applications, including but not limited to:

• Power transmission systems in manufacturing and processing industries
• Machinery in material handling and construction
• Pumps, compressors, and other rotating equipment

The RDF-IICL Drum Gear Coupling is a reliable and efficient solution for connecting horizontal coaxial drive shafts, providing excellent performance in the face of angular misalignments. With its robust construction, wide operating temperature range, and substantial torque capacity, it stands out as a versatile choice for various industrial applications. Whether you are looking to enhance the performance of existing systems or design new ones, the RDF-GIICL coupling offers the durability and efficiency you need to succeed.
