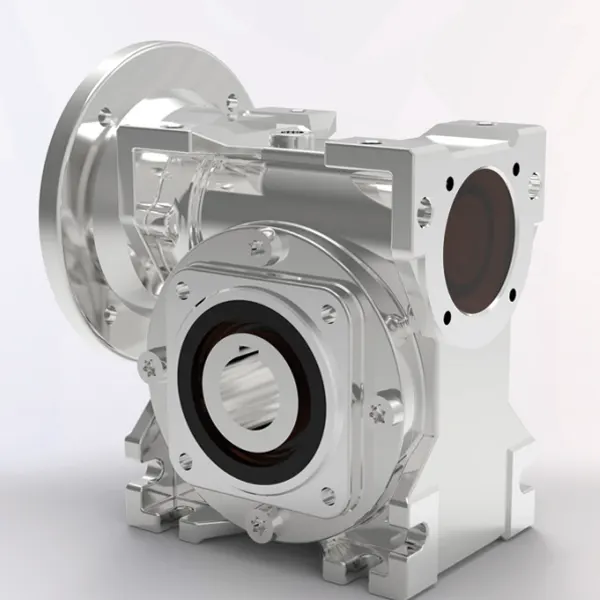

RDF-SSRV075 Stainless Steel Worm Gearbox

Introduction of RDF-SSRV075 Stainless Steel Worm Gearbox

RDF-SSRV075 Stainless Steel Worm Gearbox is a type of gearbox that belongs to the SSRV series. It is designed with the same installation dimensions and sizing as the NMRV gearbox. The main difference lies in the material used for the flange of the housing and the core of the wheel, which are both made of 304 precision casting. The worm wheel is made of 12-2 tin bronze, and the gearbox is filled with fully synthetic worm gear oil. The surface of the gearbox is electrolytically polished, making it corrosion-resistant, easy to clean, and suitable for installation in various orientations.

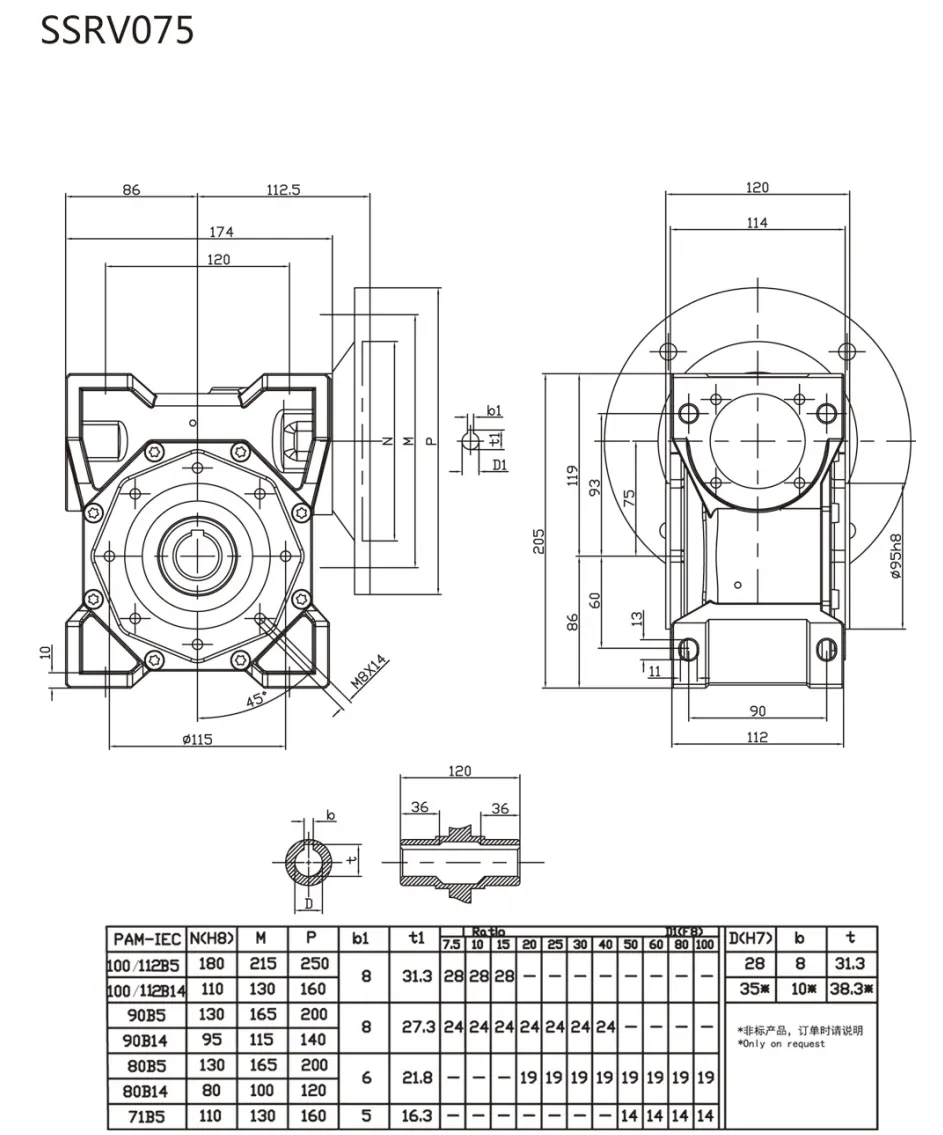

Mounting Dimensions

This section provides the installation dimensions for the RDF-SSRV075 Stainless Steel Worm Gearbox.

SSRV...F Output Flange Dimension

Here is the dimension of the output flange for the RDF-SSRV075 Stainless Steel Worm Gearbox:

SSRV Stainless Steel Worm Gearbox Output Shafts

The output shaft of RDF-SSRV075 Stainless Steel Worm Gearbox is made of 304 material. Please see the image below for reference:

About SSRV Worm Gearbox Torque Arm

The RDF-SSRV075 Stainless Steel Worm Gearbox is equipped with a sturdy torque arm that provides reliable support and stability to the gearbox. Made from high-quality stainless steel material, this torque arm ensures maximum durability and strength. It is designed to handle high torque loads and offers excellent resistance against wear and tear. The torque arm is easy to install and allows for precise positioning of the gearbox.

Application of RDF-SSRV075 Stainless Steel Worm Gearbox

The RDF-SSRV075 Stainless Steel Worm Gearbox is widely used in various industries and scenarios. Its versatility and durability make it suitable for the following applications:

• Food processing
• Beverage production
• Chemical manufacturing
• Pharmaceutical industry
• Water treatment

Stainless Steel Worm Reducer Selection

RDF-SSRV075 Stainless Steel Worm Gearbox is a high-quality gearbox that is designed to withstand harsh environments. When choosing a suitable stainless steel gearbox, there are several points to consider:

• Ratio: Choose a gearbox with a suitable gear ratio based on your specific application requirements.
• Torque: Ensure that the gearbox is capable of handling the required torque for your application.
• Shaft Orientation: Choose a gearbox with a shaft orientation that is compatible with your application.
• Input Speed: Make sure that the gearbox is capable of handling the input speed of your application.
• Operating Temperature: Ensure that the gearbox can operate within the required temperature range for your application.
• Mounting: Choose a gearbox with a mounting style that is compatible with your application.

Refer to the following selection parameter table for RDF-SSRV075 Stainless Steel Worm Gearbox to help determine the appropriate gearbox model for your specific application:

Stainless Steel Motors for RDF-SSRV075 Stainless Steel Worm Gearbox

Our company not only provides stainless steel gearboxes, but also offers a range of stainless steel motors that are compatible with the RDF-SSRV075 Stainless Steel Worm Gearbox. These motors are designed to work seamlessly with the gearbox, ensuring optimal performance and durability in various applications.

Stainless Steel Worm Reducers Manufacturer

RDF-SSRV075 Stainless Steel Worm Gearbox is a product that speaks volumes about our company's unique selling points. At Raydafon, we take pride in providing high-quality products and exceptional services to our customers. Our stainless steel worm reducers are a testament to our commitment to quality and reliability.

Our team of experts ensures that every product we manufacture goes through rigorous quality checks to ensure that our customers receive only the best. We understand that every application is unique, and therefore, we provide customized solutions to meet the specific needs of our customers.

At Raydafon, we do not just stop at stainless steel worm reducers. We offer a wide range of other non-standard reduction gearboxes, such as automatic car wash machine reducers, fountain reducers, snow blower reducers, and more. Our products are designed to provide maximum efficiency, durability, and reliability, even in the toughest conditions.

Our customer-centric approach is what sets us apart from our competitors. We strive to provide exceptional customer services, and we are always ready to go the extra mile to ensure that our customers are satisfied. Our aim is to build long-term relationships with our customers by providing them with products that meet their needs and exceed their expectations.
