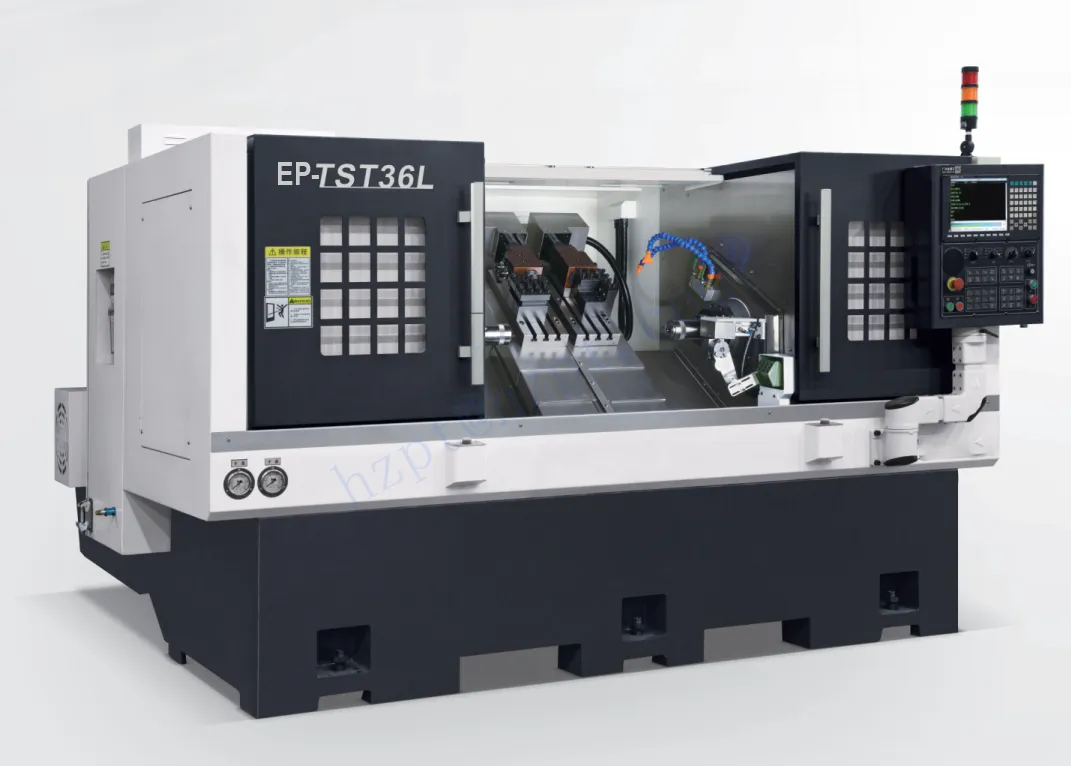

RDF-TST Series Dual Spindle CNC Lathe RDF-TST36L RDF-TST46L

Standard Configuration:

SYNTEC CNC system /Collet Chuck/ SYNTEC X, Z-axis servo motors / Taiwanese PMI, HIWIN ball screws, linear guides.

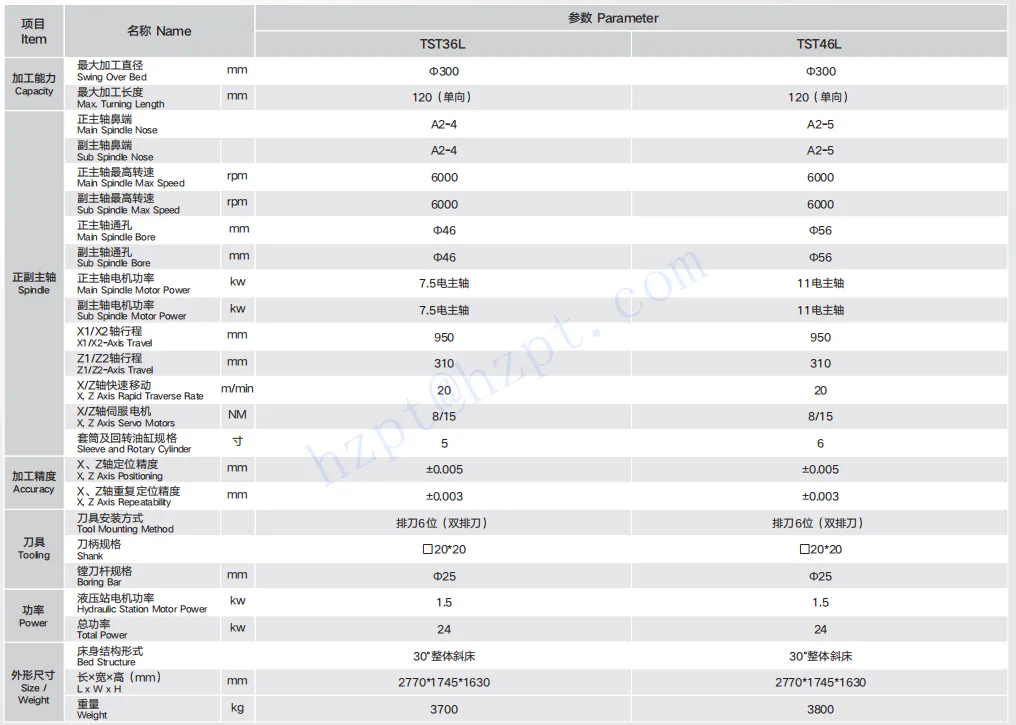

Parameter

Machine Tool Features

• High Rigidity and Low Vibration Design:Our machine tools are meticulously engineered with a high rigidity and low vibration design, incorporating a 30-degree slant bed structure. This innovative configuration undergoes extensive finite element analysis to optimize the entire machine's performance. The thoughtful arrangement of internal ribbing within the bed enhances stability, significantly reducing vibrations during operation. This design not only improves machining accuracy but also ensures a superior surface finish, making our machines well-suited for high-precision applications across various industries.
• Synchronous Machining:Our machines are equipped with dual spindles that allow for synchronous machining, enabling two independent processes to be executed simultaneously. This feature dramatically enhances production efficiency by significantly reducing machining time and labor costs. The ability to perform multiple operations in one setup minimizes the risks associated with secondary clamping of workpieces, which can lead to cumulative errors. As a result, operators can achieve higher throughput without compromising on quality, making our machines ideal for modern manufacturing environments where time and precision are critical.
• Enhanced P3-Class Ball Screws and Linear Guides:The machines are fitted with reinforced P3-class ball screws and linear guides, providing exceptional precision and durability. These components are designed to handle heavy loads while maintaining smooth and accurate motion throughout the machining process. The robust construction of the linear guides ensures minimal backlash, enhancing the overall performance and reliability of the machine. This precision engineering is crucial for achieving high-quality results, whether in high-speed production or complex machining tasks.

In summary, our machine tools are designed to deliver outstanding performance and efficiency through advanced engineering features. With a focus on high rigidity, low vibration, synchronous machining capabilities, and enhanced motion systems, our equipment meets the diverse needs of modern manufacturing. Whether for high-volume production or intricate machining operations, our machines provide the reliability and accuracy necessary to excel in today’s competitive landscape.

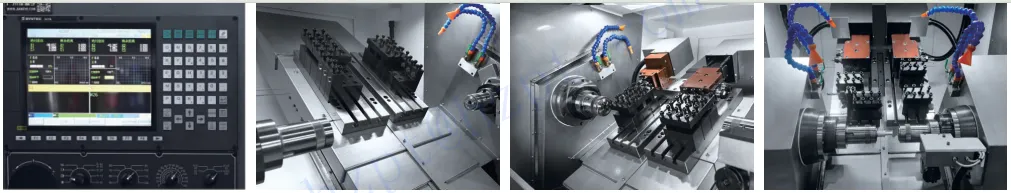

Auxiliary Extension

Workpiece Display

Workshop

We have been pursuing high-end technology and investing in high-precision equipment to make first-class products, which will create a world full of miracles for us. We exist for miracles.

About Raydafon

Raydafon was founded in 2006 and has established itself as a national high-tech enterprise specializing in the research and development, production, sales, and service of CNC machine tools. With a keen understanding of market trends, Raydafon delivers comprehensive solutions tailored to meet the diverse needs of its customers.The company’s product portfolio includes a wide array of advanced machinery, such as turning and milling centers, vertical machining centers, turret and row tool CNC lathes, as well as solutions for industrial automation. These products are employed across various industries, including automotive, telecommunications, new energy, engineering machinery, and chemicals, showcasing their versatility and reliability.Raydafon places a strong emphasis on product research and development, continuously striving for technological progress. The company is dedicated to fostering ongoing technological innovation, which significantly enhances its competitiveness in the market. By prioritizing quality and innovation, Raydafon aims to lead the way in the CNC machine tool industry, ensuring that it meets the evolving demands of its clients and contributes to the advancement of manufacturing technologies.

Author: CX
