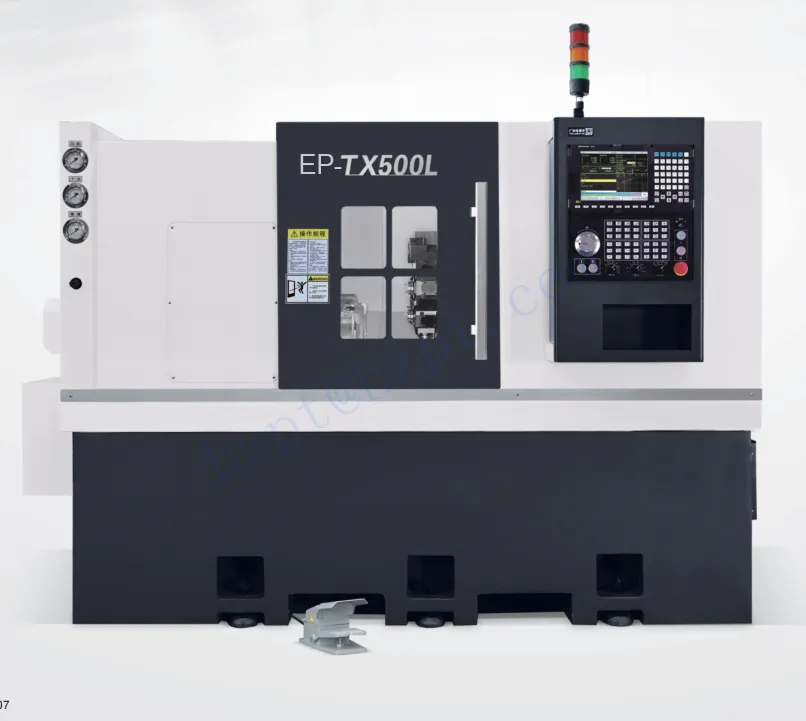

RDF-TX Series Power Turret Turning-Milling Compound (Without Y-Axis)

RDF-TX Series (RDF-TX460L RDF-TX500L RDF-TX520L RDF-TX680L RDF-TX800L)

Standard Configuration:

SYNTEC CNC system / Taiwanese Y-axis Powered Turret / SYNTEC X, Z, Y-axis Servo Motors / Hydraulic Chuck / Taiwanese PMI, HIWIN Ball Screw, Roller Linear Guide

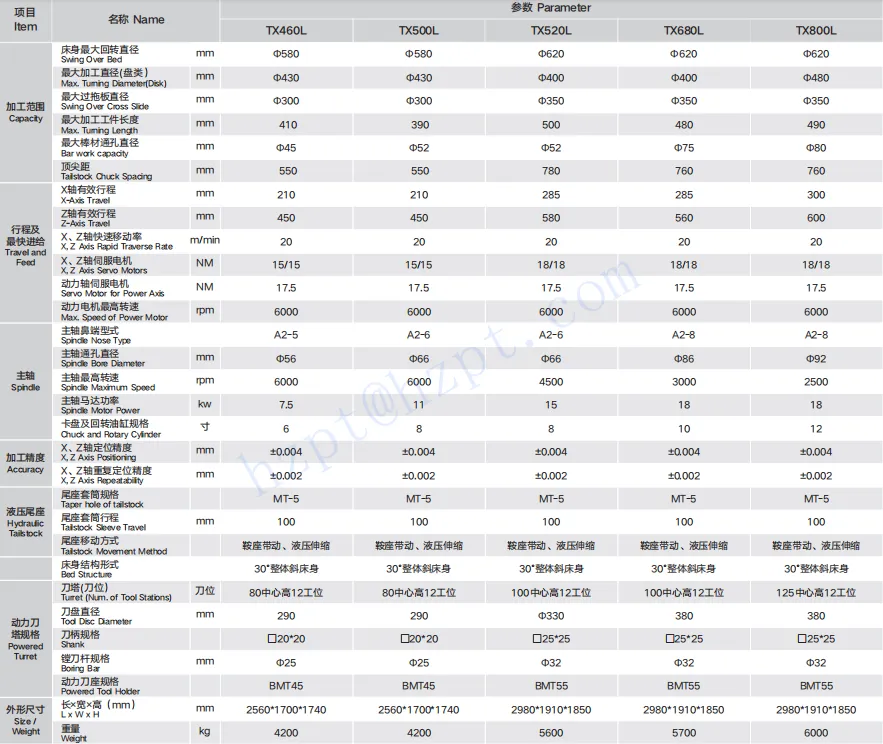

Parameter

Machine Tool Features

• High Rigidity and Low Vibration Design:Our machine tools are designed with a focus on high rigidity and low vibration, employing a 30-degree slant bed structure. This innovative design is optimized through comprehensive finite element analysis, which enhances the overall stability and performance of the machine. The internal rib layout is thoughtfully arranged to minimize vibrations during operation, resulting in improved machining accuracy and superior surface finishes. This design approach ensures that our machines can handle demanding tasks with precision and reliability.
• Equipped with High-Rigidity Taiwanese Power Turret:Our machines feature a high-rigidity power turret sourced from Taiwan, which integrates multiple machining functions such as turning, milling, drilling, and tapping. This combination of capabilities, along with the incorporation of a C-axis, allows for complex machining operations to be performed seamlessly. By integrating these functions, we significantly reduce processing times and labor costs, as operators can perform various tasks without the need for multiple setups. Additionally, this configuration eliminates the errors often associated with secondary clamping of workpieces, enhancing overall production accuracy.
• Enhanced P3-Class Ball Screws and Roller Linear Guides:The machine is equipped with reinforced P3-class ball screws and roller linear guides, ensuring exceptional precision and durability. The Z-axis configuration utilizes a six-block system, which provides enhanced stability and load-bearing capacity. This robust setup allows for smooth and accurate movement, crucial for achieving high-quality machining results across a range of applications.
• Optional Programmable Hydraulic or Servo Tailstocks:To further increase operational flexibility, our machines offer optional programmable tailstocks, available in hydraulic or servo configurations. These programmable tailstocks allow for automated adjustments, making it easier for operators to set specific parameters tailored to different workpieces. This feature not only improves convenience but also enhances the precision of machining operations, streamlining workflows and increasing productivity.

Our machine tools are meticulously engineered to provide outstanding performance and reliability. With a focus on high rigidity, low vibration, integrated machining capabilities, and advanced features such as programmable tailstocks, our machines are designed to meet the evolving needs of modern manufacturing. Whether for high-volume production runs or intricate machining tasks, our equipment delivers the efficiency and precision required to excel in today’s competitive market.

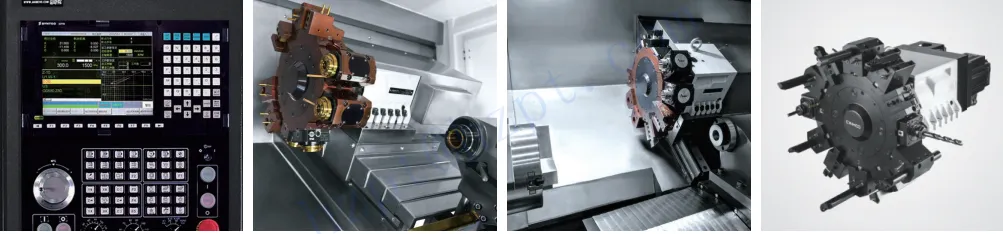

Auxiliary Extension

Workpiece Display

Workshop

We have been pursuing high-end technology and investing in high-precision equipment to make first-class products, which will create a world full of miracles for us. We exist for miracles.

About Raydafon

Raydafon was founded in 2006 and has established itself as a national high-tech enterprise specializing in the research and development, production, sales, and service of CNC machine tools. With a keen understanding of market trends, Raydafon delivers comprehensive solutions tailored to meet the diverse needs of its customers.The company’s product portfolio includes a wide array of advanced machinery, such as turning and milling centers, vertical machining centers, turret and row tool CNC lathes, as well as solutions for industrial automation. These products are employed across various industries, including automotive, telecommunications, new energy, engineering machinery, and chemicals, showcasing their versatility and reliability.Raydafon places a strong emphasis on product research and development, continuously striving for technological progress. The company is dedicated to fostering ongoing technological innovation, which significantly enhances its competitiveness in the market. By prioritizing quality and innovation, Raydafon aims to lead the way in the CNC machine tool industry, ensuring that it meets the evolving demands of its clients and contributes to the advancement of manufacturing technologies.
