The rear method orchid-type metallurgical hydraulic cylinder is an advanced hydraulic component designed to meet the demanding requirements of metallurgical applications. With its exceptional performance, sturdy construction, and innovative design, this hydraulic cylinder delivers precise control, durability, and efficiency in challenging industrial environments. Whether used in steel mills, foundries, or other metallurgical processes, the rear method orchid-type cylinder ensures optimal results.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of the flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

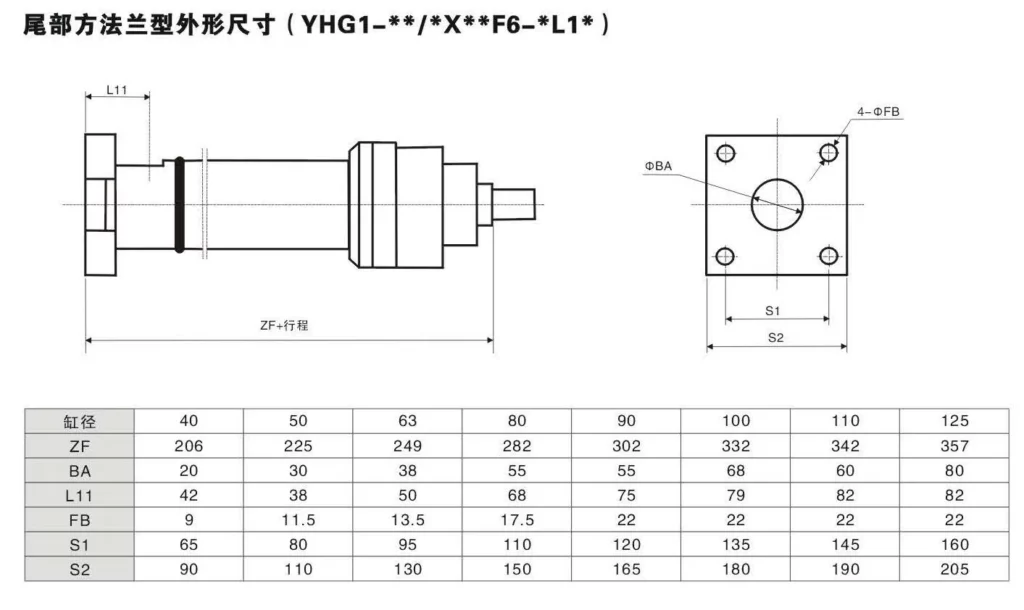

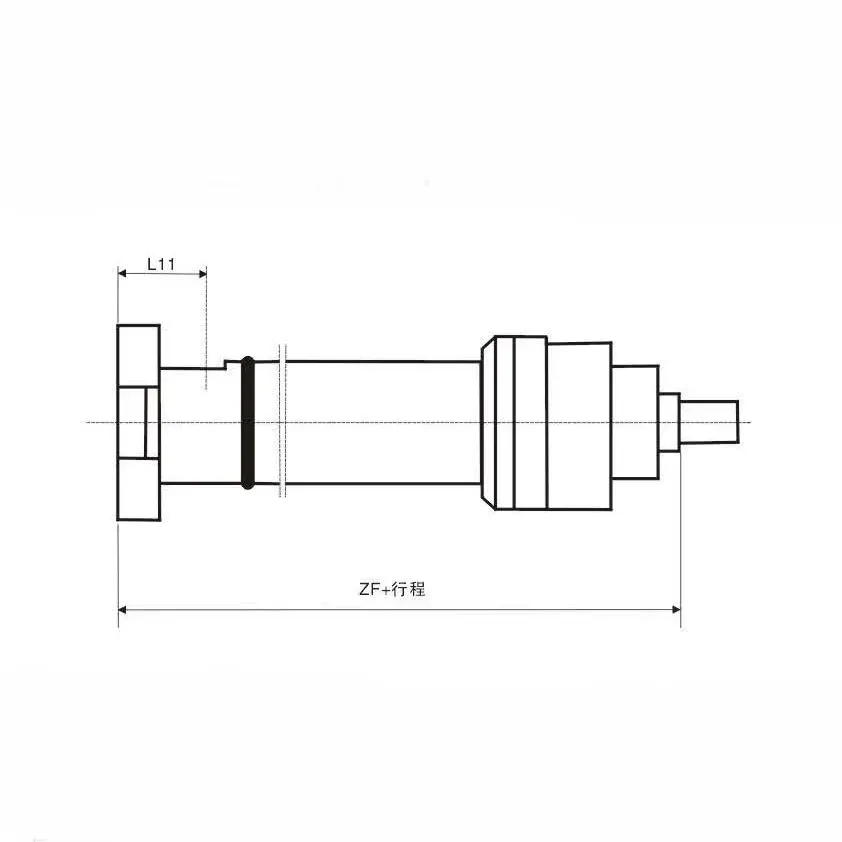

Rear Method Orchid Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Rear Method Orchid Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure the mounting surface is clean, level, and capable of supporting the cylinder's weight and load.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and guarantee optimal performance.
3. System Integration and Calibration:
   • Integrate the metallurgical hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve the desired operation parameters and ensure smooth functionality.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to precisely control the cylinder's extension, retraction, and positioning for efficient metallurgical operations.

Characteristics Of Rear Method Orchid Type Metallurgical Hydraulic Cylinder:

• Rear Method Orchid Design: The unique back method orchid design enhances stability, precise alignment, and load distribution during operation, ensuring optimal performance in metallurgical processes.
• Metallurgical Application Focus: This hydraulic cylinder is precisely engineered to meet the rigorous demands of metallurgical applications, offering reliability and durability in extreme conditions.
• Superior Performance: The cylinder delivers exceptional performance, enabling accurate positioning, smooth operation, and enhanced productivity in metallurgical processes.
• Sturdy Construction: Constructed from high-quality materials and designed to withstand heavy loads and harsh operating conditions, this hydraulic cylinder ensures long-term durability and reliable performance.
• Safety Features: The design incorporates overload protection and emergency stop mechanisms, prioritizing operator safety during metallurgical processes.

How To Measure Hydraulic Cylinder?

Measuring a hydraulic cylinder is a straightforward process that requires a few essential tools. Here's a step-by-step guide on how to measure a hydraulic cylinder accurately:

1. Gather the Necessary Tools:
   • Tape measure or caliper: Use a reliable measuring tool to obtain precise measurements.
   • Safety equipment: Wear appropriate personal protective equipment, such as gloves and safety glasses, to protect against potential hazards.
2. Determine the Measuring Points:
   • Identify the key measuring points on the hydraulic cylinder that will provide the necessary information for accurate measurement.
   • The main measuring points typically include the cylinder's stroke length, bore diameter, and rod diameter.
3. Measure the Stroke Length:
   • Extend the hydraulic cylinder fully to its maximum length.
   • Position the tape measure or caliper at one end of the cylinder, aligning it with the reference point.
   • Measure from the reference point to the opposite end of the cylinder.
   • Record the size as the stroke length.
4. Measure the Bore Diameter:
   • Locate the cylinder's bore, which is the inner diameter of the cylinder tube.
   • Position the tape measure or caliper across the bore, ensuring it is perpendicular to the cylinder's axis.
   • Measure one side of the bore, from the inner wall to the opposite inner wall.
   • Record the measurement as the bore diameter.
5. Measure the Rod Diameter:
   • Identify the rod, which is the piston rod extending from the hydraulic cylinder.
   • Position the tape measure or caliper across the rod's diameter, perpendicular to its axis.
   • Measure one side of the rod, from the outer surface to the opposite outer surface.
   • Record the measurement as the rod diameter.
6. Additional Measurements:
   • Depending on the specific requirements or applications, you may need to measure additional parameters, such as the overall length of the cylinder, the distance between mounting points, or the thread size of the rod.
7. Document and Verify Measurements:
   • Double-check all recorded measurements to ensure accuracy.
   • Document the measurements clearly and organize them for future reference or ordering purposes.
