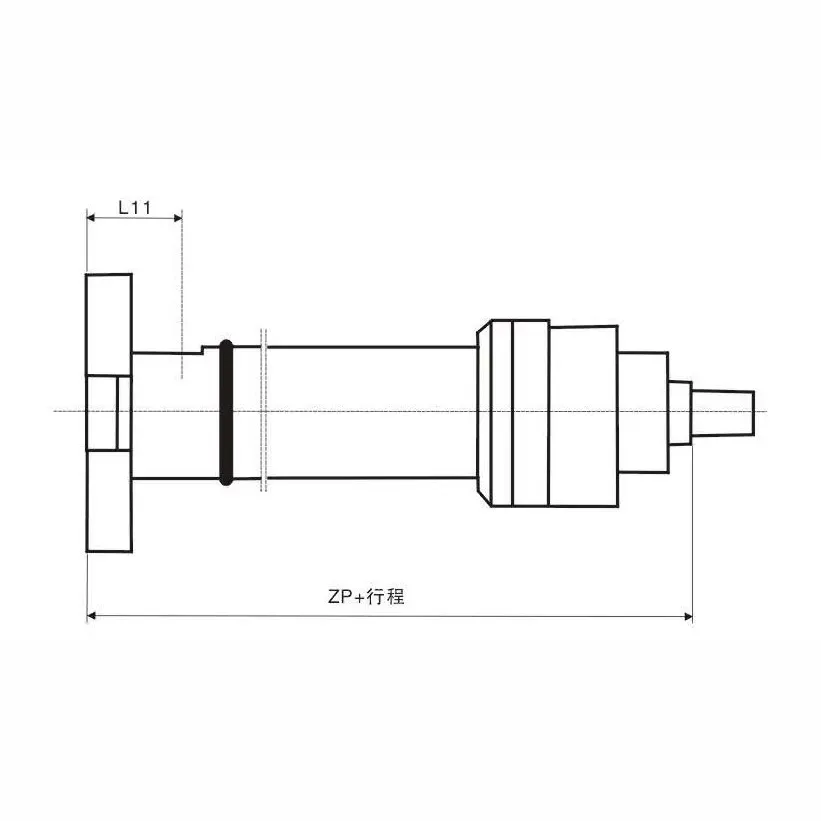

Rear Round Flange Type Metallurgical Hydraulic Cylinder

Rear Round Flange Type Metallurgical Hydraulic Cylinder

The rear round flange type metallurgical hydraulic cylinder is a high-performance hydraulic component specifically designed to meet the demanding requirements of metallurgical applications. With its robust construction, precise control, and reliable operation, this hydraulic cylinder is engineered to excel in the rigorous environments of steel mills, foundries, and other metallurgical processes. The rear round flange type cylinder delivers exceptional performance, efficiency, and durability, making it an ideal choice for the metallurgical industry.Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of the flange, earrings, pins, trippers (base) and different types.High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

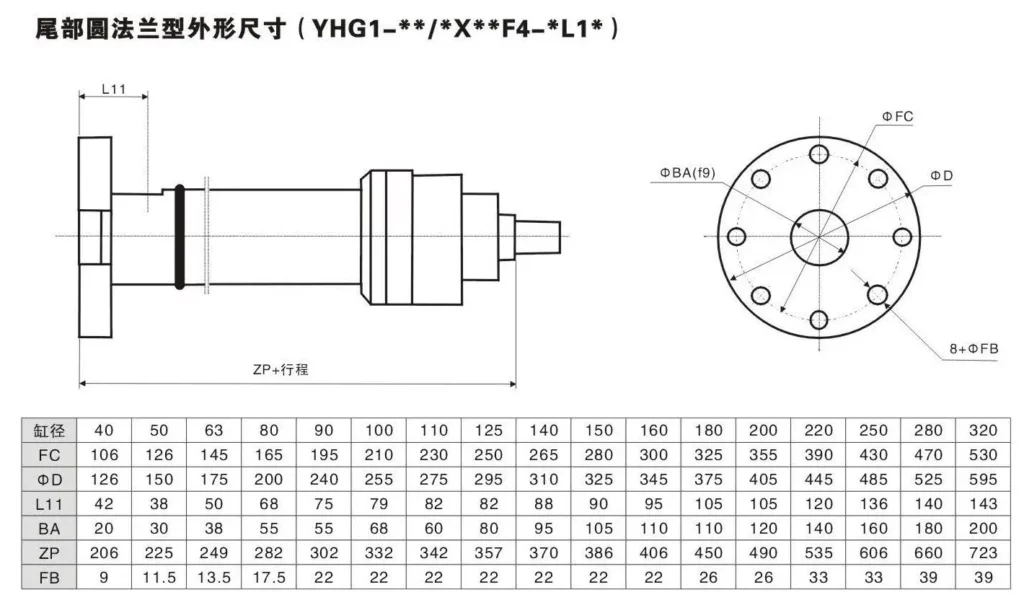

Rear Round Flange Type Metallurgical Hydraulic Cylinder Parameter:

Usage Method Of Rear Round Flange Type Metallurgical Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting location for the hydraulic cylinder based on the specific requirements of the metallurgical equipment.
   • Ensure the mounting surface is clean, level, and capable of supporting the cylinder's weight and load.
2. Connection to Hydraulic System:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Ensure proper alignment and secure connections to prevent leaks and guarantee optimal performance.
3. System Integration and Calibration:
   • Integrate the metallurgical hydraulic cylinder into the metallurgical equipment or system following the manufacturer's guidelines.
   • Calibrate the system to achieve the desired operating parameters and ensure smooth functionality.
4. Operating the Cylinder:
   • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
   • Utilize the hydraulic control system to precisely control the cylinder's extension, retraction, and positioning for efficient metallurgical operations.

Characteristics Of Rear Round Flange Type Metallurgical Hydraulic Cylinder:

• Rear Round Flange Design: The rear round flange design provides secure and reliable connection points, ensuring stability and precise alignment during metallurgical operations.
• Metallurgical Application Focus: This hydraulic cylinder is specifically engineered to meet the rigorous demands of metallurgical applications, offering durability and high-performance in extreme conditions.
• Precise Control: The cylinder allows for precise control and positioning, enabling operators to achieve accurate and efficient metallurgical operations.
• Robust Construction: Constructed from high-quality materials, the hydraulic cylinder is designed to withstand heavy loads, extreme temperatures, and harsh operating conditions.
• Efficient Energy Conversion: The cylinder utilizes advanced hydraulic technology to convert hydraulic energy into mechanical force with high efficiency, optimizing productivity in metallurgical processes.

How To Repack A Hydraulic Cylinder?

Repacking a hydraulic cylinder involves replacing the seals and other components to restore proper sealing and prevent leakage. Here is a step-by-step guide on how to repack a hydraulic cylinder:

1. Safety Precautions:
   • Ensure the hydraulic system is depressurized and the cylinder is isolated from the power source.
   • Wear appropriate safety gear, such as gloves and safety glasses, to protect yourself from potential hazards.
2. Cylinder Removal:
   • Remove the hydraulic cylinder from the equipment or machinery.
   • Follow the manufacturer's guidelines or equipment-specific instructions for proper disconnection.
3. Disassembly:
   • Carefully disassemble the hydraulic cylinder, noting the order and orientation of the components.
   • Keep track of the position and arrangement of seals, pistons, rods, and other internal parts.
4. Inspection and Cleaning:
   • Thoroughly inspect all cylinder components for wear, damage, or signs of failure.
   • Clean all components using an appropriate solvent to remove dirt, debris, and old hydraulic fluid.
5. Seal Replacement:
   • Identify and replace the worn or damaged seals, including piston seals, rod seals, and wiper seals.
   • Ensure that the new seals are compatible with the hydraulic fluid and operating conditions.
6. Piston and Rod Maintenance:
   • Inspect the piston and piston rod for wear, scoring, or damage.
   • If necessary, polish or replace the piston rod to ensure smooth operation.
   • Lubricate the piston and rod with a suitable hydraulic fluid or lubricant.
7. Cylinder Barrel Inspection:
   • Inspect the interior surface of the cylinder barrel for scoring, corrosion, or other damage.
   • The cylinder barrel may need to be honed or replaced if significant damage is present.
8. Reassembly:
   • Reassemble the hydraulic cylinder, ensuring proper alignment and orientation of the components.
   • Apply a thin layer of hydraulic fluid or lubricant to the seals and other moving parts for easy assembly and improved sealing.
9. Testing and Reinstallation:
   • Perform a pressure test to ensure the repacked cylinder functions properly and does not leak.
   • Reinstall the hydraulic cylinder into the equipment or machinery, ensuring proper alignment and secure connections.
10. Fluid Replacement and System Bleeding:
    • Replace the hydraulic fluid with fresh fluid, following the manufacturer's recommendations.
    • Bleed the hydraulic system to remove trapped air, ensuring proper operation and performance.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of metallurgical hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle metallurgical hydraulic cylinders, Aerial work vehicle metallurgical hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The metallurgical hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
