Repacement Of John Deere AHC20656 Hydraulic Cylinder

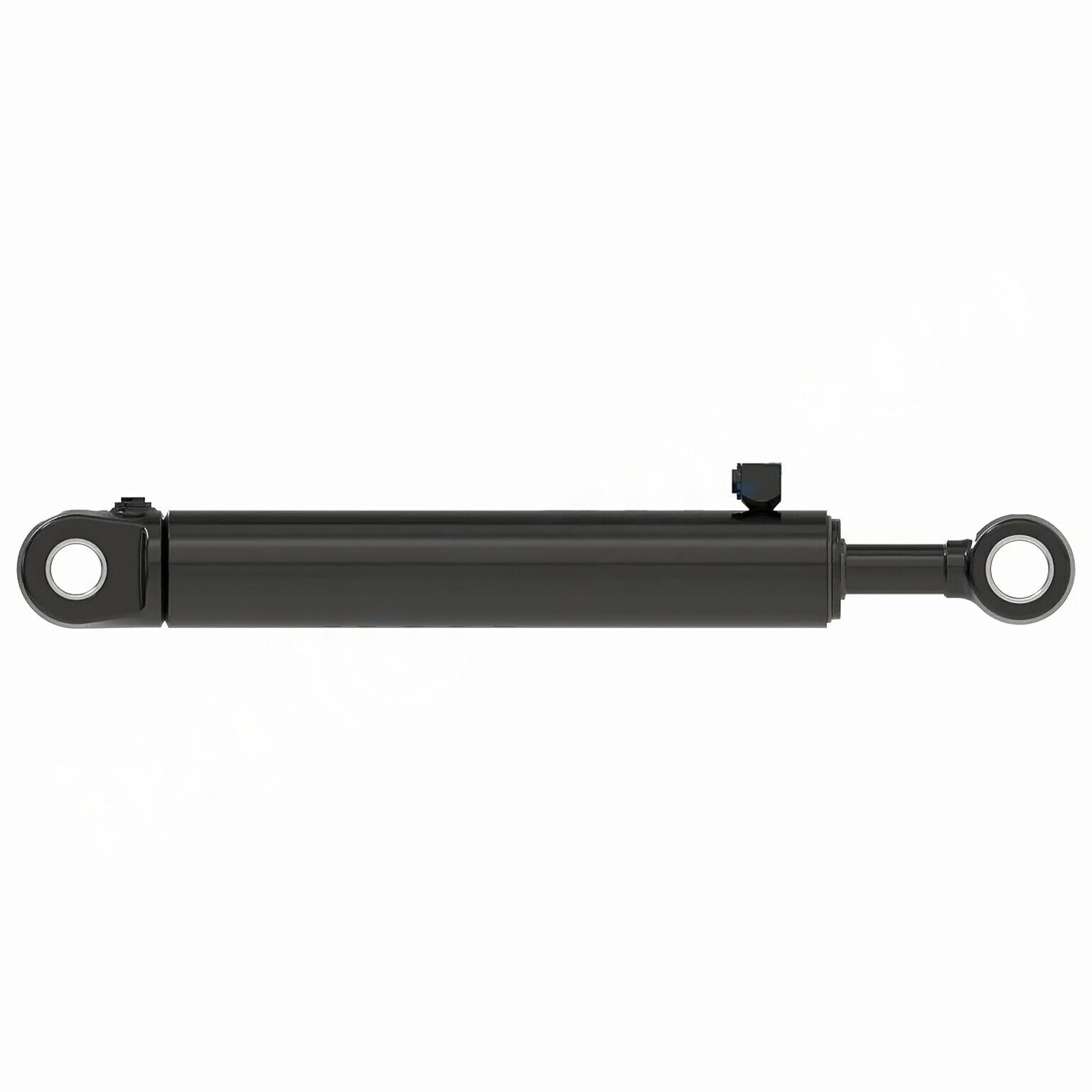

Replacement Of AHC20656 Hydraulic Cylinder

First, let's define the product and its purpose. The hydraulic cylinder is a mechanical actuator that is used to provide linear force through a unidirectional stroke. It is commonly used in various industries for lifting, pushing, or pulling heavy objects.

Specifications and Model

• Weight: 50.105 lb
• Height: 6 in
• Length: 33.2 in
• Model: [insert model]

Features

1. High load-bearing capacity: The hydraulic cylinder is designed to handle heavy loads efficiently and reliably.
2. Excellent sealing properties: The cylinder's seals are carefully selected and fitted to ensure leak-free operation.
3. Durable construction: It is built with high-quality materials to withstand harsh working conditions and provide long-lasting performance.
4. Enhanced safety: The cylinder is equipped with safety features such as pressure relief valves and overload protection.
5. Easy maintenance: The design allows for convenient inspection, lubrication, and replacement of components, reducing downtime.

Our company specializes in manufacturing and supplying a wide range of hydraulic cylinders, including the replacement for the AHC20656 model. We take pride in being a leading manufacturer and distributor in the domestic and international markets.

Applications

The hydraulic cylinder finds extensive use in various industries:

1. Construction: It is commonly used in construction equipment such as cranes, hoists, and elevators, where secure fixation of heavy objects is required.
2. Manufacturing: Hydraulic cylinders are employed in presses to shape materials under high pressure, requiring stable and firm fixation during the process.
3. Transportation: They are utilized in stabilizers and jacks for vehicles, ensuring safety during maintenance or transportation.
4. Aviation: Hydraulic cylinders are essential components of landing gear systems, securely holding the landing gear in the appropriate position during takeoff and landing.

Design Considerations and Selection Criteria

When designing the hydraulic cylinder, several factors are taken into consideration:

1. Load-bearing capacity: The cylinder is designed to handle the specified load without deformation or failure.
2. Sealing effectiveness: The selection of seals and the precision of their installation ensure optimal sealing performance.
3. Durability: The materials used and the surface treatment of the cylinder body and threaded ends enhance wear resistance and durability.
4. Safety: Safety features, such as pressure relief valves and overload protection, are incorporated to prevent system failures and ensure operator safety.
5. Maintainability: The design allows for easy inspection, lubrication, and repair, minimizing downtime and maintenance costs.

Sealing and Lubrication

The hydraulic cylinder employs various sealing components, such as piston seals and rod seals, made from wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo meticulous surface treatment to improve wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary to ensure smooth operation and maximize the cylinder's lifespan.

Regular Inspection and Preventive Maintenance

To maintain optimal performance and prolong the lifespan of the hydraulic cylinder, the following measures should be taken:

1. Regularly inspect the cylinder for any signs of damage, wear, or leakage.
2. Ensure proper lubrication of all moving parts.
3. Replace worn or damaged seals promptly.
4. Perform calibration checks to ensure accurate operation.

Installation Guide

Proper installation of the hydraulic cylinder is crucial for its efficient functioning. Follow these steps:

1. Align the cylinder correctly according to the equipment requirements.
2. Use appropriate installation brackets to secure the cylinder in place.
3. Follow recommended procedures for inspection, repair, and replacement of components.
4. Take advantage of our parts replacement and rebuilding services to extend the cylinder's lifespan.

Safety Considerations and Environmental Factors

When using the hydraulic cylinder, it is essential to adhere to safety precautions. This includes proper training, wearing appropriate protective gear, and following safe operating procedures. Additionally, considering environmental factors such as temperature, humidity, and exposure to corrosive substances is crucial to maintaining the cylinder's performance and longevity.

Troubleshooting and Common Issues

Occasionally, hydraulic cylinders may encounter problems. Here are some common issues:

1. Leakage: Check for damaged seals or loose connections and replace or repair as necessary.
2. Insufficient or jerky movement: Inspect the hydraulic fluid level, check for blockages, and ensure proper lubrication.
3. Noise or vibration: Verify proper alignment and mounting, and inspect for worn or damaged components.

For troubleshooting and resolving these issues effectively, refer to our troubleshooting guide. It provides helpful tips, solutions, and preventive measures to minimize potential problems.

At our company, we take pride in being a reputable manufacturer of replacement hydraulic cylinders. We offer a comprehensive range of products and services tailored to meet our customers' needs. Our commitment to professionalism, international certifications, customized solutions, state-of-the-art production equipment, and reliable after-sales service sets us apart in the industry.
