Repacement Of John Deere AN209615 Breakaway Fold Hydraulic Cylinder

Replacement Of AN209615 Breakaway Fold Hydraulic Cylinder

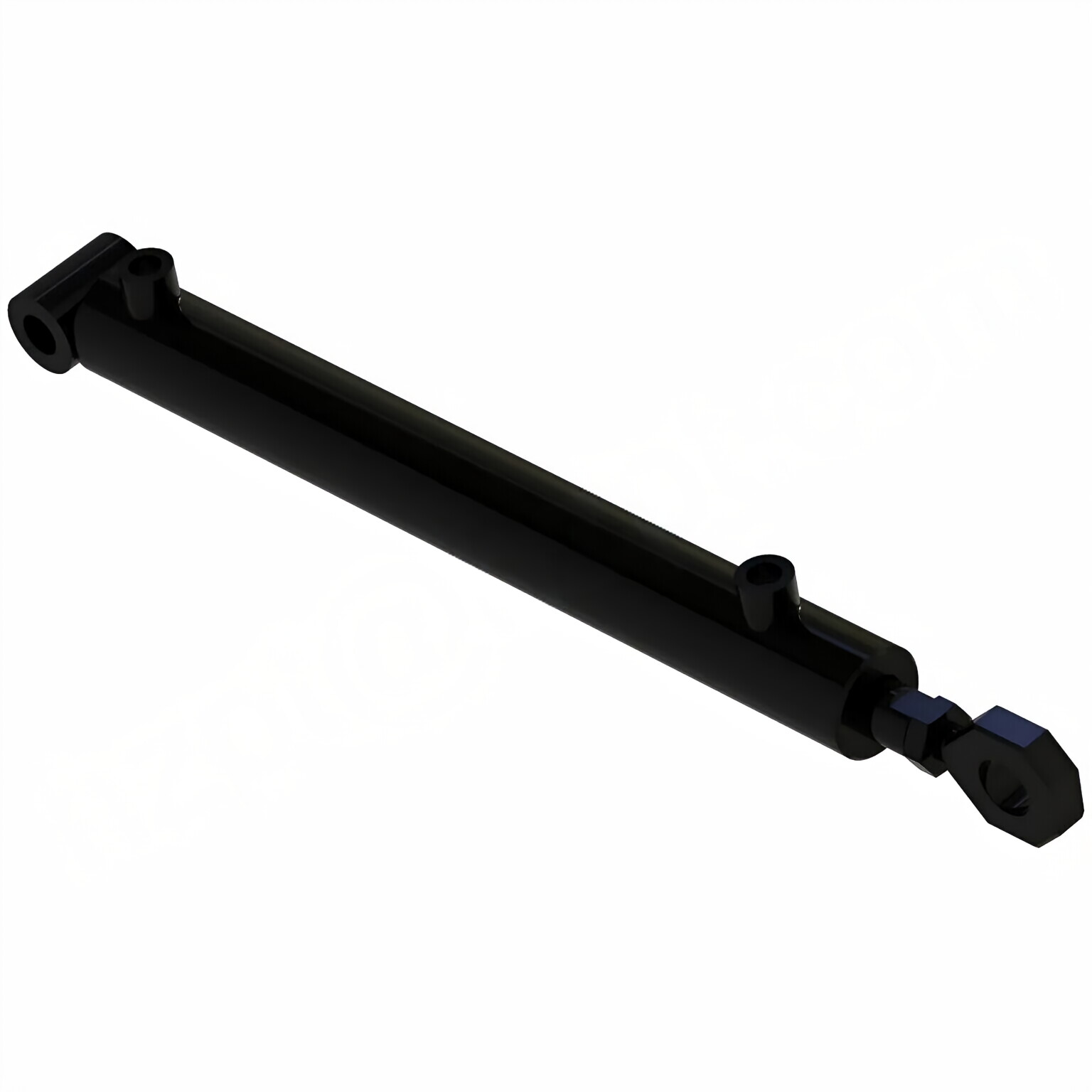

The Replacement Of AN209615 Breakaway Fold Hydraulic Cylinder is a hydraulic cylinder designed to be a replacement for the AN209615 model. It is used in various applications and provides reliable hydraulic power. The cylinder has a weight of 8.588 lb, a height of 3.2 in, and a length of 19.9 in.

Specifications

• Weight: 8.588 lb
• Height: 3.2 in
• Length: 19.9 in

Models

• HD35F
• HD35R
• HD40F
• HD40R
• HD45F
• HD45R
• HD50F
• HD50R

Features

• High-quality construction for durability
• Efficient hydraulic power delivery
• Easy installation and replacement
• Compatible with various equipment models
• Cost-effective alternative to other hydraulic cylinders

Our hydraulic cylinders are designed to meet the specific requirements of different industries. They find applications in various fields:

Construction

Commonly used in construction equipment such as cranes, hoists, and elevators, where a secure and stable fixation of heavy objects is required.

Manufacturing

Used in hydraulic presses for shaping materials under high pressure, providing reliable fixation during the manufacturing process.

Transportation

Applied in stabilizers and jacks for vehicles, ensuring safety during maintenance or transportation processes.

Aviation

Utilized in landing gear systems to securely fix the landing gear in the appropriate position during takeoff and landing.

Design Considerations and Selection Criteria

Bearing Capacity

The hydraulic cylinder is designed to withstand the specified load capacity, ensuring safe and efficient operation.

Sealing

The cylinder incorporates various sealing components, such as piston seals and rod seals, made from wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends are finely processed to improve wear resistance. Regular lubrication with the appropriate amount of hydraulic oil is required for smooth operation.

Durability

The hydraulic cylinder is built to withstand harsh operating conditions and maintain reliable performance over an extended period.

Safety

The design includes safety features to prevent accidents, such as pressure relief valves and safety locks.

Maintenance

Regular inspections and preventive maintenance measures are recommended to ensure optimal performance and longevity of the hydraulic cylinder.

Installation Guide

Follow these steps to correctly install the Replacement Of AN209615 Breakaway Fold Hydraulic Cylinder:

1. Prepare the mounting area and ensure it is clean and free from debris.
2. Align the cylinder with the mounting holes and attach it securely using appropriate brackets or fixtures.
3. Connect the hydraulic hoses according to the equipment's hydraulic system requirements.
4. Check for any leaks and ensure proper sealing.
5. Test the functionality of the cylinder by operating the equipment.

Maintenance Tasks

Regular maintenance is crucial for prolonging the lifespan of the hydraulic cylinder. Here are three common maintenance tasks:

1. Periodic inspections: Regularly inspect the cylinder for any signs of wear, leaks, or damage.
2. Proper lubrication: Apply the recommended amount of hydraulic oil to ensure smooth operation and prevent excessive friction.
3. Seal replacement and calibration checks: Replace worn-out seals and periodically calibrate the cylinder to maintain optimal performance.

It is essential to install, lubricate, and adjust the cylinder correctly to ensure safe and efficient operation. We recommend aligning the cylinder accurately during installation and using appropriate mounting brackets for stability. We also offer inspection, repair, and replacement services to enhance the lifespan of your hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the Replacement Of AN209615 Breakaway Fold Hydraulic Cylinder, it is vital to follow proper safety measures to prevent accidents and ensure the well-being of operators. Safety precautions include wearing protective gear, following standard operating procedures, and conducting regular equipment inspections.

Troubleshooting and Common Issues

Here are some common issues that may arise with the hydraulic cylinder:

1. Leakage: Check all seals and connections for leaks. Replace damaged seals if necessary.
2. Insufficient power: Ensure adequate hydraulic fluid levels and check for any blockages or restrictions in the hydraulic system.
3. Noise or vibration: Inspect the cylinder for loose components or misalignment. Tighten or realign as needed.

For troubleshooting and resolving these issues, refer to our troubleshooting guide and seek professional assistance if needed. Taking preventive measures can minimize potential problems and ensure smooth operation.

Our company is a leading manufacturer and wholesale distributor of hydraulic cylinders, including the Replacement Of AN209615 Breakaway Fold Hydraulic Cylinder. We offer a wide range of hydraulic cylinder options and have established ourselves as a trusted supplier in both domestic and international markets.

We pride ourselves on our professionalism, international certifications, customizability, state-of-the-art production equipment, and excellent after-sales service.
