Replacement of Bonfiglioli 316L Series Planetary Gearbox Reducer Replacement 316L1 316L2 316L3 316L4

Raydafon Group offers the ultimate replacement for Bonfiglioli 316L Series Planetary Gearbox Reducer - models 316L1, 316L2, 316L3, 316L4. Crafted with durable stainless steel, this reducer ensures reliable performance in tough industrial applications like manufacturing and robotics, ideal for engineers and technicians. Experience reduced downtime and enhanced efficiency, with Raydafon's advanced design providing superior durability compared to standard alternatives. Trust Raydafon Group for seamless upgrades that boost productivity and drive your operations forward.

Send Inquiry

Product Description

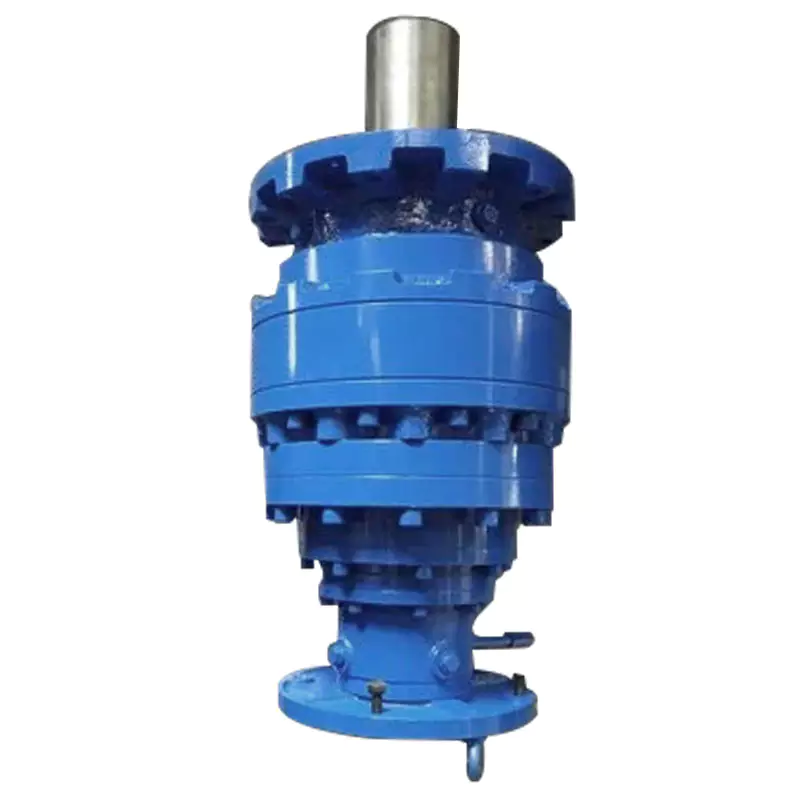

316L Series Planetary Gearbox

Raydafon 316L series planetary gearbox has advantages such as high torque density, high efficiency, low reverse clearance, and durability, making it the preferred choice for many industrial applications.Replacement of Bonfiglioli planetary gearboxes have many advantages, making them ideal choices for many industrial applications. Here are some main advantages:

High torque density: Planetary gearboxes have high torque density, which means they can transmit higher torque in the same size. This makes them ideal choices for space constrained applications.
High efficiency: Planetary gearboxes are known for their high efficiency, which means they can transmit power with minimal friction loss. Replacement of Bonfiglioli's planetary gearbox adopts efficient gears and optimized internal structure, which helps to reduce energy consumption and improve transmission efficiency.
Low reverse clearance: Planetary gearboxes provide low reverse clearance, which means they can provide precise and accurate motion control. This is particularly important in applications that require precise positioning.
Wide range of transmission ratios: Replacement of Bonfiglioli's planetary gearbox provides a range of transmission ratios that can be adjusted according to specific applications to achieve optimized performance and efficiency.
Durability: Planetary gearboxes are known for their durability and long lifespan. Replacement of Bonfiglioli's planetary gearbox uses high-quality materials and advanced manufacturing technology to provide reliable and long-lasting performance.

technical parameter

Type	Rated torque (Nm)	Rated power (Kw)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B

Raleted Planetary Gearboxes

You can click on the image to learn about the corresponding related products


Planetary Feed Mixer Gearbox	Tracked Vehicle	Winch Drive	Wheeled Vehicle Drive

Slewing Drive	Wind Turbines Drive	Inline Planetary gearbox	Right Angle Planetary gearbox

Replaceable Planetary Gearbox Models

The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Replacement of Bonfiglioli.The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Replacement of Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.

300L 1	300L 2	300L 3	300L 4	300R2	300R3	300R4
301L 1	301L 2	301L 3	301L 4	301R2	301R3	301R4
303L 1	303L 2	303L 3	303L 4	303R2	303R3	303R4
305L 1	305L 2	305L 3	305L 4	305R2	305R3	305R4
306L 1	306L 2	306L 3	306L 4	306R2	306R3	306R4
307L 1	307L 2	307L 3	307L 4	307R2	307R3	307R4
309L 1	309L 2	309L 3	309L 4	309R2	309R3	309R4
310L 1	310L 2	310L 3	310L 4	310R2	310R3	310R4
311L 1	311L 2	311L 3	311L 4	311R2	311R3	311R4
313L 1	313L 2	313L 3	313L 4	313R2	313R3	313R4
315L 1	315L 2	315L 3	315L 4		315R3	315R4
316L 1	316L 2	316L 3	316L 4		316R3	316R4
317L 1	317L 2	317L 3	317L 4		317R3	317R4
318L 1	318L 2	318L 3	318L 4			318R4
319L 1	319L 2	319L 3	319L 4			319R4
321L 1	321L 2	321L 3	321L 4			321R4
