Replacement of Walterscheid Standard PTO shaft W400E 1010mm 1b/2a

Further information

Universal joint A profile (mm):

32 x 76

Universal joint B profile (mm):

32 x 76

Size:

400E

Tractor version:

1 3/86 splines

Implement version:

1 3/86 splines

(mm):

1010

Profile:

With lemon profile

Locking system:

Push-pull lock/push-pull lock

Profile pair:

1b/2a

Guard version:

SD 25

Max. speed (1/min.):

540

Lock:

AZG/ASGE

Type:

W

A (profile):

1 3/86 splines

B (profile):

1 3/86 splines

Additional information:

Operating instructions included

PS/kW(1000 / 540 U/min.):

61 / 39

Weight:

17.22 kg

Service-Center form:

Click here

To be found in category:

Standard PTO shafts & drive technology

Search filters: Standard PTO shafts

Standard Standard PTO shafts

Part no.: 395800018

Introduction of PTO Shaft

The Power Take-Off (PTO) shaft is a critical component in the drive train of any machine which is designed to be powered by a PTO. It is the method used to transfer power from the tractor or truck engine to the machine that is being driven. Some key features of PTO shafts include:

• Ability to transmit high torque
• Flexibility and durability for different working conditions
• Various connection options for different machines
• Availability in different sizes and lengths
• Optional protective shields for enhanced safety

Our PTO Shaft

Our PTO shafts are designed and manufactured to match the size installation methods and performance of Replacement of Walterscheid's PTO shafts perfectly making them an ideal replacement choice. We focus on providing high-quality products that meet all your needs.

Selecting the Right PTO Shaft

Structure of PTO Shaft

A PTO shaft consists of several parts:

• Housing
• Drive Shaft
• Universal Joint
• Protective Cover
• Connectors

Each part is made of high-quality materials for durability and performance. We also offer individual parts for sale.

About Raydafon Group

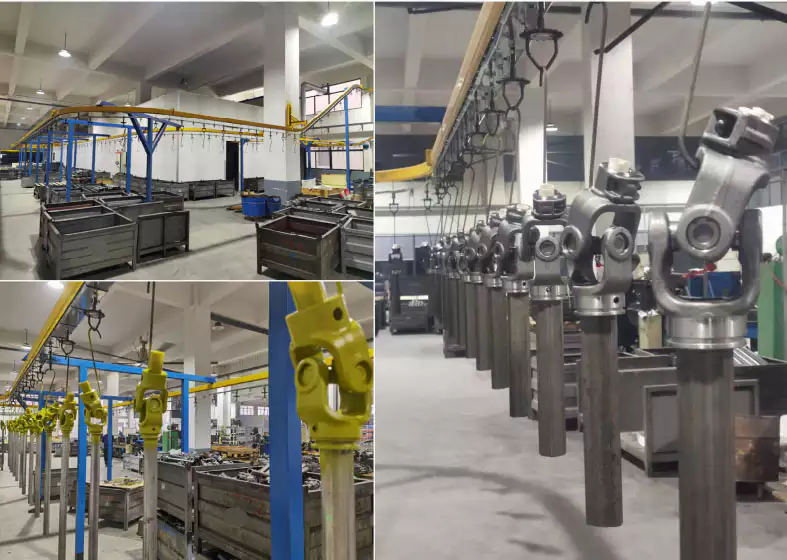

Raydafon Group is a leading company in the PTO Shaft market in China. We specialize in the development manufacturing and marketing of power output shafts industrial universal joints and automotive drive shafts. Our products are highly regarded by customers in Europe the United States Asia Australia and North America.We offer custom manufacturing and processing services including laser logo printing. We are among the top three professional OEM suppliers for many agricultural machinery factories and have obtained CE TS/16949 and ISO 9001 certifications. Our systematic production equipment and team ensure our quality and delivery.In addition to pto shafts we also supply related products such as agricultural gearboxes chains sprockets pulleys couplings and other transmission parts and agricultural machinery parts. We welcome customers to customize products based on drawings or samples. Hot Tags: PTO Shaft Replacement, W400E PTO Shaft, Walterscheid PTO Shaft Replacement
