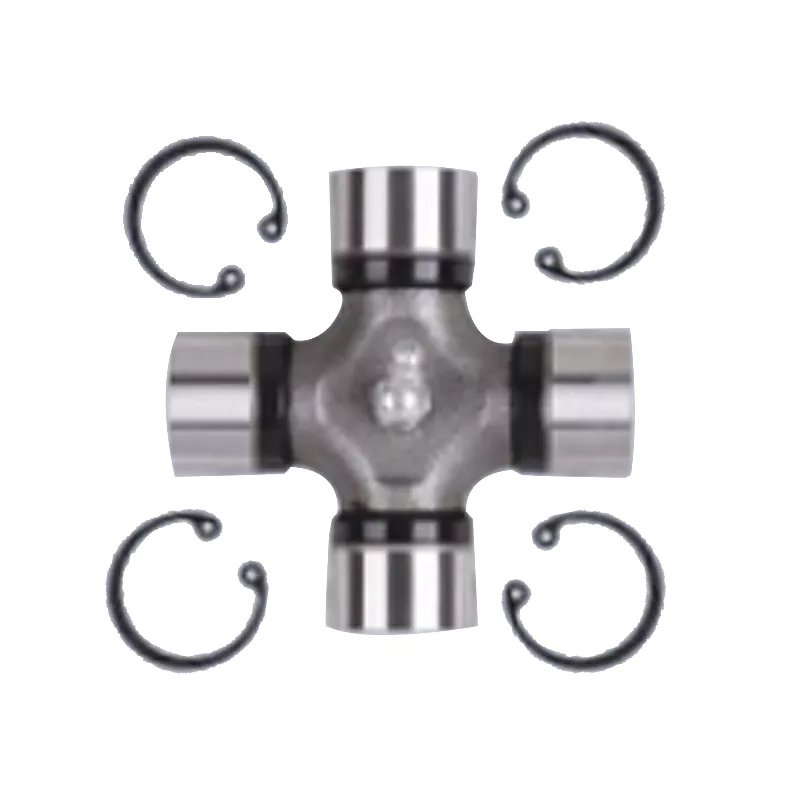

Replacement of Walterscheid Universal Joint Replacement Size 2480 Cross Size 32 x 76 x 27 x 94

Further information

A (mm):

32

A1 (mm):

27

B (mm):

76

B1 (mm):

94

Size:

2480

Cross size (mm):

32 x 76 x 27 x 94

Maintenance:

Every 20 hours

Type:

PTO shaft drive

Weight:

656 g

To be found in category:

PTO shafts & drive technologySearch filters: PTO shaftsUniversal joints

Part no.: 395135076

Understanding the Universal Joint

Also known as a cross kit, Cardan Joint, or U-Joint, the universal joint serves a vital role in machinery operation. Here are five key features of the universal joint:

Shaft Alignment Tolerance

This feature allows for a deviation in the alignment of the connecting shafts, meaning they do not have to be perfectly aligned.

Angle Change Tolerance

Universal joints can tolerate a change in angle between the shafts.

Torque Transmission

They are capable of transmitting rotational power and torque.

Efficient Transmission

Universal joints transmit torque with minimal energy loss.

Choosing the Right Universal Joint

When selecting a universal joint for your PTO shaft, consider the following factors:

Power and Torque Requirements

This refers to the amount of force required to operate the machinery.

Shaft Size and Interface Type

Selection depends on the dimensions of the shaft and the type of interface used.

Angle Change Range

This refers to the maximum angle that the shafts can deviate from each other.

Working Conditions

Consider the environment and conditions in which the machinery will operate.

Standard and Certification Requirements

Ensure that the universal joint meets the relevant standards and certifications.

About Raydafon Group

Lead the way in the PTO Shaft market with Raydafon Group. We specialize in the development, manufacturing, and marketing of pto shafts, industrial universal joints, and automotive drive shafts. Our products are esteemed by clients across Europe, the USA, Asia, Australia, and North America. We offer custom manufacturing and processing, as well as laser printed logos. As one of the top three OEM suppliers for numerous agricultural machinery factories, our products are CE, TS/16949, and ISO 9001 certified. With a comprehensive production system and team, we guarantee quality and delivery. We also supply related products like agricultural gearboxes, chains, sprockets, pulleys, couplings, and other transmission components and agricultural machinery parts. We welcome custom orders based on blueprints or samples.Author: Miya
