Replacement of Weasler PTO Shaft Replacement AW20 810 with Lemon Profile G3/G4

Replacement of Weasler Cardan Shaft Specifications

Universal joint size A profile (mm):

24 x 61

Universal joint size B profile (mm):

24 x 61

Size:

AW20

Tractor version:

1 3/8" 6 teeth

Implement version:

1 3/8" 6 teeth

Lz (mm):

810

Profile:

with lemon profile

Locking system:

Draw cap / Draw cap

Profile pair:

G3/G4

Additional information:

Bedienungsanleitung ist im Lieferumfang enthalten

Weight:

10 g

Service-Center form:

Click here

Understanding the Fundamentals of a PTO Shaft

A Power Take-Off (PTO) shaft transfers the mechanical power from a tractor or any other source of power to an attached implement or separate machine. Here are five essential characteristics of a PTO shaft:

• Efficiency: Transfers power from the tractor to the implement effectively and with minimal energy loss.
• Versatility: Can be used with a wide range of farm and industrial machinery.
• Durability: Made from high-quality materials to withstand regular use and harsh conditions.
• Safety: Designed to prevent accidents and injuries during operation.
• Ease of Use: Simple to connect and disconnect, with minimal maintenance requirements.

Introducing Our PTO Shaft

Our PTO shafts are designed and manufactured to match the size and installation methods of Replacement of Weasler PTO shafts, making them perfect replacements. They also come with a CE certificate, ensuring their compliance with EU regulations and standards. This provides a reliable guarantee of their safety performance and is a necessary condition for entering the European market.

Choosing the Right PTO Shaft

When choosing a PTO shaft, it's essential to consider the following parameters:

• Length: The distance between the transmission device and the receiving device.
• Rated Power: The maximum power that the PTO shaft can transmit.
• Shaft Type and Connection Method: Different types of shafts and connection methods are suitable for different applications.
• Torque Transmission Capability: The maximum torque that the PTO shaft can transmit.
• Environmental Requirements: Considerations such as protective covers, sealing performance, and durability.
• Safety Features: Reliable anti-cardan devices, anti-card pins, etc.
• Compatibility: The PTO shaft should be compatible with the tractor and implement.
• Certificate: PTO shafts with CE certification meet European Union regulations and standards, providing a basic safety guarantee.

Our PTO Shaft's Certificates

Our PTO shafts have received CE, TS/16949, and ISO 9001 certificates. These certifications are a testament to our commitment to quality and safety.

Our PTO Shaft Structure

Our PTO shaft consists of the housing, drive shaft, universal joint, protective cover, and connectors. Each part is made from quality materials, ensuring durability and performance. We also sell individual parts if needed.

Applications of PTO Shaft

PTO shafts are commonly used in:

• Agricultural machinery: Connecting tractors to equipment such as mowers, harvesters, straw crushers, sprayers, mixers, etc.
• Industrial equipment: Driving various rotating equipment, such as pumps, generators, centrifuges, mixers, etc.
• Transportation equipment: Driving certain transportation equipment, such as trailers, semi-trailers, and trailers, etc.
• Solar energy systems: Used to rotate and adjust tracker photovoltaic panels.

Adjusting the Length of PTO Shaft

Adjusting the length of a PTO shaft involves the following steps:

1. Remove the plastic protective cover.
2. Shorten the inner and outer tubes to the required length, shortening the same length at a time.
3. Remove burrs with a file.
4. Shorten the inner and outer plastic tubes to the required length, shortening the same length at a time.
5. Oil the inner steel tube, then reinstall the drive shaft plastic protective cover.

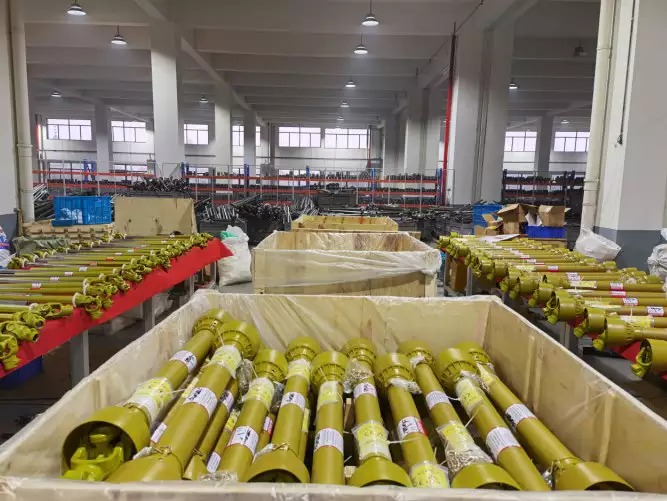

About Raydafon Group

Raydafon Group is a leading player in the PTO Shaft market in China. We specialize in the development, manufacturing, and marketing of power output shafts, industrial universal joints, and automobile drive shafts. Our products enjoy a good reputation among customers in Europe, the US, Asia, Australia, and North America.

We offer support for custom and OEM orders, including laser printing of logos. We are among the top three professional OEM suppliers for numerous agricultural machinery factories and have received CE, TS/16949, and ISO 9001 certificates. Our systematic production equipment and team ensure our quality and delivery. In addition to pto shafts, we also supply related products such as agricultural gearboxes, chains, sprockets, pulleys, couplings, and other transmission parts and agricultural machinery accessories.

Feel free to contact us for custom orders based on your drawings or samples. We look forward to creating a successful partnership with you in the near future.
