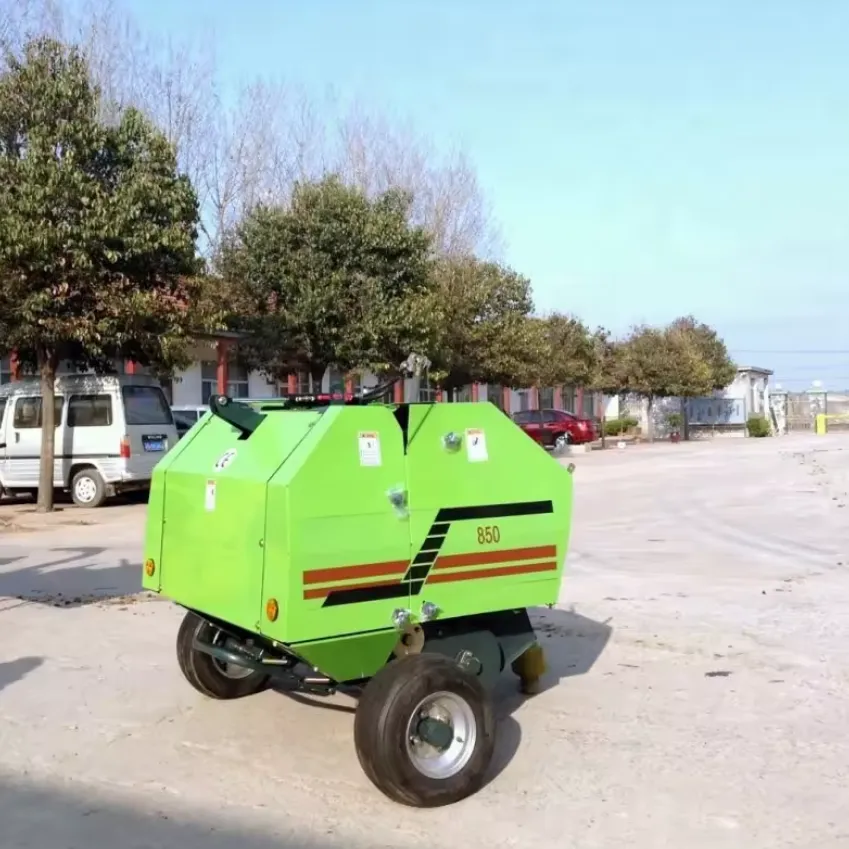

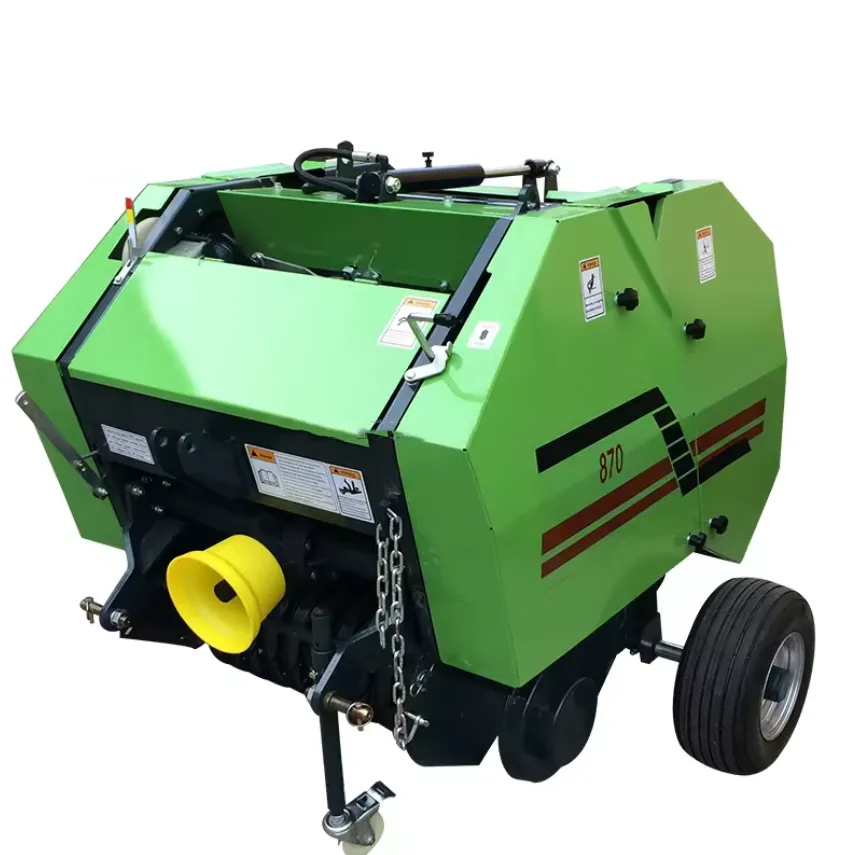

Rice Wheat Straw CE Approved Mini RUNDBALLENPRESSE Machine For Agricultural

Introducing the CE approved Mini RUNDBALLENPRESSE Machine, a highly efficient agricultural tool tailored for baling operations. This machine is designed to revolutionize the way small to medium-sized farms handle hay, cornstalk, wheat, and rice straw. The round baler is compact yet powerful, capable of operating at speeds of 2-5km/h and producing 80-120 bales per hour. Its robust construction and CE ISO certification ensure its durability and reliability for long-term use.

Advantages of the Mini RUNDBALLENPRESSE Machine

The Mini RUNDBALLENPRESSE Machine is a game-changer for agricultural operations, offering a myriad of benefits that include:

1. Compact and Lightweight: With dimensions of 1300x1300x1350mm and a weight of 390 kg, the machine is easy to maneuver and does not require a large space for storage.
2. High Efficiency: The machine can operate at speeds of 2-5km/h, producing 80-120 bales per hour, making it an efficient solution for baling operations.
3. Wide Application: It is designed to handle a variety of materials, including hay, cornstalk, wheat, and rice straw, making it versatile and practical for different farming needs.
4. Durable and Reliable: The machine is CE ISO certified and comes with a one-year warranty, guaranteeing its quality and reliability.
5. Easy to Use: It is designed with user-friendliness in mind. Even novice users can operate it with ease.

6. Excellent After-sales Service: Engineers are available to service machinery overseas, ensuring prompt solutions to any issues that may arise.

Applications of the Mini RUNDBALLENPRESSE Machine

The Mini RUNDBALLENPRESSE Machine has a wide range of applications, particularly in the agricultural sector:

1. Hay Baling: The machine can effectively collect, bundle, and eject hay bales, making it a valuable tool during the haymaking season.
2. Cornstalk Baling: After corn harvesting, the machine can be used to bundle the leftover cornstalks into compact bales for easy handling and disposal.
3. Wheat Straw Baling: The machine can also be used to collect and bundle wheat straw, a by-product of wheat harvesting, into manageable bales.
4. Rice Straw Baling: Rice straw, another common agricultural by-product, can also be effectively baled using this machine.
5. Feedstock Production: The bales produced by the machine can be used as feedstock for livestock, providing a cost-effective solution for animal feeding.
6. Biomass Energy Production: The bales can also be used as biomass for energy production, contributing to sustainable energy solutions.

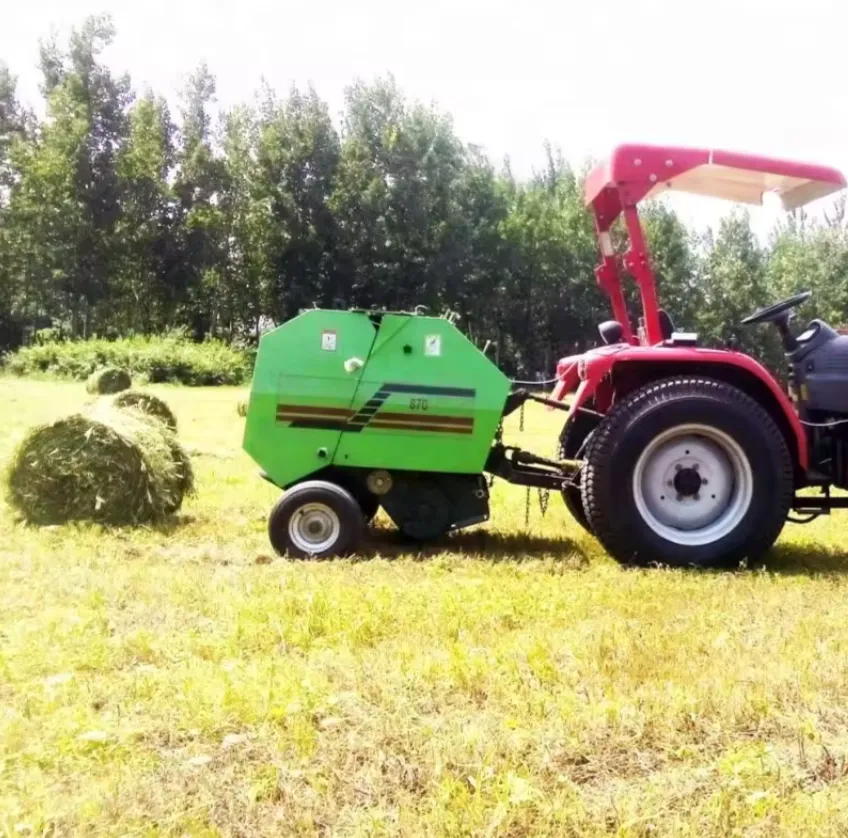

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the Mini Hay Round Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery, such as PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our company has more than 100 employees, among which there are 20 technical technical staff and five senior R&D personnel.

Our advanced casting, forging, machining, heat treatment, and lacquering production lines are equipped with CAD computer-aided design systems, ensuring robust production technology and advanced equipment. With over ten years of experience in production, we have become a trusted partner for main tractor manufacturers in China.

We offer a comprehensive range of products, including farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. Our products are distinguished by their excellent performance, reliability, and complete specifications. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Our commitment to professionalism, quality, and customer satisfaction is evident in our ISO certification, customized services, production facilities, and excellent after-sales services. We are proud to provide agricultural solutions that are innovative, reliable, and aligned with the needs of modern farming.
