Rotary Cutter Gearboxes - Replacement of Omni Code RC-33 Gearbox

Rotary Cutter Gearboxes - Replacement of Omni Code RC-33 Gearbox

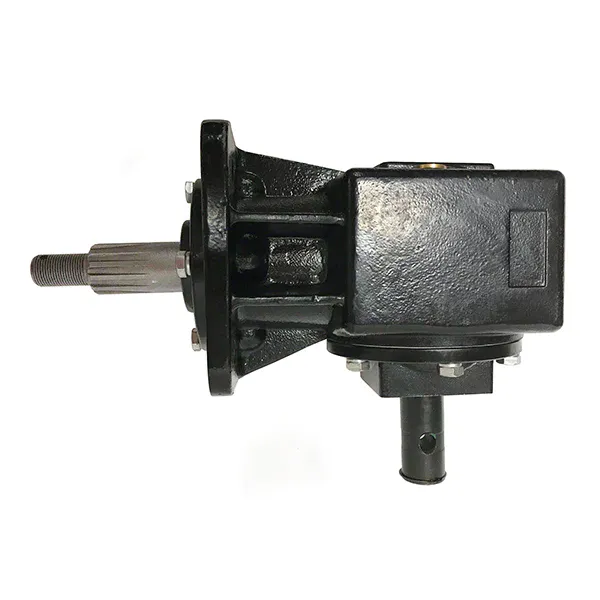

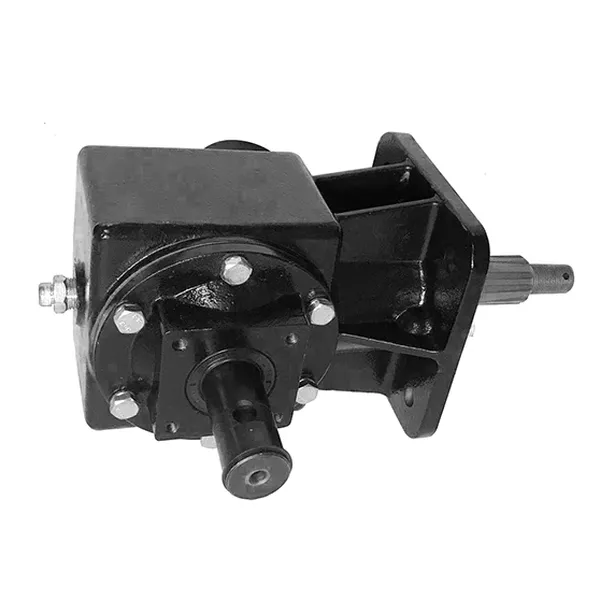

The RC33 rotary cutter gearbox is a type of gearbox used in rotary cutters, also known as brush hogs or bush hogs. It is a compact and durable gearbox designed specifically for high-torque applications like those encountered in heavy-duty agricultural and industrial work. The rotary cutter gearbox features a rugged housing and heavy-duty gears that allow it to withstand the high stresses and loads of heavy cutting and chopping operations. The RC33 rotary cutter gearbox is typically used in rotary cutters with a cutting width of up to 6 feet and is compatible with a range of tractors and other machines. Overall, it is a reliable and efficient component that helps ensure the smooth operation of rotary cutters in a wide range of applications.

▍RC33 Rotary Cutter Gearbox Specifications

Horsepower:	65 HP
Applications:	For 4 ft., 5 ft., and 6 ft. rotary cutters
Outside rotation:	Clockwise or counterclockwise with no modifications
Housing material:	Ductile iron
Smooth input shaft:	1-3/8 in.
Gear ratio:	1:1.47
Gear type:	Bevel gear
Output shaft:	1.57" 12 Spline
Weight:	50.6 lbs
Mounting holes:	4-3/4" on center adjacent hole to adjacent hole and 6-3/4" on diagonal

▍RC33 Rotary Cutter Gearbox Parts Design

The RC33 rotary cutter gearbox is made up of several key parts, each with a specific design and function. Here are the most important rotary cutter gearbox parts and their design:1. Housing: The RC33 rotary cutter gearbox housing is typically made of cast iron or aluminum and provides a strong, rigid structure to support the gears and other internal components of the gearbox. The housing is designed to minimize vibration and absorb shocks to protect the gears and other internal components from damage.2. Gears: The RC33 rotary cutter gearbox uses a set of bevel gears to transmit power from the input shaft to the output shaft for cutting action. These gears are designed to provide maximum torque and power while minimizing wear and noise.3. Bearings: The RC33 rotary cutter gearbox includes several bearings that help support and guide the rotating shafts and gears. They are designed to provide smooth, quiet operation and long service life.4. Input shaft: The input shaft is connected to the tractor or other driving machinery and transmits power to the RC33 rotary cutter gearbox. The input shaft is designed to withstand high torque loads and minimize wear.5. Output shaft: The output shaft is connected to the cutting blade and turns at high speed to provide the cutting action. The output shaft is designed for maximum strength and durability to withstand high loads and resist deformation.6. Seals: The RC33 rotary cutter gearbox includes several seals that help prevent oil leaks and keep contaminants out of the gearbox. These rotary cutter gearbox seals are designed to provide a tight, reliable seal while allowing for smooth rotation of the internal components.Overall, the RC33 rotary cutter gearbox is designed with durability, strength, and efficiency in mind, making it a reliable choice for heavy-duty cutting applications.

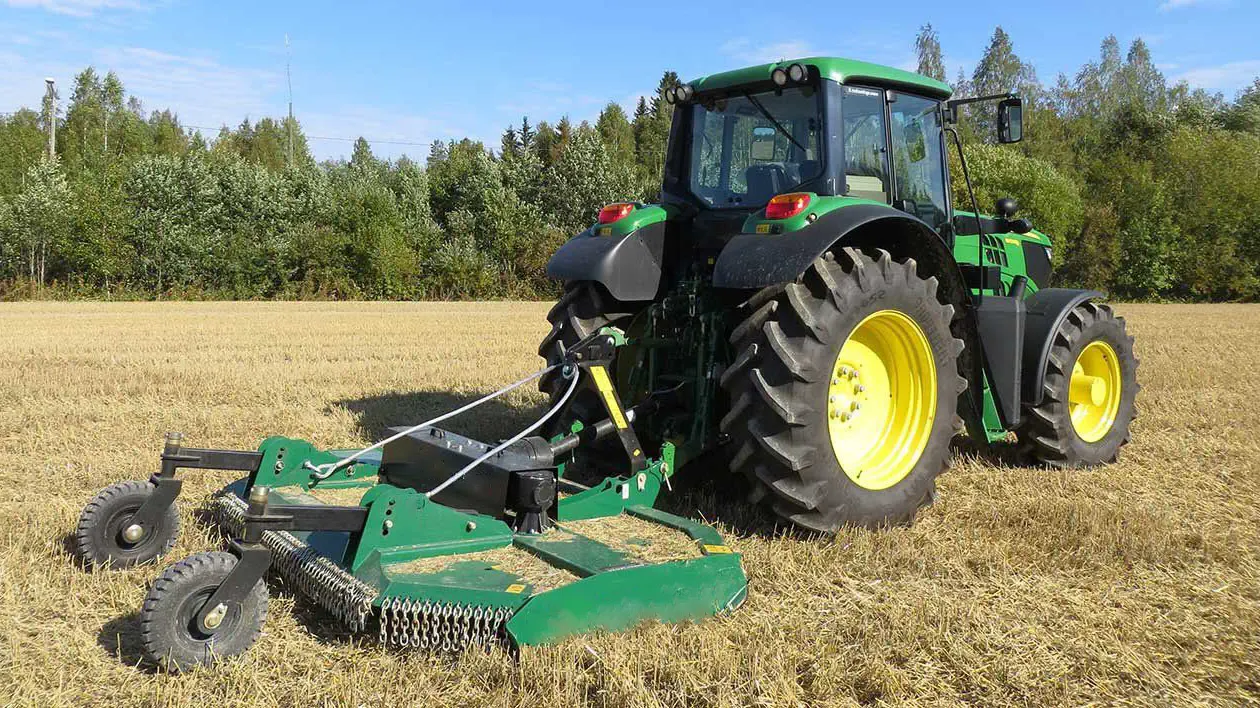

▍Rotary Cutter Gearbox Used in Agriculture Applications

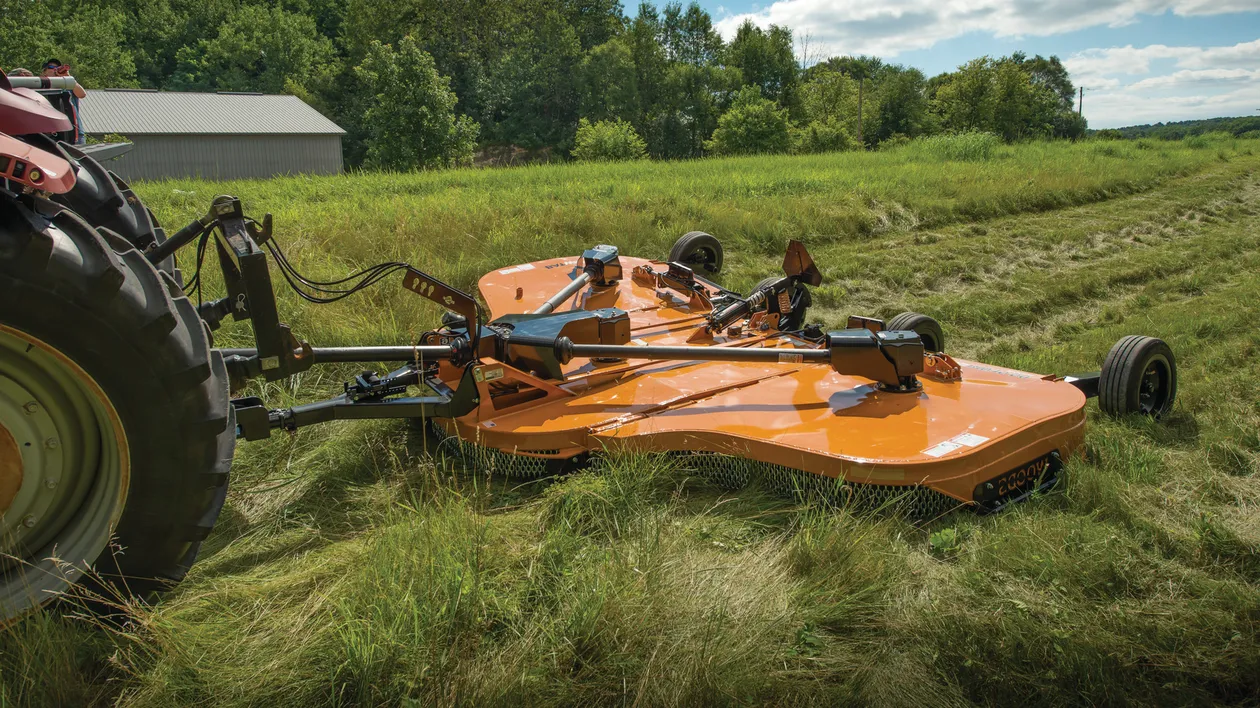

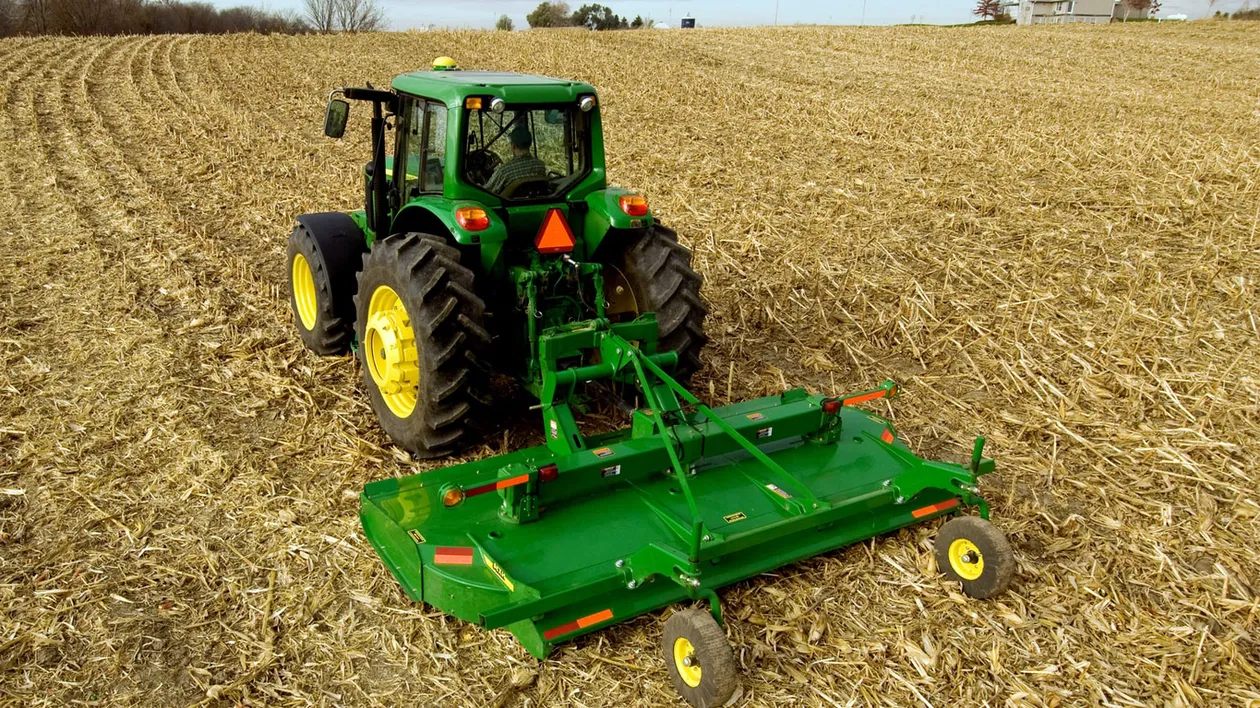

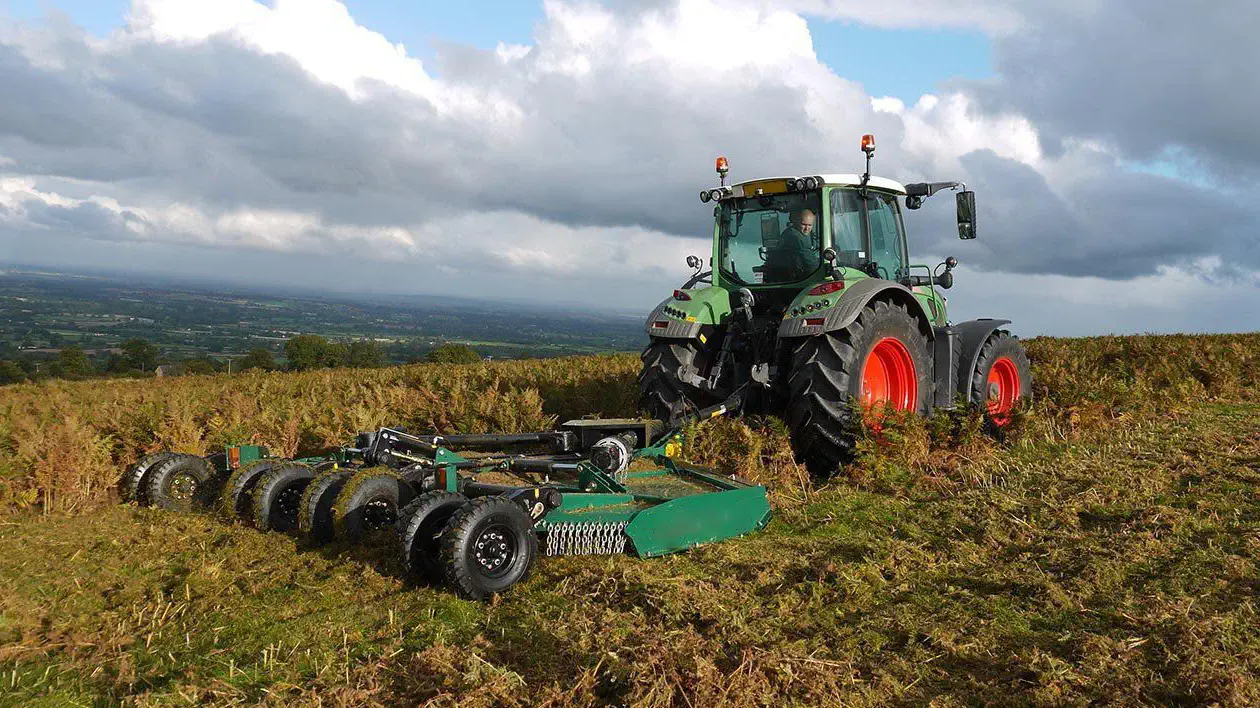

RC33 rotary cutter gearboxes are widely used in agriculture applications for cutting and chopping tasks such as clearing brush, grass, and weeds, as well as for stalk cutting and pruning. The rotary cutter gearboxes are often attached to tractors and other farm machinery and are used in a variety of tasks such as pasture maintenance, crop residue management, land clearing, and forestry.Some common agricultural applications where rotary cutter gearboxes are used include:(1) Pasture maintenance: Using a rotary cutter gearbox, farmers can efficiently mow and maintain pastures for grazing livestock. This helps to promote the health of the grass and keep weeds under control.(2) Crop residue management: After harvest, farmers often use a gearbox for the rotary cutter to chop up crop residue and organic matter into small pieces that can be left on the field to decompose or be used as compost.(3) Forestry: Rotary cutter gearboxes are used in forestry applications to clear brush and small trees from land that is being prepared for logging or to maintain roads and trails within the forest.(4) Land clearing: Rotary cutter gearboxes are commonly used in land clearing projects to remove overgrown vegetation and prepare land for planting or construction.Overall, the rotary cutter gearbox is an important component in many agricultural applications and plays a critical role in keeping farms and properties well-maintained and productive.

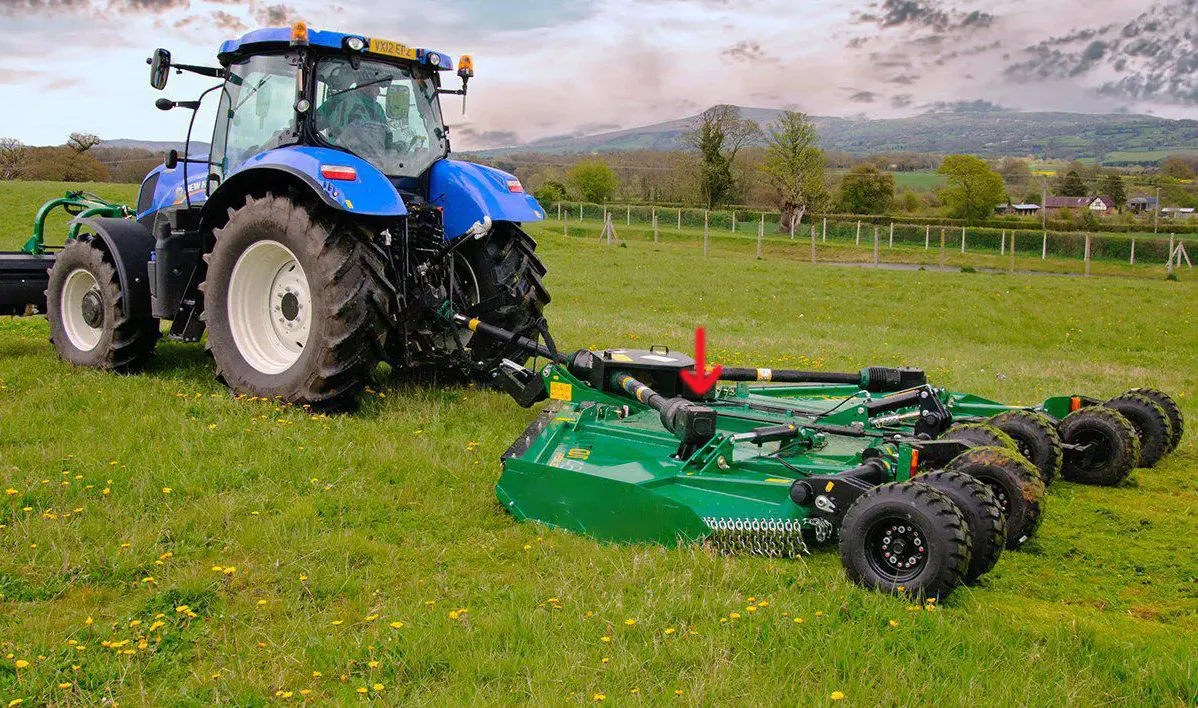

▍The Difference Between "Rotary Cutter Gearbox" and "Flail Mower Gearbox"

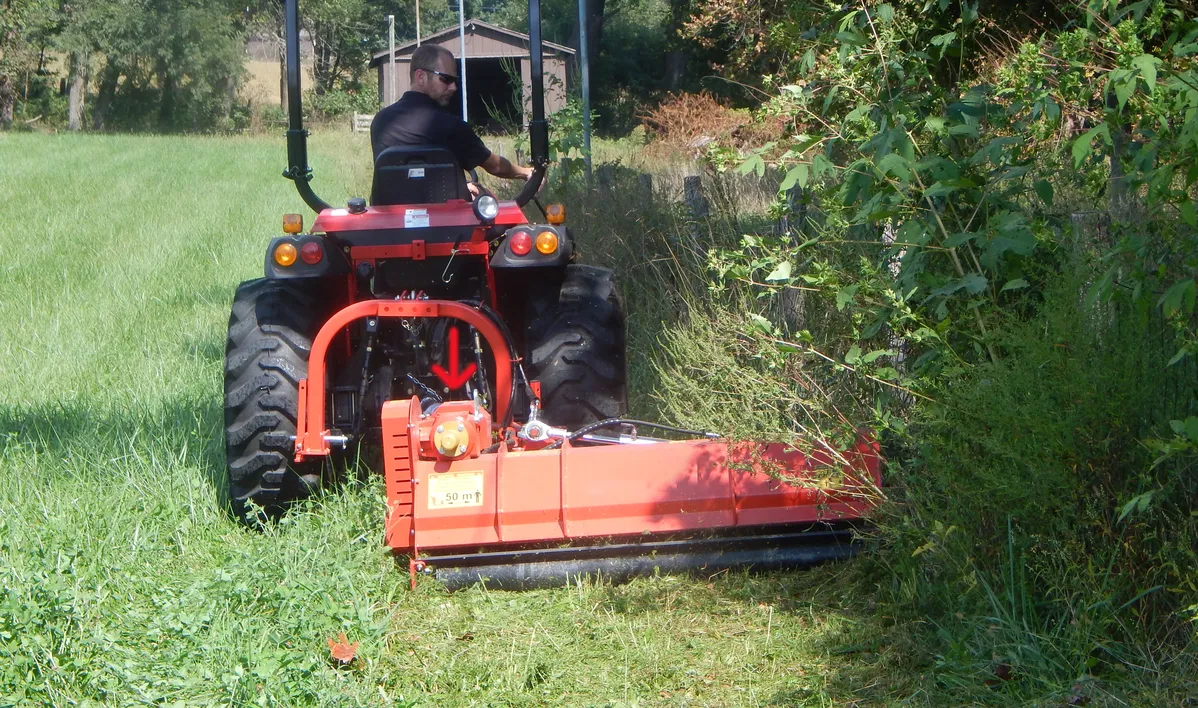

The main difference between a rotary cutter gearbox and a flail mower gearbox is the type of blades that they are designed to drive.A rotary cutter gearbox is designed to power a rotary cutter that uses a single rotating blade to cut through thick vegetation. The blade spins at high speed, and the momentum and force of the spinning blade chops and shears through grass, weeds, and brush.A flail mower gearbox is designed to power a flail mower which uses multiple spinning blades mounted on a horizontal shaft. Each blade has a series of small "flails" that spin around and strike the vegetation, essentially beating it into submission. The flails move much slower than the blade on a rotary cutter, but they make up for this with their ability to cut through thicker material more effectively.Rotary cutter gearboxes are typically smaller and lighter than flail mower gearboxes. This is because they do not need to be as strong to drive the lighter rotating blades. Rotary cutter gearboxes are also typically less expensive than flail mower gearboxes. Flail mower gearboxes are more powerful than rotary cutter gearboxes. This is because they need to be able to drive the heavier flails through tougher materials. Flail mower gearboxes are also more expensive than rotary cutter gearboxes.Here is a table that summarizes the key differences between rotary cutter gearboxes and flail mower gearboxes:

Rotary Cutter Gearbox	Flail Mower Gearbox

▍Agricultural PTO Shaft and Rotary Cutter Gearbox

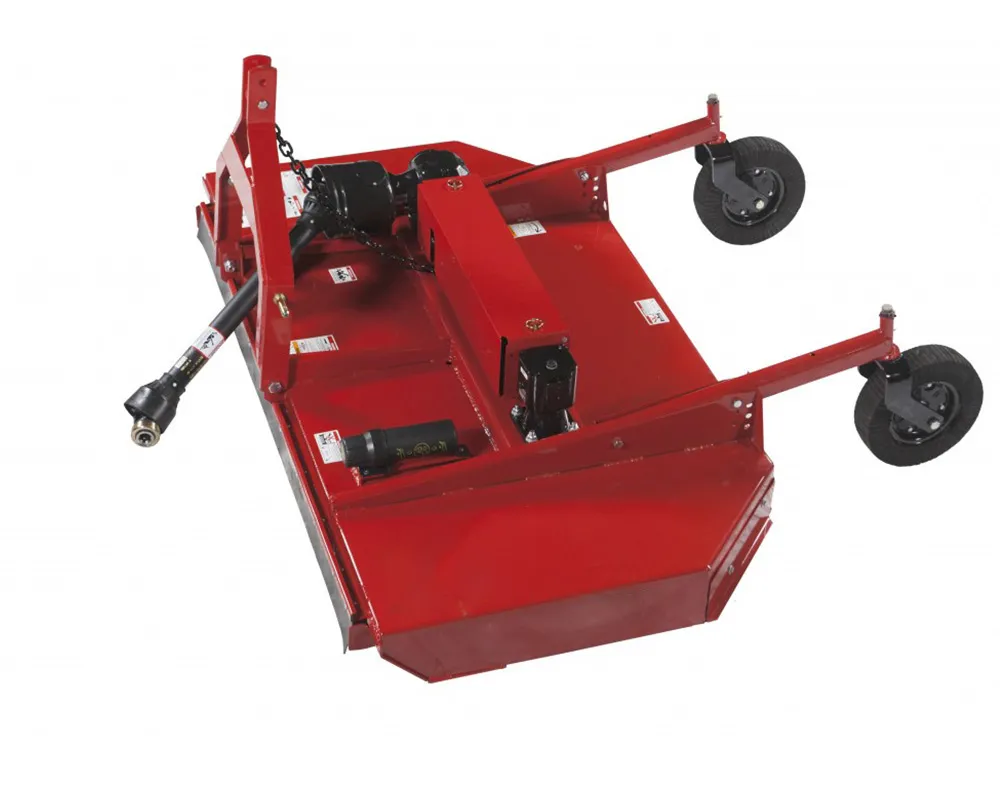

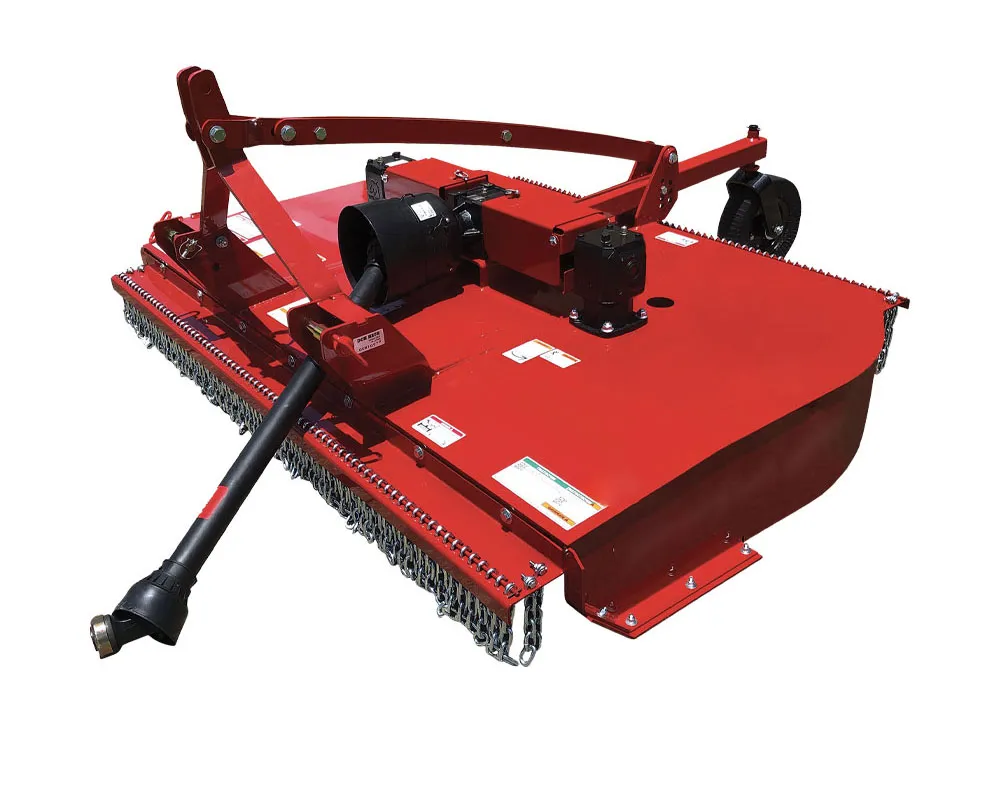

The agricultural PTO shaft and rotary cutter gearbox work together to drive the cutting action of a rotary cutter or other agricultural machinery. The power take-off (PTO) shaft is connected to the tractor's engine and transmits power to the rotary cutter gearbox, which then transfers power to the cutting blade.The PTO shaft is a driveshaft that connects the tractor's engine to the machinery that it is powering. The PTO shaft has two universal joints that allow for flexible movement and offset alignment between the tractor and machinery. The tractor PTO shaft is designed to transmit a large amount of horsepower and torque, making it capable of driving heavy-duty agricultural equipment.The rotary cutter gearbox is a gearbox specifically designed for powering the cutting blade of a rotary cutter. The rotary cutter gearbox has several gears that transmit power from the PTO shaft to the cutting blade, allowing it to rotate at high speed and shear through grass, weeds, and other vegetation. The rotary cutter gearbox is also designed to provide a high level of torque, which is needed to power through tough plant material.Together, the PTO shaft and rotary cutter gearbox form the backbone of many agricultural machinery. They work in tandem to provide a powerful and efficient cutting system that can handle even the toughest vegetation. Proper maintenance and lubrication of these components are critical for smooth and safe operation, as well as for preventing wear and damage to the machinery.
