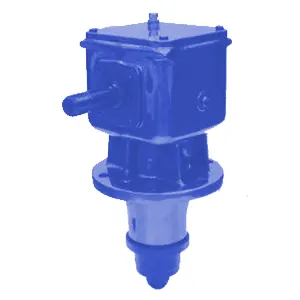

Rotary Mower Gearbox – Replacement of Comer Code LF-125J

Rotary Mower Gearbox – Replacement of Comer Code LF-125J

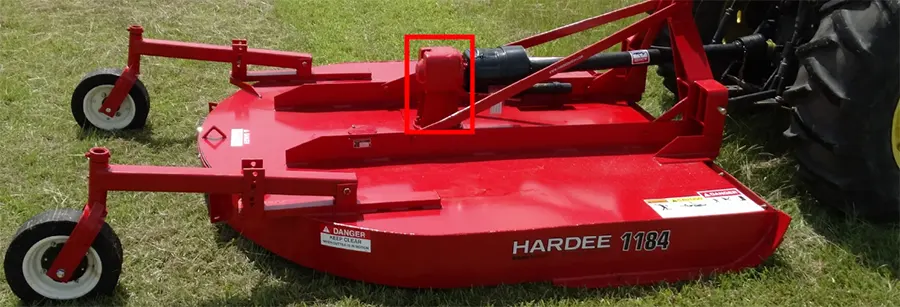

The rotary mower gearbox LF-125J connects the engine to the blade and transfers power from the engine to the blade. It is an important component in maintaining the longevity and efficient operation of a rotary mower. The gearbox should be checked periodically for oil levels, cleaned, lubricated, and inspected for leaks or signs of wear. Oil changes should be done according to the manufacturer's recommendations. Proper maintenance of this agricultural gearbox can prevent damage and premature failure of the rotary mower.

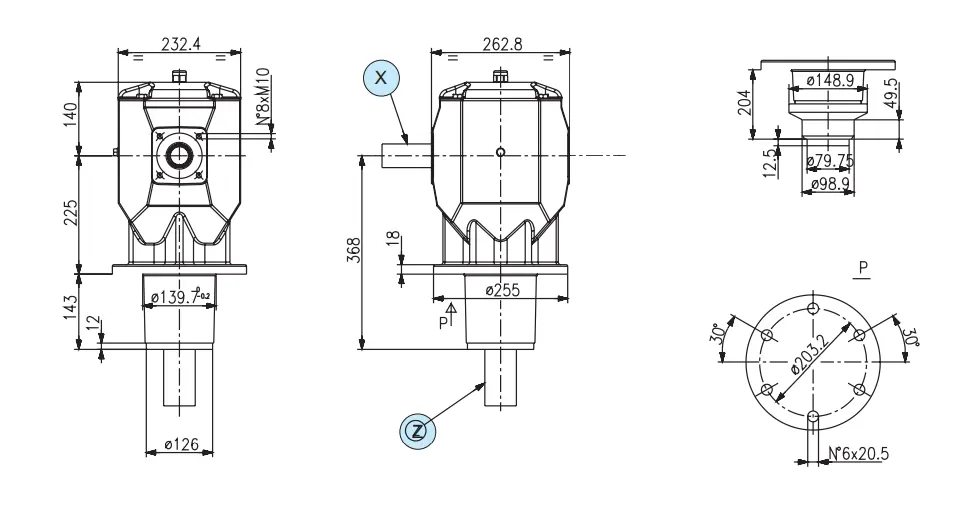

Rotary Mower Gearbox LF-125J Specifications

i	N1[rpm]	P1[kW]	M2[Nm]	Shaft Type		Input
				X	Z
1.77	540	93.0	901	1'' 3/4 Z20	Hub connection	X
1.00	1000	93.0	861	1'' 3/4 Z20	Hub connection	X



Rotary Mower Gearbox Maintenance

Rotary mowers are often used to keep grass and vegetation under control in lawns, parks, golf courses, and other areas. The gearbox is an important component of the rotary mower, as it connects the engine to the blade, and helps to transfer power from the engine to the blade. Proper maintenance of the gearbox is important to ensure the longevity and efficient operation of the rotary mower. Here are some tips for maintaining the gearbox of a rotary mower:

• Check the oil level: The gearbox should have a dipstick or sight glass to check the oil level. Make sure the oil level is correct and add oil if needed. Check the owner's manual for the type of oil recommended for the gearbox.
• Change the oil: Change the oil in the gearbox according to the manufacturer's recommendations. This is usually done every 50-100 hours of use or annually, whichever comes first.
• Clean the gearbox: Clean the gearbox periodically to remove dirt and debris that can accumulate on the outside of the gearbox. This can help prevent damage to the gearbox and ensure smooth operation.
• Check for leaks: Check the gearbox for leaks and repair any leaks immediately. Leaks can cause damage to the gearbox and can lead to premature failure.
• Lubricate the gearbox: The gearbox should be lubricated periodically to ensure smooth operation. Check the owner's manual for the recommended lubricant and the frequency of lubrication.
• Inspect the gearbox: Inspect the gearbox periodically for signs of wear or damage. If any wear or damage is found, have the gearbox repaired or replaced as needed.

By following these tips, you can help to ensure the longevity and efficient operation of the gearbox in your rotary mower.In addition to code LF-125J, we also provide other types of rotary mower gearboxes for sale. Click to get more!

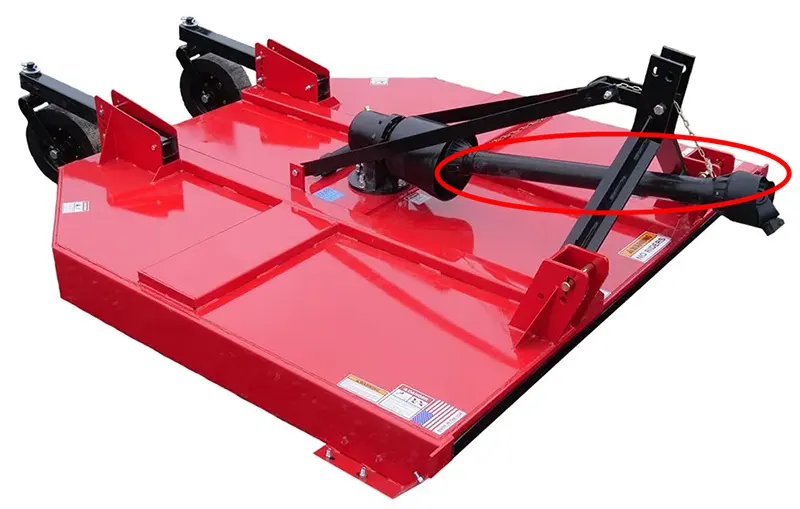

PTO Shafts for Rotary Mower Gearbox

PTO shafts are an essential component in the operation of a rotary mower gearbox. PTO stands for Power Take-Off and is used to transfer power from the tractor's engine to the rotary mower gearbox, which powers the cutting blades. When selecting a PTO shaft for your rotary mower gearbox, it is important to consider the following factors: length, capacity, safety, quality, and compatibility.When using a PTO shaft for a rotary mower gearbox, it is important to follow proper safety procedures. Always turn off the tractor and disconnect the PTO shaft before performing any maintenance or repair work on the mower or gearbox. PTO shafts are in stock at Raydafon!
