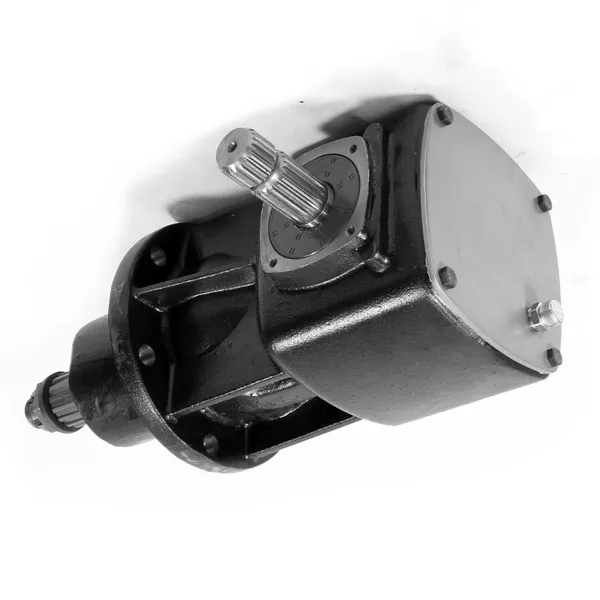

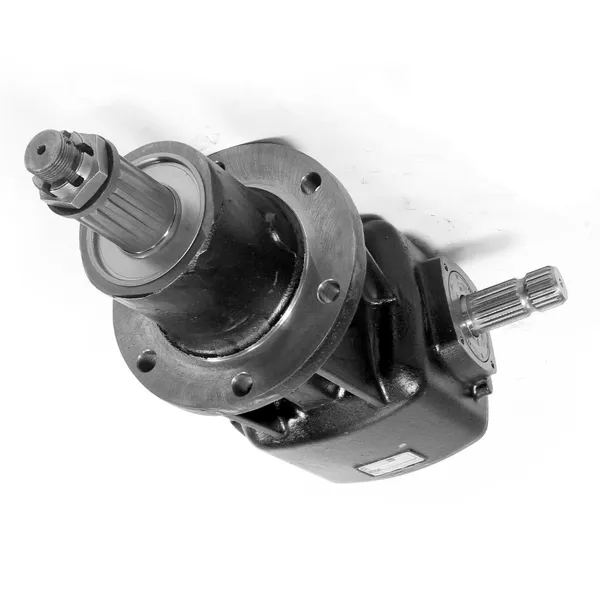

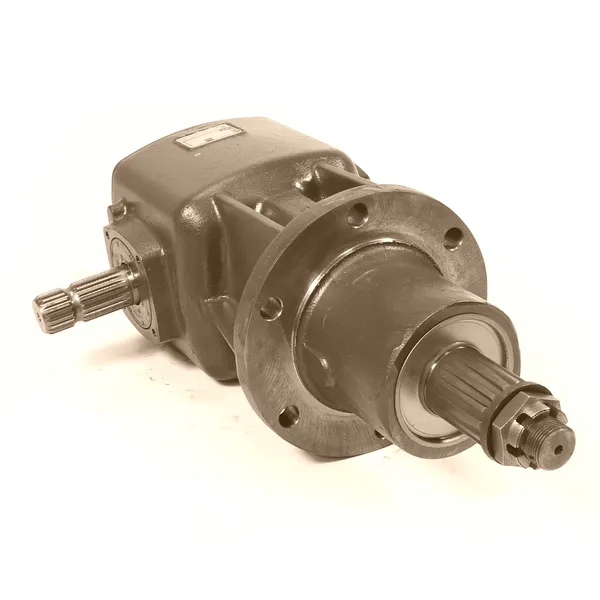

Rotary Mower Gearboxes - Replacement of Comer Code LF-149B 1:1

Rotary Mower Gearboxes - Replacement of Comer Code LF-149B 1:1

Rotary mower gearbox LF-149B is a type of gearbox that is commonly used in rotary mowers. This rotary mower gearbox is designed to transfer power from the mower's engine to the blades that cut the grass. The rotary mower gearbox LF-149B has a standard thread output shaft that is compatible with most rotary mowers on the market. It is made from high-quality materials such as steel and aluminum, giving it durability and longevity. Additionally, the rotary mower gearbox LF-149B is designed for low maintenance and is easy to install, making it a popular replacement choice for many rotary mowers.

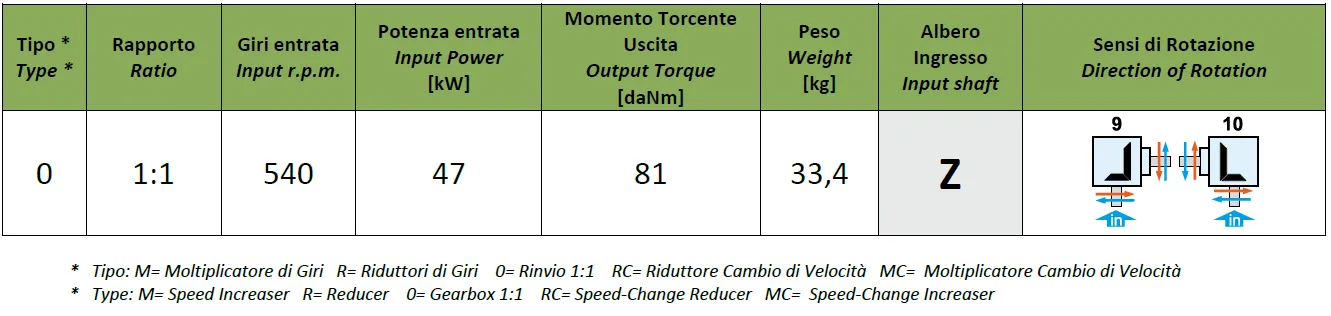

▍Specifications of Rotary Mower Gearbox LF-149B (1:1)

Product Description	Rotary Mower Gearboxes - Replacement of Comer Gearbox LF-149B 1:1
Product details	All gearboxes are supplied without oil. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. Contact us for power at a different RPM.
Max. input power	47 kW
Contains oil	No
Max. oil capacity	0.8 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GGG40
Weight	33.4 kg
Gear arrangement Increasing	3
Gear ratio	1:1
Input power kW / HP Increasing	47 / 55 kW/HP
Input shaft Increasing	Z
Output Torque DaNm Increasing	81 daNm
Ratio Increasing	1: 1
Ratio Reducing	1: 1
Shaft Z	1 3/8" (21)

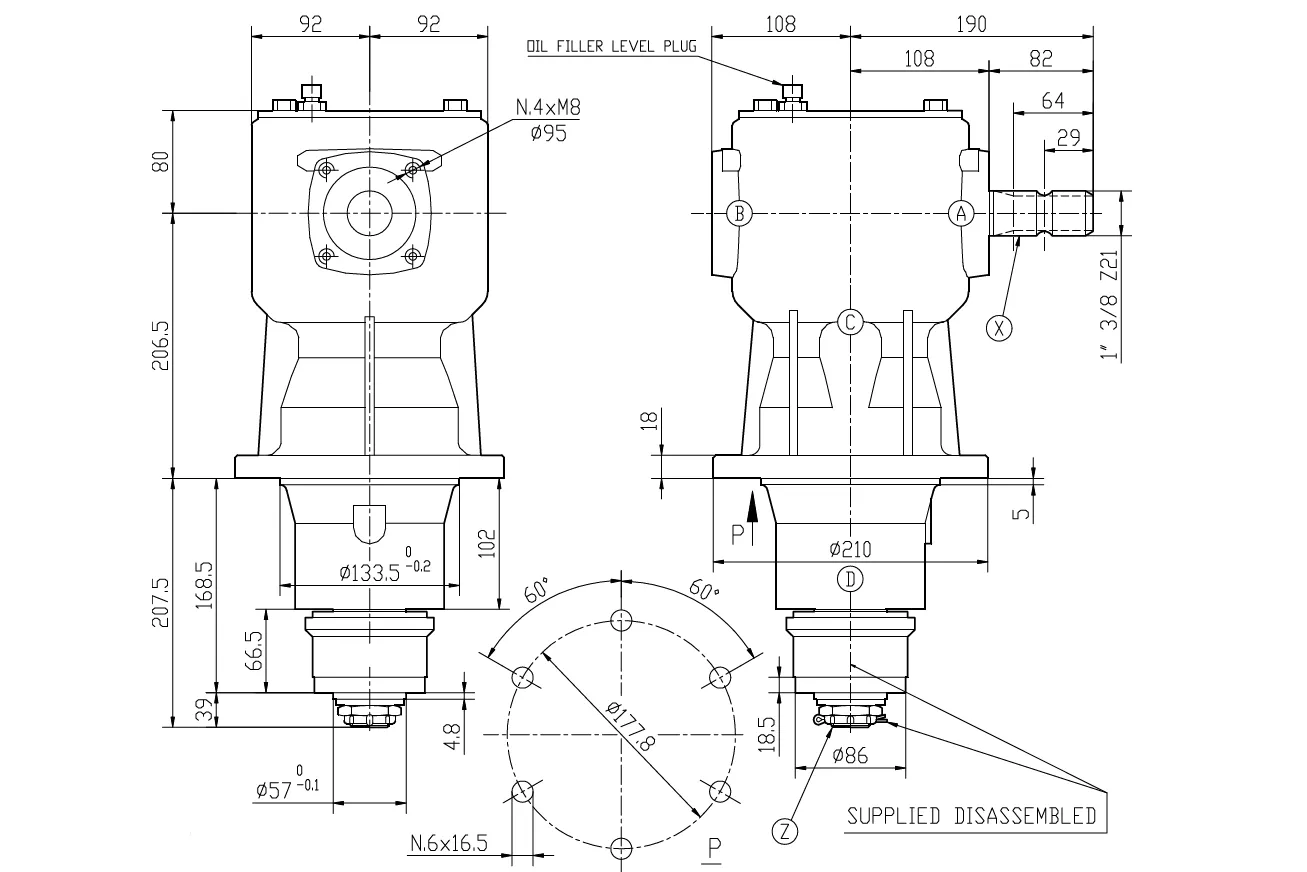

▍LF-149B Rotary Mower Gearbox Parts Structure

A rotary mower gearbox is typically composed of several different parts that work together to transmit power from the mower's engine to the blades. Here are some of the key parts that make up a typical rotary mower gearbox:(1) Output Shaft: The output shaft is part of the rotary mower gearbox that rotates and transfers power to the mower's blades.(2) Gearset: The gearset is a set of gears and shafts that transmit power from the input shaft to the output shaft. The gearset can include helical gears, spur gears, or bevel gears, depending on the rotary mower gearbox design.(3) Input Shaft: The input shaft is part of the rotary mower gearbox that receives power from the engine. The input shaft is connected to the gearset and turns the output shaft.(4) Bearings: Bearings are used to support the rotating elements of the rotary mower gearbox, helping to reduce friction and wear.(5) Seals: Seals, such as shaft seals, are used to prevent leaks and protect the gearbox from contaminants, such as dirt and moisture.(6) Housing: The rotary mower gearbox housing surrounds the internal components and supports them, protecting them from damage.(7) Mounting Hardware: The mounting hardware connects the rotary mower gearbox to the mower deck, ensuring that the gearbox remains in place during operation. This includes bolts, screws, or other fasteners that are used to attach the rotary mower gearbox to the mower's deck.These parts work together to transfer power from the engine to the blades in order to cut grass and other vegetation efficiently.

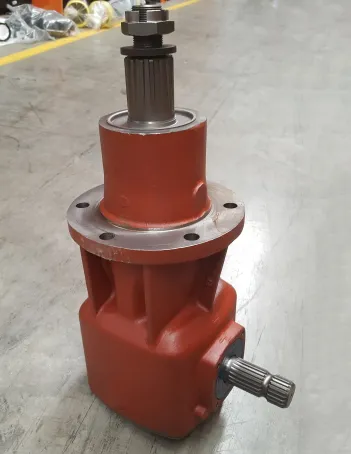

▍Features of Rotary Mower Gearbox LF-149B (1:1)

The rotary mower gearbox LF-149B has several features that make it popular among rotary mower owners. Here are some of its notable features:1. Durable construction: The rotary mower gearbox LF-149B is constructed with high-quality materials such as steel and aluminum, making it rugged and durable. This rotary mower gearbox can withstand the rigors of day-to-day mowing operations.2. Easy to install: With its simple design, the rotary mower gearbox LF-149B is easy to install. Its standard thread output shaft is compatible with most rotary mowers, and the gearbox comes with instructions for proper installation.3. Low maintenance: The rotary mower gearbox LF-149B is designed for low maintenance. Its sealed design reduces the likelihood of lubrication leaks, making it more efficient and cost-effective in the long run.4. Smooth operation: The rotary mower gearbox LF-149B is designed to provide smooth operation, ensuring that the rotary mower's blades spin smoothly and efficiently. This feature reduces wear and tear on the gearbox and the mower's engine.5. Compatible: The rotary mower gearbox LF-149B is a popular replacement choice for many different brands and models of rotary mowers. It is compatible with several different mowers, making it a versatile choice for those who need to replace their gearbox.Overall, the rotary mower gearbox LF-149B is a high-quality gearbox that offers durability, efficiency, and easy installation.

▍How Does the Rotary Mower Gearbox Work?

The rotary mower gearbox works by transferring power from the engine through the input shaft to the gearset. The gearset is a set of gears and shafts that transmit the power to the output shaft, which in turn rotates the mower's blades.When the engine is running, power is transmitted to the input shaft. The input shaft is connected to the gearset, which is made up of gears that are arranged in such a way as to change the speed and direction of the power transmission. Depending on the gearset design, the gears may be helical, spur, or bevel gears. The gearset is designed to multiply the power and transfer it to the output shaft at speed required for the mower blades to cut through the grass.The output shaft is connected to a spindle that holds the mower blades. As the output shaft spins, the spindle and blades also spin, cutting the grass.Bearings are used throughout the rotary mower gearbox to support rotating elements, reduce friction and wear, and improve the efficiency of the power transmission. Seals are used to prevent leaks and protect the rotary mower gearbox from contaminants such as dirt and moisture.Overall, the rotary mower gearbox works by efficiently transmitting power from the engine to the cutting blades, allowing the mower to cut grass quickly and effectively.

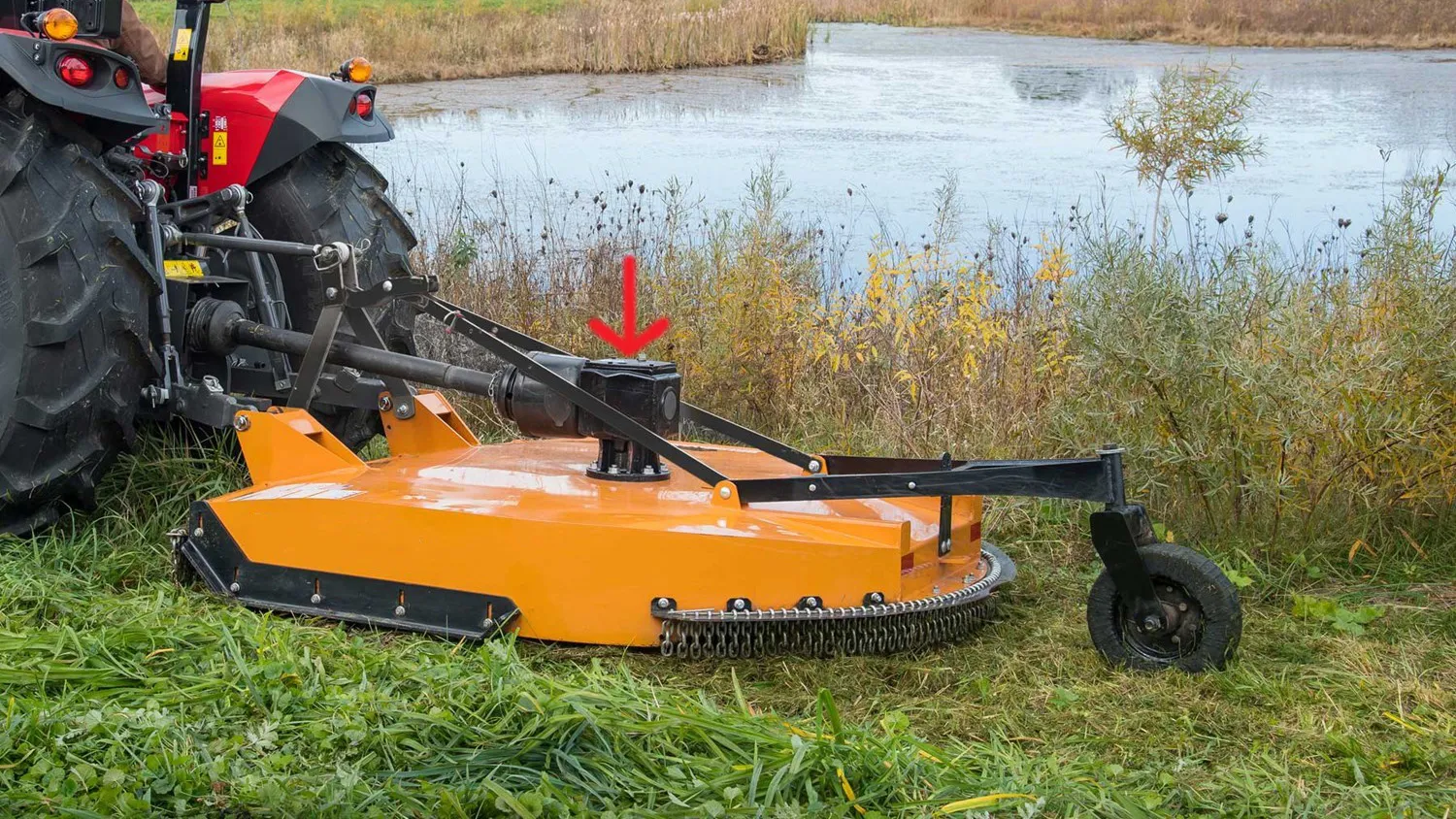

▍Where Can the Rotary Mower Gearbox Be Used?

The rotary mower gearbox can be used with various types of rotary mowers, including flail mowers, finishing mowers, and toppers. It is commonly used in agricultural and commercial applications for cutting and maintaining vegetation in fields, pastures, parks, and other areas. The rotary mower gearbox is designed to efficiently transfer power from the tractor PTO shaft to the mower blades and can be used with tractors of different sizes and power ratings. However, it is always recommended to follow the manufacturer's guidelines and specifications when selecting and installing a rotary mower gearbox to ensure the safe and efficient operation of the rotary mower.

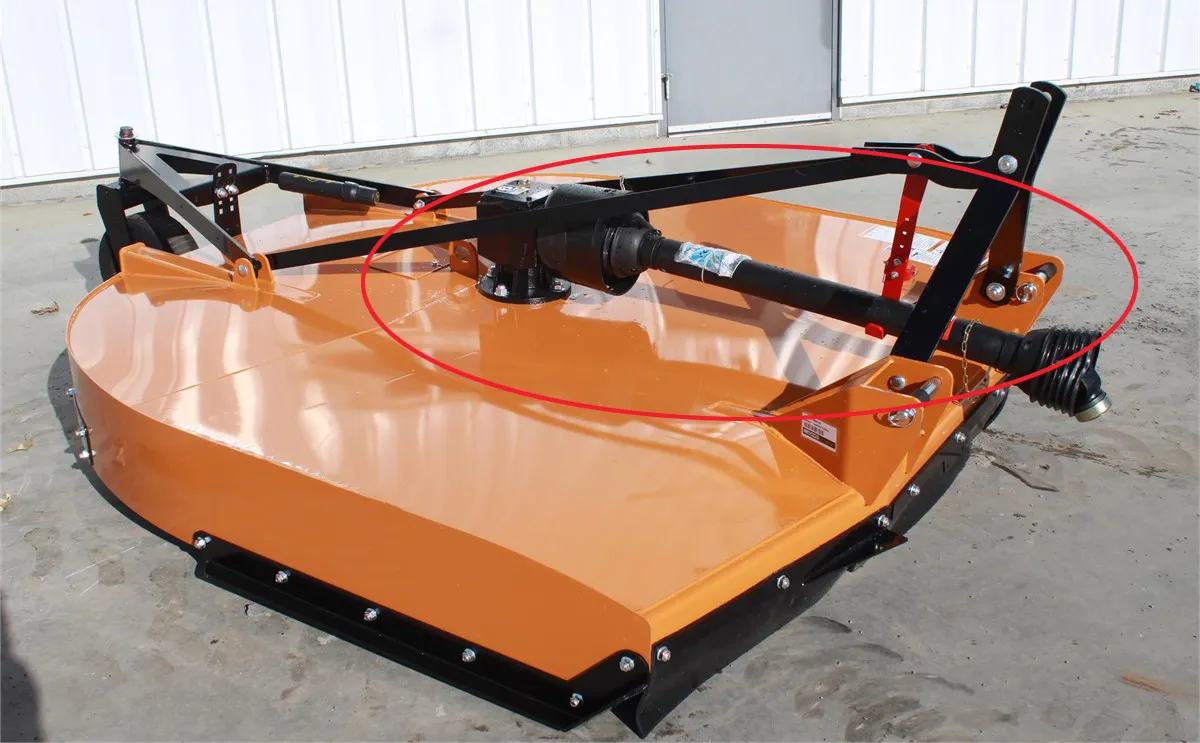

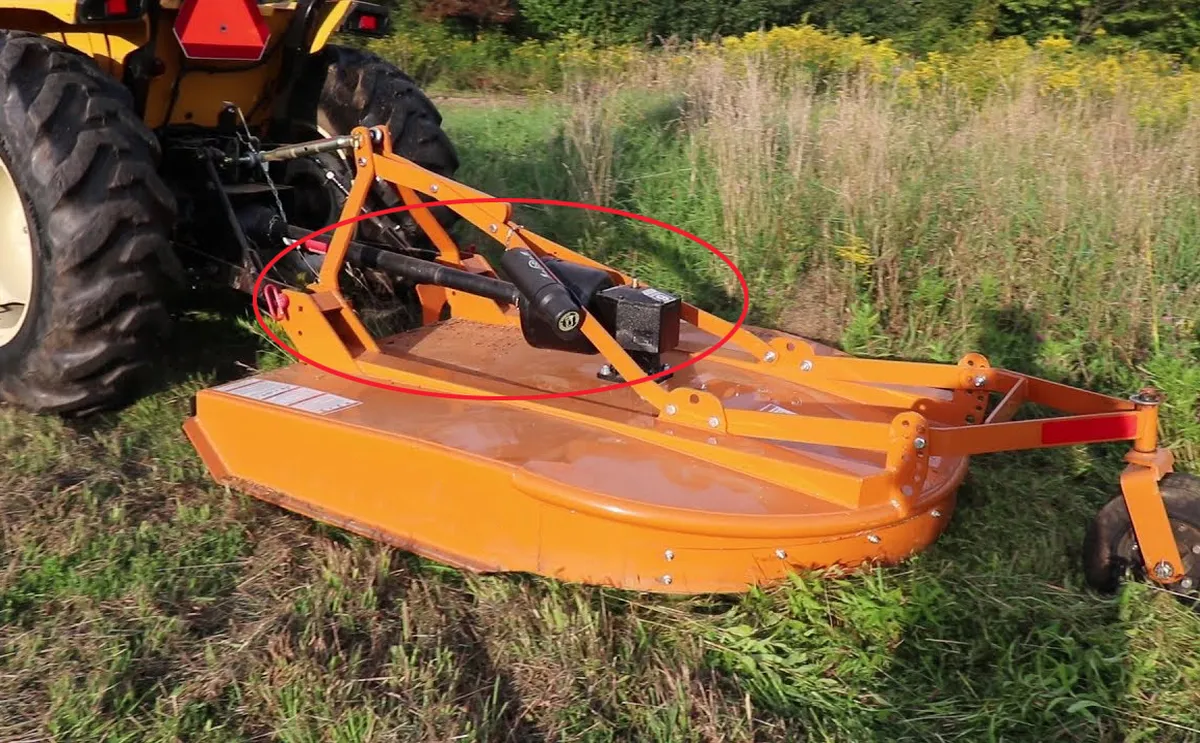

▍Agricultural PTO Shaft and Rotary Mower Gearbox

An agricultural PTO (Power Take-Off) shaft is a mechanical component that is used to transmit power from the tractor to the rotary mower gearbox. The PTO shaft connects to the tractor's engine and is designed to transfer the power and torque produced by the engine to the rotary mower gearbox.The rotary mower gearbox, as we discussed earlier, is responsible for transmitting the power received from the PTO shaft to the mower blades. The rotary mower gearbox is designed to increase the power and torque of the engine so that the mower blades can cut through thick grass.Using an agricultural PTO shaft and a rotary mower gearbox is a popular method of mowing large areas of land such as farms, pastures, and fields. It is an efficient way of cutting grass and allows farmers and landowners to maintain their land regularly.To use an agricultural PTO shaft and a rotary mower gearbox, the PTO shaft is connected to the tractor's engine, and the other end is connected to the rotary mower gearbox. The rotary mower gearbox then transfers the power to the mower blades, which spin rapidly and cut through the grass. This process is repeated across the entire area that needs to be mowed until the job is completed.Overall, the agricultural PTO shaft and rotary mower gearbox are important components in the efficient mowing of large areas of land. They enable cutting through thick vegetation quickly, making the process of land maintenance much easier for farmers and landowners.

▍Agricultural Rotary Mower Gearbox for Sale

Choosing the right rotary mower gearbox for your agricultural application is an important decision that requires consideration of several factors. Here are some of the key factors to consider when selecting an agricultural rotary mower gearbox:1. Horsepower and torque requirement: Choose a rotary mower gearbox that is capable of handling the horsepower and torque requirements of your tractor and mower. Make sure to consult the gearbox's specifications to ensure it can handle the power output of your tractor's engine.2. Gear ratio: The gear ratio of the rotary mower gearbox dictates the speed and torque output that the gearbox can produce. Choose a gear ratio that is appropriate for your specific application.3. Input and output shaft dimensions: Ensure that the rotary mower gearbox's input shaft and output shaft are compatible with your tractor's PTO output shaft and mower's driveline. This may require taking precise measurements and consulting the manufacturer's specifications.4. Quality and durability: Look for a gearbox that is made from high-quality materials and has been built with robust and durable construction. This can help ensure that the rotary mower gearbox can withstand the demands of regular use and last for many years.5. Brand and model compatibility: Make sure to choose a rotary mower gearbox that is designed to work with your specific make and model tractor and mower to ensure optimal fit and performance.Overall, when selecting an agricultural rotary mower gearbox, it's important to carefully evaluate your specific application and choose a gearbox that has the necessary features and capabilities to meet your specific needs.

▍We Also Provide Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearbox, lawn mower gearboxes, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, feed mixer gearboxes, flail mower gearboxes, round baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, micro tiller gearboxes, gearbox for rotary rakes, gearbox for hay tedders, etc. If you want to buy rotary mower gearboxes, please get in touch with us.
