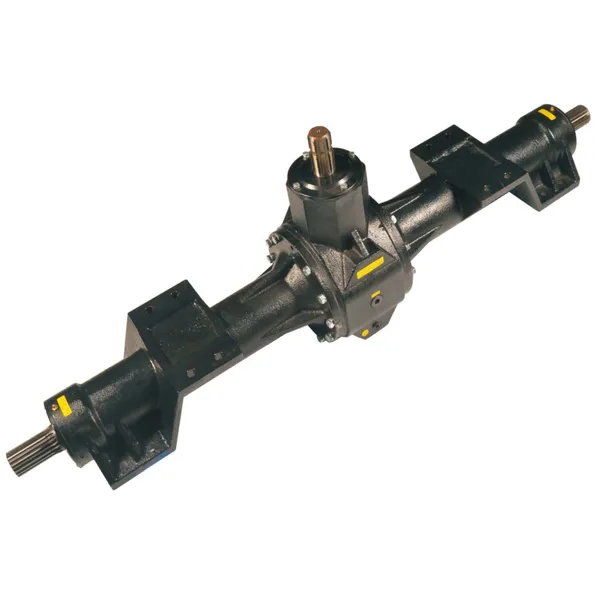

Round Baler Gearbox EP9.0 for Round Baler and Harvester

Round Baler Gearbox EP9.0 for Round Baler and Harvester

The Round Baler Gearbox EP9.0 is a specialized and robust gearbox designed for integration into round balers and harvesters. These machines are fundamental in agricultural operations for efficiently harvesting crops and compressing various types of crop materials into cylindrical bales. The round baler gearbox is engineered to meet the high demands of these machines, ensuring effective and reliable operation.The Round Baler Gearbox EP9.0 plays a crucial role in transmitting mechanical power from the tractor's Power Take-Off (PTO) or the harvester engine to the machinery's operational components. This includes driving the mechanisms that roll and compress the crop material into round bales or the components involved in cutting and collecting the crops in harvesters.It regulates the operational speed and torque to match the requirements of the round baler or harvester, ensuring that the machinery operates efficiently and the crop material is processed effectively.The EP9.0 gearbox is equipped with high-strength gears capable of handling the stresses involved in baling or harvesting operations, ensuring smooth power transmission and a long service life. It includes robust shafts and bearings that support smooth operation and durability, crucial for withstanding the demanding conditions typical in agricultural operations. The internal components of the gearbox are protected by a tough housing that shields them from environmental elements, dust, and debris, contributing to the gearbox's reliability and longevity.

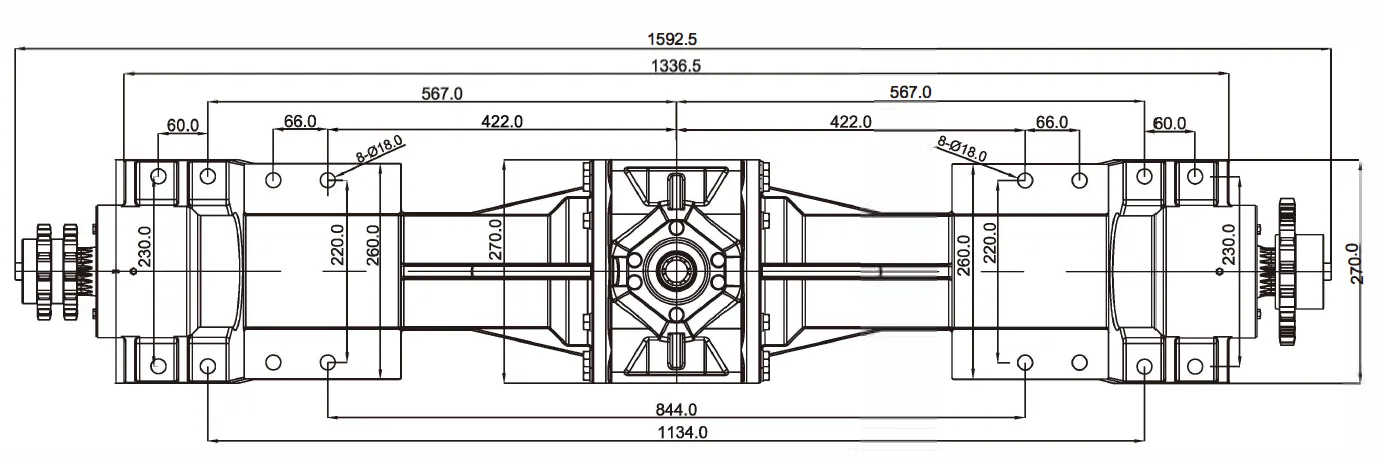

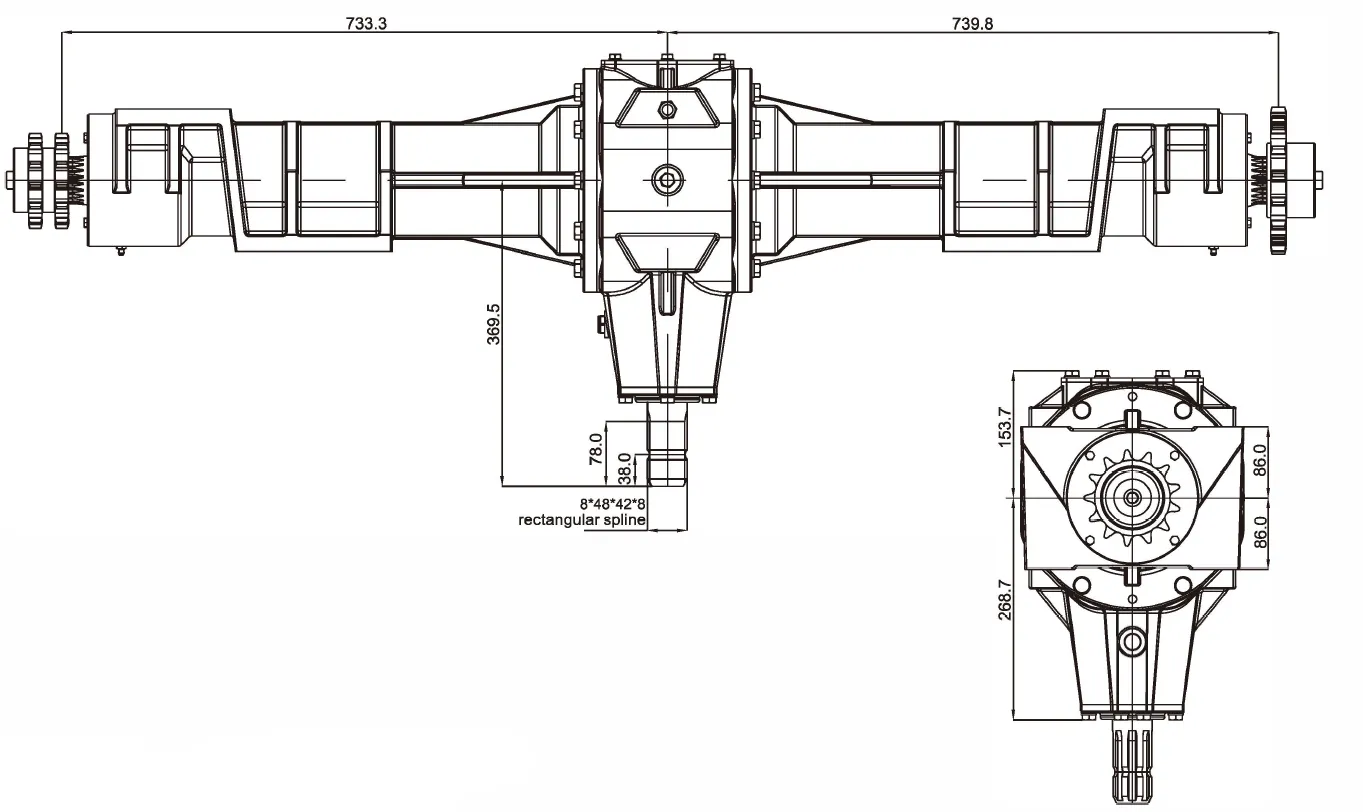

Round Baler Gearbox EP9.0 Dimensions

Round Baler Gearbox EP9.0 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	KW(Max)	Toothing
			r/min	r/min	hp	hp
Decelerate	1.92:1	Round baler,harvester, etc	540	282	120	3000	Gleason HelicalTeeth
Remark: If you have any special require feel free let me know, we also accept custom.

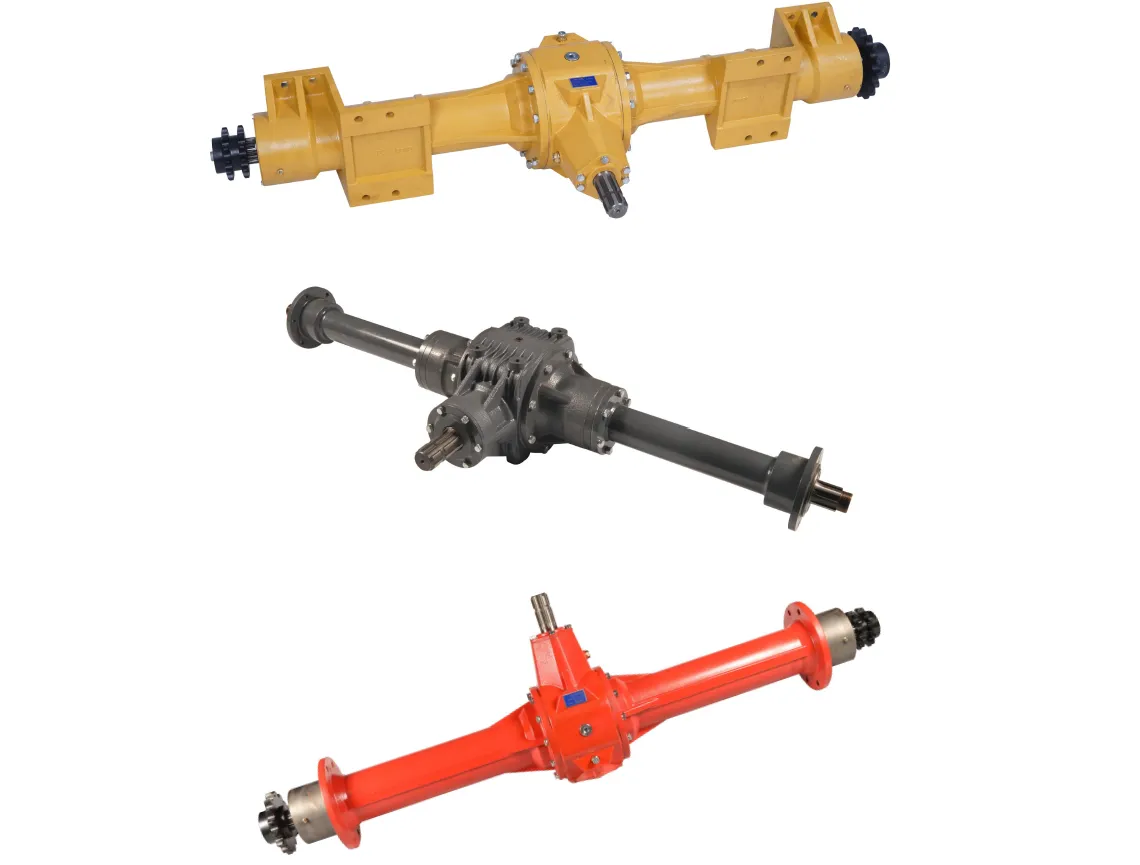

Round Baler Gearbox EP9.0 Components and Features

The Round Baler Gearbox EP9.0 is a critical component in agricultural machinery, particularly in round balers and harvesters. Its design and construction are aimed at providing efficient power transmission and handling the demanding conditions of agricultural operations. Here are the structural components and features of the Round Baler Gearbox EP9.0:1. Housing: Provides a sturdy enclosure for the internal components, protecting them from external elements, impacts, and contaminants. Typically made from high-strength materials like cast iron or steel, ensuring durability and resistance to wear and corrosion.2. Gears: The gearbox includes the helical gears. The helical gears are responsible for transmitting power from the tractor's PTO or the harvester's engine to the baler's or harvester's components. They also adjust the speed and torque to meet the specific needs of the machinery.3. Bearings: Bearings are strategically placed to support the gearbox's rotating shafts and maintain alignment.They reduce friction between the moving parts, contributing to smooth operation, reduced wear, and increased efficiency.4. Shafts: Input Shaft: Connects to the PTO of the tractor or the power output of the harvester, receiving mechanical power. Output Shaft: Transfers the power from the gearbox to the operational components of the round baler or harvester, ensuring proper functionality.5. Seals: Prevent lubricant leakage and stop contaminants from entering the gearbox, which could lead to wear and damage. Includes various seals and gaskets, each designed for specific locations and functions within the gearbox.

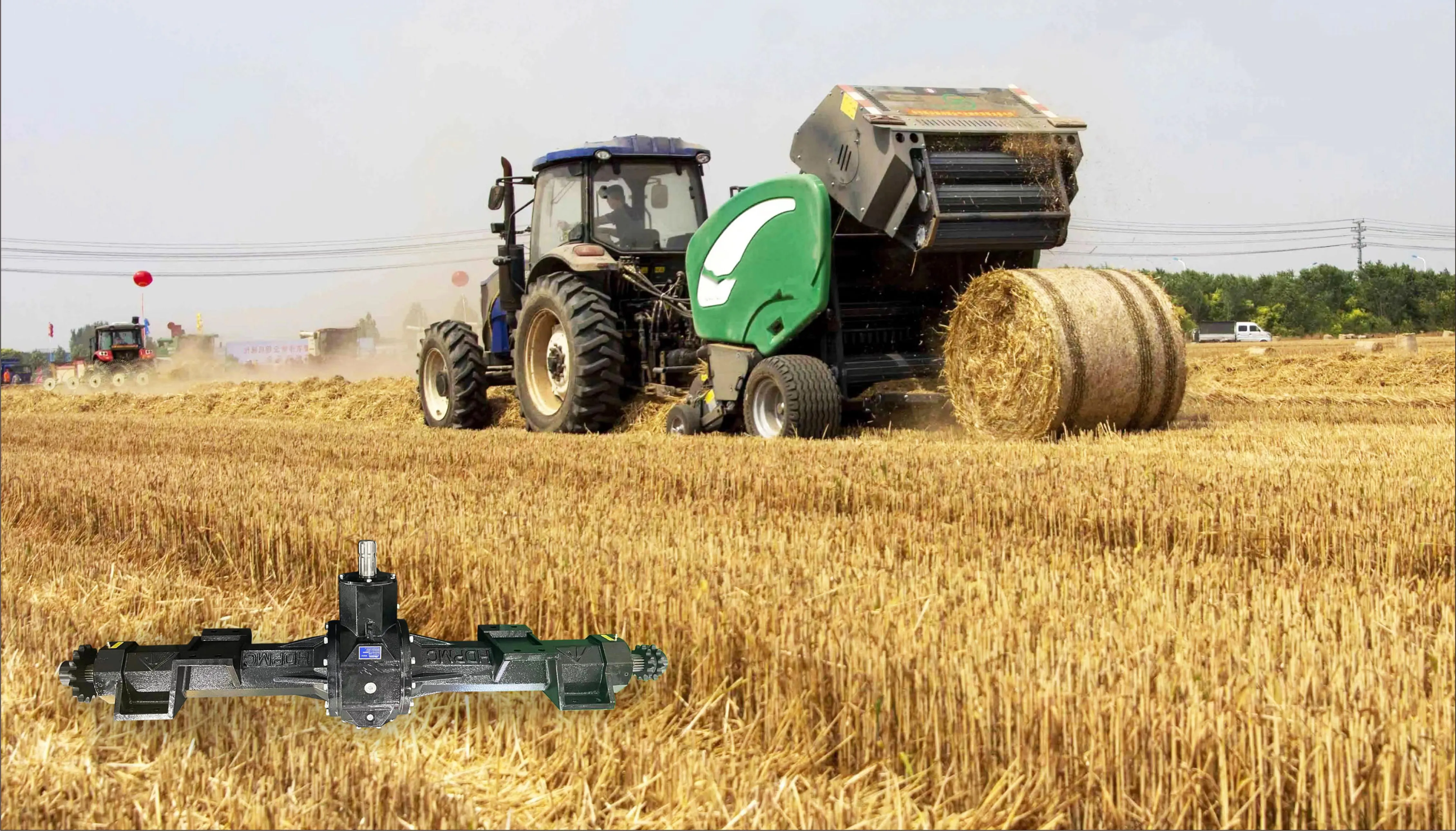

Round Baler Gearbox EP9.0 Applications Area

The EP9.0 gearbox is a specific type of gearbox commonly used in round balers and harvesters. It is designed to provide power transmission and control for the various components and functions of these agricultural machines. Here are the typical applications of the EP9.0 gearbox in round balers and harvesters:Round Balers: Round balers are machines used to gather, compress, and bind crops such as hay, straw, or silage into round bales. The EP9.0 gearbox is utilized in round balers to perform the following functions:

• Bale Formation: The gearbox helps drive the pickup mechanism that collects the crop from the ground and feeds it into the baler.
• Crop Compression: It powers the rollers or belts that compress the crop material to form a dense bale.
• Twine or Net Wrapping: The gearbox controls the wrapping mechanism, which uses twine or netting to secure the bale.
• Bale Ejection: It assists in expelling the finished bale from the baling chamber.

Harvesters: Harvesters, such as forage harvesters or combine harvesters, are used to harvest and process crops like corn, wheat, or soybeans. The EP9.0 gearbox finds application in harvesters for the following purposes:

• Crop Cutting and Gathering: The gearbox drives the cutting mechanism, typically a rotating header or a cutting platform, that gathers the standing crop and cuts it.
• Crop Conveyance: It powers the conveyor system that transports the harvested crop from the cutting mechanism to the processing or collection area within the harvester.
• Crop Processing: In certain harvesters, the gearbox may be responsible for operating additional components like threshers or separators that separate the grain from the chaff or husks.
• Grain or Crop Storage: The gearbox may also be involved in controlling the mechanisms responsible for storing the harvested crop within the harvester, such as grain tanks or hoppers.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
