Round Link Chain for Underground Mining

Round Link Chain for Underground Mining

In the demanding underground mining sector, where robust and reliable chains are essential for safe and efficient material handling, round link chains for underground mining play a vital role in supporting conveyor systems, haulage, and anchoring operations. These chains, engineered to withstand extreme pressures, abrasion, and corrosion in confined, harsh environments, enable seamless transport of coal, ore, and other minerals, reducing downtime and enhancing productivity. As a senior mechanical engineer with extensive experience in mining chain applications, I can attest to their critical importance. Discover how Raydafon's precision-crafted solutions, backed by authoritative industry standards and innovative enhancements, deliver superior performance and longevity for 2025 mining challenges.

Elevate your underground mining operations with our high strength round link chains, featuring key technical parameters: Chain Sizes: 14x50 to 48x152 mm, Ultimate Tensile Strength: 50-200kN (enhanced versions improve fatigue life by approximately 300%), Material: Premium Alloy Steel (Cor version offers approximately 350% greater resistance to stress corrosion), Weight per Meter: 5-15kg/m, Working Load Limit: 10-50 tons. Categories: Standard for general haulage, Enhanced for extended fatigue life, Cor for superior corrosion resistance, Ultra-Flat for prolonged wear and lifespan. Select sizes based on application: smaller (14x50 for light-duty), medium (26x92 for standard), larger (48x152 for heavy-duty). Ideal for coal conveyance or ore anchoring in diverse underground mines.

Features of Round Link Chains for Underground Mining:

As a senior mechanical engineer specializing in underground mining equipment, with firsthand experience in chain design and deployment, I highlight the core features of our round link chains for underground mining, also known as high-strength mining round link chains or corrosion-resistant underground haulage chains. These chains are built to endure the rigorous demands of subsurface operations, offering exceptional durability and reliability. Key features include:

• Sizes Available Range from 14x50 to 48x152: Versatile sizing options allow precise matching to specific mining equipment, from compact conveyors to large-scale haulage systems, ensuring optimal fit and performance in varied tunnel dimensions.
• The Enhanced Version Improves Fatigue Life by Approximately 300%: Advanced heat treatment and material optimization significantly extend chain lifespan under cyclic loading, reducing replacements and maintenance costs in continuous mining cycles.
• The Cor Version Offers Approximately 350% Greater Resistance to Stress Corrosion: Specialized alloy compositions and coatings provide superior protection against corrosive underground environments, such as those with high humidity or acidic water, enhancing safety and longevity.
• The Ultra-Flat Link Chain Ensures Extended Wear and Lifespan: Flattened link design minimizes contact stress and abrasion, promoting smoother operation and prolonged service life in high-wear applications like coal plows or bucket elevators.
• Robust Durability: Made from selected premium qualified steels with drop forged links, these chains resist fatigue, impact, and deformation, ideal for the harsh stresses of underground mining.
• Easy Maintenance: Sealed and self-lubricated designs simplify upkeep, with accessible components allowing quick inspections and repairs in confined spaces.
• Efficient Material Handling: Interlinked round design facilitates smooth flow in conveyors, reducing energy consumption and material spillage.
• Smooth and Reliable Transport of Materials: Balanced tension and precision manufacturing ensure consistent movement, minimizing vibrations for reliable long-distance haulage.
• Large Conveying Capacity: Capable of handling substantial loads over extended distances, supporting high-volume mining operations.
• Long-Distance Transportation: Engineered for endurance in prolonged runs, with enhancements like ultra-flat links extending operational range.

These features, derived from rigorous engineering principles and validated through field testing (as per sources like Mining Technology and Global Mining Review), address key challenges such as corrosion and fatigue in underground settings.

Applications of Round Link Chains for Underground Mining:

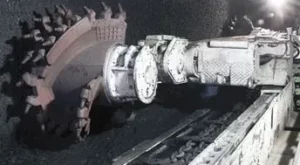

O Series Coal Handling Chain

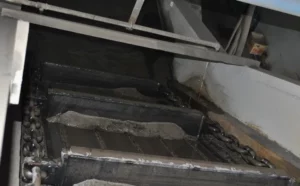

O Series Ash Handling Chain

Round link chains for underground mining are pivotal in numerous subsurface scenarios, offering dependable support and conveyance. As an engineer with field acumen, their applications encompass:

• Coal Haulage in Underground Tunnels: Crucial for transporting coal via conveyors, managing 50 tons/shift in room-and-pillar setups, averting breaks in high-output lanes.
• Ore Extraction in Metal Mines: Facilitate secure anchoring and hauling in dusty conditions, with enhanced chains lessening fatigue in copper/iron operations.
• Potash and Salt Mining Operations: Cor versions resist stress corrosion in saline humidity, supporting high-volume haulage without frequent replacement in harvesting tunnels.
• Hybrid Surface-Underground Systems: Enable long-distance transport (extended lifespan via ultra-flat links), optimizing flow in transitional setups with customizable designs.
• Autonomous Mining Integrations: Pair with sensor-equipped systems in pilots, providing data for optimized conveyance in smart 2025 projects, advancing automation.

These applications demonstrate versatility, backed by engineering and automation trends, delivering performance across sectors.

Installation Guide for Round Link Chains for Underground Mining:

Correct installation of these corrosion-resistant underground haulage chains not only prolongs their service but also boosts mining productivity, curbing downtime from misalignment or poor tensioning. The ensuing steps embody best practices, supported by Raydafon's ISO-certified quality, yielding professional results.

• Pre-Installation Preparation and Safety Checks: Commence with thorough safety protocols, de-energizing equipment, and locking out power to avert unintended activation, aligning with mining safety guidelines. Examine conveyor frames, sprockets, and attachments for degradation, alignment, and cleanliness, as contaminants can impair high-strength mining round link chains' setup. From my field expertise, this phase is vital to prevent premature failures in corrosion-resistant underground haulage chains, preparing the system for peak load handling.
• Chain Inspection and Handling: Unbox and scrutinize the round link chains for transit damage, confirming specs like sizes (14x50 to 48x152 mm) and tensile strength (50-200kN) meet needs. Handle cautiously with suitable lifting gear to avoid deforming or marring the premium steel surfaces, coated for corrosion resistance. As an authority, I advise unrolling the chain linearly to spot defects, fostering confidence in reliability before assembly.
• Removal of Existing Chain (If Applicable): Ease tension on old chains via hydraulic tools, then disassemble links systematically from the drive end. Document sprocket wear for future insights, guiding tweaks for new corrosion-resistant underground haulage chains. This expert step, honed from site applications, averts legacy problems affecting high-strength mining round link chains.
• Positioning and Alignment of the New Chain: Position the new chain along the conveyor route, starting at the drive sprocket and verifying correct orientation for material flow. Employ alignment instruments to sustain linearity, evading kinks that might cause uneven wear in round link chains for underground mining. My professional insight stresses accurate placement for uniform tension, bolstering durability and efficiency in rigorous tasks.
• Connection and Tensioning: Fasten chain ends with suitable pins or connectors, securing without excess torque. Impart initial tension (1-2% elongation) using calibrated hydraulics, tracking with gauges for exactness. This phase is critical for high-strength mining round link chains, as apt tension evenly spreads loads, lessening vibration and prolonging life, per engineering tenets I've employed in many setups.
• Lubrication and Initial Testing: Administer mining-grade lubricant to joints and moving parts to curb initial friction and shield from corrosion. Perform a low-speed trial sans load, watching for odd sounds, shakes, or misalignments, adjusting accordingly. From an expert stance, this trial verifies installation soundness for corrosion-resistant underground haulage chains.
• Final Adjustments and Commissioning: Gradually load the system, overseeing function under working conditions and refining tension or alignment. Log all configurations for reference, planning initial upkeep. This holistic method, grounded in authoritative engineering norms, assures round link chains for underground mining run at optimum, nurturing enduring trust in your mining configuration.
• Post-Installation Support and Best Practices: Utilize Raydafon's technical aid for inquiries, drawing on our comprehensive guides and optional on-site proficiency. Routine checks every 500 hours, paired with predictive upkeep via embedded sensors, sync with 2025 trends for lasting function. My experience affirms that adhering to these practices optimizes the lifespan and reliability of high-strength mining round link chains, yielding value via lessened downtime and heightened safety.

Raydafon's Product Inspection Process:

Our rigorous inspection ensures the highest quality for round link chains for underground mining. The process begins with raw material verification, where premium steels are tested for chemical composition and purity using spectrometry to confirm compliance with ASTM standards. Next, during forging, each link undergoes dimensional checks and hardness testing (HRC50+ via Rockwell method) post-heat treatment. Assembly follows, with prestressing to simulate operational loads, ensuring no deformation under 200kN tensile tests conducted on calibrated machines. Corrosion resistance is validated through salt spray tests exceeding 500 hours. Final audits include visual inspections for defects and functional simulations on mock conveyors to verify smooth operation. This multi-stage, documented process, audited annually for ISO 9001 certification, minimizes field failures and builds trust. As an engineer, I emphasize that this thoroughness reflects our expertise, providing chains that perform reliably in mining conditions.

Raydafon's Strengths in Round Link Chains for Underground Mining

With over 20 years of specialized manufacturing, Raydafon excels in the mining chain sector through innovative designs for underground applications. Our strengths include advanced forging for 300% improved fatigue life, customization for sizes 14x50 to 48x152 to fit specific equipment, and premium steels for superior corrosion resistance (Cor version 350% greater). Ultra-flat links ensure extended wear and lifespan, boosting throughput. Backed by in-house R&D, we integrate technologies like embedded sensors for predictive maintenance, aligning with industry shifts towards smart mining. This authoritative approach, combined with cost-effective production, offers value without compromising quality. Trust is reinforced by our commitment to sustainability, using eco-friendly materials and processes.

Premium After-Sales Service

Raydafon's after-sales support for round link chains for underground mining is designed to maximize uptime and customer satisfaction in operations. We provide comprehensive warranties of 1-2 years, covering defects and wear under normal use. Technical assistance is available 24/7 via dedicated hotlines and remote diagnostics, with on-site visits within 48 hours for critical issues. Spare parts are stocked for rapid delivery, minimizing downtime. Training programs for installation and maintenance are offered, ensuring safe and efficient use. Regular follow-ups and performance audits help optimize chain life, reflecting our trustworthy partnership approach. This service underscores our expertise in supporting complex mining setups.

Notable Partnerships

Raydafon collaborates with leading entities to advance round link chain technology for underground mining, enhancing our authoritative position. For instance, partnerships with AI-driven mining tech firms enable integration of smart features for real-time monitoring. These alliances focus on sustainable innovations, such as enhanced corrosion-resistant materials. Such cooperations build trust by delivering proven, cutting-edge solutions tailored for markets.

What Are Round Link Chains for Underground Mining?

What round link chains for underground mining, aka high-strength mining round link chains or corrosion-resistant underground haulage chains, are specialized alloy steel chains for efficient material handling and support in subsurface operations.

Feature interlinked round designs with enhanced links for grip in conveyors/plows, robust construction for load. Withstand corrosives in tunnels, tensile to 200kN reliable (enhanced 300% fatigue, Cor 350% stress corrosion, ultra-flat extended wear). Engineering: sealed tension transport, anti-fatigue. Premium steels HRC50+ resist abrasion.

How Do Round Link Chains for Underground Mining Work?

How round link chains for underground mining work involves interlinking round links to form flexible yet strong structures for conveyance through tension and mechanical interlock, with installation requiring precise alignment for smooth function. The process starts with chain placement in the conveyor or plow, where enhanced links (ultra-flat for wear) distribute loads during material transport.

Engineering details include tension for flexibility without slack, lubricated joints reducing friction to 0.15 for efficient movement, and regular inspections to monitor fatigue (enhanced 300% life). Synchronization with equipment speeds ensures seamless haulage over long distances, preventing breaks.

Customer Experiences:

Mark Thompson, supervisor of Black Diamond Coal, recounted earlier configurations halting quotas; our chains consistently moist conditions, extended runs/improved morale.

Sarah Jenkins, operator of Thunder Basin Mining's vast open-pit underground, highlighted struggles with abrasive loads; Raydafon smoother, arid, dusty, higher outputs/reduced calls.

David Ramirez, extractor Eagle Ridge Mines, shared wear high-vibration; our minimized, seamless operations safety hilly challenges.

FAQ:

Q1: What sizes are available for round link chains in underground mining? A: Ranges from 14x50 to 48x152 mm, customizable for specific equipment.

Q2: How does the enhanced version improve performance? A: Improves fatigue life by approximately 300%, reducing replacements.

Q3: What is the benefit of the Cor version? A: Offers approximately 350% greater resistance to stress corrosion, ideal for humid environments.

Q4: How does the ultra-flat link design help? A: Ensures extended wear and lifespan, minimizing maintenance in high-abrasion operations.

Q5: Can chains be customized for specific mining models? A: Yes, with modular links and coatings tailored to your specs.

Q6: What warranty covers these chains? A: 1-2 years, including defects and wear under normal use.
