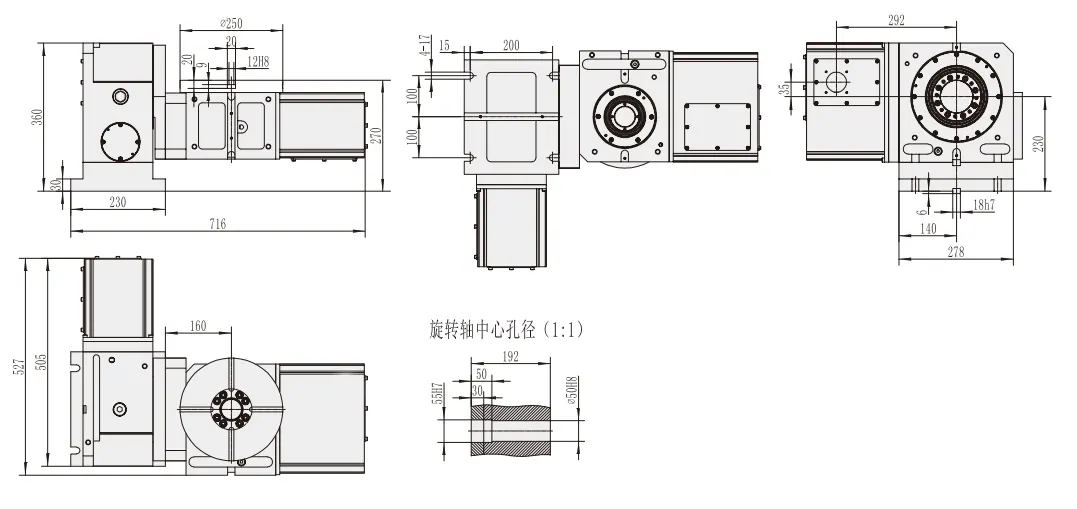

RT-250 CNC Rotary Table 5 Axis Indexing Table for CNC Machine 250mm

Introduction to CNC Rotary Tables

CNC Rotary Tables are an integral part of a CNC machine, offering flexibility and precision for machining operations. They are designed to hold the workpiece and rotate it to allow the cutting tool to perform various operations at different angles. The RT-250 model is a precision rotary table designed for high performance, efficiency and precision. It is a 5-axis indexing table with a diameter of 250mm, making it suitable for a variety of applications in the manufacturing industry.

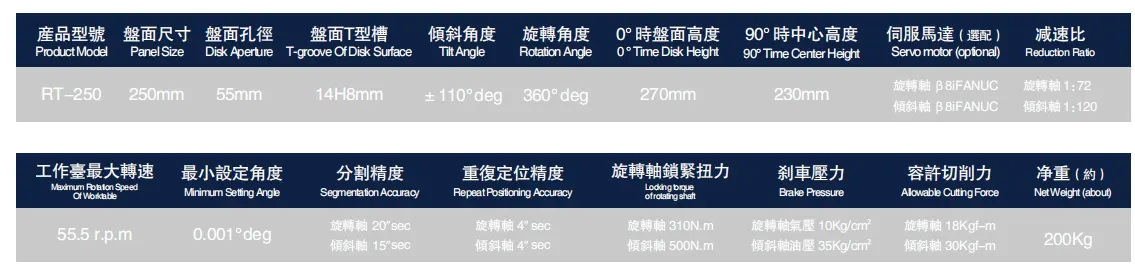

Product Features and Specifications

Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	200 Kg
Brake:	Pneumatic / Hydraulic

The RT-250 CNC Rotary Table boasts of multiple features, including:

• High precision, ensuring accurate and precise machining
• High performance, capable of handling heavy workpieces
• High efficiency, allowing fast and efficient machining
• Five axis machining, offering flexibility in multiple dimensions
• Modular design, facilitating easy installation and maintenance
• Strong braking system, providing safety and stability during operation

How Does a CNC Rotary Table Work?

A CNC Rotary Table consists of three fundamental components: the spindle, drive system, and control system. The spindle holds and rotates the workpiece or tool, while the drive system provides the motive power. The control system governs the speed and direction of the spindle rotation. Together, these components work to ensure precise and efficient machining operations.

Applications of CNC Rotary Tables

The RT-250 CNC Rotary Table can be used in several machines, including Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, and Boring Machines.

Advantages of CNC Rotary Tables

CNC Rotary Tables offer multiple benefits, including:

• Increased productivity: By automating the rotation of the workpiece or tool, CNC Rotary Tables enhance efficiency and productivity.
• Improved product quality: They ensure accurate positioning of the workpiece or tool throughout the rotation, thereby improving product quality.
• Reduced labor costs: By reducing the need for manual intervention, CNC Rotary Tables lower labor costs.

Worm Gear System in CNC Rotary Tables

A worm is a spiral structure similar to a propeller, while a worm gear is the corresponding gear with more teeth than the worm. This design provides a high transmission ratio, allowing for larger torque output within a small space. In CNC machines, rotary tables often use worm and worm gear drive systems, as they offer precise positioning and stable rotational motion, making them ideal for tasks requiring precise control and stability.

Why Choose Raydafon's CNC Rotary Tables?

Raydafon (Ningbo Raydafon) is a leading supplier of CNC Rotary Tables. With a commitment to R&D innovation and advanced production technology, Raydafon designs CNC Rotary Tables that meet the rapidly changing needs of customers. With its business philosophy of "honesty based, harmony based, technology-based, industry competitive", Raydafon has developed a range of 4-axis and 5-axis high-precision rotary tables that cater to different processing fields. With support from all walks of life, Raydafon continues to advance in R&D and service, striving to become a reliable professional service provider and leading brand in China's machine tool industry.

Take Action Now!

Explore the range of CNC Rotary Tables offered by Raydafon and discover how they can enhance your machining operations. Contact us now for more information and to make a purchase.

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?A: We are a manufacturer with over 15 years of experience. You are welcome to visit our factory.Q: Can the products be customized?A: Yes, we offer OEM services. We can design and produce products according to your requirements.Q: How long is the quality guarantee?A: We offer a one-year quality guarantee.Edited by Zqq.
