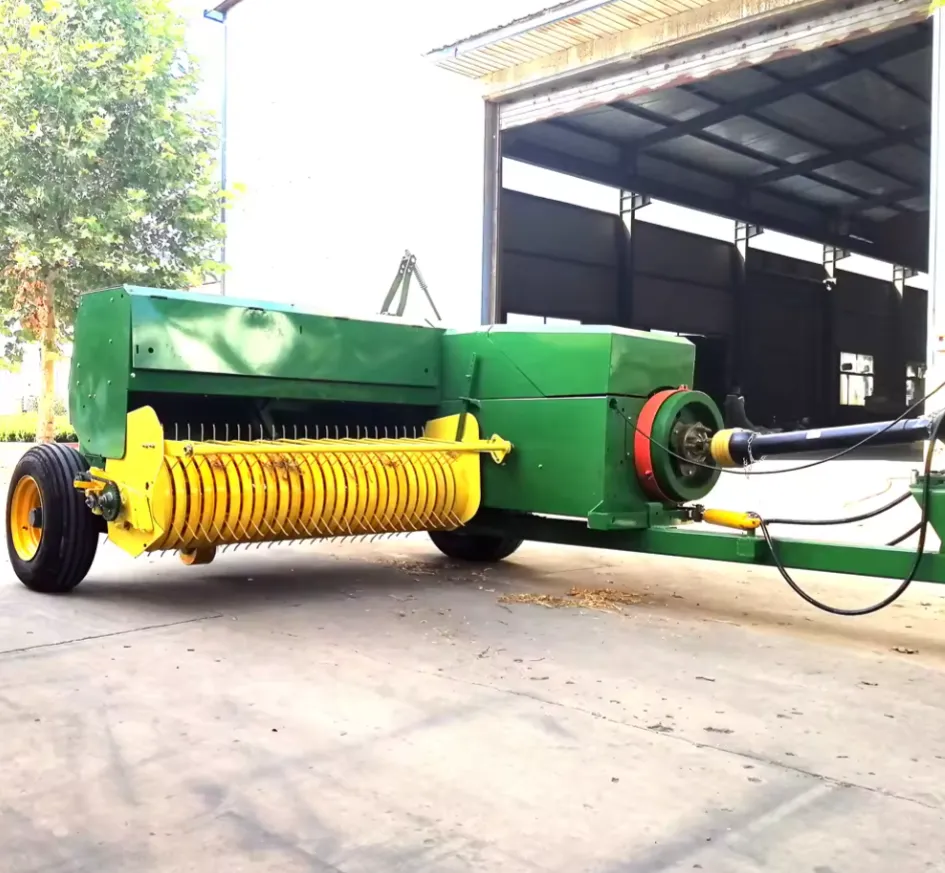

RXYK2060 Mini Square Baler for Agricultural Hay Baling

The RXYK2060 mini square baler is not just an ordinary product. Designed for high productivity, this new square baler is perfect for farms looking to efficiently bale hay, crop straw and stalks. The machine's compact dimensions of 4100*2150*1300mm and a weight of 1030 KG make it a convenient addition to your machinery set. With a one-year warranty on core components and the machine itself, this square baler ensures long-term reliability. The core component of this baler is its gear, designed to ensure optimal performance. The baler is powered by a 50hp match power and operates at a PTO RPM of 540. Its high working capability delivers 80-240 bales per hour. The baler's plunger frequency stands at 92 times per minute, with a plunger stroke of 600mm and 32 spring teeth. The working width of this machine is 1440mm, making it suitable for various farming applications.

Advantages of the RXYK2060 Mini Square Baler

The RXYK2060 Mini Square Baler offers an array of advantages that make it an excellent choice for farming operations:

• High Productivity: With a capability of producing 80-240bales/hour, this machine significantly boosts your farm's productivity.
• Efficient Design: The baler's design, consisting of a gear as a core component, ensures efficient operating.
• Versatile Application: You can use this machine for baling hay, crop straw, and stalk.
• Compact and Lightweight: Weighing 1030 KG and with compact dimensions, the baler is easy to handle and store.
• Reliable: The machine comes with a one-year warranty, guaranteeing its reliability.
• Adjustable Bale Length: You can adjust the length of the bales from 300 to 1000mm, catering to different needs.

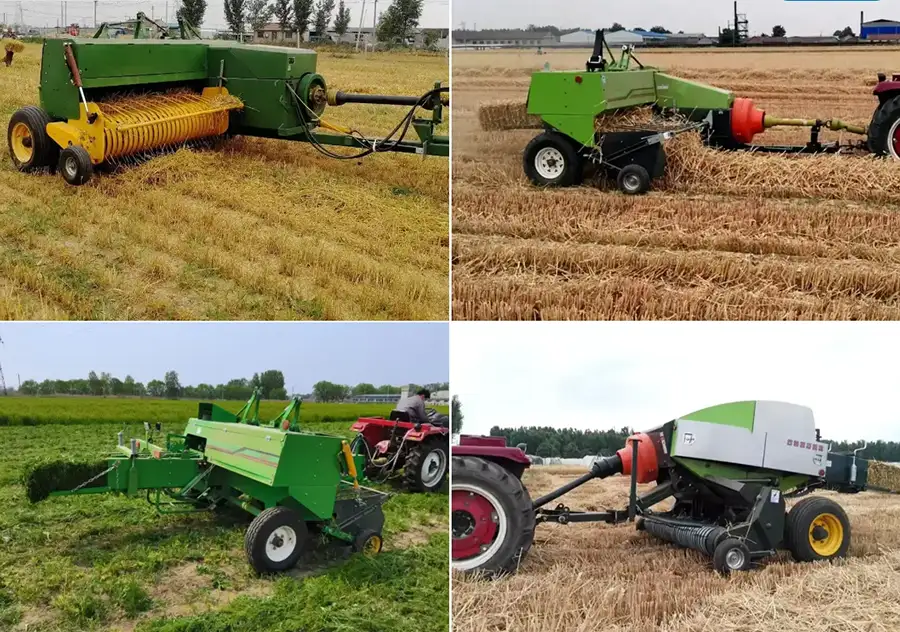

Applications of the RXYK2060 Mini Square Baler

The RXYK2060 Mini Square Baler is suitable for a wide range of applications, including:

• • Hay Baling: It is perfect for baling hay, reducing the area of straw storage and improving transport capacity.
  • Crop Straw Baling: The baler is also applicable for baling crop straw, aiding in waste management.
  • Stalk Baling: You can use this machine to bale stalks, further enhancing its versatility.
  • Farm Operations: With an applicable industry of farms, the baler is ideal for various farming operations.
  • Animal Husbandry: The baler is indispensable for animal husbandry, aiding in fodder management.
  • Paper-making Industry: The baler is also useful in the paper-making industry where straw and stalk are used as raw materials.

How Does the Tractor Mounted Hay Square Baler Work?

The RXYK2060 Mini Square Baler is a tractor-mounted machine that works in conjunction with the tractor's hydraulic system to gather, compress, and tie hay or straw into square bales. Here's a step-by-step overview of how a tractor-mounted hay square baler typically operates:

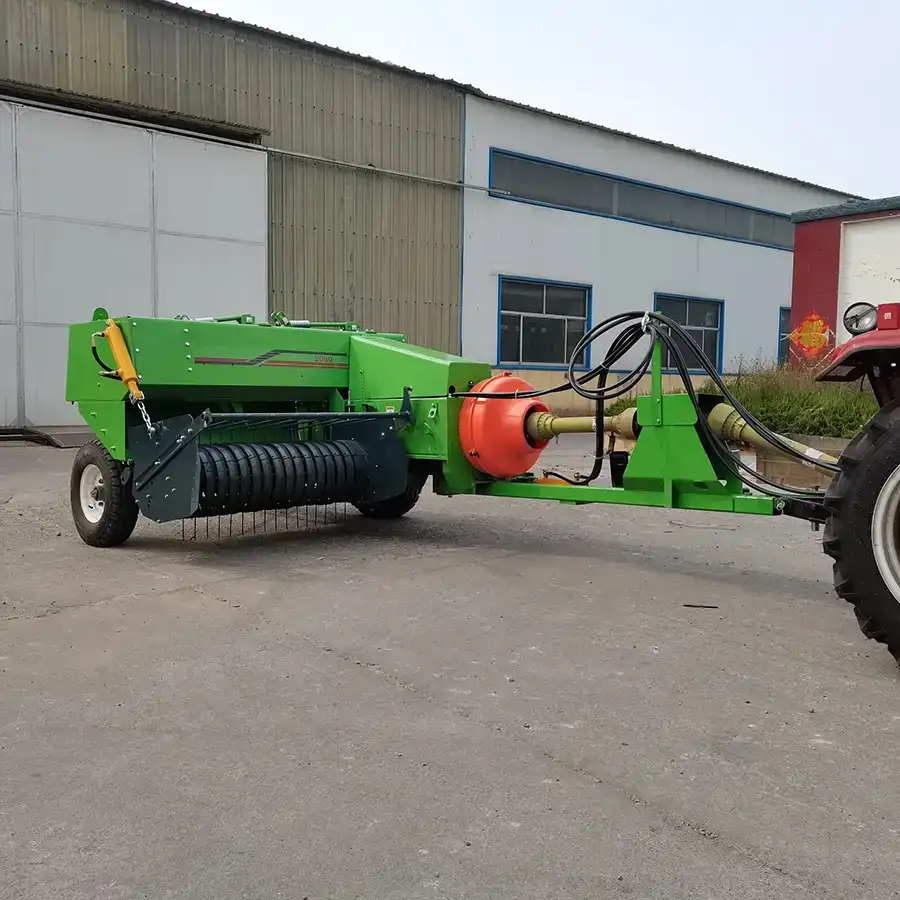

1. Attachment to the Tractor: The baler is connected to the tractor using a three-point hitch or a specific mounting system designed for that particular baler model. The PTO shaft of the baler is connected to the PTO output of the tractor, which provides the power to drive the baler's components.

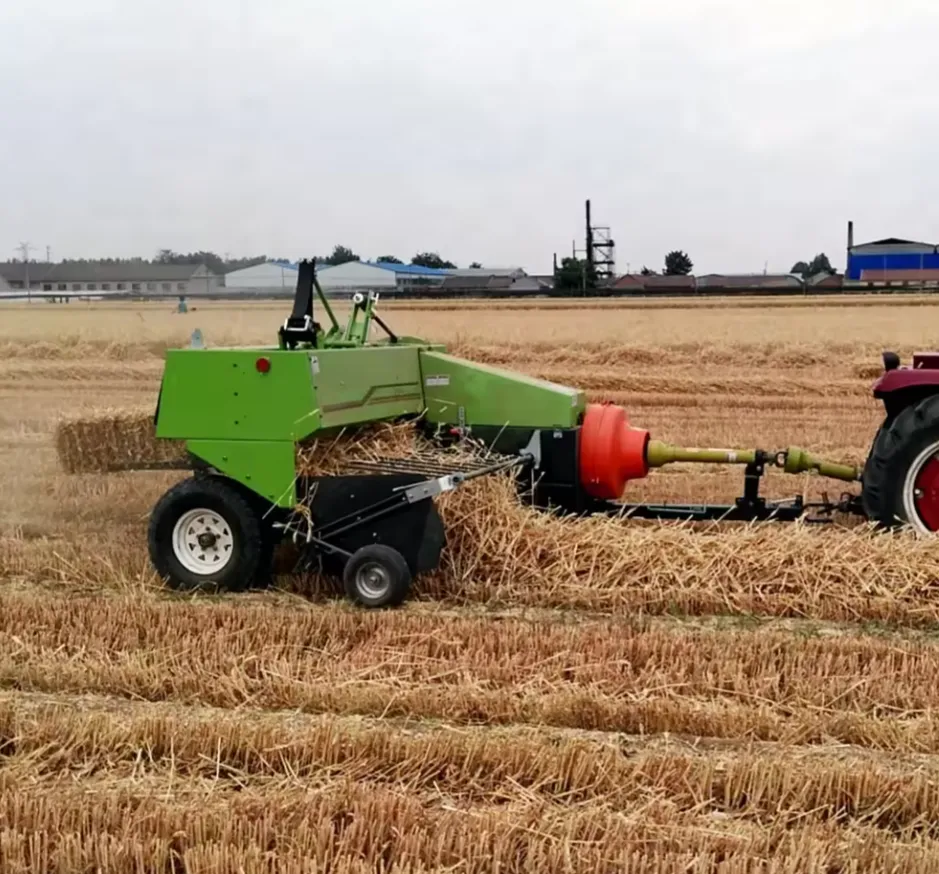

2. Pickup and Feeding: The baler's pickup is lowered to the ground, and the tractor is driven forward over the cut hay or straw. The pickup consists of teeth or tines that gather the material and convey it into the baling chamber. The hay or straw is fed into the baler in a continuous stream.
3. Baling Chamber: Inside the baler, the baling chamber consists of a moving plunger and stationary walls. The plunger moves back and forth, exerting pressure on the material and compressing it into a rectangular shape. The walls of the baling chamber guide and contain the material as it is being compressed.
4. Knotter or Baler Twine System: Once the material is compressed into a bale, it reaches the knotter or twine system. In the case of a knotter system, twine is fed into the baler, and the knotter creates a series of knots that secure the bale. In a twine system, the twine is wrapped around the bale and tied off.

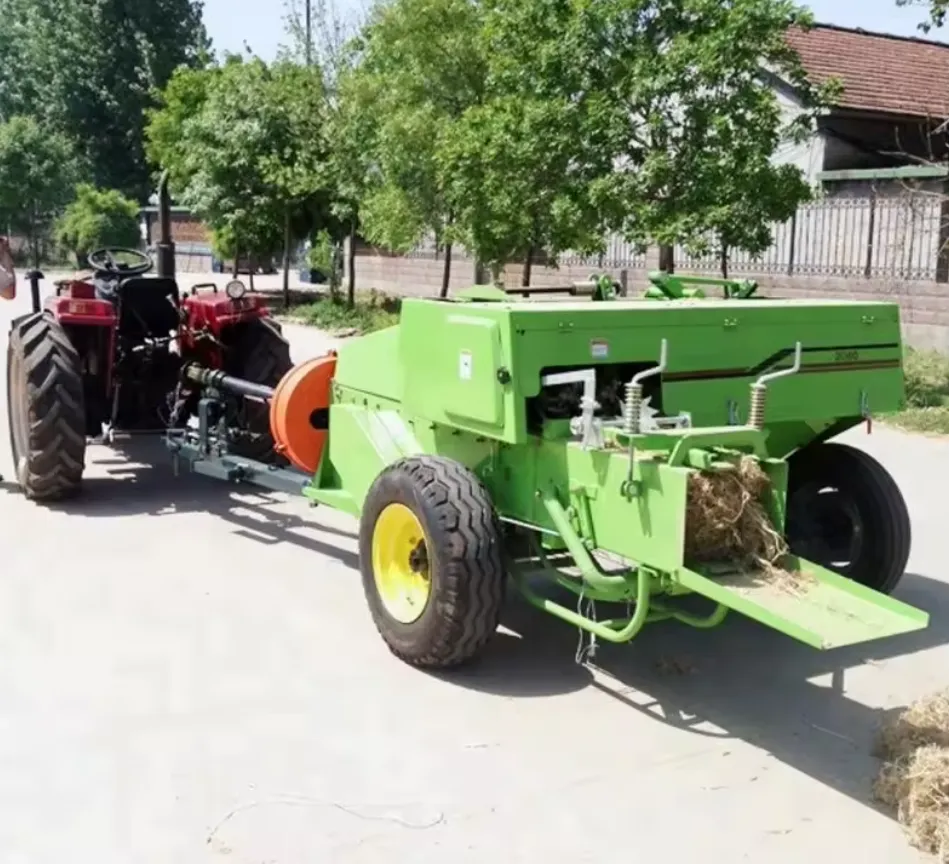

5. Bale Ejection: Once the bale is securely tied, it moves out of the baling chamber. The baler usually has a bale ejection system that pushes the bale out of the baler and onto the ground. Some balers may have additional features like a bale kicker or a bale accumulator for more efficient bale handling.
6. Bale Collection: The tractor operator can stop the tractor and collect the completed bales from the field. The bales are typically stacked or loaded onto a trailer for transportation and storage.

How to Install the Hay Square Baler to Tractor?

Installing a hay square baler to a tractor is a critical process that requires attention to detail to ensure safety and operational efficiency. Here is a step-by-step guide on how to properly attach a hay square baler to a tractor:

1. 1. Position the Tractor: Park the tractor on a level surface, ensuring that it is turned off, the parking brake is engaged, and the PTO is disengaged.
   2. Align the Baler: Position the baler behind the tractor so that the hitch points align with the tractor's three-point hitch or mounting system. Ensure that the baler is centered and properly aligned with the tractor.
   3. Connect the Hitch: Lower the tractor's three-point hitch or use the appropriate mounting system to align and attach the baler to the tractor. Follow the specific instructions provided by the baler manufacturer for hitch connection.
   4. Secure the Hitch: Once the baler is properly aligned with the tractor's hitch, secure it by engaging the locking mechanisms or fastening the bolts, pins, or latches provided with the baler. Ensure that the hitch is securely attached to the tractor and there is no excessive movement.

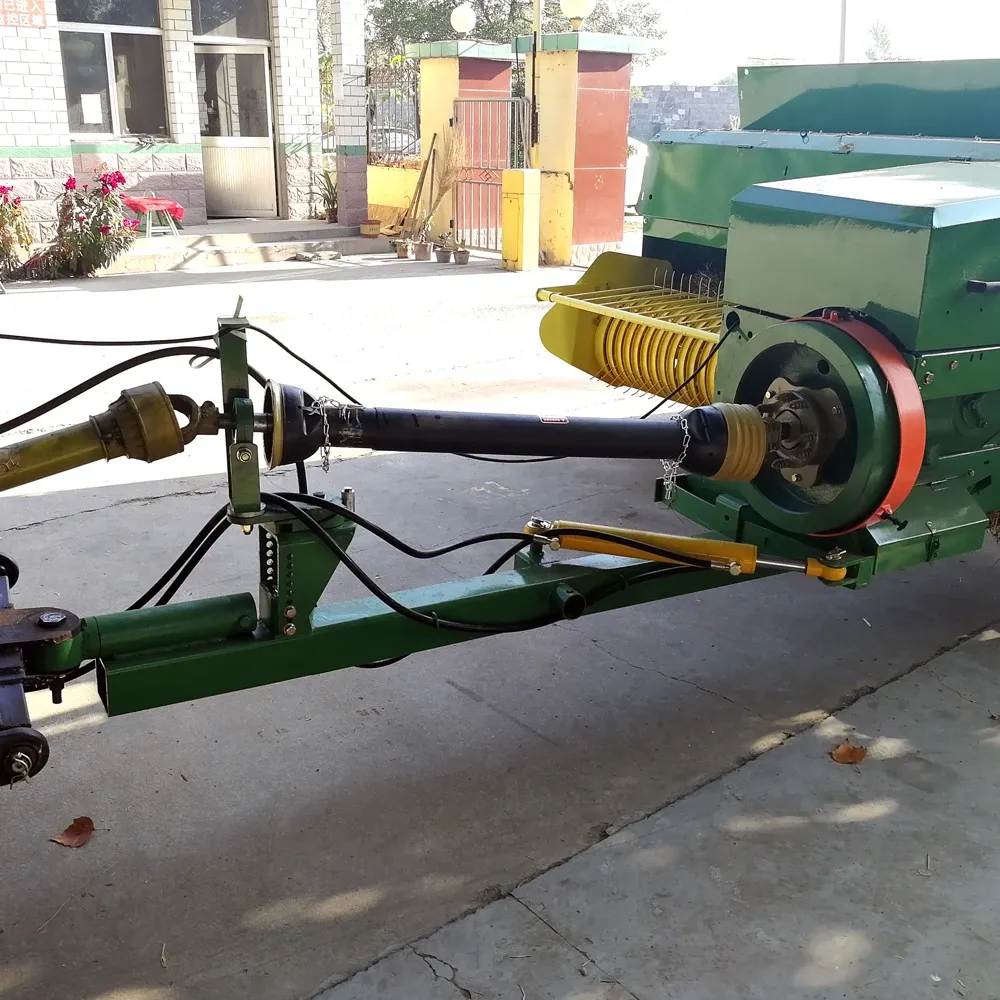

1. Connect the PTO Shaft: Attach the PTO shaft of the baler to the PTO output of the tractor. Align the splines on the shafts and push them together until they engage. Secure the connection by locking the PTO shaft's collar in place.
2. Check Hydraulic Connections (if applicable): If your baler requires hydraulic connections to the tractor, ensure that the hydraulic hoses are properly connected to the tractor's hydraulic ports. Follow the baler manufacturer's instructions for specific hydraulic connections.
3. Test the Connection: Before operating the baler, start the tractor's engine and engage the PTO. Check for any unusual noises, vibrations, or misalignments in the baler's components. Ensure that the PTO shaft is spinning smoothly and that all connections are secure and functioning correctly.

Common Troubleshooting of the RXYK2060 Mini Square Baler

Troubleshooting common issues with a hay square baler involves diagnosing and addressing problems that can arise during its operation. Here is a guide to some of the most frequent issues encountered with hay square balers and how to potentially resolve them:

1. Baler Not Forming Bales Properly: This could be due to incorrect tension settings, insufficient hay, or issues with the pickup mechanism. Adjust the baler's tension settings according to the manual. Ensure there's enough material being fed into the baler. Check the pickup mechanism for clogs or damage and clear or repair as necessary.
2. Bales Too Loose or Too Tight: This might be due to tension settings not properly adjusted for the current conditions or material. Refer to the baler's manual to adjust the density settings. This might involve tightening or loosening the tension on the bales.
3. Baler Knots Not Tying: This could be due to incorrect twine tension, twine running out, or issues with the knotter mechanism. Check and adjust the twine tension. Replace the twine spool if it's running low. Clean and lubricate the knotter mechanism, and check for worn parts that may need replacing.
4. Irregular Bale Shape: This might be due to uneven feeding of material or issues with the plunger alignment. Ensure the windrow is evenly distributed before baling. Check the plunger for proper alignment and adjust according to the manufacturer's instructions.
5. Baler Pickup Not Working Efficiently: This could be due to worn or broken pickup tines, incorrect pickup height, or obstructions in the pickup area. Replace any worn or broken tines. Adjust the pickup height for optimal performance. Remove any obstructions from the pickup area.
6. Excessive Vibration During Operation: This might be due to loose bolts or parts, damaged driveline, or imbalance in the flywheel. Check and tighten all bolts and parts. Inspect the driveline for damage and replace if necessary. Check the flywheel for balance and make adjustments as needed.

Why Choose Raydafon's Mini Square Baler for Hay Baling?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over a decade. With over 100 employees, including 20 technical staff and five senior R&D personnel, we have the expertise to deliver high-quality products.

• Professionalism: Our team of experienced professionals ensures the production of high-quality products.
• International Certifications: Our products are internationally certified, guaranteeing their quality and performance.
• Customized Services: We offer customized services to cater to the unique needs of each client.

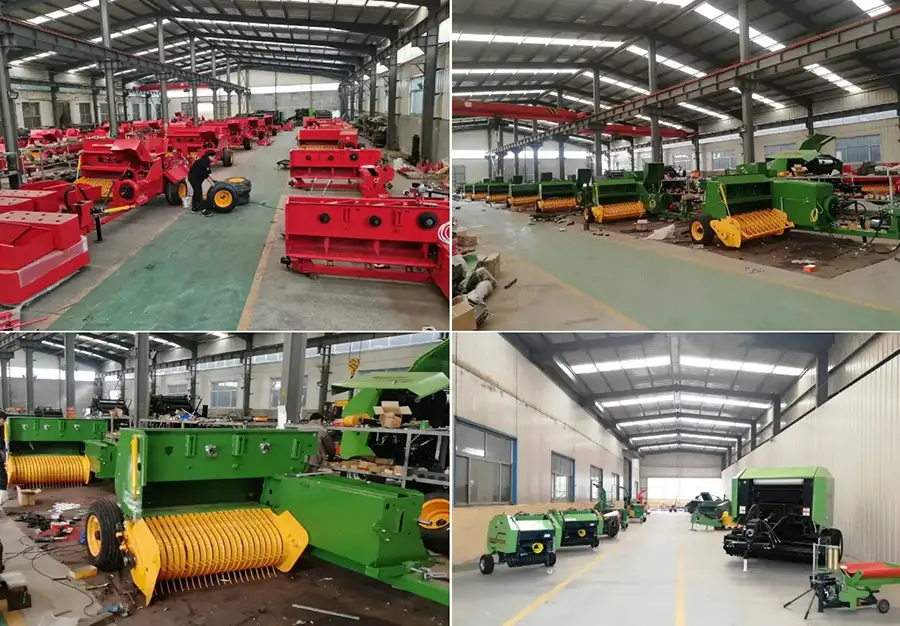

• Production Facilities: Our advanced production facilities enable us to produce a wide range of agricultural machinery products.
• After-sales Services: Our reliable after-sales services ensure continuous support for our clients.

Our main products range from PTO shafts, agricultural gearboxes, corn seeder, drum mowers, rotary hay rakes, flail mowers, to lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, and many more. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.

Watch the RXYK2060 Mini Square Baler in Action

For a closer look at the RXYK2060 Mini Square Baler, watch our introduction video: [embed]https://youtu.be/8UUrZLRNuDg[/embed] Author: Yjx.
