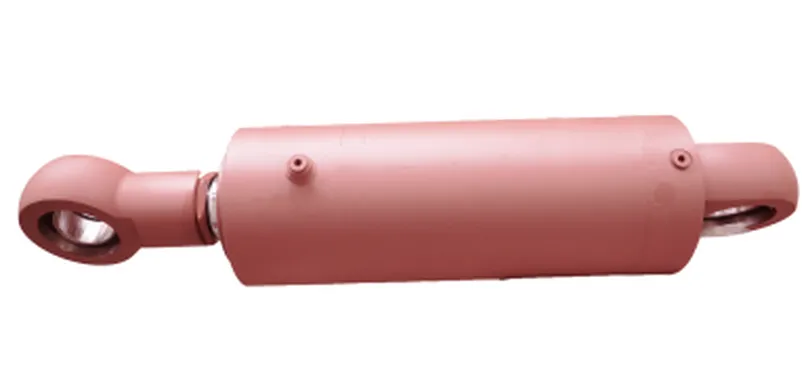

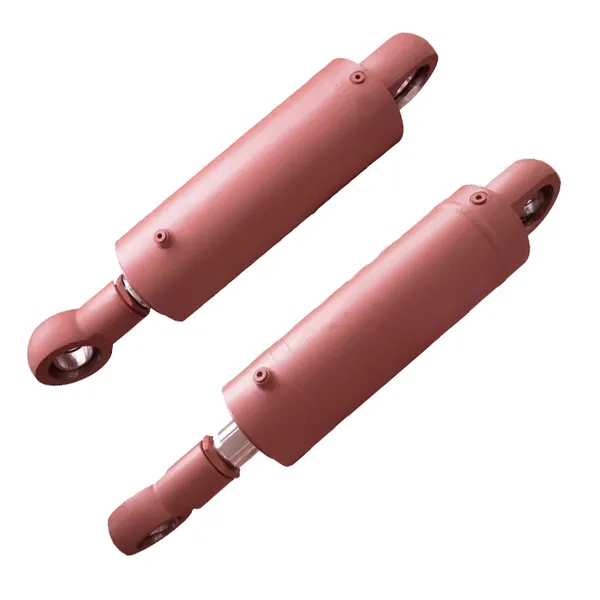

Sanitation Machinery Reverse Thrust Hydraulic Cylinder

Sanitation Machinery Reverse Thrust Hydraulic Cylinder

The sanitation machinery reverse thrust hydraulic cylinder is a specialized component used in sanitation equipment and machinery. It plays a crucial role in facilitating the reverse thrust action, which is essential for the effective operation of various sanitation vehicles and systems.Sanitation machinery, such as garbage trucks and street sweepers, rely on hydraulic systems to perform their tasks efficiently. These systems use hydraulic cylinders to generate force and movement. In the case of reverse thrust, the hydraulic cylinder enables the machinery to move in the opposite direction, allowing for efficient back-and-forth motion, which is essential for tasks like sweeping streets or collecting waste.The sanitation machinery reverse thrust hydraulic cylinder is designed specifically to withstand the demanding conditions and requirements of sanitation applications. It is typically built with durable materials to ensure longevity and reliability in harsh environments. These cylinders are often equipped with seals and other components that can withstand exposure to dirt, debris, and other contaminants commonly encountered during sanitation operations.The reverse thrust hydraulic cylinder operates by using hydraulic fluid, which is pressurized to create force. This force is then transmitted to a piston inside the cylinder, generating linear motion. By controlling the flow of hydraulic fluid, the reverse thrust cylinder allows for precise and controlled movement of the sanitation machinery in the reverse direction.The sanitation machinery reverse thrust hydraulic cylinder is an integral part of sanitation machinery, ensuring efficient and reliable operation. Its design and construction are tailored to meet the unique demands of sanitation applications, providing the necessary power and control for effective reverse thrust movement.

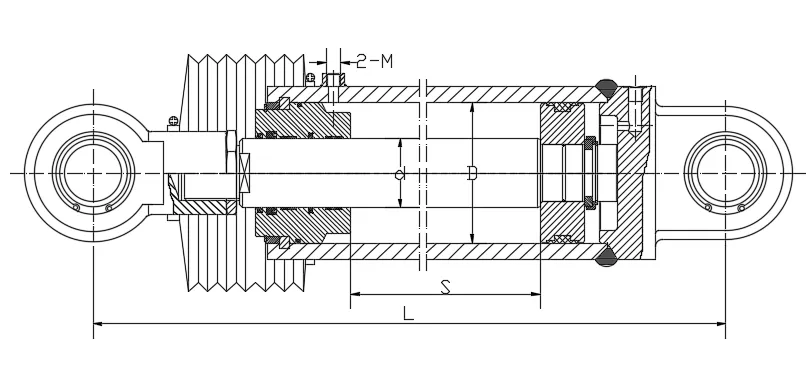

Sanitation Machinery Reverse Thrust Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Reverse thrust cylinder	LPE222.2.2-5-00	Φ220	Φ110	420	1110	16MPa	2-M22*1.5	323kg

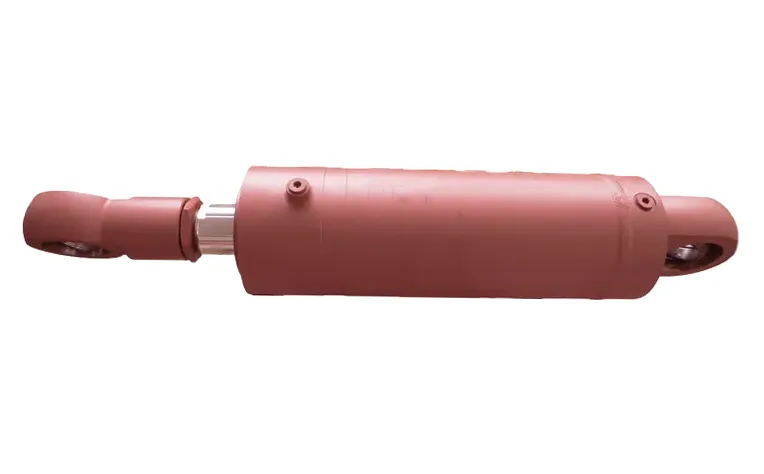

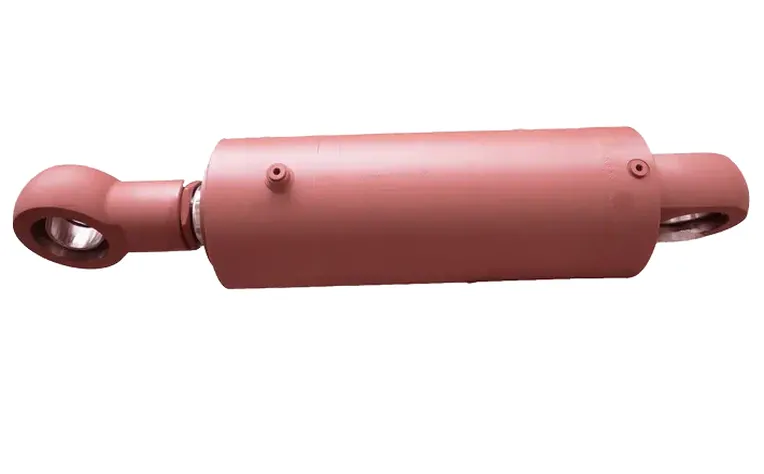

Sanitation Machinery Reverse Thrust Hydraulic Cylinder Parts:

The main parts of a sanitation machinery reverse thrust hydraulic cylinder are:1. Cylinder Barrel: The cylinder barrel is the main body of the reverse thrust cylinder. It houses the piston and provides a sealed chamber for the hydraulic fluid.2. Piston: The piston is a cylindrical component that moves back and forth inside the reverse thrust cylinder barrel. It divides the cylinder into two chambers and transmits the hydraulic force generated by the fluid.3. Piston Rod: The piston rod is attached to the piston and extends through one end of the cylinder barrel. It provides a connection point for external components and transfers the force from the piston to the machinery.4. Seals: Seals are crucial for maintaining the integrity of the hydraulic system. They prevent leakage of hydraulic fluid and help maintain pressure within the reverse thrust cylinder. Common seal types include rod seals, piston seals, and wiper seals.5. Hydraulic Fluid: Hydraulic fluid, often oil, is used to transmit force within the reverse thrust cylinder. It is pressurized by a hydraulic pump and distributed throughout the reverse thrust cylinder to generate movement.6. Cylinder Head and Cap: The reverse thrust cylinder head and cap enclose the ends of the cylinder barrel, providing a sealed structure. They typically have ports for hydraulic fluid inlet and outlet.7. Mounting Brackets: Mounting brackets are used to attach the hydraulic cylinder to the sanitation machinery. They provide stability and ensure proper alignment for efficient operation.8. Retainer Rings: Retainer rings or circlips are used to secure the piston and other components within the reverse thrust cylinder barrel. They prevent disassembly during operation and maintenance.9. Hydraulic Connections: Various hydraulic connections, such as fittings, hoses, and valves, are used to facilitate the flow of hydraulic fluid into and out of the reverse thrust cylinder.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E,SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR
