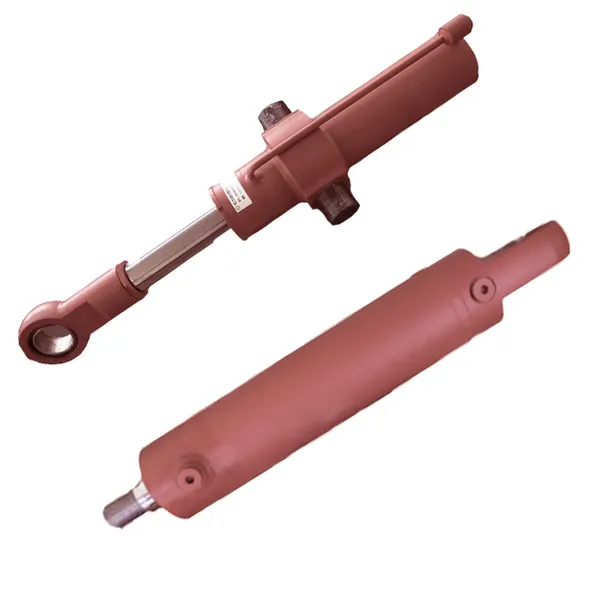

Sanitation Machinery Forward Thrust Hydraulic Cylinder

Sanitation Machinery Forward Thrust Hydraulic Cylinder

The sanitation machinery forward thrust hydraulic cylinder is a crucial component used in sanitation machinery and equipment specifically designed to provide powerful forward thrusting force. It plays a vital role in various applications such as street sweeping machines, garbage compactors, sewer cleaning vehicles, and other sanitation equipment that require efficient forward movement.This sanitation machinery forward thrust hydraulic cylinder is specifically designed to convert hydraulic energy into linear motion, generating the necessary force for propulsion. It consists of a cylindrical barrel, a piston, a piston rod, and hydraulic ports. The cylinder barrel houses the piston, which divides the internal space into two chambers: the rod side and the cap side.The hydraulic fluid, typically oil, is directed into one of the chambers through the hydraulic ports, creating pressure that pushes against the piston. As the pressure increases, it forces the piston and the connected piston rod to extend or retract, depending on the specific application. This linear motion translates into the forward thrust needed for the sanitation machinery to move efficiently.The design and specifications of the sanitation machinery forward thrust hydraulic cylinder can vary depending on the application and specific requirements of the sanitation equipment. Factors such as maximum thrust force, stroke length, operating pressure, and environmental conditions are taken into account during the design process to ensure optimal performance and durability.In summary, the sanitation machinery forward thrust hydraulic cylinder is a vital hydraulic component that provides the necessary forward thrusting force for various sanitation equipment. Its efficient and reliable operation contributes to the smooth and effective functioning of sanitation machinery, ultimately helping to maintain cleanliness in urban environments.

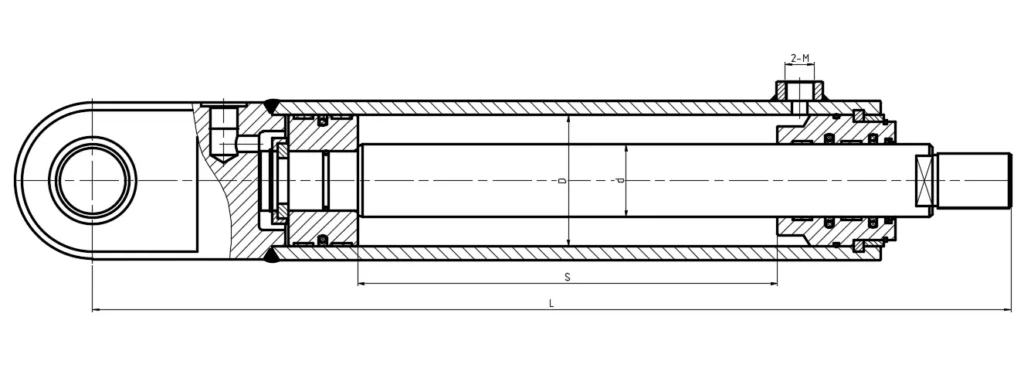

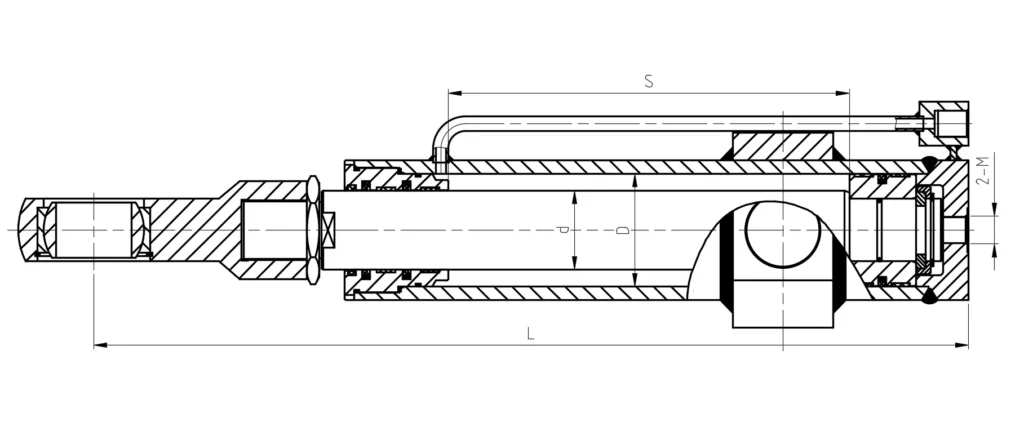

Sanitation Machinery Forward Thrust Hydraulic Cylinder Dimensions:

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Forward thrust cylinder	LPE416B.4.4-2-00	Φ90	Φ63	320	878	16MPa	2-M22*1.5	47kg

Cylinder Name	Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
Forward thrust cylinder	LPG418.4.4-2-00	Φ100	Φ55	320	700	16MPa	2-M22*1.5	41kg

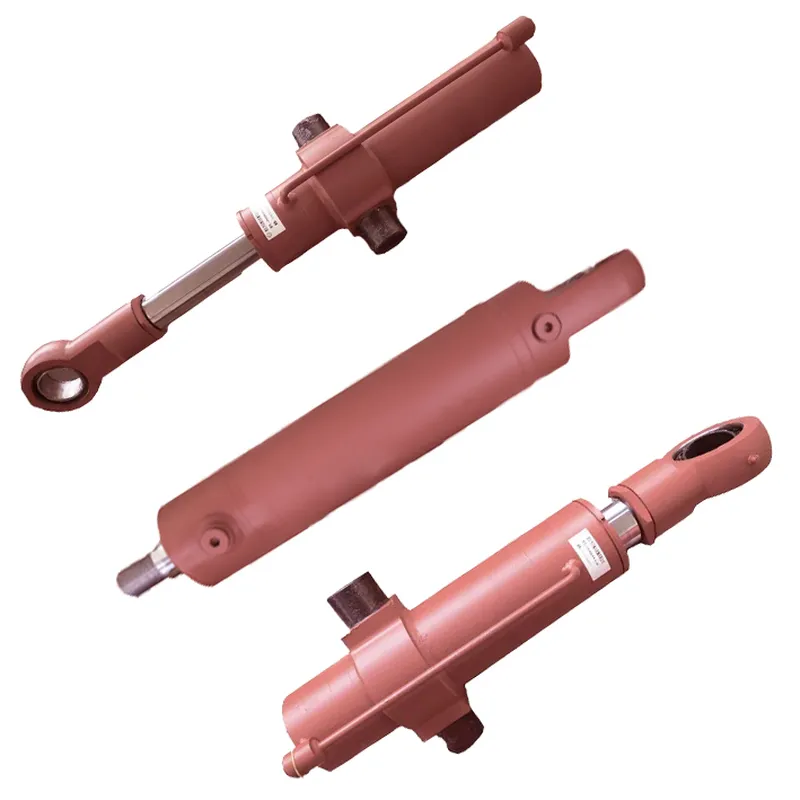

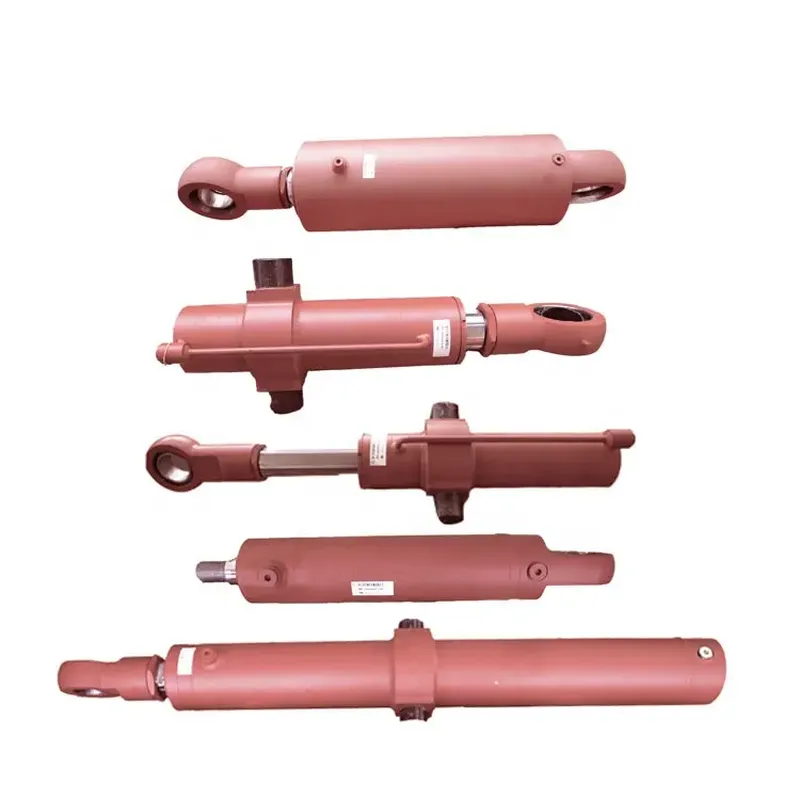

Advantages of Sanitation Machinery Forward Thrust Hydraulic Cylinder:

The sanitation machinery forward thrust hydraulic cylinder offers several advantages that contribute to its effectiveness and reliability in sanitation machinery. Here are some key advantages:1. Powerful Forward Thrust: The sanitation machinery forward thrust hydraulic cylinder is designed to generate significant forward thrust, allowing sanitation machinery to move efficiently and effectively. It provides the necessary force to propel the equipment forward, enabling it to cover larger areas and handle heavy loads.2. Precise Control: Hydraulic systems provide excellent control over the forward thrust. The sanitation machinery forward thrust cylinder can be controlled precisely, allowing operators to adjust the speed and force of the propulsion according to the specific requirements of the sanitation task. This level of control enhances the overall efficiency and productivity of the machinery.3. Smooth Operation: The hydraulic system, including the forward thrust hydraulic cylinder, operates with minimal noise and vibration. This smooth operation not only improves operator comfort but also reduces wear and tear on the machinery, leading to increased durability and longevity.4. High Load Capacity: Sanitation machinery often needs to handle heavy loads, such as compacting garbage or carrying debris. The sanitation machinery forward thrust hydraulic cylinder is designed to withstand high loads and provide the necessary forward thrust even under demanding conditions. This high load capacity ensures the equipment can perform efficiently and reliably in various sanitation tasks.5. Durability and Reliability: Sanitation machinery forward thrust hydraulic cylinders are known for their robust construction and durability. They are designed to withstand harsh operating conditions, including exposure to dirt, debris, and varying temperatures. The use of high-quality materials and precise manufacturing processes ensures the hydraulic cylinder's reliability, reducing the risk of breakdowns and minimizing maintenance requirements.6. Versatility: The sanitation machinery forward thrust hydraulic cylinder can be customized to meet the specific needs of different sanitation equipment. It can be adapted to various sizes, stroke lengths, and operating pressures, making it suitable for a wide range of applications within the sanitation industry.

China Hydraulic Cylinder Manufacturers

Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle hydraulic cylinders, Aerial work vehicle hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The forklift cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 pieces. It is equipped with famous brand CNC machining equipment, machining centers, special equipment for high precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of key equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.

Hydraulic Cylinder Available Brand & Models:

KOMATSU (PC)	PC30,PC40,PC50,PC56,PC60,PC78,PC100,PC110,PC120,PC130,PC160,PC200-3/5/6/7/8/8MO,PC210,PC220-5/6/7/8/8MO,PC240,PC300/350/360-5/6/7/8/8MO,PC400/450-5/6/7/8/8MO,PC800,PC850
CATERPILLAR (E)	E301.5,E302,E305.5,E306,E307V1/V2/B/C/D/E/F,E308B/C,E120B,E312V1/V2/B/C/D,E313D2,E312D2,E315D,E200B,E320V1/V2/A/B/C/D,E324D,E325C/D,E329D,E330/336C/D,E345C,E349D,E365C,E374,E390
KOBELCO (SK)	SK60-3/5/8,SK75-8/SR, SK100 ,SK120-3/5, SK135-8/SR, SK140-8, SK200-3/5/6/6E, SK210-3/5/6/6E,SK230/250-6E,SK250-8,SK260-8,SK350-8/S8,SK460/480-8
HYUNDAI (R)	R55-5/7, R60-5/7, R80, R110,R130, R200-5, R210-5, R215-5/7,R220-5/7/9, R225-5/7/9, R250,R260,R265,R290,R305,R445,R485, R505
HITACHI (EX.ZX)	EX60,EX100-1/2/3,EX120-1/3/5/6,EX200-1/3/5,EX230-5,EX300-1,EX400ZAX60,ZAX70,ZA120-6,ZAX200/210-1/3/5/5K,ZAX240,ZAX250,ZAX260,ZAX330-3/5/6,ZAX450/470,ZAX650/670,ZAX850/870
DOOSAN (DH/DX)	DH55, DH60, DH80,DH150, DH215-5/7,DH220-5,DH225-5/7,DH258,DH300-5/7, DH370,DH420,DH500DX55,DX60,DX75,DX130,DX225-9,DX300,DX380,DX420,DX500
VOLVO (EC)	EC55 ,EC60,EC75,EC80,EC140 ,EC210B/D,EC220D,EC240 ,EC250,EC290,EC300, EC360 EC380,EC460,EC480,EC700,EC750,EC950
KATO (HD)	HD307/308,HD450,HD512,HD700-5/7,HD820-1/2/3/5/R,HD1023-1/3,HD1430-1/3
OTHER BRAND	XCMG,LIUGONG,KUBOTA,CASE,YANMAR,SUNWARD,ZOOMLION,LISHIDE,LIEHERR
