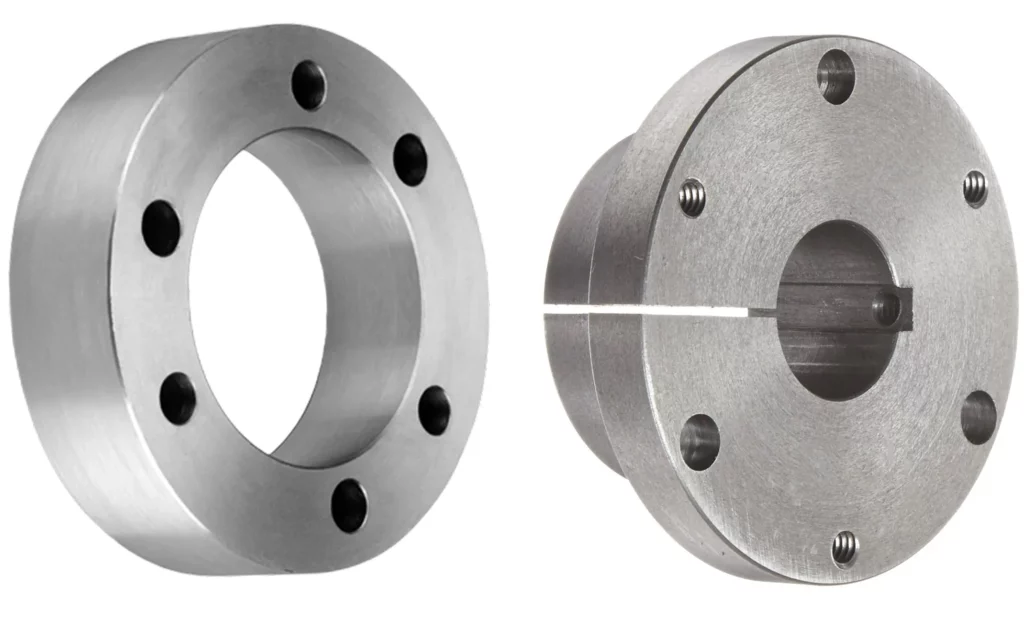

SDS-A QD Weld-On Hubs

SDS-A QD Weld-On Hubs

These SDS-A QD weld-on hubs exceed in quality, performance, and durability by being manufactured out of a solid piece of steel and precisely machined for the best performance and longest working life. SDS-A QD weld-on hubs are often attached to pulleys, sheaves, and sprockets to provide a tapered bore to match the tapered outer surface of the bushing.Here are some of the key features of SDS-A QD weld-on hubs:

• Made of steel for strength and durability
• Taper bore matches the taper of SDS bushings for a secure fit
• Flange provides a wider surface area for welding to the shaft
• Easy to install and remove
• Available in a variety of sizes to fit different applications

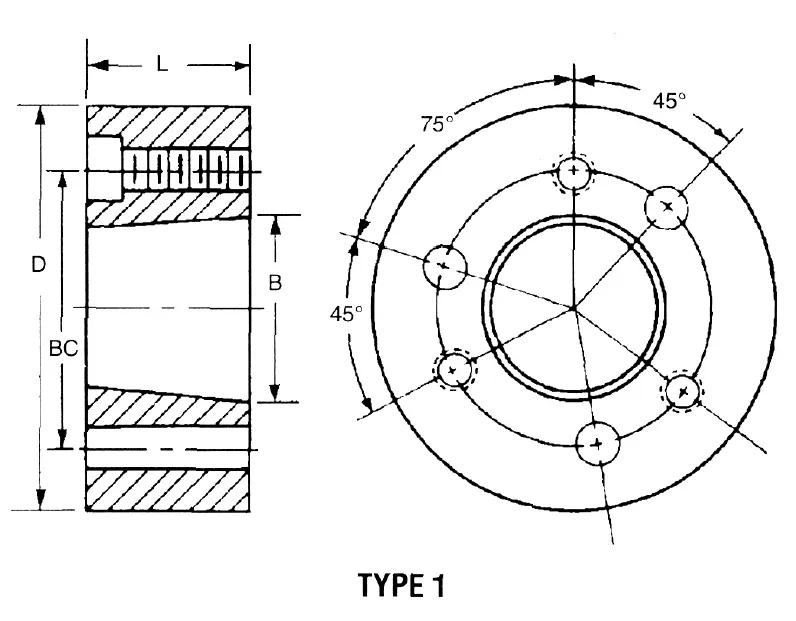

SDS-A QD Weld-On Hubs Dimensions:

QD Hub Types		SDS-A Weld-On Hubs
For Bushing		SDS QD Bushings
Dimensions (Inches)	D	3.500"
	L	3/4"
	B	2.188"
	P	-
	L1	-
	BC	2 11/16"
Type Drilling		1"
Weight (lbs)		1.25 lbs

Tolerance of D Dimension (or P dimension where applicable) JA-A Thru J-A = (+-.002) M-A Thru S-A = (+-.003)

SDS-A QD Weld-On Hubs Benefits:

SDS-A QD weld-on hubs for SDS QD bushings offer a number of benefits, including:1. Strength and durability: SDS-A QD weld-on hubs are made of steel, which makes them strong and durable. They can withstand high loads and vibrations, making them ideal for use in demanding applications.2. Secure fit: The taper bore of the SDS-A QD weld-on hub matches the taper of the SDS QD bushing, providing a secure fit. This helps to prevent the bushing from slipping or rotating on the shaft.3. Wider surface area: The flange on the SDS-A QD weld-on hub provides a wider surface area for welding to the shaft. This helps to ensure a strong and secure bond.4. Easy to install and remove: SDS-A QD weld-on hubs are easy to install and remove. This makes them a convenient option for applications where the bushing or shaft may need to be replaced or serviced.5. Available in a variety of sizes: SDS-A QD weld-on hubs are available in a variety of sizes to fit different shafts and bushings. This makes it easy to find the right hub for your application.Overall, SDS-A QD weld-on hubs for SDS QD bushings are a versatile and reliable way to mount SDS QD bushings. They offer a number of benefits, including strength, durability, a secure fit, and easy installation and removal. If you need to mount an SDS QD bushing to a shaft, an SDS-A QD weld-on hub is a great option.

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
