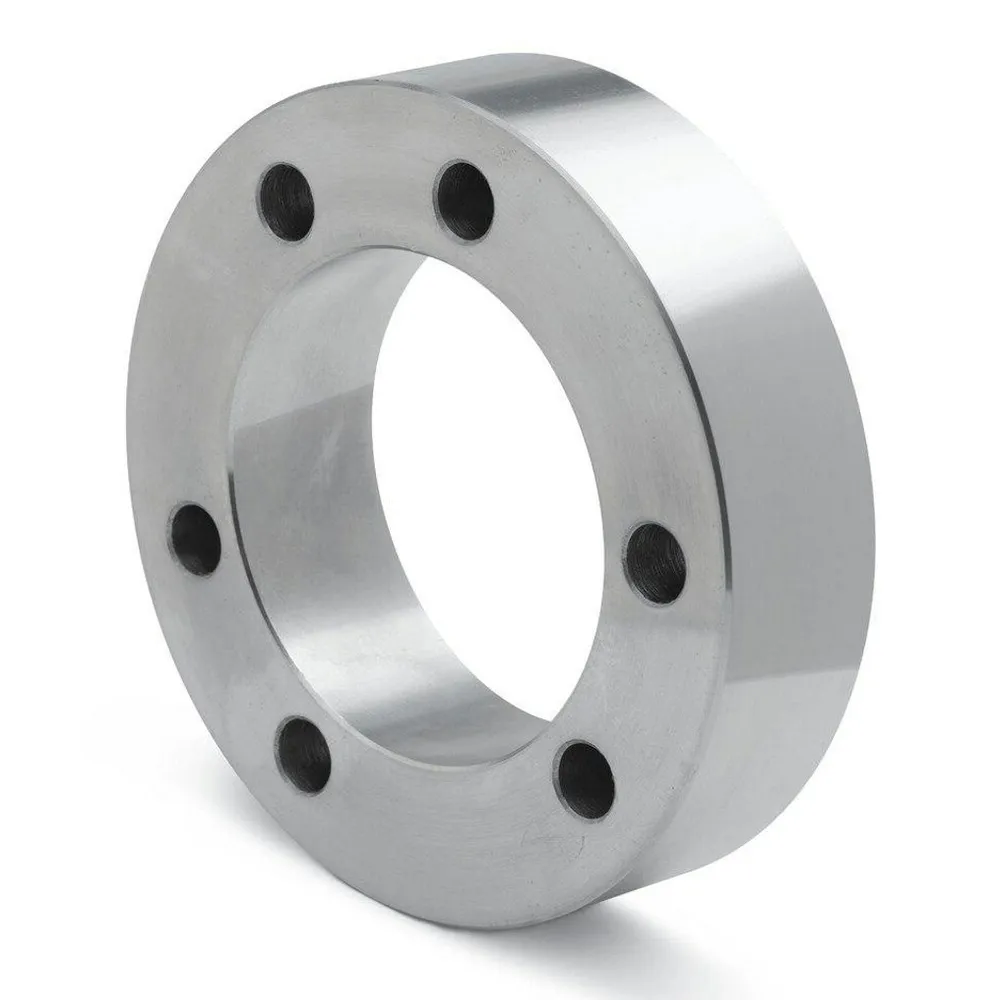

SF-A QD weld-on hubs are a type of hub that is designed to be welded onto SF QD bushings. They are useful in many applications such as conveyor pulleys, sprockets, and custom machinery components. SF-A QD weld-on hubs are made from high-quality steel and are designed to withstand heavy loads. They have a quick-disconnect (QD) feature that allows the hub to be easily removed from the bushing for maintenance or repairs. This makes them a convenient and versatile option for a variety of applications.

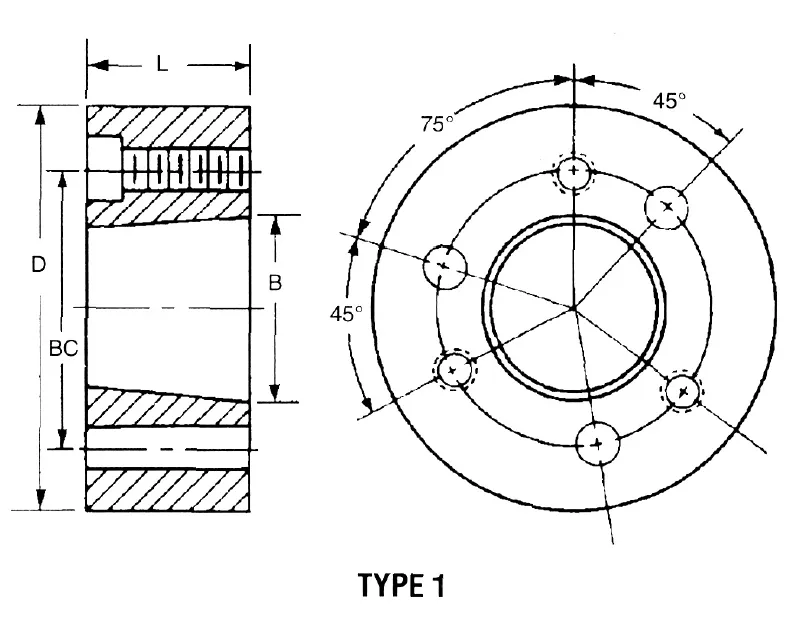

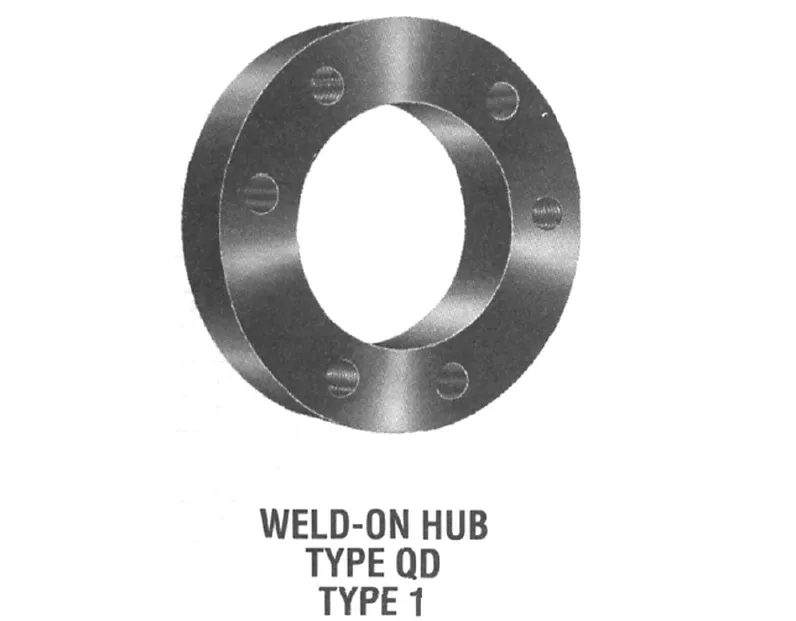

SF-A QD Weld-On Hubs Dimensions:

QD Hub Types		SF-A Weld-On Hubs
For Bushing		SF QD Bushings
Dimensions (Inches)	D	5.000"
	L	1 1/4"
	B	3.125"
	P	-
	L1	-
	BC	3 7/8"
Type Drilling		1"
Weight (lbs)		4 lbs

Tolerance of D Dimension (or P dimension where applicable) JA-A Thru J-A = (+-.002) M-A Thru S-A = (+-.003)

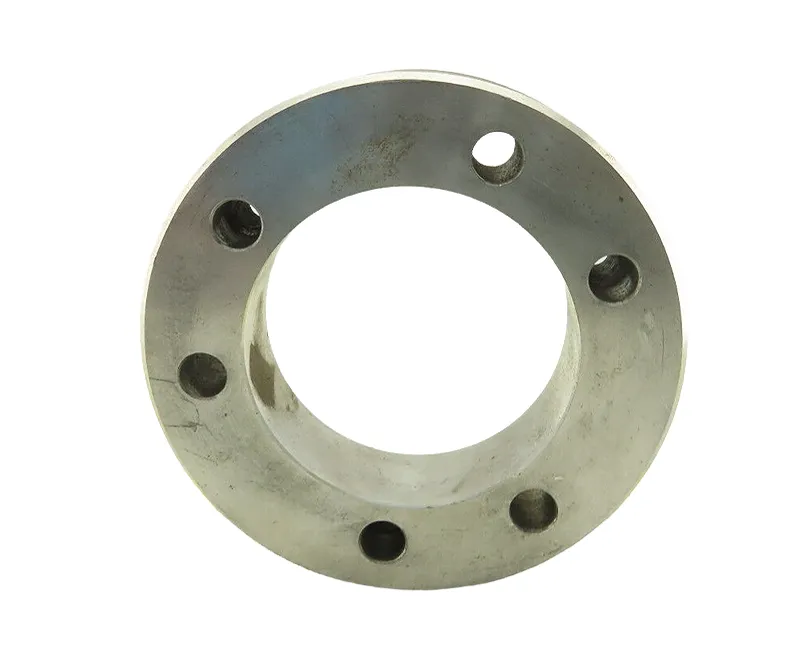

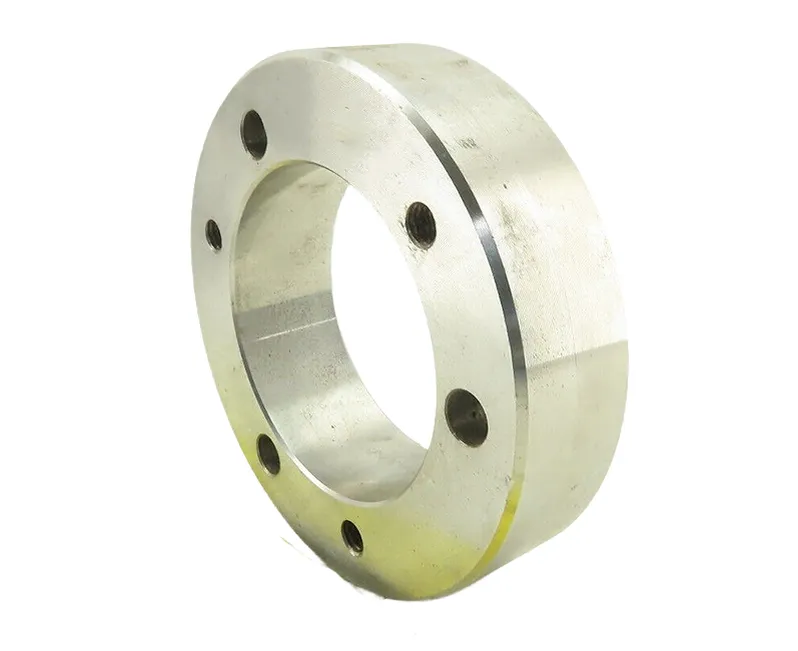

Advantages of SF-A QD Weld-On Hubs:

SF-A QD (Quick Disconnect) weld-on hubs offer several advantages in various applications. Here are some of the key advantages of SF-A QD weld-on hubs:1. Ease of Installation: SF-A QD weld-on hubs are designed for quick and straightforward installation. They can be easily welded onto a shaft, providing a secure connection without the need for complex machining or additional components.2. Versatility: These SF-A QD weld-on hubs are highly versatile and can be used in a wide range of applications. They are compatible with different types of mechanical components, such as pulleys, sprockets, gears, and couplings, allowing for easy integration into various systems.3. Durable and Reliable: SF-A QD weld-on hubs are constructed from high-quality materials, such as steel or stainless steel, which ensures their durability and reliability. They can withstand heavy loads, high speeds, and harsh operating conditions, making them suitable for demanding industrial environments.4. Adjustable Positioning: The Quick Disconnect feature of these SF-A QD weld-on hubs allows for easy and precise positioning along the shaft. This adjustability makes it convenient to align the hub with other components or make fine adjustments during installation or maintenance.5. Reduced Downtime: SF-A QD weld-on hubs enable quick and efficient maintenance procedures. When maintenance or replacement of components is required, the hubs can be easily disconnected from the shaft without the need for extensive disassembly, reducing downtime and improving overall operational efficiency.6. Enhanced Torque Transmission: These SF-A QD weld-on hubs provide a secure and rigid connection between the shaft and the mounted component, ensuring efficient torque transmission. This feature is particularly important in power transmission systems where precise torque transfer is crucial to avoid slippage or loss of power.7. Compatibility with Different Shaft Sizes: SF-A QD weld-on hubs are available in various bore sizes, allowing them to accommodate different shaft diameters. This versatility makes them suitable for a wide range of shaft sizes, eliminating the need for custom hubs and simplifying inventory management.

QD Weld-On Hubs Vs Taper Lock Weld-On Hubs:

QD weld-on hubs and taper lock weld-on hubs are both types of hubs used in mechanical power transmission systems. They serve the purpose of connecting shafts to other components, such as sprockets, pulleys, or gears. While they are similar in function, there are important differences between the two.

1. Design and Installation:
   • QD Weld-On Hubs: QD stands for "Quick Detachable." These hubs have a flange with a tapered bore and a bushing that fits inside the bore. The bushing is mounted on the shaft, and the hub is then secured to the bushing using screws or bolts. This design allows for quick and easy installation and removal of the hub.

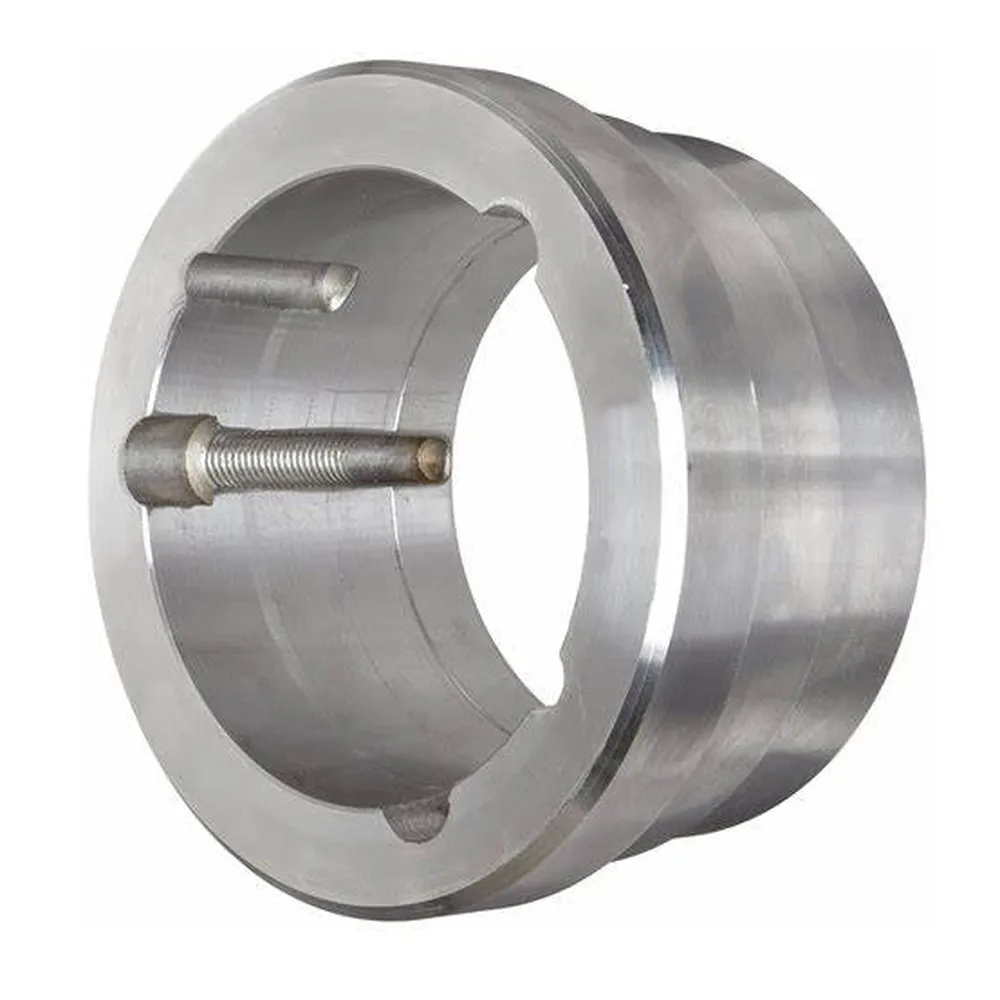

   • Taper Lock Weld-On Hubs: Taper lock hubs have a tapered bore and a matching tapered bushing. The hub is mounted on the shaft, and the bushing is inserted into the hub's bore. As the hub is tightened, the taper creates a tight and secure connection. Taper lock hubs are known for their strong grip and resistance to slippage.
2. Shaft Size and Compatibility:
   • QD Weld-On Hubs: QD hubs are available in various sizes and can accommodate a range of shaft diameters. The same hub can often be used with different shaft sizes by simply changing the bushing. This flexibility makes QD hubs suitable for applications where shaft sizes may vary.
   • Taper Lock Weld-On Hubs: Taper lock hubs are designed for specific shaft sizes and require a matching bushing. They provide a precise and secure fit but are less adaptable to different shaft sizes. If you need to connect shafts of different diameters, you would typically need to use different size-specific hubs.
3. Strength and Load Capacity:
   • Taper Lock Weld-On Hubs: Taper lock hubs are known for their high torque transmission capacity. The tapered connection between the hub and the bushing creates a strong and reliable grip, making them suitable for heavy-duty applications with significant torque and loads.
   • QD Weld-On Hubs: QD hubs also have good load-carrying capacity, but they may not offer the same level of strength and torque transmission as taper lock hubs. QD hubs are generally used in applications with moderate to high loads where frequent removal and reinstallation are required.
4. Ease of Installation and Removal:
   • QD Weld-On Hubs: QD hubs are designed for quick and easy installation and removal. The bushing allows for the hub to be detached without needing to remove other components from the shaft. This feature is especially beneficial when frequent maintenance or replacement is required.
   • Taper Lock Weld-On Hubs: Taper lock hubs require more effort for installation and removal as they involve tightening or loosening the hub using bolts or screws. This process may require the removal of other components from the shaft, making it slightly more time-consuming.

The choice between QD weld-on hubs and taper lock weld-on hubs depends on factors such as the specific application requirements, shaft sizes, load capacity, and the need for frequent installation or removal. Consider consulting with an engineer or a supplier to determine the most suitable hub type for your specific needs.

QD Weld-On Hubs	Taper Lock Weld-On Hubs

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
