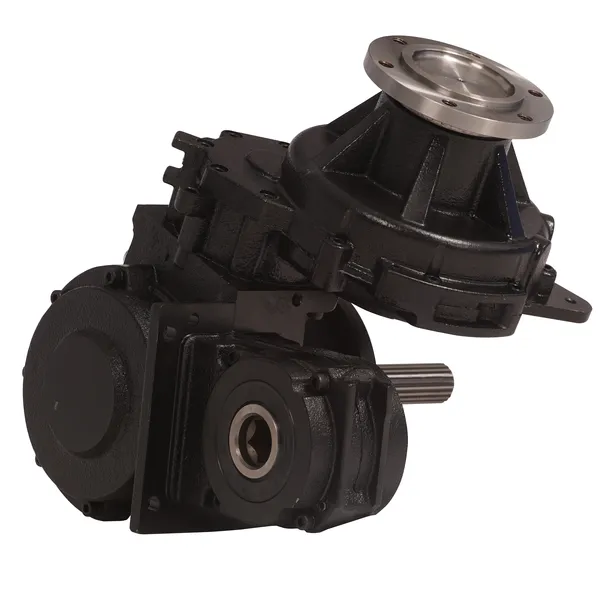

Silage Machine Gearbox RDF-QZ-WRXL for German Champion Four Disc (Type 3500)

Silage Machine Gearbox RDF-QZ-WRXL for German Champion Four Disc (Type 3500)

The Silage Machines Gearbox RDF-QZ-WRXL for the German Champion Four Disc (Type 3500) is a specialized component designed for efficient silage harvesting and processing. It plays a critical role in the power transmission system of silage machines, enabling the smooth operation of the cutting and chopping mechanism. Silage machines are agricultural equipment used for the harvesting and ensiling of forage crops such as corn, grass, and other green fodder. These machines cut the crops into small pieces and compress them into silage, a valuable feed for livestock.The Silage Machines Gearbox RDF-QZ-WRXL for the German Champion Four Disc (Type 3500) is specifically engineered to provide the necessary power and torque for the cutting and chopping operations of the silage machine. It ensures the seamless transfer of power from the tractor or power source to the cutting mechanism, enabling efficient and precise crop processing.

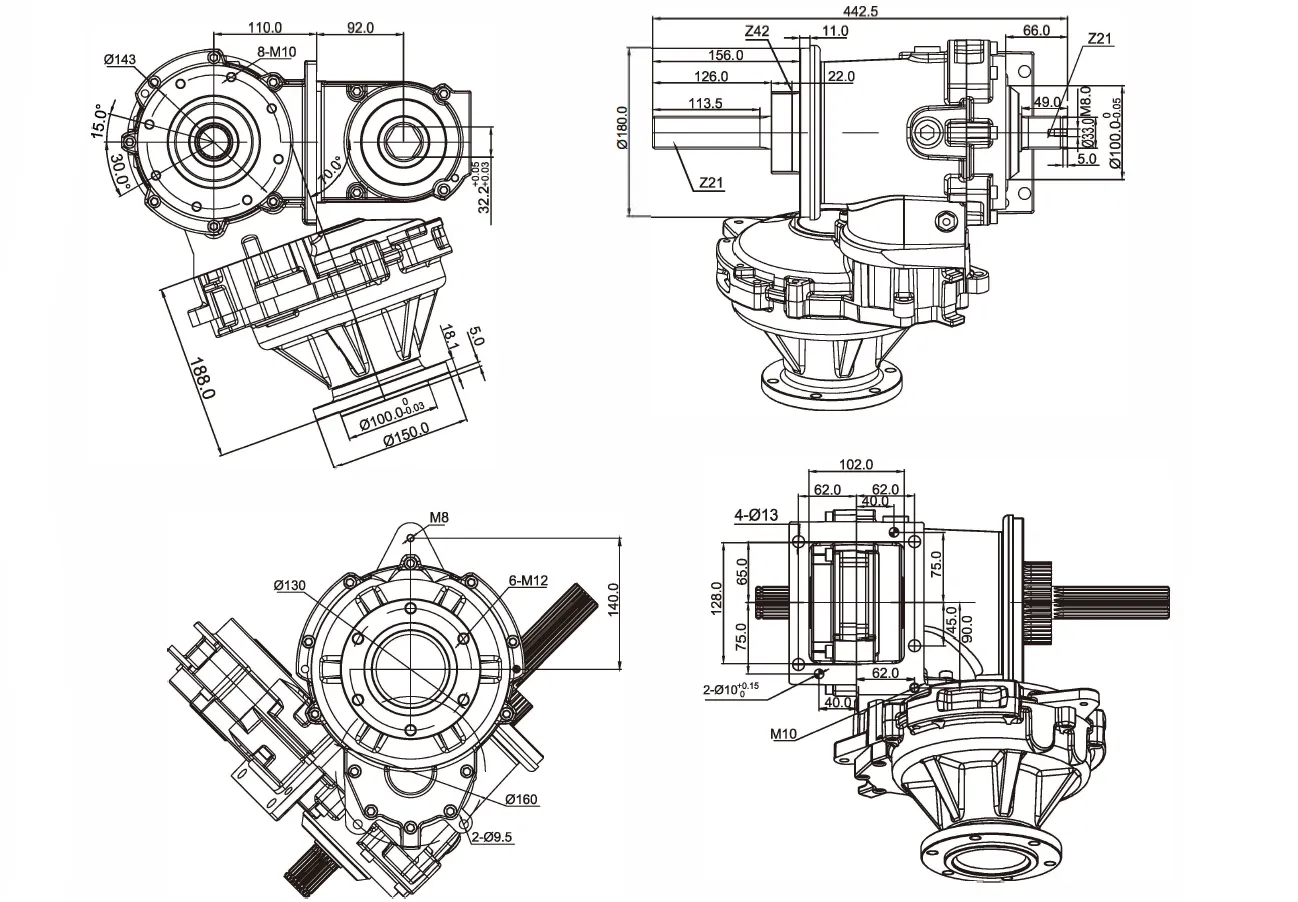

Silage Machine Gearbox RDF-QZ-WRXL Dimensions

Silage Machine Gearbox RDF-QZ-WRXL Technical Data

Name	Suitable	Turn	header series	Toothing
Feeding box	silage machines	left turn	3 series	Gleason Helical Teeth
Remark: If you have any special require feel free let me know, we also accept custom.

Working Principle of Silage Machine Gearbox for German Champion Four Disc (Type 3500)

The Silage Machine Gearbox for a German Champion Four Disc (Type 3500) is a crucial component in the operation of a silage machine, which is used for cutting and preparing forage crops into silage. The gearbox's primary function is to transmit power from the tractor or engine to the cutting mechanisms of the silage machine. Here's an overview of the working principle of the Silage Machine Gearbox for German Champion Four Disc (Type 3500):1. Power Input: The gearbox receives mechanical power from the tractor's Power Take-Off (PTO) shaft. This power is typically rotational motion at a certain speed and torque.2. Gear Ratio Adjustment: Inside the gearbox, this input power is subjected to gear ratio adjustments. The gearbox consists of various gears in different sizes, which can be engaged or disengaged to change the speed and torque of the output power. The gear ratio determines how the rotational speed from the PTO is converted into the rotational speed on the output side. A higher gear ratio means more torque but less speed, and vice versa.3. Power Transmission: The adjusted power is transmitted to the cutting mechanisms of the silage machine. This is usually done through output shafts that are connected to the cutting discs, blades, or drums.4. Cutting Mechanism Drive: The output shafts drive the cutting mechanisms. In a Four Disc system, there are typically four cutting discs or blades. The gearbox ensures that these discs or blades rotate at the optimal speed and with sufficient torque to cut the forage crops effectively.

Applications of Silage Machine Gearbox for German Champion Four Disc (Type 3500)

The Silage Machine Gearbox RDF-QZ-WRXL for German Champion Four Disc (Type 3500) is an integral part of the silage machine, facilitating efficient and effective forage crop processing. This gearbox is specifically designed to meet the rigorous demands of silage production, ensuring the machine operates with optimal power and precision. Here are the primary applications of the Silage Machine Gearbox in the context of forage and silage production:1. Forage Cutting and Harvesting: The gearbox drives the cutting discs or blades with precision, ensuring that forage crops like grass, alfalfa, or clover are cut cleanly and at the desired length.The robust design of the gearbox allows for continuous operation, essential for processing large volumes of forage during peak harvesting times.2. Silage Preparation: The gearbox enables the silage machine to chop forage into small pieces, a crucial step in preparing for ensiling. Ensures consistent particle size, which is vital for the compaction and fermentation processes in silage making.3. Crop Residue Management: After crop harvesting, the silage machine can be used to chop and incorporate stubble or crop residues back into the soil, aiding in soil health and nutrient recycling.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.

Why Choose Our Silage Machine Gearbox?

Raydafon MACHINERY (Ningbo) CO.LTD is a professional reducer high-tech enterprise integrating scientific research, production and sales, a high-tech small and medium-sized enterprise in Zhejiang Province, a member of Ningbo R&D center, and a specialized and special new small and medium-sized enterprise in Zhejiang Province. We have a professional R&D team and technical staff specializing in the production of various gearboxes, gearbox assemblies, and components. The products include various series of helical gear reducers, agricultural machinery gearboxes, industrial gearboxes, etc. A number of technical patents and products are pioneering in China. We strictly follows the quality management system to manufacture high-quality products, which are highly appreciated by domestic and foreign customers. In recent years, We has been adhering to the concept and spirit of "innovating with determination, advancing with the times, and creating the future intelligently", and is committed to high-end gearbox, gearbox development and manufacturing. Founded in 2017, We have rich production experience, perfect organizational structure, and complete R&D and design capabilities. It also provides technical support and design and development cases for customers in various industries and has been widely praised by customers.
