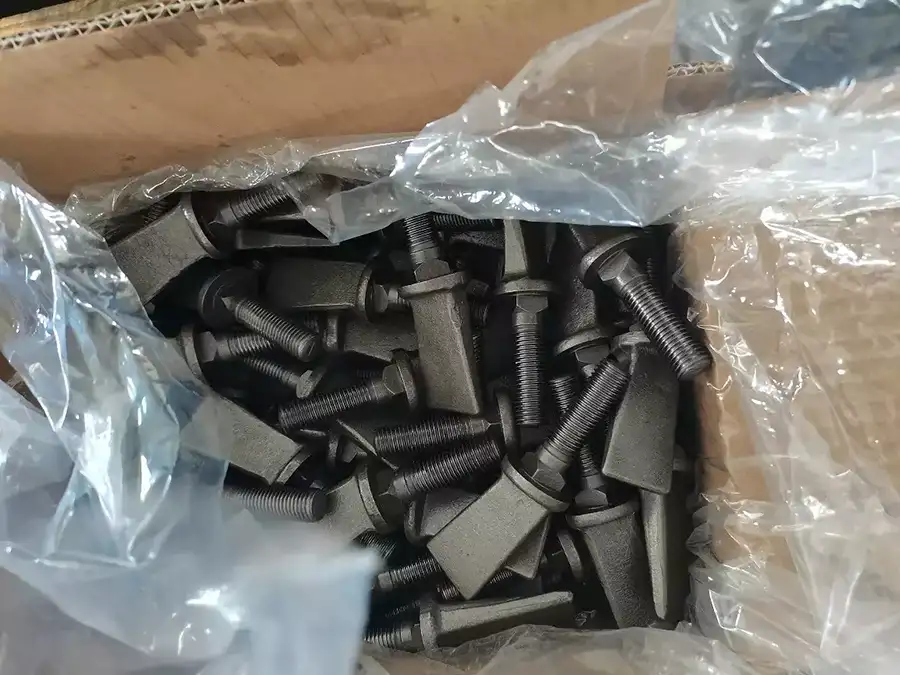

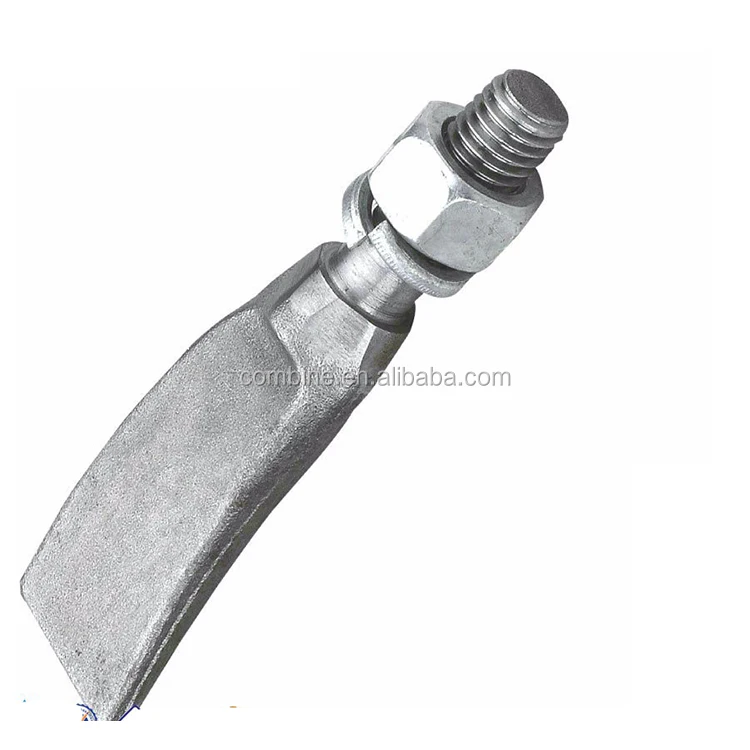

Spike Tooth H132057,Cylinder Spike for harvester

Spike Tooth H132057,Cylinder Spike for Harvester

Introduction

The Cylinder Spike Tooth is a component used in agricultural machinery for harvesting. It is responsible for threshing and separating crops from the stems. It is an important part of any harvester that needs to be in good condition to ensure efficient and effective operation.

Application

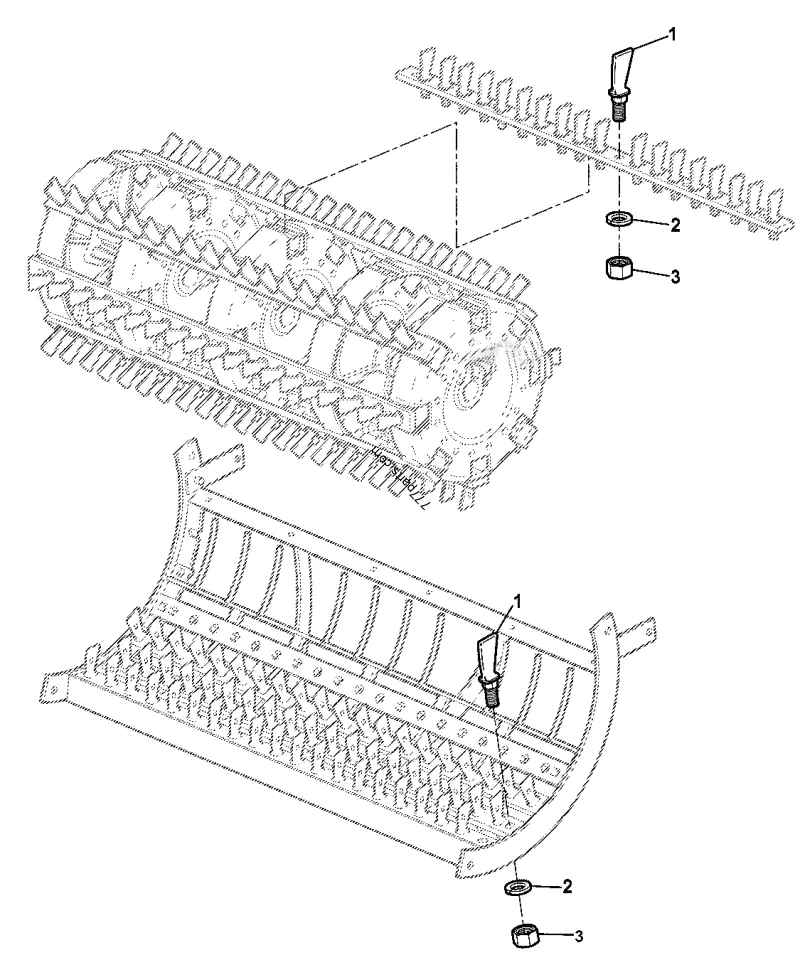

The Cylinder Spike Tooth is typically used in the threshing section of the harvester. It is located on the cylinder drum and rotates to thresh the crops. The spikes penetrate the crop to loosen the seeds from the stems.

Compatibility

The Spike Tooth H132057 is compatible with various agricultural machinery brands and models. Please refer to the table below for details:

We also offer a wide range of other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, pto shaft, concave, and more. Whatever your needs are, you can find the necessary parts at our store.

When to Replace Cylinder Spike Tooth

There are several signs that indicate the need for Cylinder Spike Tooth replacement:

1. Decreased threshing efficiency: If the harvester is not effectively threshing the crop, or there is a significant increase in grain loss, it may indicate that the spike tooth is worn out and is no longer providing enough cutting and threshing force.
2. Visible wear and tear: If the spike tooth is broken, missing, or significantly worn out, it is a sign that the cylinder drum has reached the end of its life and needs to be replaced.
3. Damaged by foreign objects: If the spike tooth is damaged due to the ingestion of hard objects, it can severely affect the threshing function and needs to be replaced as soon as possible.
4. Unusual noise: If the threshing section produces unusual noises during operation, it may be due to the spike tooth's damage, leading to abnormal contact or impact between parts.
5. Increased power consumption: If the spike tooth is worn out, the machine may require greater power to achieve the same threshing effect, leading to increased fuel consumption and engine load.

How to Choose the Right Cylinder Spike Tooth

When choosing the right Cylinder Spike Tooth, the following factors should be considered:

1. Crop type: Different types of crops have different requirements for spike teeth. For example, smaller grains with softer stems like wheat or rice require spike teeth that are suitable for precise threshing. On the other hand, larger grains with harder stems like corn require spike teeth that are more durable and have stronger penetration power.
2. Shape and arrangement: Spike teeth come in various shapes such as straight, oblique, or curved, and each type has specific applicability. The density of the arrangement also affects the threshing efficiency and the degree of damage to the crop. Generally, high-density arrangement is suitable for precise threshing, while low-density arrangement is beneficial for reducing stem damage.
3. Material and hardness: Spike teeth must be made of wear-resistant, anti-corrosive material with a certain amount of toughness to ensure stable performance during long-term usage. The choice of hardness is also critical; if it is too hard, the crop will be damaged too quickly, and if it is too soft, the spike teeth will wear out faster, affecting the service life.

Author: Miya
