Square Hay Baler/Square Baler/Straw Baler

Introducing a high-performance Square Baler, Model Number: modelRXFK3060, designed for optimal ground applications. This new-condition baler operates at an impressive speed of 80-240 bales/hour. With dimensions of 5000x2800x1400mm and a weight of 1460 kg, it is a compact and robust machine. Available in various colors such as yellow, blue, red, and more, this machine comes with a one-year warranty and CE certification. This baler boasts a high efficiency, surpassing that of a round baler as it eliminates the need to stop the tractor after the bales are finished.

Advantages of the Square Baler

• Simple and Compact Structure: This baler is designed with simplicity and compactness in mind, ensuring easy operation and maintenance.
• High Working Efficiency: It operates at a speed of 80-240 bales/hour, providing high productivity.
• Low Cost: Despite its advanced features, this baler is priced affordably. Plus, spare parts are readily available from us.
• Offset Design: The offset design allows for easy monitoring of the working situation.
• Compatibility with Compact Tractors: A tractor with as little as 25HP is sufficient to operate this baler.
• Versatility: This baler is towed type, using 2 point link or trailer mounted, and is also widely used in all kinds of straw.

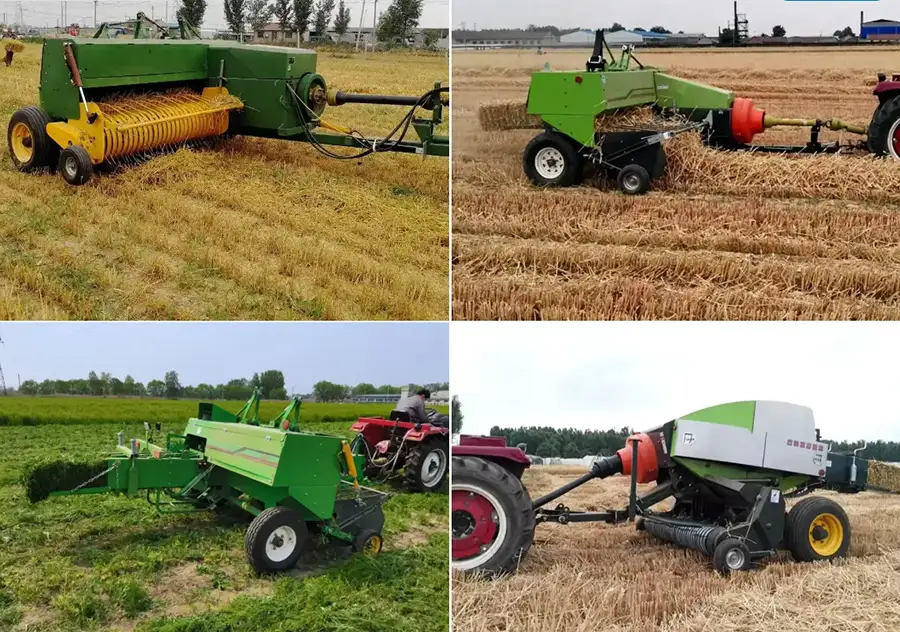

Applications of the Square Baler

• • Farming: Ideal for farmers looking to simplify their hay or straw baling process.
  • Agriculture Industry: Used in various agricultural applications where large volumes of hay or straw need to be baled.
  • Food Industry: Useful in the food industry for baling straw used in feeding livestock.
  • Landscaping: Perfect for landscaping applications where large quantities of straw are used.

• Waste Management: Can be used in waste management facilities for baling straw waste.
• Recycling Centers: Ideal for recycling centers for compacting and transporting straw.

How Does the Tractor Mounted Hay Square Baler Work?

A tractor-mounted hay square baler is a type of baler that is attached to a tractor using the tractor's PTO system. It works in conjunction with the tractor's hydraulic system to gather, compress, and tie hay or straw into square bales. Here's a step-by-step overview of how a tractor-mounted hay square baler typically operates:

1. Attachment to the Tractor: The baler is connected to the tractor using a three-point hitch or a specific mounting system designed for that particular baler model. The PTO shaft of the baler is connected to the PTO output of the tractor, which provides the power to drive the baler's components.
2. Pickup and Feeding: The baler's pickup is lowered to the ground, and the tractor is driven forward over the cut hay or straw. The pickup consists of teeth or tines that gather the material and convey it into the baling chamber. The hay or straw is fed into the baler in a continuous stream.
3. Baling Chamber: Inside the baler, the baling chamber consists of a moving plunger and stationary walls. The plunger moves back and forth, exerting pressure on the material and compressing it into a rectangular shape. The walls of the baling chamber guide and contain the material as it is being compressed.

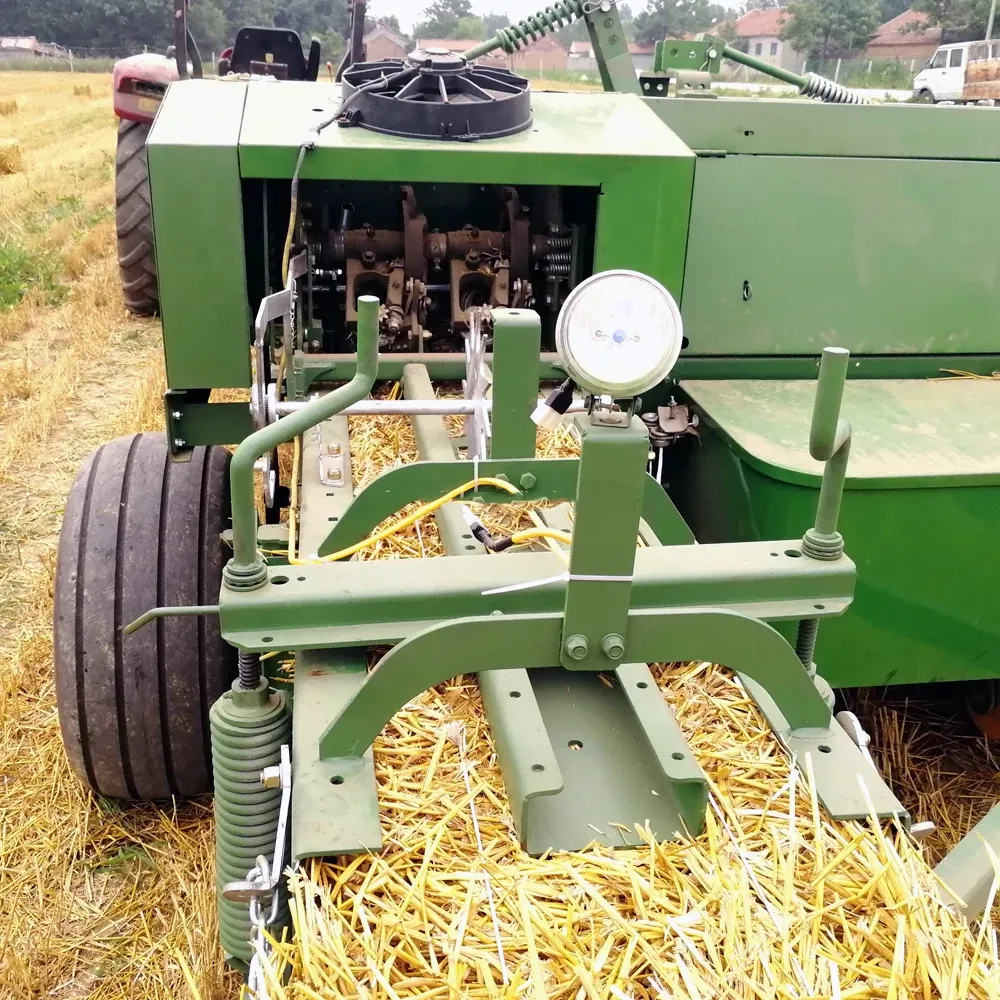

4. Knotter or Baler Twine System: Once the material is compressed into a bale, it reaches the knotter or twine system. In the case of a knotter system, twine is fed into the baler, and the knotter creates a series of knots that secure the bale. In a twine system, the twine is wrapped around the bale and tied off.
5. Bale Ejection: Once the bale is securely tied, it moves out of the baling chamber. The baler usually has a bale ejection system that pushes the bale out of the baler and onto the ground. Some balers may have additional features like a bale kicker or a bale accumulator for more efficient bale handling.
6. Bale Collection: The tractor operator can stop the tractor and collect the completed bales from the field. The bales are typically stacked or loaded onto a trailer for transportation and storage.

How to Install the Hay Square Baler to Tractor?

Installing a hay square baler to a tractor is a critical process that requires attention to detail to ensure safety and operational efficiency. Here is a step-by-step guide on how to properly attach a hay square baler to a tractor. Always refer to the specific manuals for your baler and tractor for any model-specific instructions or safety warnings.

1. 1. Position the Tractor: Park the tractor on a level surface, ensuring that it is turned off, the parking brake is engaged, and the PTO is disengaged.

1. 1. Align the Baler: Position the baler behind the tractor so that the hitch points align with the tractor's three-point hitch or mounting system. Ensure that the baler is centered and properly aligned with the tractor.
   2. Connect the Hitch: Lower the tractor's three-point hitch or use the appropriate mounting system to align and attach the baler to the tractor. Follow the specific instructions provided by the baler manufacturer for hitch connection.
   3. Secure the Hitch: Once the baler is properly aligned with the tractor's hitch, secure it by engaging the locking mechanisms or fastening the bolts, pins, or latches provided with the baler. Ensure that the hitch is securely attached to the tractor and there is no excessive movement.

1. Connect the PTO Shaft: Attach the PTO shaft of the baler to the PTO output of the tractor. Align the splines on the shafts and push them together until they engage. Secure the connection by locking the PTO shaft's collar in place.
2. Check Hydraulic Connections (if applicable): If your baler requires hydraulic connections to the tractor, ensure that the hydraulic hoses are properly connected to the tractor's hydraulic ports. Follow the baler manufacturer's instructions for specific hydraulic connections.
3. Test the Connection: Before operating the baler, start the tractor's engine and engage the PTO. Check for any unusual noises, vibrations, or misalignments in the baler's components. Ensure that the PTO shaft is spinning smoothly and that all connections are secure and functioning correctly.

Common Troubleshooting of the Square Baler

Troubleshooting common issues with a hay square baler involves diagnosing and addressing problems that can arise during its operation. Here??s a guide to some of the most frequent issues encountered with hay square balers and how to potentially resolve them:

• Baler Not Forming Bales Properly: Incorrect tension settings, insufficient hay, or issues with the pickup mechanism. Adjust the baler's tension settings according to the manual. Ensure there??s enough material being fed into the baler. Check the pickup mechanism for clogs or damage and clear or repair as necessary.
• Bales Too Loose or Too Tight: Tension settings not properly adjusted for the current conditions or material. Refer to the baler??s manual to adjust the density settings. This might involve tightening or loosening the tension on the bales.
• Baler Knots Not Tying: Twine tension is incorrect, twine is running out, or there are issues with the knotter mechanism. Check and adjust the twine tension. Replace the twine spool if it??s running low. Clean and lubricate the knotter mechanism, and check for worn parts that may need replacing.
• Irregular Bale Shape: Uneven feeding of material or issues with the plunger alignment. Ensure the windrow is evenly distributed before baling. Check the plunger for proper alignment and adjust according to the manufacturer's instructions.
• Baler Pickup Not Working Efficiently: Worn or broken pickup tines, incorrect pickup height, or obstructions in the pickup area. Replace any worn or broken tines. Adjust the pickup height for optimal performance. Remove any obstructions from the pickup area.
• Excessive Vibration During Operation: Loose bolts or parts, damaged driveline, or imbalance in the flywheel. Check and tighten all bolts and parts. Inspect the driveline for damage and replace if necessary. Check the flywheel for balance and make adjustments as needed.

Why Choose Raydafon's Square Baler for Hay Baling?

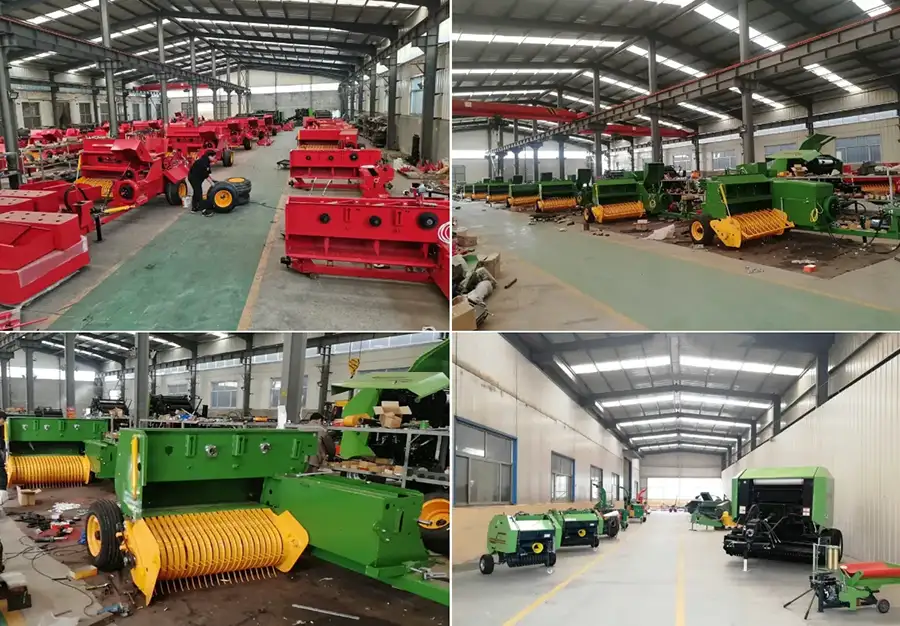

Raydafon Agricultural Machinery Co., Ltd. is a leading manufacturer engaged in the research and development of agricultural machinery. With over 100 employees, including 20 technical staff and five senior R&D personnel, we are dedicated to providing high-quality, professional machinery. Our production technology is strong, and the equipment is advanced, including lathing, milling, planing, stamping, cutting plate, and electric welding. Our products, set up by the main tractor manufacturers in China, are complete in specifications, excellent in performance, and reliable in quality. They are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We offer professionalism, international certifications, customized services, excellent production facilities, and comprehensive after-sales services. Our mission is to provide the best possible products and services to our customers. Trust Raydafon Agricultural Machinery Co., Ltd. for all your agricultural machinery needs.

Watch the Square Baler in Action

Experience the high performance of our square baler firsthand by watching this video. [embed]https://youtu.be/8UUrZLRNuDg[/embed] Author: Yjx
