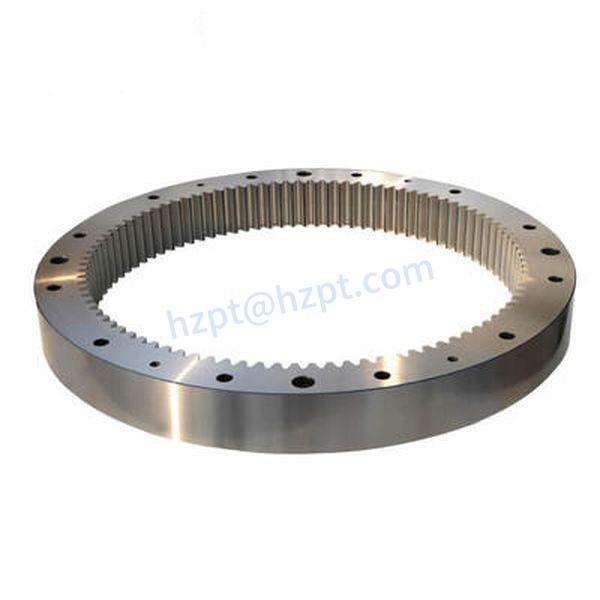

Stainless Steel Ring Gear For Wind Turbine

Raydafon Group's Stainless Steel Ring Gear For Wind Turbine delivers unmatched durability and precision, crafted from high-grade stainless steel to ensure reliable performance in demanding wind energy applications. Ideal for engineers and renewable energy projects, this gear reduces maintenance costs and enhances turbine efficiency. Trust Raydafon Group for innovative solutions that power a sustainable future with superior quality and long-lasting performance, making it a smart investment for any wind energy portfolio.

Send Inquiry

Product Description

One of the critical components sits on the Engine Flywheel and engages with the pinion of the starter motor to crank the engine upon Starting. Ring gear transfers starting torque from starter to engine crankshaft. Ring gears have a diversified industry presence and are typically used in passenger cars, trucks, tractors, earth moving equipment, marine engines, lawn mowers, and industrial/power generation.

Specifications
Shape	Ring Gear
Tooth Profile	involute
Description	Transmission Ring Gear
Size	According to Drawing

Technical Detail

Selected Material	Carbon Steel	SAE1020, SAE1045, Cr12, 40Cr, Y15Pb, 1214L etc
	Alloy Steel	20CrMnTi, 16MnCr5, 20CrMnMo, 41CrMo, 17CrNiMo5 etc
	Brass/Bronze	HPb59-1, H70, CuZn39Pb2, CuZn40Pb2, C38000, CuZn40 etc
Modules	1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5....8.0 etc
Machining Process	Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching,Gear Shaving, Gear Grinding, and Gear Lapping
Tolerance Control	Outer Diameter	±0.005 mm
	Length Dimension	±0.05 mm
Heat Treatment	Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding......
Teeth Accuracy	DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0
Surface Treatment	Blacking, Polishing, Anodization, Chrome Plating, Zinc Plating, Nickel Plating......

Gear Basic Data
Gear Tooth Shape	involute
Gear Material	42CrMo
Gear Process	fogging, lasting, tooth milling, internal and plane grinding, tooth grinding
Pressure Angle	20°
Quality level	DIN 3962 class 7
Gear Type	Mn=6, Z=109, β=0°, X=-0.25

CAPABILITIES OF GEAR/ SPLINE

INTERNAL GEARS AND INTERNAL SPLINES
	MILLING	SHAPING	TOOTH GRINDING
Maximum O.D.	2500 mm	2500 mm	2500 mm
Minimum I.D.	650 mm	50 mm	100 mm
Maximum Face Width	500 mm	500 mm	500 mm
Maximum Diametral Pitch	DP 1	DP 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±22.5°	±22.5°	±45°
EXTERNAL GEARS AND EXTERNAL SPLINES
	HOBBING	MILLING	TOOTH GRINDING
Maximum O.D.	1250 mm	2500 mm	2500 mm
Minimum O.D.	20 mm	200 mm	20 mm
Maximum Face Width	500 mm	500 mm	1480 mm
Maximum Diametral Pitch	DP 1	DP 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±45°	±45°	±45°

FAQ

Q: Are you a trading company or manufacturer?

A: We are a factory.

Q: How long is your delivery time?

A: Generally, it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free but do not pay the freight cost.

Q: What are your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, please contact us as below.
