Standard Heavy Rod Hydraulic Cylinder

Standard Heavy Rod Hydraulic Cylinder

The Standard Heavy Rod Hydraulic Cylinder is a robust and reliable hydraulic component that delivers exceptional power and durability in various industrial applications. Engineered with precision and built to withstand demanding conditions, this hydraulic cylinder is a trusted solution for heavy-duty tasks. From construction equipment to material handling machinery, the Standard Heavy Rod Hydraulic Cylinder is a workhorse that ensures optimal performance and productivity.Key Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: The Standard Heavy Rod Hydraulic Cylinder is built with a sturdy design and high-quality materials, such as steel or alloy, to withstand heavy loads and harsh operating environments. Its rugged construction ensures long-lasting durability and resistance to wear and tear.Powerful Performance: This hydraulic cylinder delivers impressive force and power output with its large piston diameter and high-pressure capabilities. It enables efficient lifting, pushing, or pulling of heavy loads, making it well-suited for demanding industrial applications.Versatile Applications: The Standard Heavy Rod Hydraulic Cylinder is useful in various industries, including construction, mining, agriculture, and manufacturing. Its versatility allows it to be integrated into multiple equipment and systems, providing reliable performance across different applications.

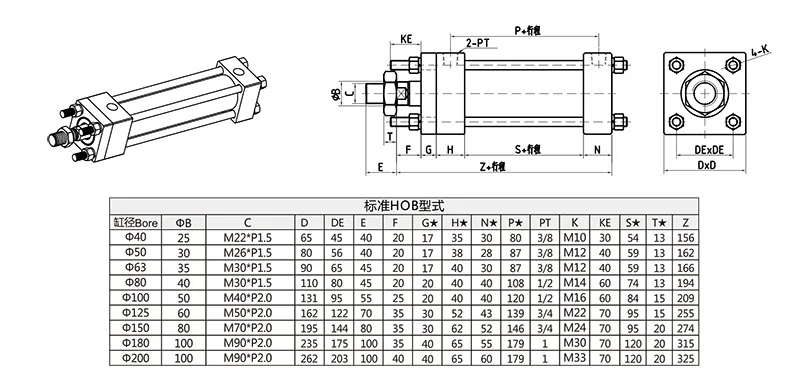

Standard Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of Standard Heavy Rod Hydraulic Cylinder:

1. Mounting and Connection: Securely mount the Standard Heavy Rod Hydraulic Cylinder to the designated location using appropriate brackets or fixtures. Ensure proper alignment and stability during the installation process. Connect the hydraulic lines to the cylinder's ports, following the manufacturer's instructions and guidelines.
2. Hydraulic System Integration: Integrate the cylinder into the hydraulic system by connecting it to a suitable hydraulic pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings according to the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of Standard Heavy Rod Hydraulic Cylinder:

Regular maintenance is essential to maximize the lifespan and performance of the Standard Heavy Rod Hydraulic Cylinder. Here are some maintenance guidelines:

1. Regular Inspection: Conduct routine inspections to identify signs of wear, damage, or leaks. Inspect the cylinder body, piston rod, seals, and other components for abnormalities. Address any issues promptly to prevent further injury or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How To Take Apart A Hydraulic Cylinder?

Taking apart a hydraulic cylinder requires careful disassembly to avoid damage to the components. Here's a step-by-step guide on how to take apart a hydraulic cylinder:

1. Safety Precautions: Before starting any work on hydraulic cylinders, ensure that the system is depressurized, and the equipment is safely secured to prevent accidental movement. Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.
2. Identify the Cylinder: Determine the type and design of the hydraulic cylinder you're working with. Different cylinders may have varying disassembly procedures, so consult the manufacturer's documentation or guidelines specific to your cylinder model.
3. Cylinder Removal: Disconnect any hydraulic lines connected to the cylinder. Remove any external components, such as mounting brackets or covers that may obstruct access to the cylinder.
4. Drain Hydraulic Fluid: Place a suitable container beneath the cylinder to catch any hydraulic fluid that may drain during disassembly. Carefully drain the fluid by loosening the fittings or removing the drain plugs.
5. Disassemble End Caps: Identify the cylinder's end caps, which are usually located at each end of the cylinder. Remove any retaining bolts, screws, or fasteners securing the end caps in place. Gently tap the end caps with a rubber mallet to loosen them if necessary.
6. Separate End Caps: Once the end cap fasteners are removed, carefully pry off the end caps using a pry bar or a soft-faced mallet. Take note of the orientation and order of any components inside the cylinder as you disassemble it.
7. Remove Piston Assembly: With the end caps removed, the piston assembly should be accessible. Slide the piston out of the cylinder bore, taking care not to damage the piston or cylinder walls. If the piston is stubborn, apply a suitable lubricant and use gentle force to facilitate its removal.
8. Inspect and Clean Components: Thoroughly inspect all disassembled components for signs of wear, damage, or contamination. Clean each component using a suitable cleaner or solvent to remove any dirt, debris, or hydraulic fluid residue. Dry the components thoroughly before further inspection or reassembly.
9. Replace Worn or Damaged Parts: If any components show signs of excessive wear or damage, they should be replaced with new ones. Consult the manufacturer's guidelines or seek professional advice to ensure you select the correct replacement parts.
10. Reassembly: To reassemble the hydraulic cylinder, follow the reverse order of disassembly. Ensure that all components are properly aligned, and that any seals or O-rings are lubricated with hydraulic oil or a compatible lubricant before installation. Tighten fasteners and fittings to the manufacturer's recommended torque specifications.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of heavy rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The heavy rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
