Steel Pintle Chain 662 667H 667X 667XH 667K 667J 88K 88C 308C

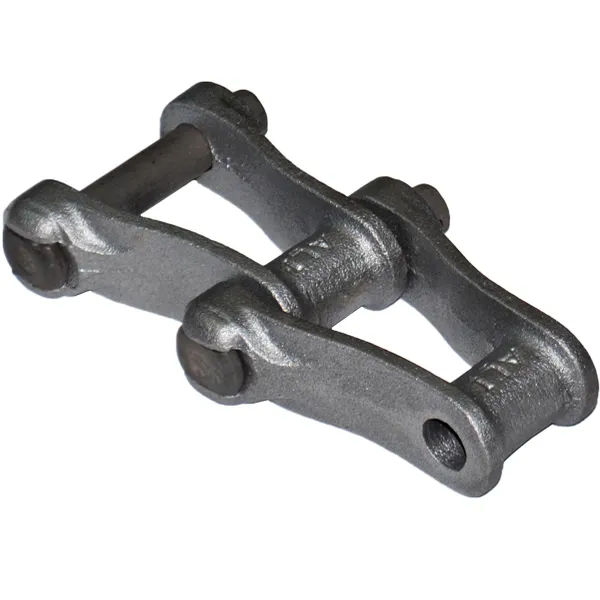

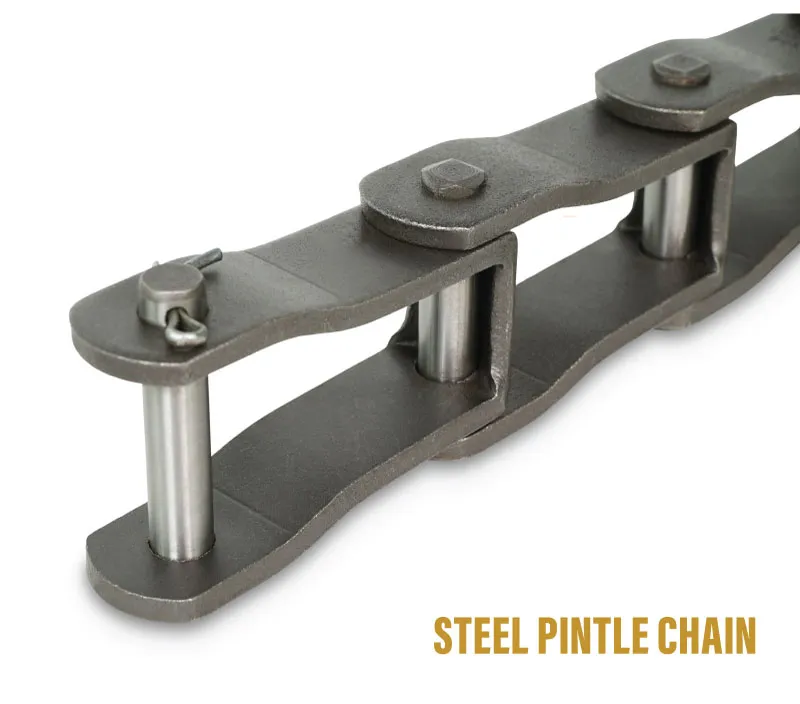

The steel pintle chain gets its characteristic name from its design. A pintle is a pin or bolt, typically inserted into a socket-like cylindrical fitting known as a gudgeon. Applying this way of attachment to chain links allows pivoting or hinging connection to a second, similar component which builds up a solid yet flexible chain for conveying heavy material. Steel pintle chain consists of a barrel and link as a single casting. Each casting is then connected with a steel pin to the next, forming a chain. The castings and linkage provide increased strength compared to other chains, allowing a wider range of applications.

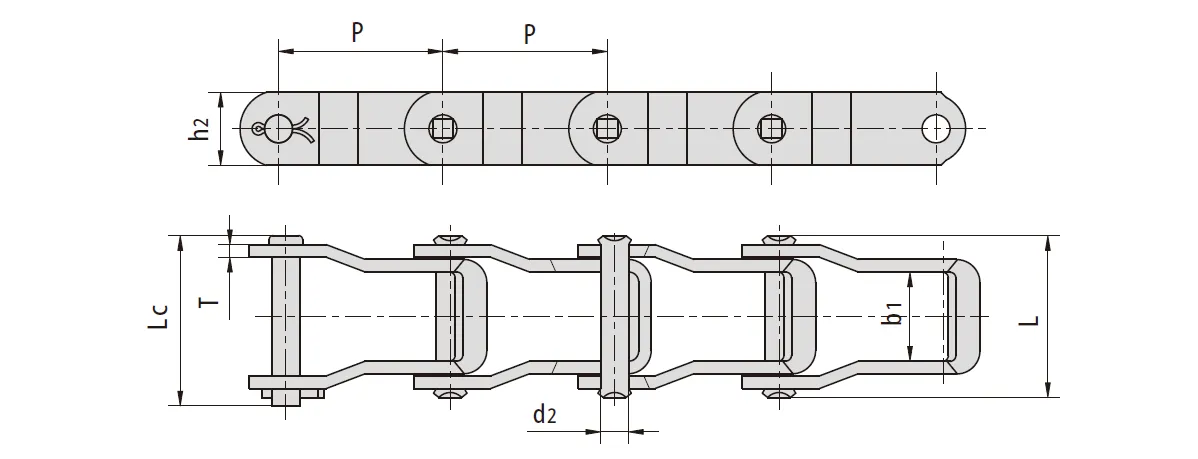

| Chain No. | Pitch | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | b1?min | d2?max | Lmax | Lc max | h2?max | T | Qmin | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 662 Pintle Chain | 42.27 | 22.9 | 7.19 | 41.2 | 44.2 | 18.8 | 3.2 | 37.80/8591 | 49.8 | 1.63 |
| 667H Pintle Chain | 58.75 | 25.4 | 7.94 | 43.7 | 46.7 | 22.2 | 3.2 | 42.30/9614 | 59.3 | 1.87 |
| 667X Pintle Chain | 57.15 | 26.6 | 11.10 | 50.2 | 55.0 | 23.8 | 4.3 | 66.70/15159 | 96.5 | 2.98 |
| 667XH Pintle Chain | 57.15 | 27.4 | 11.91 | 58.0 | 62.0 | 27.3 | 5.7 | 124.50/28295 | 138.6 | 4.34 |
| 667K Pintle Chain | 57.15 | 27.4 | 11.10 | 55.5 | 60.0 | 27.3 | 5.1 | 89.00/20227 | 123.2 | 3.91 |
| 667J Pintle Chain | 57.15 | 26.6 | 9.53 | 50.2 | 55.0 | 27.3 | 4.3 | 62.28/14155 | 84.1 | 2.81 |
| 88K Pintle Chain | 66.27 | 27.4 | 11.10 | 55.5 | 60.0 | 27.3 | 5.1 | 89.00/20227 | 123.2 | 3.73 |
| 88C Pintle Chain | 66.27 | 31.4 | 12.70 | 64.6 | 69.0 | 28.9 | 6.4 | 133.36/30309 | 160.5 | 5.17 |
| 308C Pintle Chain | 78.10 | 32.5 | 15.88 | 72.6 | 78.0 | 38.1 | 8.0 | 227.00/51030 | 249.7 | 8.40 |

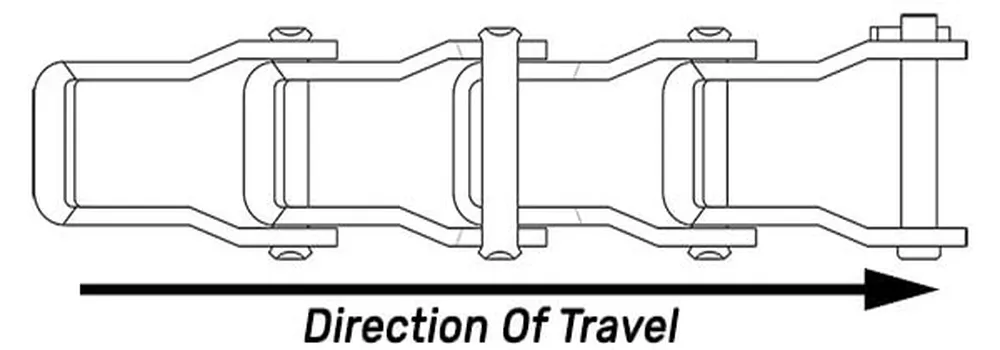

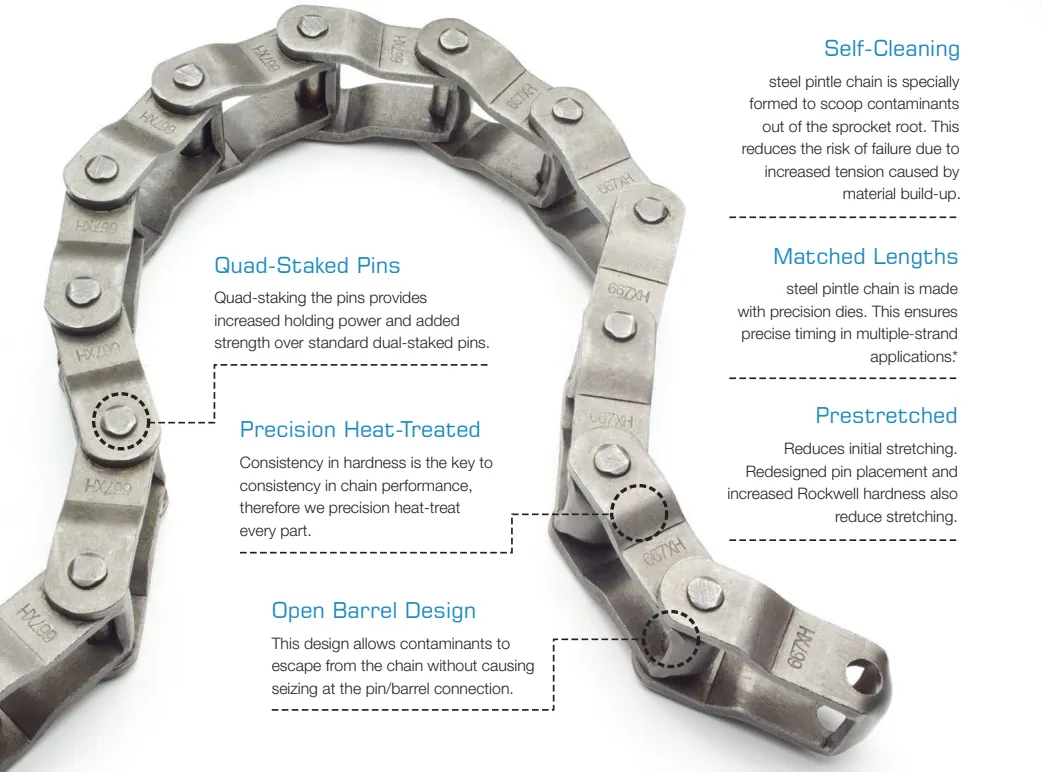

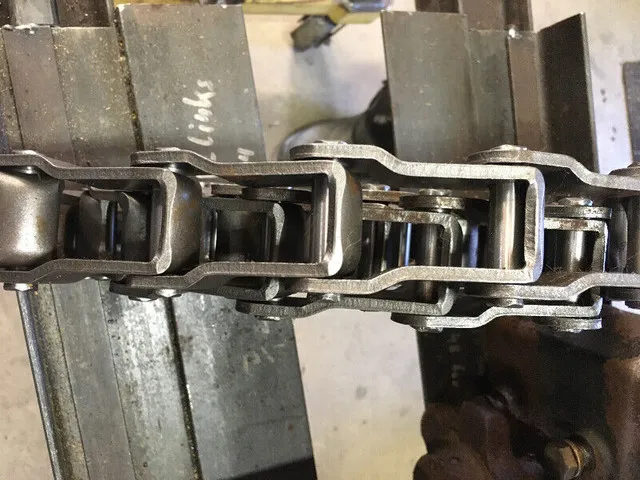

(3) Provides Support for Conveying Material Over Long LengthsIn cases like palm oil and sugar milling — where you need to convey large amounts of materials over lengthy distances — sluggish movement or repairs along the conveyor line can halt and delay your work. Steel Pintle Chains give ample reinforcement to move these items efficiently and conveniently, enabling you to move materials quickly.(4) Minimal Material Buildup Within Chain LinksWhen you constantly use some chains over time, dirt and matter can amass in the sprocket tooth pockets. To an extent, such buildup prevents the proper seating of the chain, resulting in an overload condition between the link and tooth. The open barrel construction of steel pintle chains keeps foreign materials from building up.

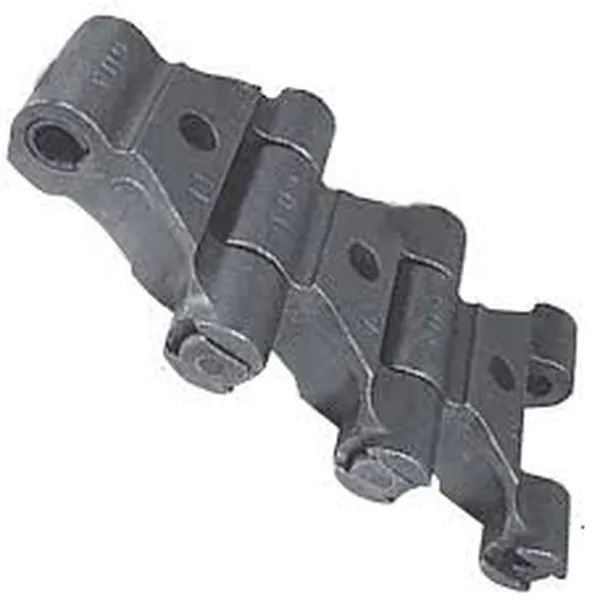

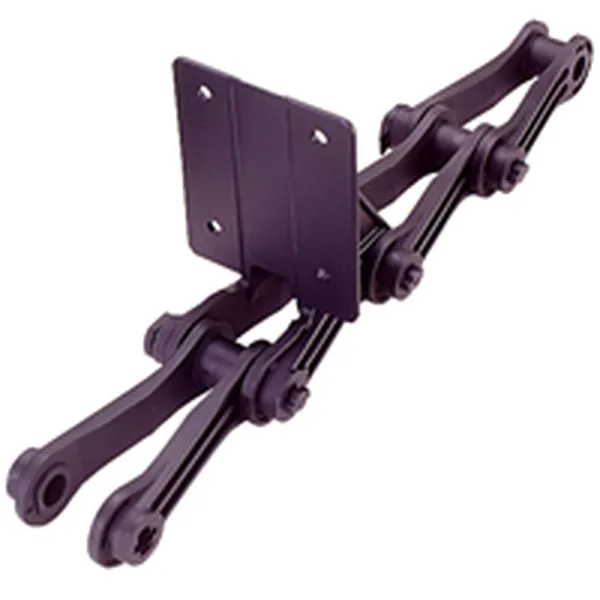

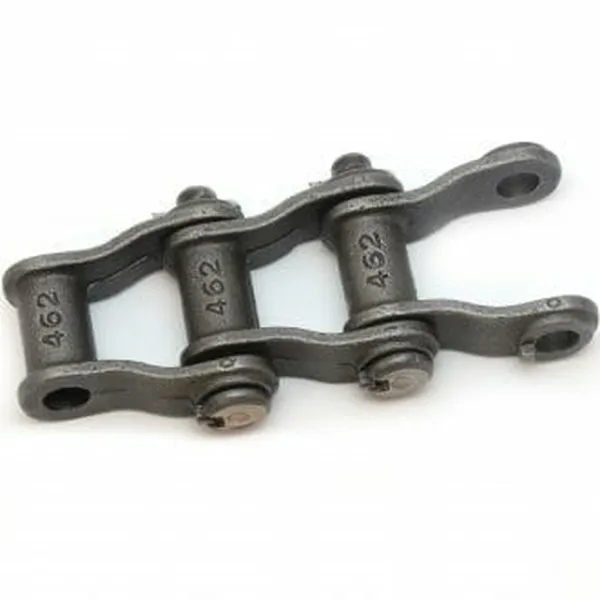

| 400 Class Pintle Chain | 700 Class Pintle Chain |
 |  |
| 800 Class Pintle Chain | 900 Class Pintle Chain |
 |  |
 |  |  |
 |  |

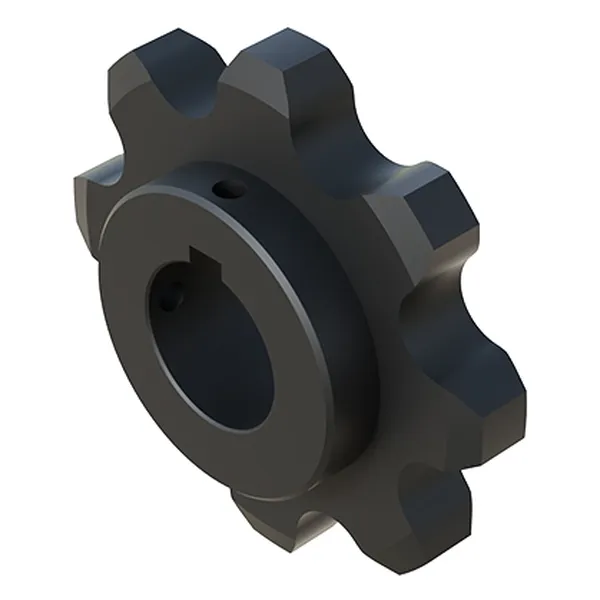

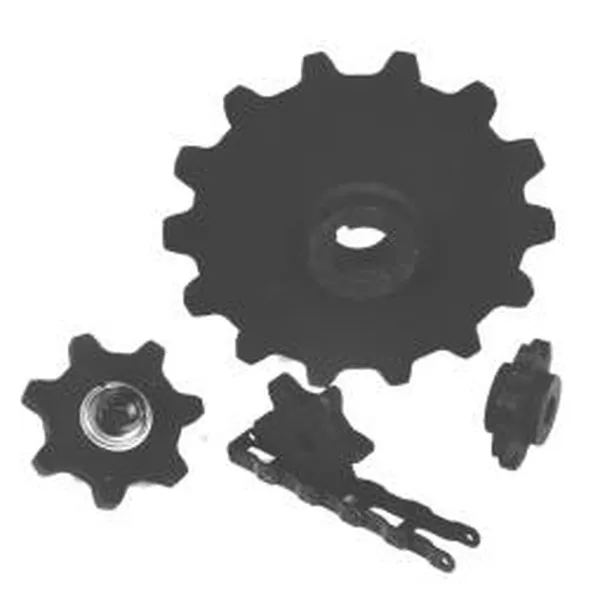

662 | 667 | 667H | 667J | 667X | 667XH | 88C | 88K | 88XH |
|---|---|---|---|---|---|---|---|---|
| 6-tooth | 667B6 | 667H B6 | 667J B6 | 667X B6 | 667XH B6 | 88C6 | 88C6 | 88C6 |
| 7-tooth | 667B8 | 667H B8 | 667J B8 | 667X B8 | 667XH B8 | 88C7 | 88C7 | 88C7 |
| 8-tooth | 667B9 | 667H B9 | 667J B9 | 667X B9 | 667XH B9 | 88C8 | 88C8 | 88C8 |
| 9-tooth | 667C6 | 667H C6 | 667J C6 | 667X C6 | 667XH C6 | 88C9 | 88C9 | 88C9 |
| 10-tooth | 667C8 | 667H C8 | 667J C8 | 667X C8 | 667XH C8 | 88C10 | 88C10 | 88C10 |
| 11-tooth | -- | -- | -- | -- | -- | 88C11 | 88C11 | 88C11 |
| 12-tooth | -- | -- | -- | -- | -- | 88C12 | 88C12 | 88C12 |
| 13-tooth | -- | -- | -- | -- | -- | 88C14 | 88C14 | 88C14 |
| 14-tooth | -- | -- | -- | -- | -- | 88C16 | 88C16 | 88C16 |
| 15-tooth | -- | -- | -- | -- | -- | 88C19 | 88C19 | 88C19 |
| 16-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 17-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 18-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 19-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
| 20-tooth | -- | -- | -- | -- | -- | -- | -- | -- |
