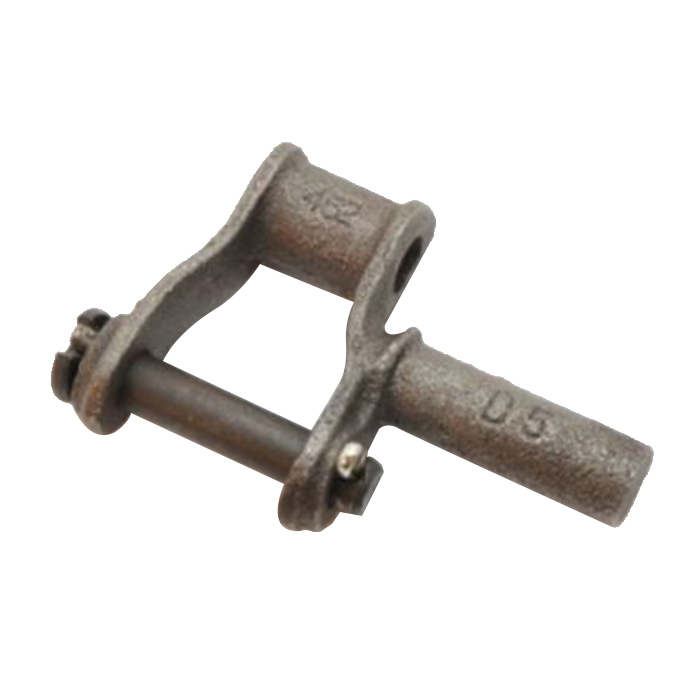

452 477 Class Pintle Chain With D5 Attachment

The 400 Class Pintle Chains(442/445/452/455/462/477/477/4103/4124) is a lightweight,moderately priced chain capable of handling average loads at slow or intermediate speeds. It is proportionately cast for balance, strength and long, efficient service, and is available in riveted or cottered construction. The head of each pin is notched to fit the sidebar locking lug which keeps the pin from rotating when the chain is in use. Closed bearing construction makes 400 Class Pintle Chain useful in conveying moderately gritty and abrasive materials.Manufactured in Raydafon Company, with a tensile strength range from 7,800 to 32,500pounds, The 400 Class Pintle Chain is carefully cored for pitch accuracy with smooth bearing surfaces that reduce "break-in" wear causing pitch elongation. 400 Class Pintle Chain is available in a pitch range of 1.375 to 4.060 inches with a complete assortment of Brutaloy or cast steel sprockets.A large assortment of attachments are available to handle a wide variety of applications. Styles A ,K and G attachments are offered in right and left hand links.As a drive chain, 400 Class Pintle is designed to travel in the direction of the barrel end of the links; as an elevating orconveying chain, its direction of travel should be toward the open ends of the links.All of the 400 Class Pintle Chain is manufactured according to manufacturer's standards and is completely interchangeable with other manufacturers' chain.MATERIAL400 class pintle chains are links cast of malleable iron or Promal (Duramal). It is a heat treated malleable iron having greater strength and superior resistance to wear and abrasion. Promal (Duramal) chains have heat treated pins.

we are specialised in producing Agricultural Roller Chain, Flat Top Chain,Caterpillar Track Chain,Hollow Pin Chain,Conveyor Chain for Beer Filling and Packing Line,Paver Chain,Attachment Sidebar Elevator Chain,Bucket Elevator Chain (Cement Mill Chain),Forging Scraper Chain,Loading Chain for Automobile Industry,Loading Chain for Metallurgical Industry,Conveyor Chain for Mine Machinery,Trencher Chain,Sugar Mill Chain,Double Flex Chain,etc. Welcome calls and emails to inquiry!
