Steel Sprockets 40, 60

Steel Sprockets

A sprocket is a rotating mechanical wheel with teeth that engage with roller or conveyor chains to facilitate their movement in various applications and equipment. As the sprocket rotates around a central shaft, the specially designed teeth engage the gaps in the chain to pull it with a secure grip regardless of whether it is in dirty or oily environments. Although they may resemble gears, sprockets are designed solely to work with drive chains, not other sprockets or gears.Raydafon specializes in high-quality drive and conveyance components, power transmission parts, and custom-designed products. The integrity and performance of your transmission system rely on the suitability of your sprockets, and our team can help you find the perfect solution.

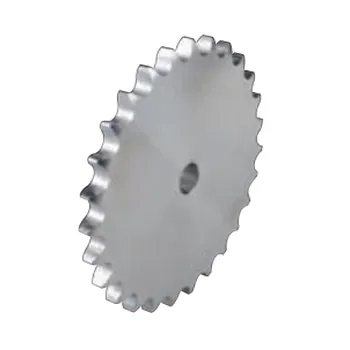

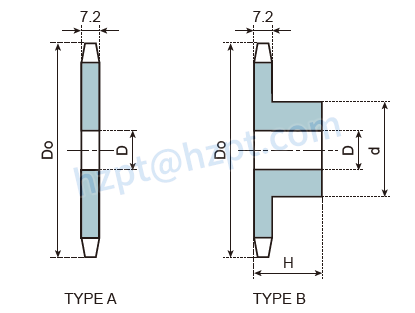

(1) 40 Steel Sprockets for Chain 843 / 845 / 1843

编号CODE	TYPE A			TYPE B
	外径 DoOuter dia. (mm)	节径 DpPitch dia. (mm)	孔径 DBore dia. (mm)	外径 DoOuter dia. (mm)	节径 DpPitch dia. (mm)	孔径 DBore dia. (mm)	凸台直径 dHub dia. (mm)	总长 HOverall length (mm)
13T	59	53.07	13.5	59	53.07	13.5	37	22
14T	63	57.07	13.5	63	57.07	13.5	42	22
15T	67	61.08	13.5	67	61.08	13.5	46	22
16T	71	65.10	13.5	71	65.10	13.5	50	22
17T	76	69.12	13.5	76	69.12	13.5	54	22
18T	80	73.14	13.5	80	73.14	13.5	57	22
19T	84	77.16	13.5	84	77.16	13.5	62	22
20T	88	81.18	14	88	81.18	14	67	25
21T	92	85.21	14	92	85.21	14	71	25
22T	96	89.24	14	96	89.24	14	75	25
23T	100	93.27	14	100	93.27	14	77	25
24T	104	97.30	14	104	97.30	14	63	25
25T	108	101.33	14	108	101.33	14	63	25
26T	112	105.36	14	112	105.36	14	63	25
27T	116	109.40	14	116	109.40	14	63	25
28T	120	113.43	14	120	113.43	14	63	25
29T	124	117.46	14	124	117.46	14	63	25
30T	128	121.50	14	128	121.50	14	63	25

NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)

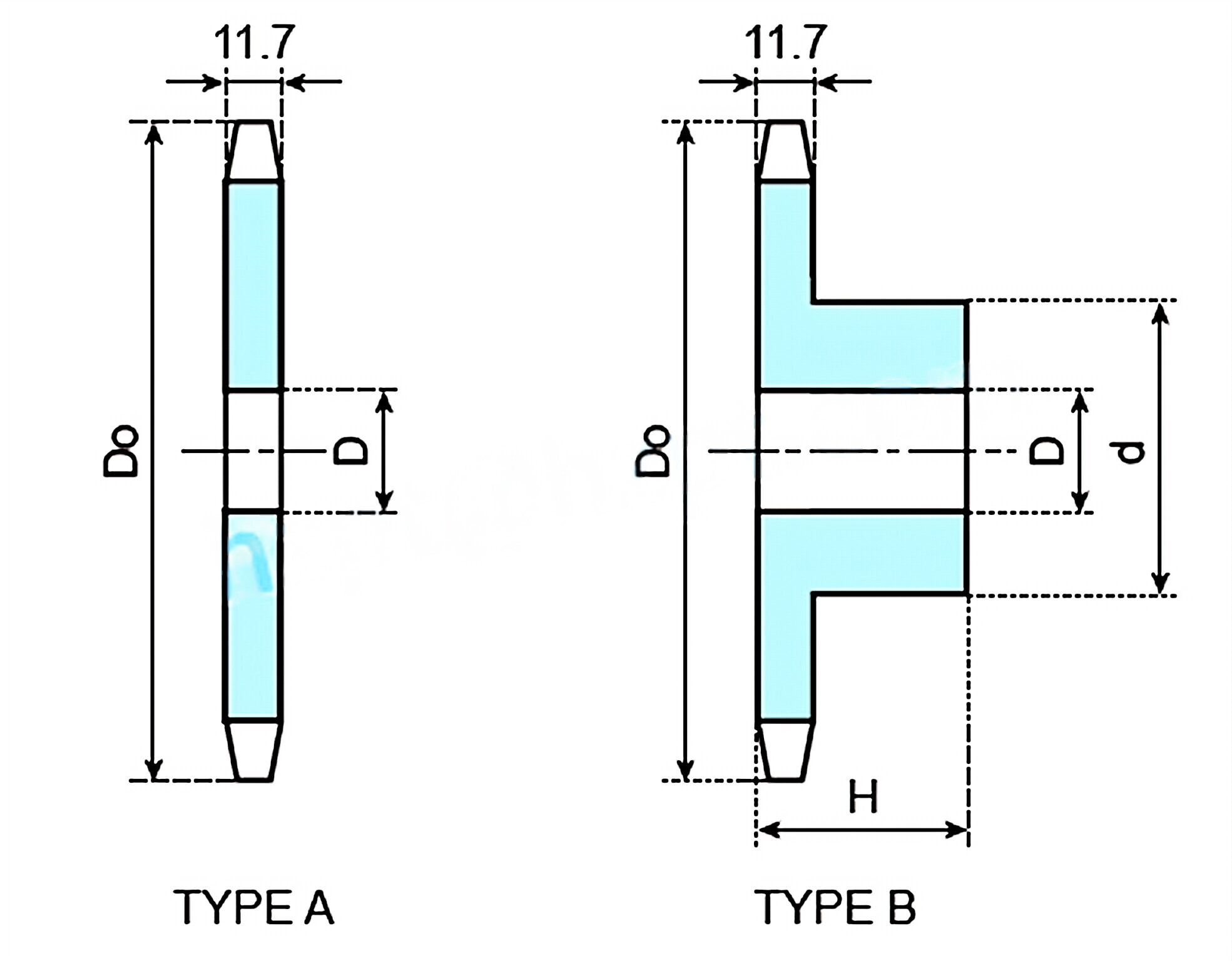

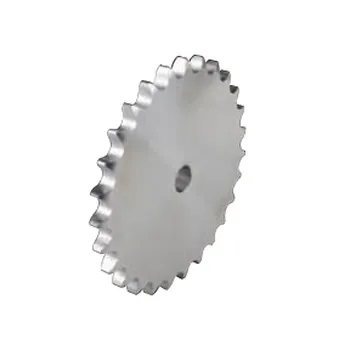

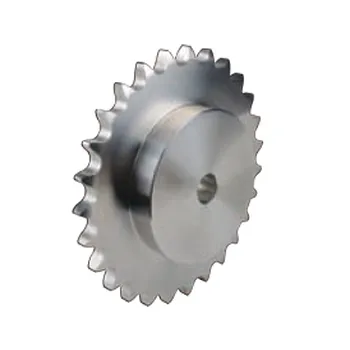

(2) 60 Steel Sprockets for Chain 863 / 963 / 1864 / 1873 / 1874 / 3873

This series of sprockets can be used with 1874TAB-G Flat Top Chains Sideflexing.

编号CODE	TYPE A			TYPE B
	外径 DoOuter dia. (mm)	节径 DpPitch dia. (mm)	孔径 DBore dia. (mm)	外径 DoOuter dia. (mm)	节径 DpPitch dia. (mm)	孔径 DBore dia. (mm)	凸台直径 dHub dia. (mm)	总长 HOverall length (mm)
13T	89	79.60	14	89	79.60	14	57	32
14T	95	85.61	16	95	85.61	16	62	32
15T	101	91.62	16	101	91.62	16	68	32
16T	107	97.65	16	107	97.65	16	73	32
17T	113	103.67	16	113	103.67	16	73	32
18T	119	109.71	16	119	109.71	16	83	40
19T	126	115.74	16	126	115.74	16	83	40
20T	132	121.78	16	132	121.78	16	83	40
21T	138	127.82	16	138	127.82	16	83	40
22T	144	133.86	16	144	133.86	16	83	40
23T	150	139.90	16	150	139.90	16	83	40
24T	156	145.95	16	156	145.95	16	83	40
25T	162	151.99	16	162	151.99	16	83	40
26T	168	158.04	16	168	158.04	16	83	40
27T	174	164.09	20	174	164.09	20	83	40
28T	180	170.14	20	180	170.14	20	83	40
29T	187	176.20	20	187	176.20	20	83	40
30T	193	182.25	20	193	182.25	20	83	40

NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)

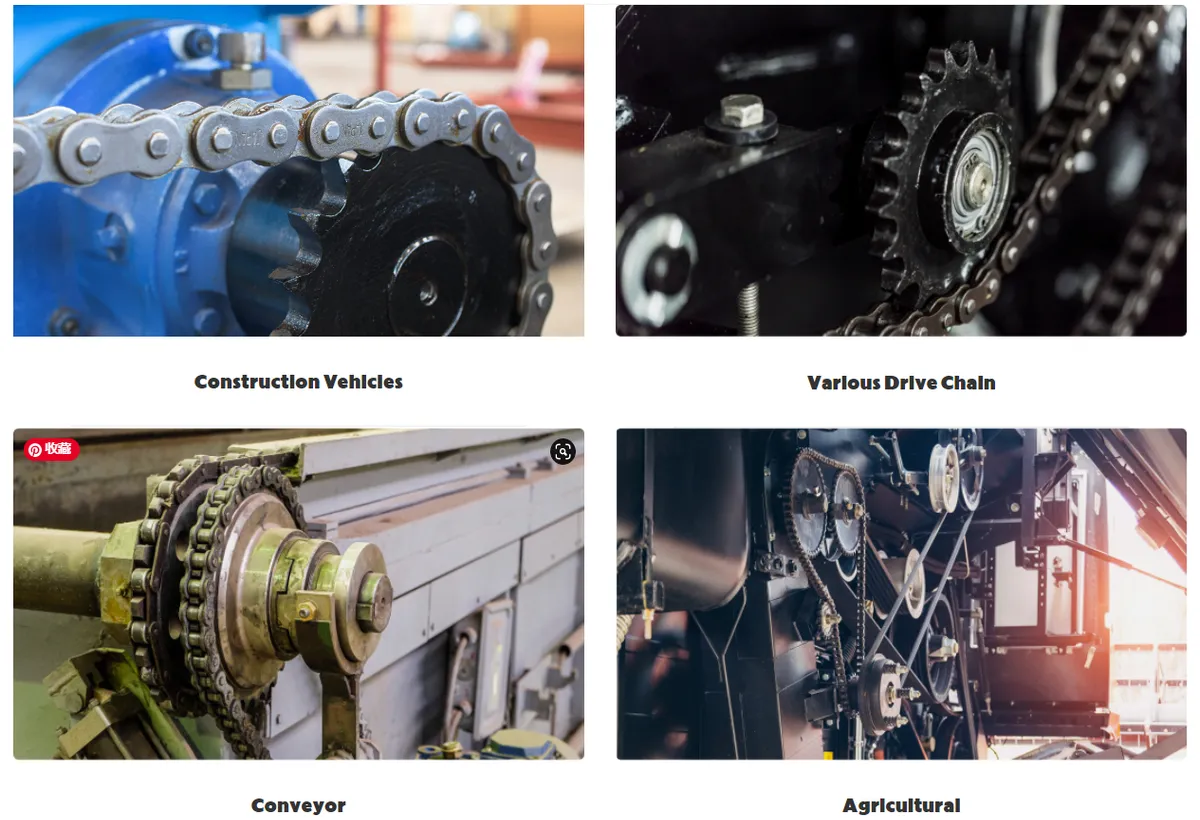

Applications for Sprockets

Finding Your Ideal Chain and Sprocket

Do you need a sprocket but aren't sure exactly what you need? This common problem is one that our professionals hear about every week. We excel at working with you to ensure that you get the roller chain sprocket or conveyor chain sprocket that will keep your project or machinery moving again.Sprockets are available for various uses, from forestry to agriculture and everything in between. It's equally as important to select the correct sprocket as it is to use the proper chain -- a mismatch can be catastrophic, causing damage to expensive machinery and even dangerous accidents. At Raydafon, we help you find the right pairing.

Choose Raydafon for high-quality sprockets.

Sprockets transmit reliable mechanical force using simple yet highly essential mechanisms; therefore, it is crucial to choose the right parts to ensure a long life for your critical system, considering loads and manufacturing conditions. Raydafon has been creating high-quality roller chains and conveyance parts for over 20 years, and we have an extensive line of standard and specialized sprockets. Contact us to find suitable sprockets for your systems or equipment today.
