SWL Series Electric Worm Gear Screw Jack for Electric Lifting Platforms

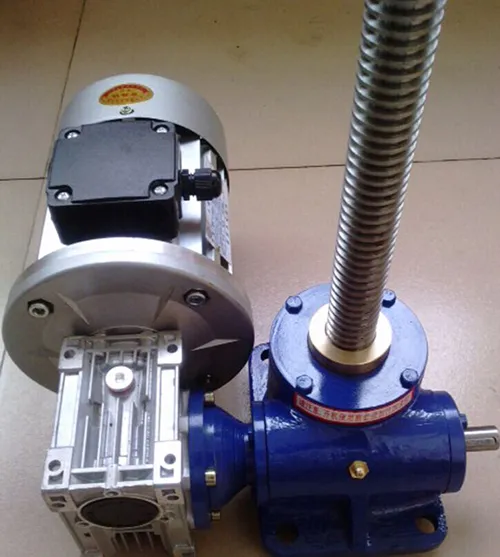

SWL series screw jack is composed of a worm gear reducer and a lifting screw, and its deceleration component is a worm drive, which uses the worm to drive the worm gear to achieve deceleration. The center of the worm gear is an internal thread structure, which is equivalent to the nut of the lifting screw and matches the lifting screw. The drive modes of the screw jack include manual drive, motor drive, and geared motor integrated drive. Motor drives include AC motors, stepper motors, servo motors, etc., which are connected with screw jacks through flanges. Electric worm gear screw jacks are widely used in various electric lifting platforms. In addition, the screw can be installed upwards or downwards according to different application requirements. SWL Series Electric Worm Gear Screw Jack for Electric Lifting Platforms

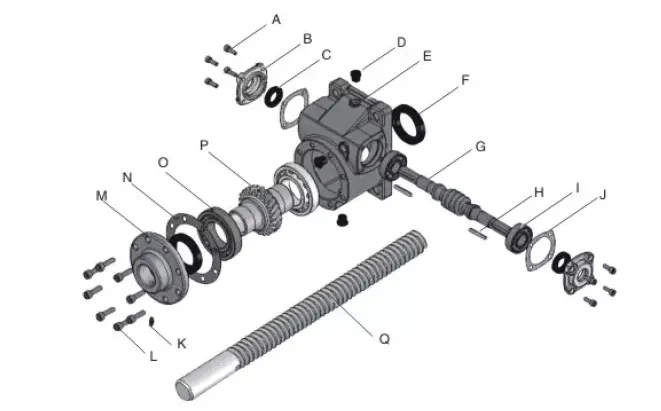

Structure of Electric Worm Gear Screw Jack:

A. Hexagon socket head screw	B. Input cover	C. Oil seal	D. Oil drain plug
E. Worm gear box	F. Oil seal	G. Worm	H. Key
I. Bearings	J. Asbestos gasket	K. Grease nipples	L. Hexagon socket head screws
M. Output cover	N. Asbestos gasket	O. Bearings	P. Worm gear
Q. Screw

Electric Worm Gear Screw Jack Components:

Worm gear	high quality 9-4 copper
Worm	20CrMnTi
Screw material	45# steel finishing
Housing material	HT250 cast iron
Bearing	high load bearing,Chinese famous brand or C&U
Oil seal	Chinese famous brands or NAK or SKF

Electric Worm Gear Screw Jack Specifications:

Model	SWL1,SWL2.5,SWL5,SWL10,SWL15,SWL20,SWL25,SWL35,SWL100,SWL150
Actual loading capacity	100-200kgs, 200-600kgs, 600-1500kgs, 1500-4000kgs…
Ratio	Ordinary (P)	Slow (M)
Structural type	Type 1 – the screw moves in both rotation and axial direction	Type 2 – the screw rotates while the nut on the screw moves in an axial direction
Assembly type	Type A – screw (or nut) moves upward	Type B – screw (or nut) moves down
Screw head type	– Type Ⅰ,head cylindrical	– Type Ⅰ,head cylindrical
	– Type Ⅱ,head flange	– Type Ⅰ,head cylindrical
	– Type Ⅲ,head thread	– Type Ⅲ,head thread
	– Type Ⅳ ,head flat head	– Type Ⅲ,head thread
Protection of screw rod	– (basic type)	– (basic type)
	– F (Anti-rotation type )	– Z (Type with protection shield)
	– Z (Type with protection shield)

Electric Worm Gear Screw Jack Parameters:

Model		SWL2.5	SWL5	SWL10/15	SWL20	SWL25	SWL35	SWL50	SWL100	SWL120
Max lifting load(Kn)		25	50	100/150	200	250	350	500	1000	1200
Screw diameter*threaddimension(mm)		Tr30*6	Tr40*7	Tr58×12	Tr65*12	Tr90*16	Tr110*18	Tr120*20	Tr160*23	Tr180*25
Worm Ratio	P	6:1	6:1	7:1	8:1	10:1	10:1	10:1	12:1	12:1
Worm Ratio	M	24:1	24:1	23:1	24:1	32:1	32:1	32:1	36:1	36:1
Stroke for one input turn(mm)	P	1.0	1.167	1.565	1.5	1.5	1.69	1.87	1.92	2.083
Stroke for one input turn(mm)	M	0.250	0.292	0.5	0.5	0.5	0.56	0.625	0.638	0.694
Max permissible power(kW)		1.45	2.59	3.47	4.02	5.38	13.06	13.9	28.5	62
Weight per 100mmscrew & protective tube(kg)		0.45	0.82	1.67	2.15	4.15	5.20	7.45	13.6	17.3

Advantages of Electric Worm Gear Screw Jack

Higher Performance

· Accurate and smooth delivery of force.

· Increased range of actuation as the stroke position is easily and quickly varied.

· Electro-mechanical solutions are more resistant to temperature variations.

· Complete control of the entire motion profile using standard control methods.

· Repeatable and accurate positioning.

Reduced Costs

· The motorized worm gear screw jack is generally cheaper when compared to a hydraulic system when the required ancillary hydraulic equipment is included.

· Machinery requires less maintenance as no hydraulic oil to maintain, and no leaks to repair.

· Less manual intervention on machinery to set up processes as electro-mechanical solutions can be controlled over the complete motion profile.

· Reduced downtime caused by hazardous fluid leaks.

· Electro-mechanical solutions only use power when moving the load. In comparison, hydraulic systems generally have to maintain pressure levels to either maintain position when holding a load or to ensure that the system can respond when required.

Increased Safety

· In the event of power loss, screw jacks can be self-locking.

· No high-pressure oil leaks.

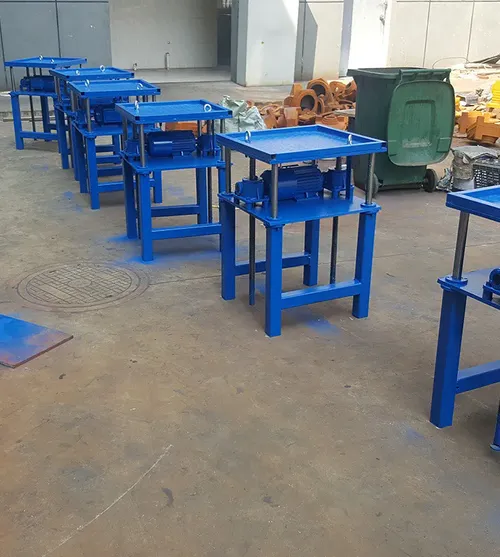

Electric Worm Gear Screw Jack Applications:

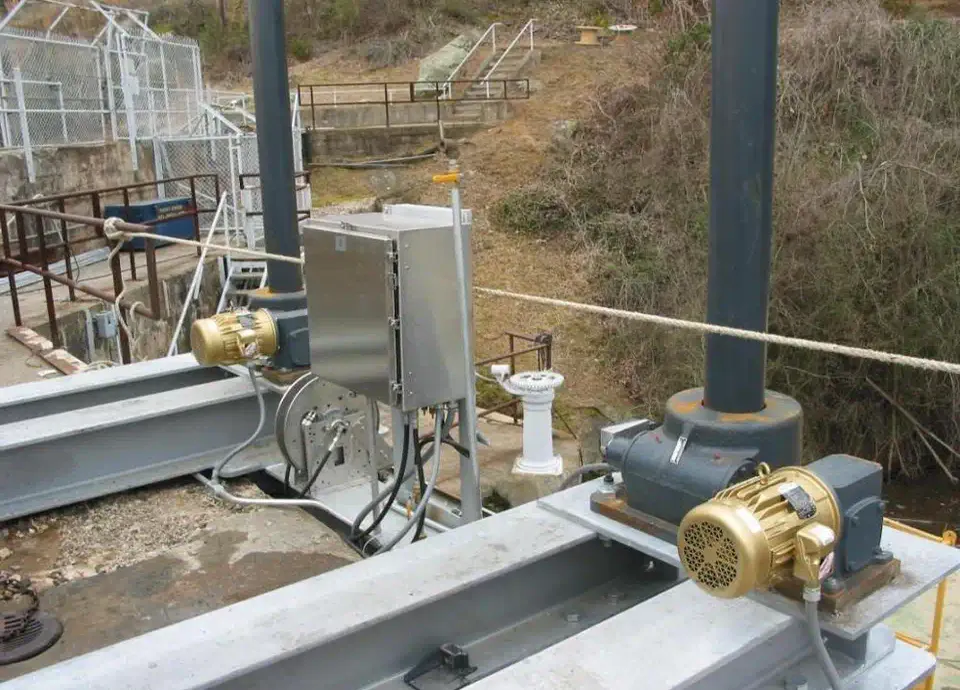

Electric worm gear screw jacks are versatile and commonly found in industrial applications, manufacturing, and machining. They have a high loadbearing-to-effort ratio and the ability to easily adjust heights by turning a screw, either automatically or manually, providing high reliability and synchronization capabilities to the operator. An advantage of our industrial screw jacks is that they can be used in tandem to mechanically lift and lower at the same speed. Some examples of applications where electric worm gear screw jacks are used include:

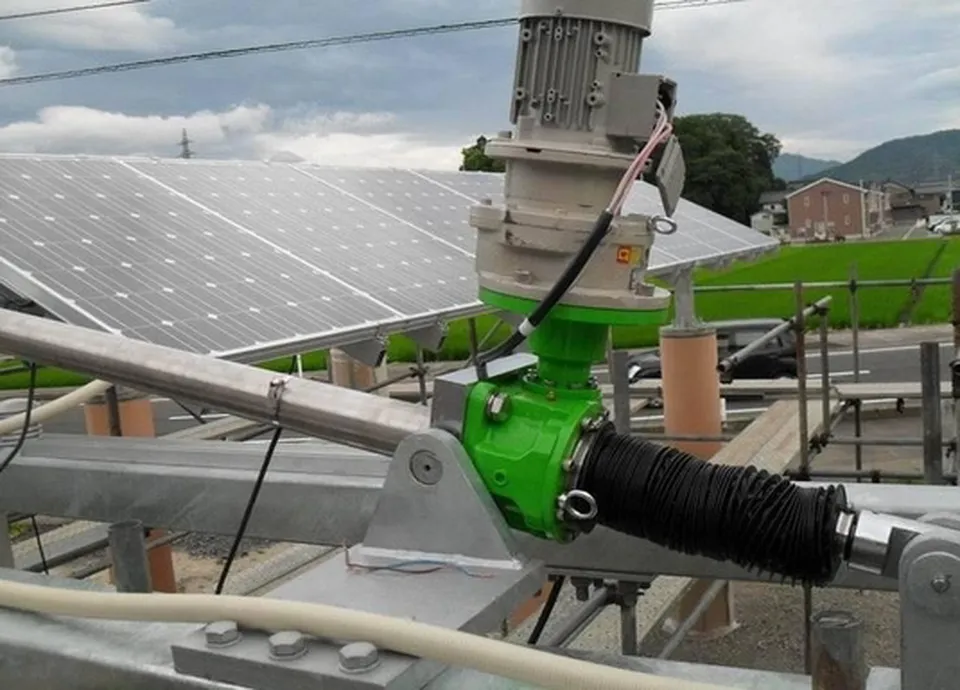

Satellite dish antenna movement
Roll lifts
Conveyor lifts and diverters
Saw blade tension
Robotics manipulators
Workplace table adjustments and platforms
Welding positioners
Door openers
Air dampeners

How to Customize Worm Gear Screw Jack?

We are the factory with the ability to customize the worm gear screw jack to your specific requirements for your application. Please share detailed information including your use scenario, required loading capacity, reduction ratio, power source, stroke length, and other requests. Our sales and technical team will provide solutions and drawings for your confirmation.

Worm Gear Screw Jack Model Selection Guide:

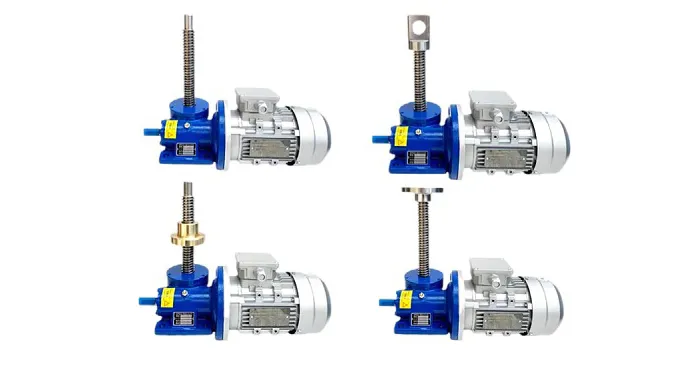

Step 1: select the corresponding model according to your load capacity requirements,Step 2: confirm the reduction ratio: 1/6, 1/12, or 1/24. If you need a special speed ratio, please contact our sales team.Step 3: Determine the head form of the screw, there are cylinder type, nut type, flange type, thread type, and flat head type for your option.Step 4: confirm the screw length or stroke you need. The default stroke is 500mm, and the screw length can be customized according to different needs.Step 5: confirm the accessories you need, such as matching motors, hand wheels, protection tubes for screws, dust cover, anti-rotation functions, nuts, etc.Contact us now to get your customized worm gear screw jack.
