SWL Series Worm Gear Screw Jack for Jump Form Construction Lifting

SWL Series Worm Gear Screw Jack for Jump Form Construction Lifting

The SWL series worm gear screw jack is through the worm gear drive screw to complete the lifting, lowering, promoting, and other functions, widely used in machinery, metallurgy, construction, water conservancy, the chemical industry, and other industries, with structural tight paint, small volume, easy installation, good reliability, high stability, long service life, and other advantages. This series of worm gear screw jacks can be self-locking, carrying a capacity between 2.5t-150t and a maximum input speed of 1500r/min. The operating temperature is between -20℃ and 100℃.  SWL series worm gear screw jack can be directly driven by a motor or other power, or it can be manually driven. It has different structure types and assembly types, and the lifting height can be customized according to user requirements.

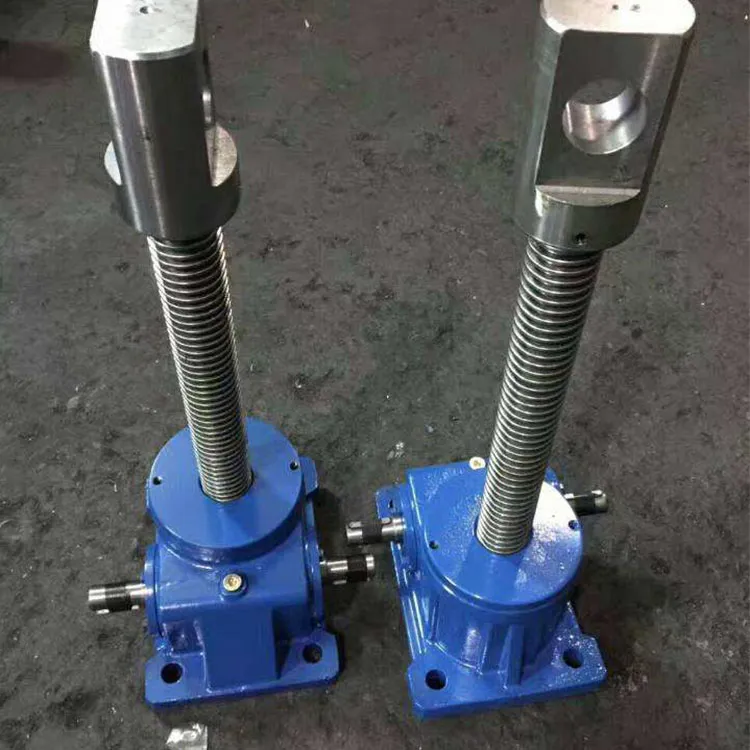

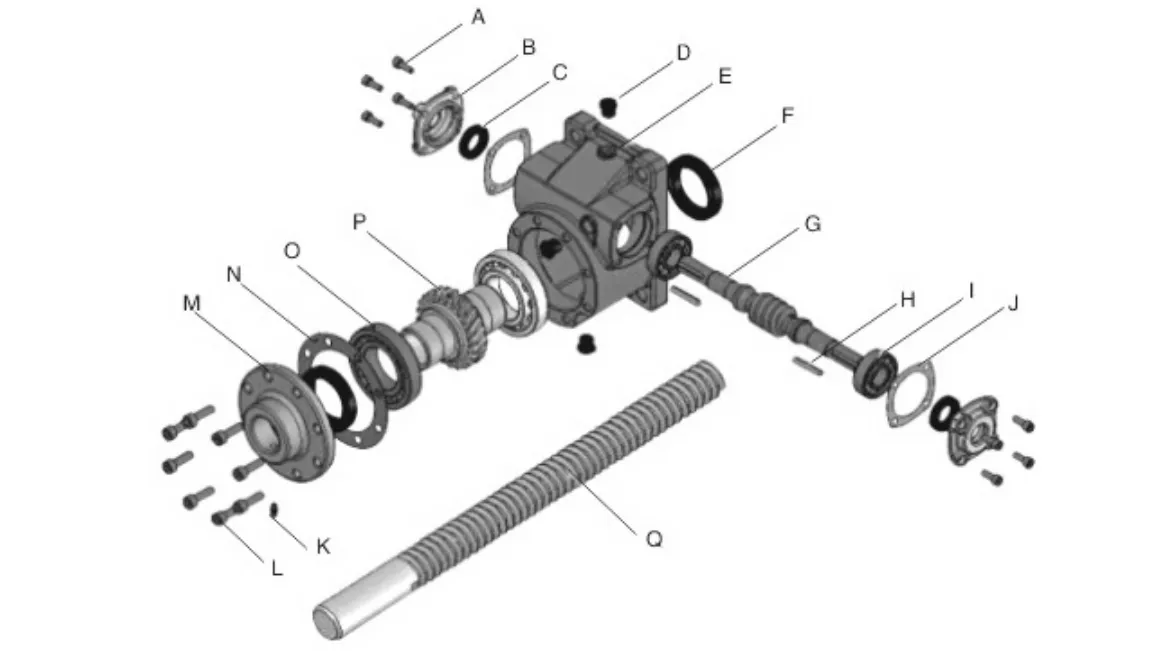

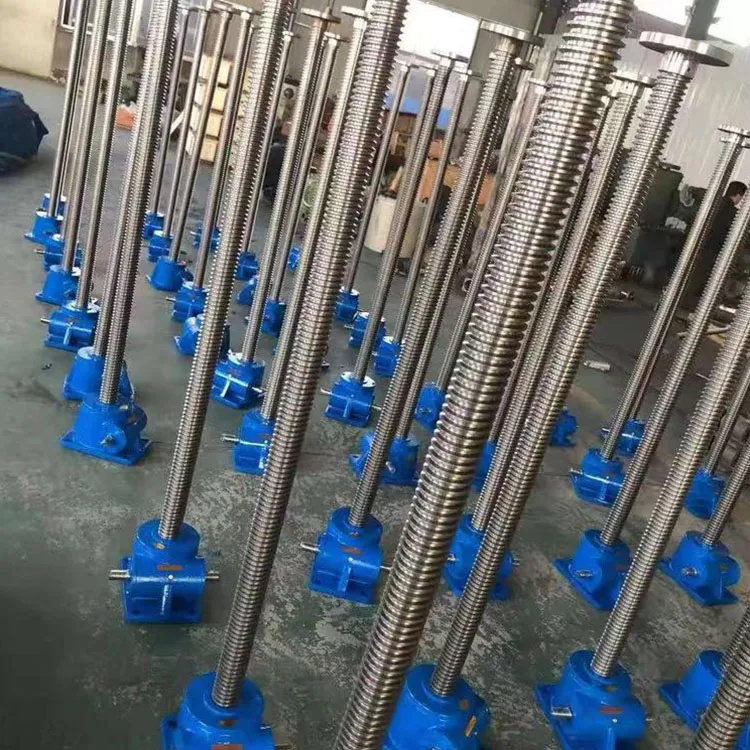

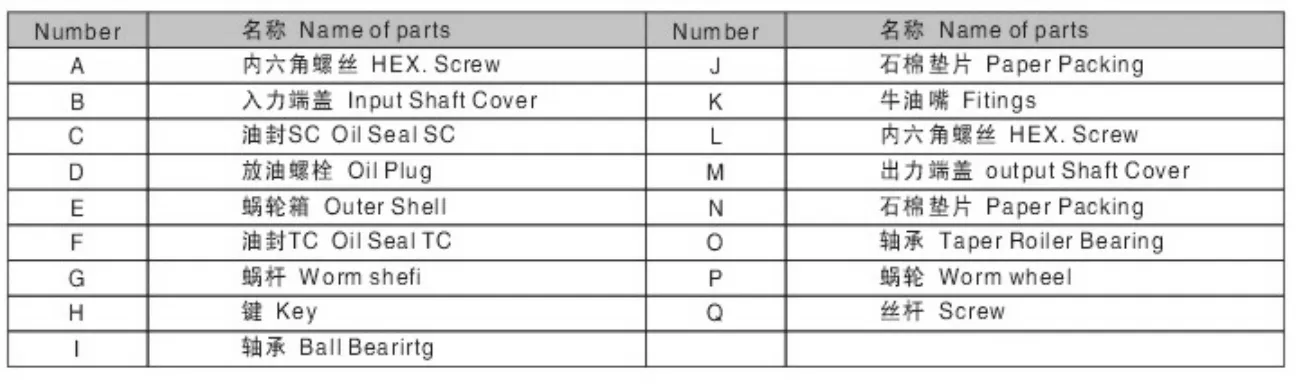

▍SWL Series Worm Gear Screw Jack Design

▍SWL Series Worm Gear Screw Jack Specification:

Structural form	Type Ⅰ: axial movement of the screw rod	Type Ⅱ: the screw rod rotates, and the nut moves axially
Assembly type	Type A – a rod (or nut) moves upward	Type B — screw rod (or nut) moves downward
Screw head type	The screw head of Type 1 structure type includes Type I (cylindrical type), Type II (flange type), Type III (threaded type), and Type IV (flat head type);	The screw head part of the type 2 structure is of type I (cylindrical type) and type III (threaded type)
Transmission ratio	Normal speed ratio (P), slow speed ratio (M)
Lifting the bearing capacity	2.5,5,10,15,20,25,35( × 10kN) seven kinds
Protection of screw rod	Type 1 structure includes basic type, anti-rotation type (F), and types with a protective cover (z);	Type 2 structure includes the basic type and type with a protective cover (Z)

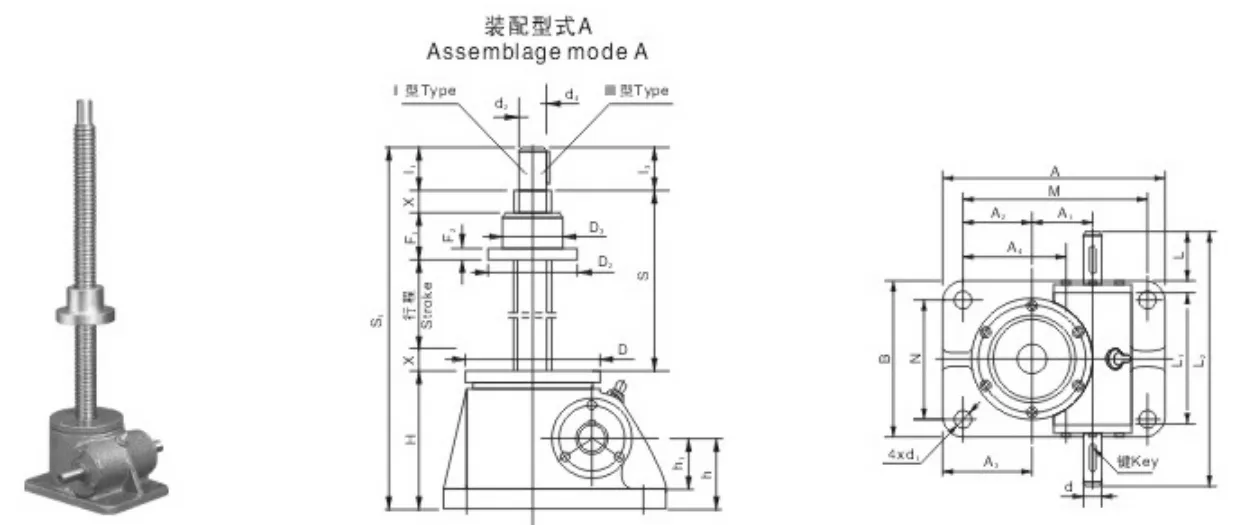

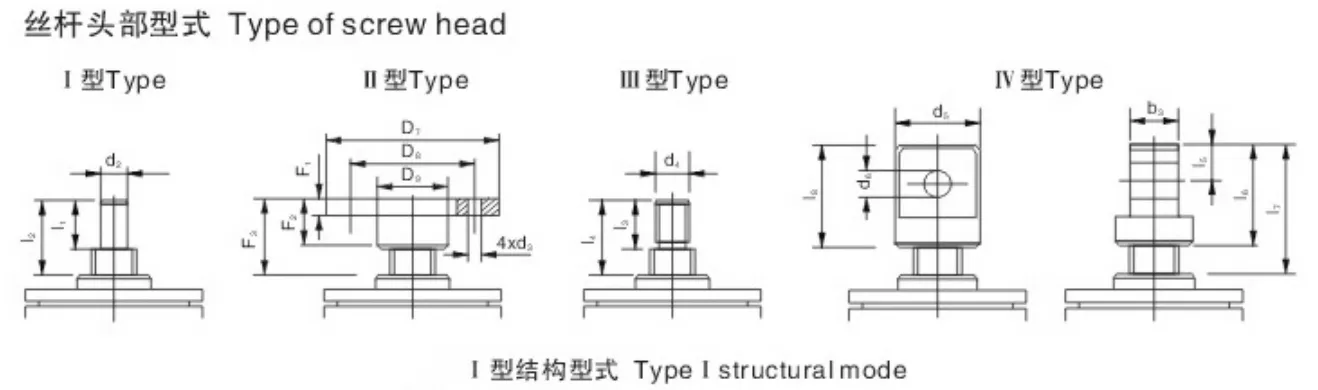

▍Type Ⅰ Worm Gear Screw Jack Structural Style

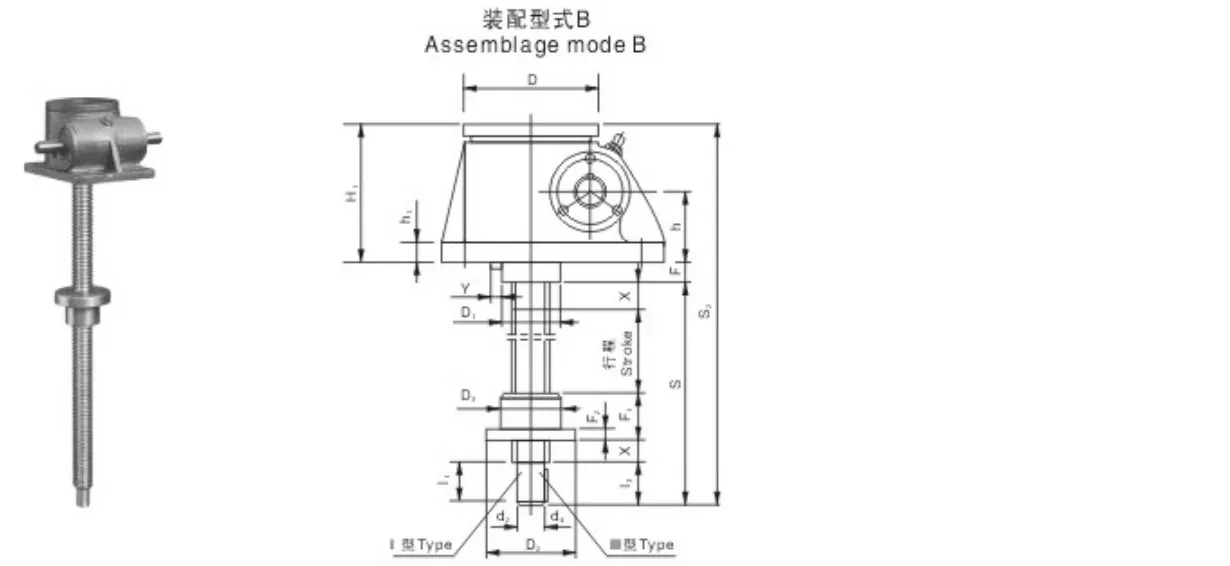

▍Type Ⅱ Worm Gear Screw Jack Structural Style

▍SWL Series Worm Gear Screw Jack Parameter:

Type	Structural Style	Model	Output Torque	Screw Diameter	Max. Power	Net Weight (without screw stroke)
			(KN)	(mm)	(KW)	(KG)
SWL Screw Jack	I Type	SWL2.5	25	Tr30X6	0.55	7.3
		SWL5	50	Tr40X7	1.1	16.2
		SWL10	100	T58X12	2.6	25
		SWL15	150	T58X12	2.6	25
		SWL20	200	Tr65X12	3.7	36
	II Type	SWL	250	Tr90X16	4.8	70.5
		SWL35	350	Tr100X18	6	87
		SWL50	500	Tr120X20	7.5	420
		SWL100	1000	Tr160X23	15	1010
		SWL120	1200	Tr180X25	17.5	1350

▍Performance Parameters of the Worm Gear Screw Jack:

MODEL		SWL2.5	SWL5	SWL10	SWL15	SWL20	SWL25	SWL35
Maximum lifting force (kN)		25	50	100	150	200	250	350
Screw thread size		Tr30*6	Tr40*7	Tr58*12	Tr58*12	Tr65*12	Tr90*16	Tr100*20
Maximum tension (kN)		25	50	99		166	250	350
Worm gear ratio (mm)	P	1/6	1/8	3/23		1/8	3/32	3/32
	M	1/24	1/24	1/24		1/24	1/32	1/32
Worm non-rotating stroke (mm)	P	1.0	0.875	1.565		1.56	1.5	1.875
	M	0.250	0.292	0.5		0.5	0.5	0.625
Maximum elongation of screw rod under tensile load (mm)		1500	2000	2500		3000	3500	4000
Maximum lifting height at maximum pressure load （mm）	The head of the screw rod is not guided	250	385	500	400	490	850	820
	Lead screw head guide	400	770	1000	800	980	1700	1640
Worm torque at full load(N.m)	P	18	39.5	119	179	240	366	464
	M	8.86	19.8	60	90	122	217	253
efficiency(%)	P	22	23	20.5		19.5	16	18
	M	11	11.5	13		12.8	9	11
Weight without stroke（kg）		7.3	16.2	25		36	70.5	87
Weight of screw rod per 100mm（kg）		0.45	0.82	1.67		2.15	4.15	5.20

▍SWL Series Worm Gear Screw Jack Features:

Here are some of the key features of the SWL series worm gear screw jack:1. Compact structure and small size: The SWL series worm gear screw jack has a compact structure and small size, which makes it easy to transport and store.2. Lightweight: The SWL series worm gear screw jack is lightweight, which makes it easy to operate and maneuver.3. Low noise: The SWL series worm gear screw jack operates with low noise, which makes it ideal for use in noise-sensitive environments.4. Safe and convenient installation: The SWL series worm gear screw jack is safe and easy to install.5. Flexible use: The SWL series worm gear screw jack can be used individually or in combination, which makes it versatile and adaptable to a variety of applications.6. High reliability: The SWL series worm gear screw jack is highly reliable and durable, which ensures long-lasting performance.7. Long service life: The SWL series worm gear screw jack has a long service life, which reduces the need for frequent replacement and maintenance.8. Can be used individually or in combination: The SWL series worm gear screw jack can be used individually or in combination, which allows for greater lifting capacity and flexibility.9. Can control and adjust the height of the promotion accurately: The SWL series worm gear screw jack can control and adjust the height of the promotion accurately, which ensures precise positioning and movement.10. Suitable for low speed, low-frequency operations: The SWL series worm gear screw jack is suitable for low-speed, low-frequency operations, which makes it ideal for a variety of applications.11. Widely used in machinery, metallurgy, water conservancy, chemical industry, medical treatment, culture, health and other industries: The SWL series worm gear screw jack is widely used in a variety of industries, which makes it a versatile and adaptable lifting device.If you are looking for a basic lifting device that is compact, lightweight, low noise, safe, reliable, and long-lasting, the SWL series worm gear screw jack is a great option. It is suitable for a wide range of applications and is sure to meet your needs.

▍Other Different Types of Worm Gear Screw Jacks

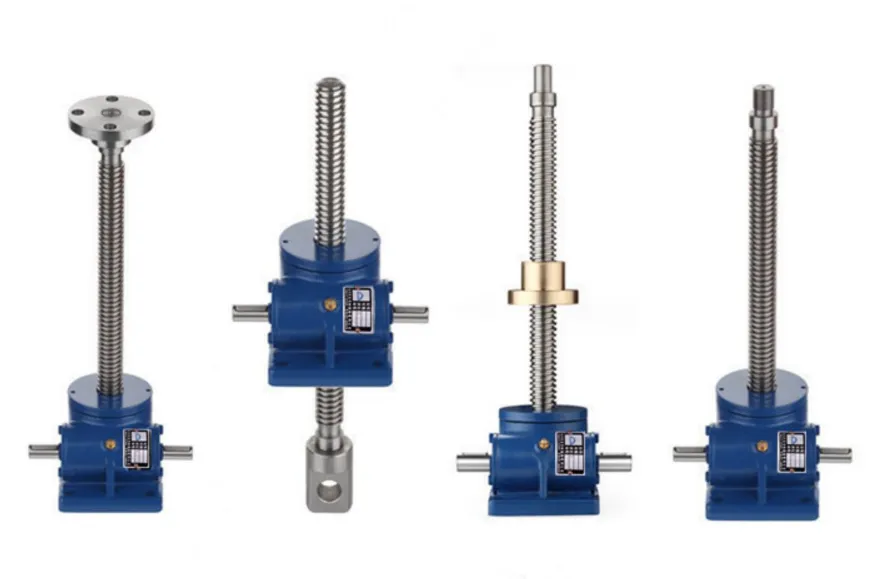

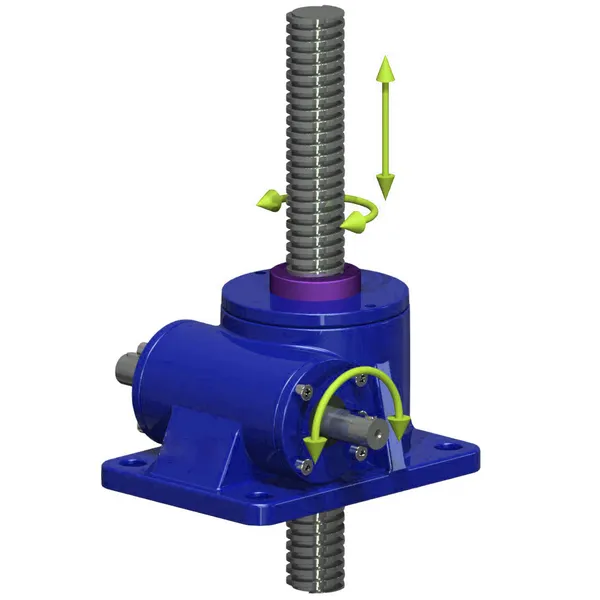

Screw Movement Type of Screw Jack	Nut Movement Type of Screw Jack

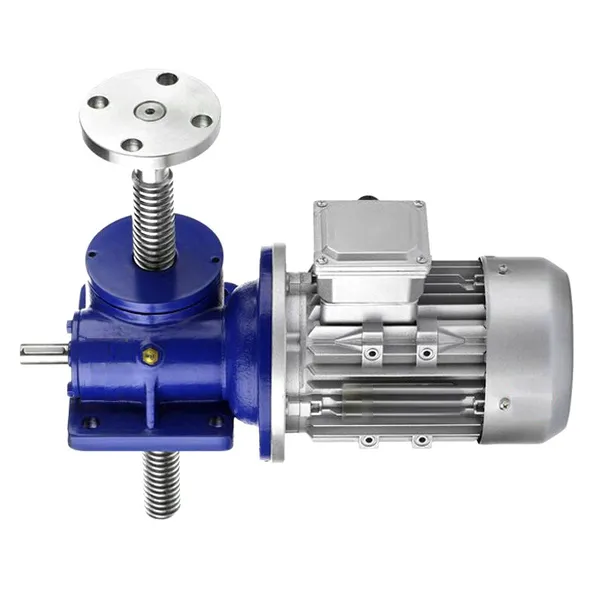

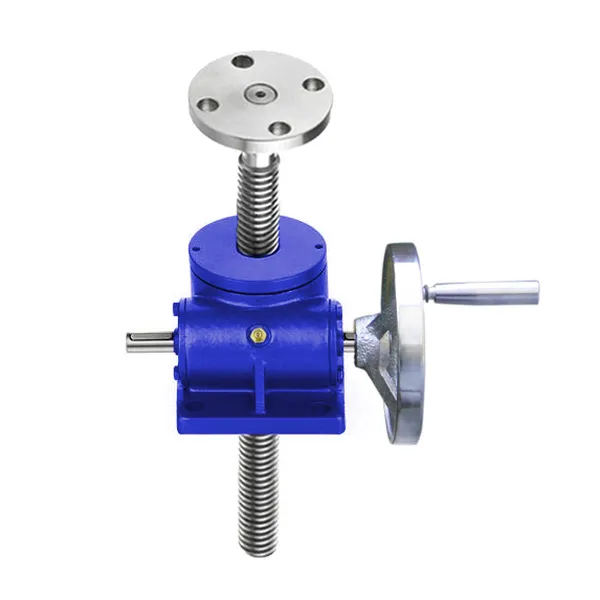

Hand Wheel Worm Gear Screw Jack	Motorized Worm Gear Screw Jack

▍The Difference Between Screw Jacks and Hydraulic Jacks

Screw jacks and hydraulic jacks are both mechanical devices used for lifting heavy loads. However, they operate on different principles and have different advantages and disadvantages.Screw jacks, such as the SWL series worm gear screw jack, use a worm gear and screw mechanism to lift loads. They are typically powered by a motor or hand crank and are self-locking, which means they will hold the load in place once they are stopped. Screw jacks are precise and can be used for fine positioning of loads. They are also low maintenance and have a long service life. However, they have a slower lifting speed and a lower load capacity compared to hydraulic jacks.Hydraulic jacks, on the other hand, use pressurized hydraulic fluid to lift loads. They are typically powered by a pump and can lift heavy loads quickly and efficiently. Hydraulic jacks also have a higher load capacity than screw jacks. However, they require more maintenance than screw jacks and can be more expensive to operate.The choice between screw jacks and hydraulic jacks depends on the specific application and requirements. Screw jacks are often used for precise positioning of loads and in applications where low maintenance is important, while hydraulic jacks are used for lifting heavier loads quickly and efficiently.

▍SWL Series Worm Gear Screw Jack Applications

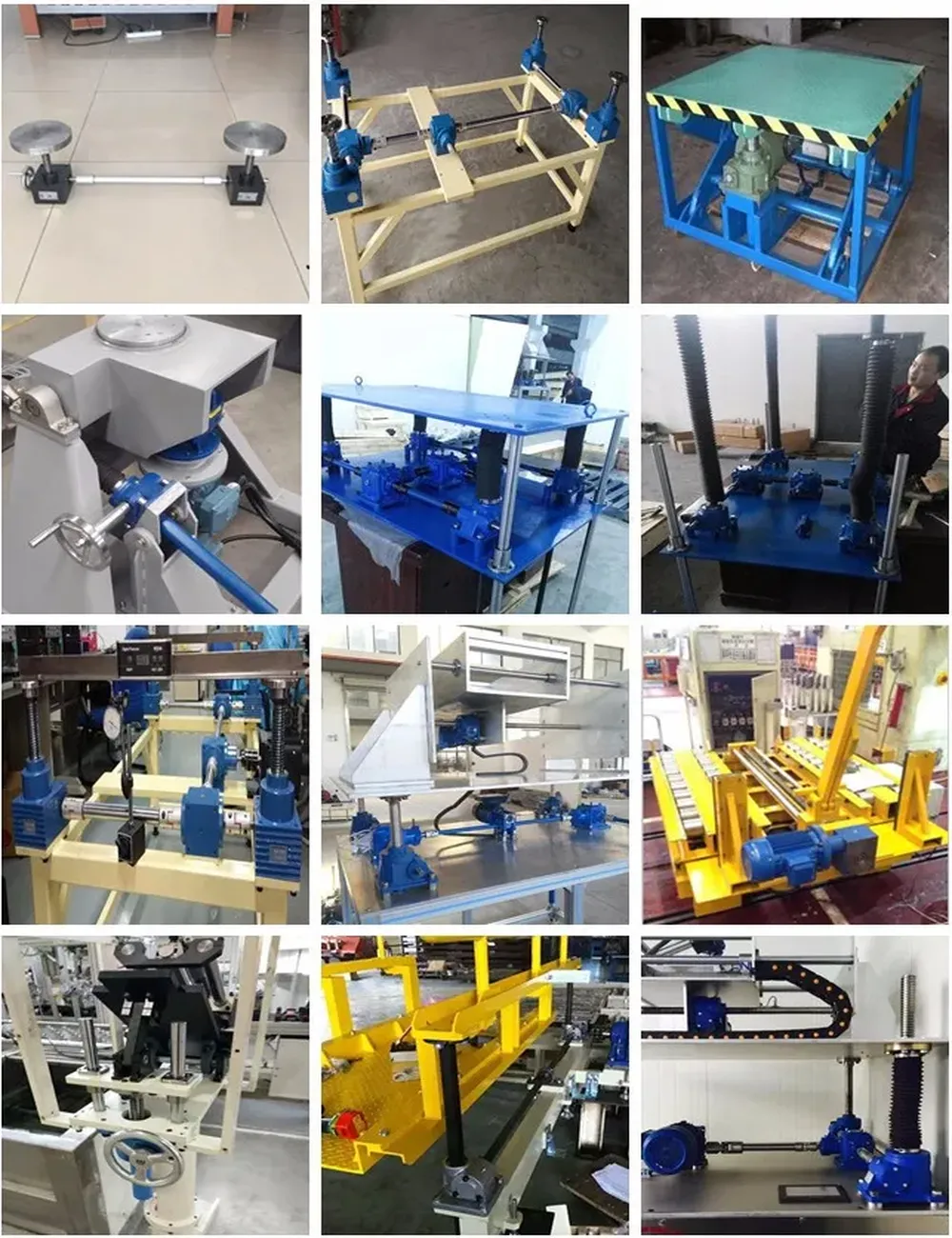

The SWL series worm gear screw jack is a versatile lifting device that can be used in a wide variety of applications. It is commonly used in the following industries:(1) Machinery: The SWL series worm gear screw jack is used in a variety of machinery applications, such as lifting and positioning heavy objects, loading and unloading vehicles, and moving objects around a work area.(2) Metallurgy: The SWL series worm gear screw jack is used in metallurgy applications, such as lifting and positioning steel beams, loading and unloading molten metal, and moving objects around a manufacturing plant.(3) Water conservancy: The SWL series worm gear screw jack is used in water conservancy applications, such as lifting and positioning heavy objects, loading and unloading water pipes, and moving objects around a construction site.(4) Chemical industry: The SWL series worm gear screw jack is used in chemical industry applications, such as lifting and positioning hazardous materials, loading and unloading chemicals, and moving objects around a laboratory.(5) Medical treatment: The SWL series worm gear screw jack is used in medical treatment applications, such as lifting and positioning patients, loading and unloading medical equipment, and moving objects around a hospital.(6) Culture and health: The SWL series worm gear screw jack is used in culture and health applications, such as lifting and positioning exhibits, loading and unloading supplies, and moving objects around a museum or library.The SWL series worm gear screw jack is a reliable and durable lifting device that can be used in a wide variety of applications. It is a safe and efficient way to lift, move, and position heavy objects.

▍China Worm Gear Screw Jack Manufacturers

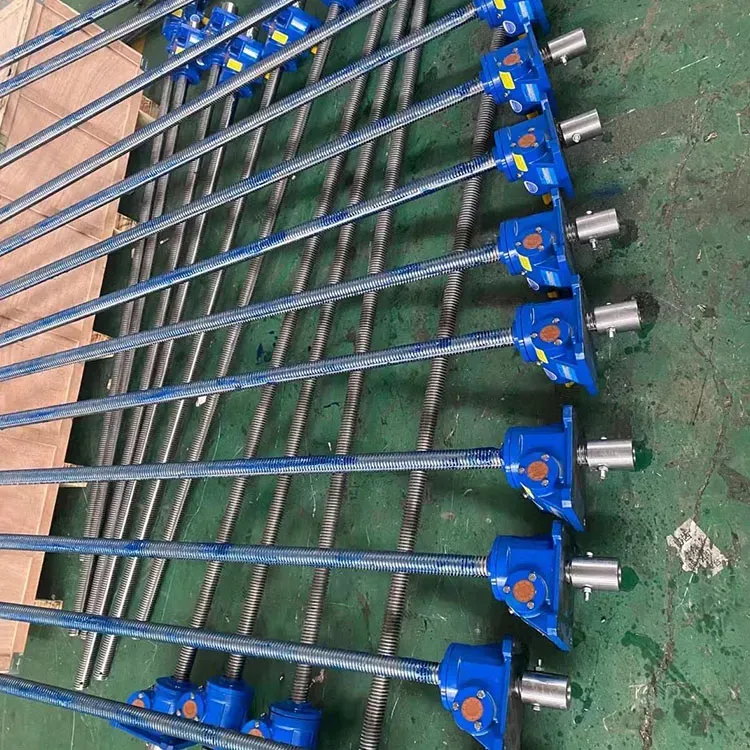

We are the factory with the ability to customize the worm gear screw jacks to your specific requirements for your application. Please share detailed information, including your use scenario, required loading capacity, reduction ratio, power source, stroke length, and other requests. Our sales and technical team will provide solutions and drawings for your confirmation.

Worm Gear Screw Jacks Model Selection Guide:

Step 1: Select the corresponding model according to your load capacity requirements,Step 2: Confirm the reduction ratio: 1/6, 1/12, or 1/24. If you need a special speed ratio, please contact our sales team.Step 3: Determine the head form of the screw; there are cylinder type, nut type, flange type, thread type, and flat head type for your option.Step 4: Confirm the screw length or stroke you need. The default stroke is 500mm, and the screw length can be customized according to different needs.Step 5: Confirm the accessories you need, such as matching motors, hand wheels, protection tube for screws, dust cover, anti-rotation functions, nuts, etc.Contact us now to get your customized worm gear screw jack.

▍FAQ

Q1: What is a worm gear screw jack?A: A worm gear screw jack is a mechanical device that converts rotary motion into linear motion. It consists of a worm gear (a helical gear) and a screw (a threaded rod) that engage with each other to move a load in a vertical or horizontal direction.Q2: What are the components of a worm gear screw jack?A: The main components of a worm gear screw jack include the housing, the worm gear, the screw, the bearing, the lubrication system, and the motor (if it is motorized).Q3: What are the advantages of using a worm gear screw jack?A: Some advantages of using a worm gear screw jack include high load capacity, high efficiency, self-locking ability, and the ability to hold a load in position without the need for external brakes or locking mechanisms.Q4: What is the load capacity of a worm gear screw jack?A: The load capacity of a worm gear screw jack depends on various factors, such as the diameter of the screw, the pitch of the screw, the number of threads on the screw, the lead angle of the worm gear, and the material and quality of the components used. The load capacity can range from a few hundred pounds to several hundred tons.Q5: What is the efficiency of a worm gear screw jack?A: The efficiency of a worm gear screw jack is typically around 30-40%. This means that only 30-40% of the input power is converted to useful output power, while the rest is lost as heat and friction.Q6: How do I select the right worm gear screw jack for my application?A: To select the right worm gear screw jack for your application, you need to consider various factors such as the load capacity, the required speed and travel distance, the duty cycle, the environmental conditions, and the mounting options. You can consult with a supplier or manufacturer to help you choose the right product for your specific needs.Q7: How do I maintain a worm gear screw jack?A: To maintain a worm gear screw jack, you need to follow the manufacturer's recommendations for lubrication and inspection. You should regularly check the lubrication system and replace the lubricant if necessary. You should also check the components for wear and damage and replace them if needed.
