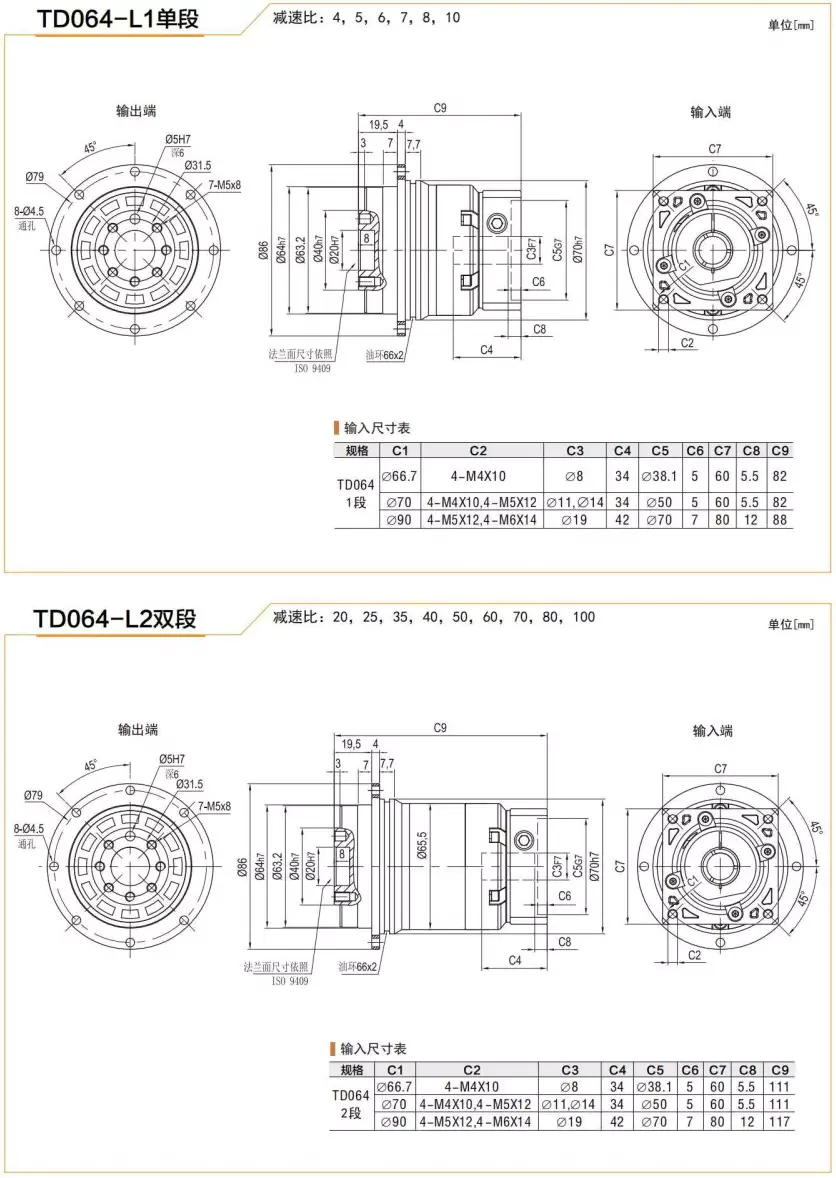

The TD064 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as the servo motor planetary gearbox and low backlash planetary gearbox, is a precision mechanical component used to control the speed and torque of a servo motor. It is widely used in industrial automation equipment, medical equipment, aerospace, precision instruments, robotics, and other fields.
The high precision planetary gearbox consists of the following components:
The sun gear is located in the center of the planetary gearbox and is usually connected to the input shaft or fixed to the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and kept in their relative positions by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear/annulus. They share and distribute the load when power is input.
The planet carrier is a structure with multiple planet gear axle holes. It carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can be used as an output element or connected to another shaft to transmit or receive torque.
The ring gear/annulus is a large diameter ring gear fixed inside the housing with teeth both on its inner and outer surfaces, which meshes with the planet gears. In some applications, the ring gear/annulus can also be used as the input or output.
The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between the components.
The housing is the external framework of the entire gearbox, which protects the internal components from external environmental influences and provides installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.
The working principle of a high precision planetary gearbox includes:
When power is input to the sun gear, the planet gears rotate around the sun gear. Since the planet gears mesh with both the sun gear and the ring gear/annulus, they rotate around their own axis while revolving around the center of the sun gear with the planet carrier. This amplifies the torque input to the sun gear and equally distributes it to the planet carrier at the output.
By adjusting the gear ratio between different components, the speed conversion and torque amplification between the input and output can be achieved. Generally speaking, increasing the number of planet gears or gear ratio will result in a more significant increase in torque but a decrease in output speed.
For high precision applications, a high precision planetary gearbox adopts a preloading technique to reduce or eliminate the clearance between gears, known as "zero/low backlash" design, to ensure accurate position control and minimal mechanical clearance.
One of the essential advantages of the planetary gear mechanism is that it can distribute the load evenly among multiple planet gears, improving the load-bearing capacity and stability of the entire system and optimizing the dynamic response performance.
| Considerations | Explanation |
|---|---|
| Load Characteristics | The load type, load size, and load distribution are the primary factors that affect the design and selection of a high precision planetary gearbox. |
| Accuracy Requirements | The accuracy requirements for positioning, speed, and torque are essential considerations in the design and selection of a high precision planetary gearbox. |
| Environmental Factors | The operating environment, including temperature, humidity, and contamination levels, can affect the performance and lifespan of a high precision planetary gearbox. |
| Installation and Maintenance | The installation and maintenance requirements, including the mounting position, lubrication, and maintenance interval, should also be considered in the design and selection of a high precision planetary gearbox. |
The high precision planetary gearbox is widely used in various fields, such as:
The high precision planetary gearbox is compatible with servo motors and used in industrial automation equipment to achieve precise speed control and position positioning, such as robot joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment.
The high precision planetary gearbox is used in high-end medical equipment, such as CT scanners, MRI machines, and surgical robots, to achieve accurate motion control and torque amplification.
The high precision planetary gearbox is used in the landing gear of aircraft, flight control system actuators, and satellite attitude adjustment devices that require high reliability and accuracy.
The high precision planetary gearbox is used in scientific experiment equipment, precision measuring instruments, and optical tracking systems that require extremely high transmission accuracy.
The high precision planetary gearbox is used in the power steering system of new energy vehicles, the drive unit of electric vehicles, and the transmission system of high-performance racing cars.
The high precision planetary gearbox is used in the joint drive of industrial robots, service robots, and special operation robots.
The high precision planetary gearbox is used in lifts, conveyor belt drives, and AGVs in automated storage systems.
