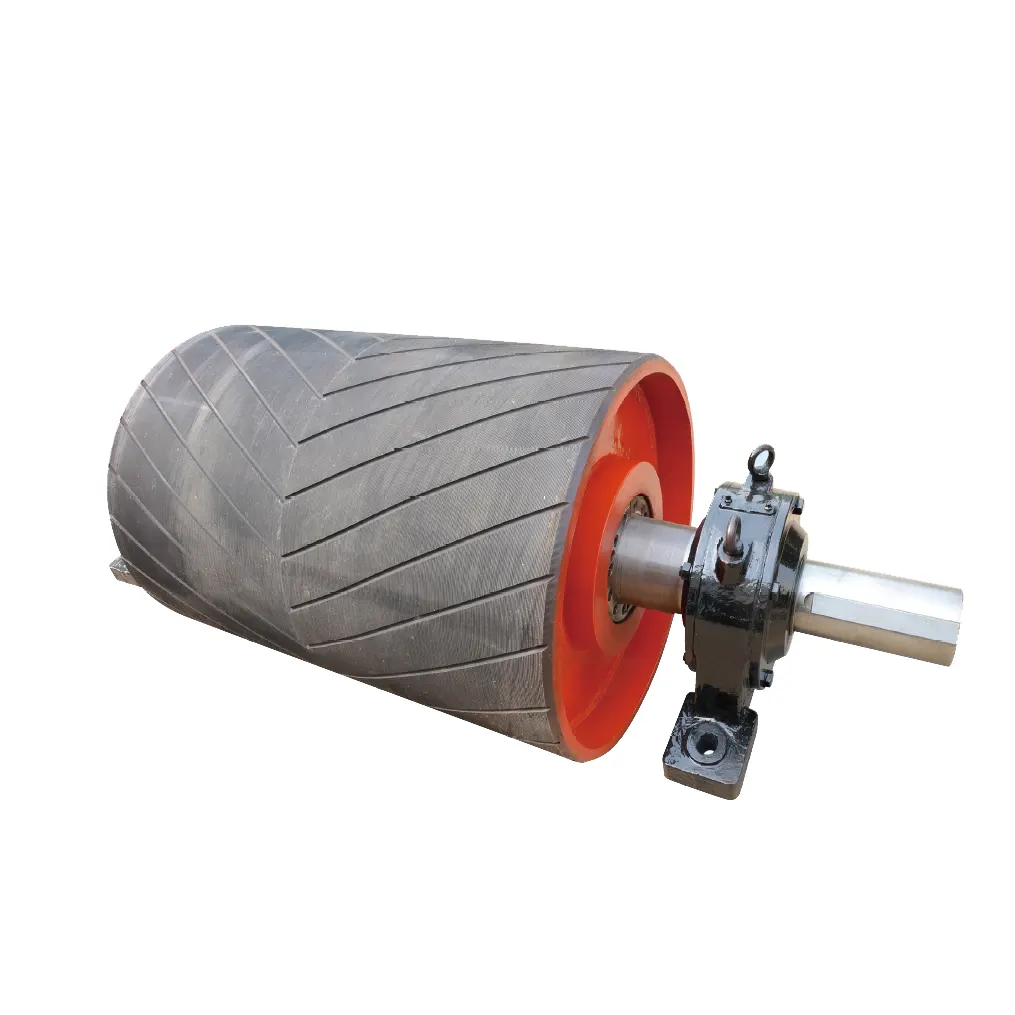

TD75 Belt Conveyor Drive Pulley for Mining Machinery

TD75 Belt Conveyor Drive Pulley for Mining Machinery

The TD75 Belt Conveyor Drive Pulley is a critical component designed for robust performance in mining machinery. Engineered for durability and efficiency, this drive pulley is part of the TD75 conveyor system, a standardized belt conveyor type finalized in 1975, widely used in industries such as metallurgy, mining, ports, and building materials. Its reliability, cost-effectiveness, and low maintenance make it a preferred choice for bulk material handling in demanding environments. This product page provides a comprehensive overview of the TD75 drive pulley's specifications, features, applications, and benefits, tailored to help mining professionals optimize their conveyor systems.

Why Choose the TD75 Drive Pulley?

• Industry-Proven Design: Based on the TD75 standard, ensuring compatibility and reliability.

• High Performance: Optimized for heavy-duty mining operations, handling bulk materials like coal, ore, and aggregates.

• Cost-Effective: Simple design reduces maintenance costs and downtime.

• SEO Keyword Focus: TD75 belt conveyor, drive pulley, mining machinery, conveyor components.

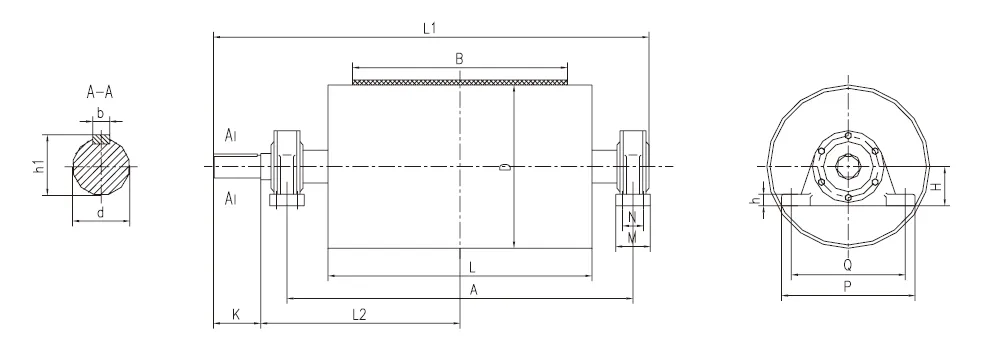

TD75 Belt Conveyor Drive Pulley for Mining Machinery Parameter:

TD75 Belt Conveyor Drive Pulley for Mining Machinery Feature:

The TD75 Drive Pulley is designed with features that ensure durability, efficiency, and adaptability in mining operations. Below are its standout features:

1. Robust Construction

   • Constructed from high-strength steel (Q235 or equivalent) or corrosion-resistant composites to endure harsh mining conditions.

   • Reinforced shaft and shell withstand high torque and heavy loads.

2. Customizable Lagging

   • Options for rubber lagging (smooth or patterned) for general applications or ceramic lagging for high-abrasion environments.

   • Enhances belt grip, reducing slippage and extending belt lifespan.

3. Precision Engineering

   • Balanced design minimizes vibration for smooth operation.

   • Precision-machined surfaces reduce wear on both pulley and belt.

4. High Torque Capacity

   • Supports heavy-duty applications with consistent power transmission.

   • Compatible with electric motors, gearboxes, and variable frequency drives (VFDs).

5. Low Maintenance Design

   • Simplified structure enables easy inspection and component replacement.

   • Sealed, heavy-duty bearings reduce lubrication frequency.

6. Environmental Adaptability

   • Performs reliably in extreme conditions, including high dust, moisture, and temperature fluctuations.

   • Optional anti-corrosion coatings for coastal or humid environments.

7. Standards Compliance

   • Meets TD75 specifications and international mining safety standards (e.g., ISO 9001).

   • Rigorously tested for durability and performance in real-world conditions.

Installation Guidelines:

Proper installation ensures the TD75 Drive Pulley delivers optimal performance and longevity. Follow these steps for a successful setup:

1. Pre-Installation Preparation

   • Confirm pulley specifications (diameter, shaft size, lagging type) match your conveyor system.

   • Inspect the conveyor frame for alignment and structural integrity.

2. Alignment

   • Use precision tools to align the pulley with the conveyor frame, preventing belt tracking issues.

   • Ensure the pulley is perpendicular to the belt path to avoid uneven wear.

3. Belt Tensioning

   • Adjust the tail pulley or take-up system to achieve optimal belt tension.

   • Calculate tension using:[ T = \frac{P_p \cdot 1000}{v} ] where (T) is belt tension (N), (P_p) is power (kW), and (v) is belt speed (m/s).

4. Lagging Application

   • Ensure lagging is securely bonded to the pulley surface.

   • For replacement, remove old lagging completely before applying new material.

5. Motor and Gearbox Integration

   • Match motor and gearbox to the calculated torque:[ Tq = F \cdot r ] where (Tq) is torque (Nm), (F) is belt pull force (N), and (r) is pulley radius (m).

   • Use a VFD for precise speed control.

6. Final Checks

   • Verify alignment, tension, and secure mounting.

   • Test the conveyor at low speed before full-load operation.

Installation Tips

• Engage trained technicians to comply with safety standards.

• Document installation parameters for future reference.

• Contact us for expert installation support.

Maintenance Tips

Regular maintenance extends the TD75 Drive Pulley’s lifespan and ensures consistent performance:

• Inspections: Check lagging, shaft, and bearings every 3-6 months for wear.

• Lubrication: Apply grease to bearings as recommended to minimize friction.

• Belt Cleaning: Use belt scrapers to prevent material buildup on the pulley.

• Tension Monitoring: Regularly verify belt tension to avoid slippage or strain.

• Spare Parts: Use OEM parts compliant with TD75 standards for repairs.
