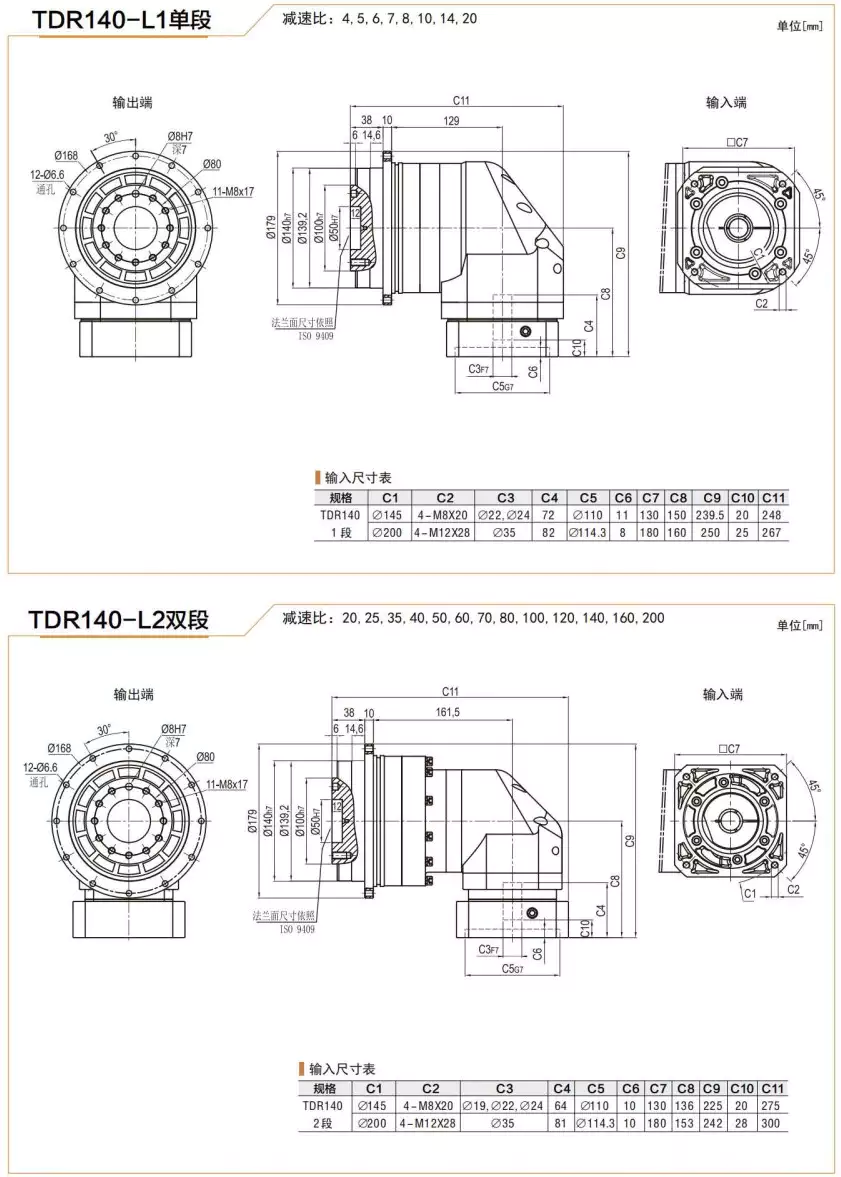

TDR140 Series High Precision Planetary Gearbox Helical Gear Reducer is a high precision gearbox designed for servo motor applications. It is also known as a low backlash planetary gearbox or a servo motor planetary gearbox. The gearbox is widely used in industrial automation equipment, medical equipment, aerospace, precision instruments, new energy vehicles and other fields. The TDR140 Series gearbox has a compact structure, high precision, low noise, and high efficiency. It is a high-performance transmission device that can convert and control the speed and torque of the motor.
The High Precision Planetary Gearbox is composed of several basic components, including:
1. Sun Gear: Located in the center of the planetary gearbox, the sun gear is the input element that transfers power to the gearbox.
2. Planet Gears: The planet gears rotate around the sun gear and are supported by the carrier to maintain their relative positions. Each planet gear meshes with both the sun gear and the ring gear, and they share and distribute the load when power is input.
3. Planet Carrier: The carrier supports the planet gears and allows them to rotate relative to the sun gear. The carrier can be used as an output element or connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The ring gear meshes with the planet gears to complete the power transmission process. In some applications, the ring gear can also be used as an input or output end.
5. Bearings and Shaft System: The bearings in the high precision planetary gearbox are used to support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation of each component.
6. Housing and Seals: The housing protects internal components from external environmental influences and provides installation interfaces. Seals ensure that the internal grease does not leak and prevent dust and water from entering the gearbox.
The working principle of the High Precision Planetary Gearbox can be summarized as follows:
1. Torque Transmission: The input power is transmitted to the sun gear, which drives the planet gears to rotate around the sun gear and revolve around the sun gear as a whole. The torque input to the sun gear is magnified and evenly distributed to the planet carrier at the output end through the planet gears.
2. Speed Conversion and Torque Amplification: By adjusting the gear ratio between different components, speed conversion between input and output and torque amplification can be achieved. When the gear ratio is larger, the torque amplification effect is more significant, but the output speed will decrease at the same time.
3. Low Backlash Design: In high-precision applications, high precision planetary gearboxes adopt preload technology to reduce or eliminate gear backlash, which is called "zero/low backlash" design. This ensures precise position control and minimal mechanical clearance.
4. Load Distribution and Dynamic Response: One of the important advantages of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the bearing capacity and stability of the entire system, and optimizing the dynamic response performance.
| Factors | Descriptions |
|---|---|
| Load Capacity | The maximum load the gearbox can handle. |
| Input Speed | The maximum speed at which the gearbox can operate. |
| Ratio | The gear ratio between the input and output shafts. |
| Accuracy | The level of precision required for the application. |
| Backlash | The amount of clearance between the teeth of the gears. |
| Efficiency | The ratio of output power to input power. |
| Environmental Conditions | The temperature, humidity, and other environmental factors that the gearbox will be subjected to. |
The High Precision Planetary Gearbox is widely used in various fields, including:
1. Servo Motor Systems: The High Precision Planetary Gearbox is widely used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, etc.
2. Medical Equipment: The High Precision Planetary Gearbox is used for precise motion control and torque amplification in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc.
3. Aerospace: The High Precision Planetary Gearbox is used in aircraft landing gear retraction systems, actuating mechanisms in flight control systems, satellite attitude adjustment devices, etc., which require high reliability and precision.
4. Precision Instruments: The High Precision Planetary Gearbox is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc., which have extremely high requirements for transmission accuracy.
5. Automotive Manufacturing: The High Precision Planetary Gearbox is used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
6. Robotics: The High Precision Planetary Gearbox is used in the joint drive parts of industrial robots, service robots, and special operation robots.
7. Logistics Automation: The High Precision Planetary Gearbox is used in lifters, conveyor belt drives, AGVs (automatic guided vehicles), etc. in automatic warehousing systems.
We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We are dedicated to research, production, and sales and strictly operate according to the international quality management system standard ISO9001:2015. Our products have passed the mandatory CCC certification in China and the CE certification of the European Community. Our products are produced according to international lC standards and have reached the advanced level of similar international products.
Our advantages include:
