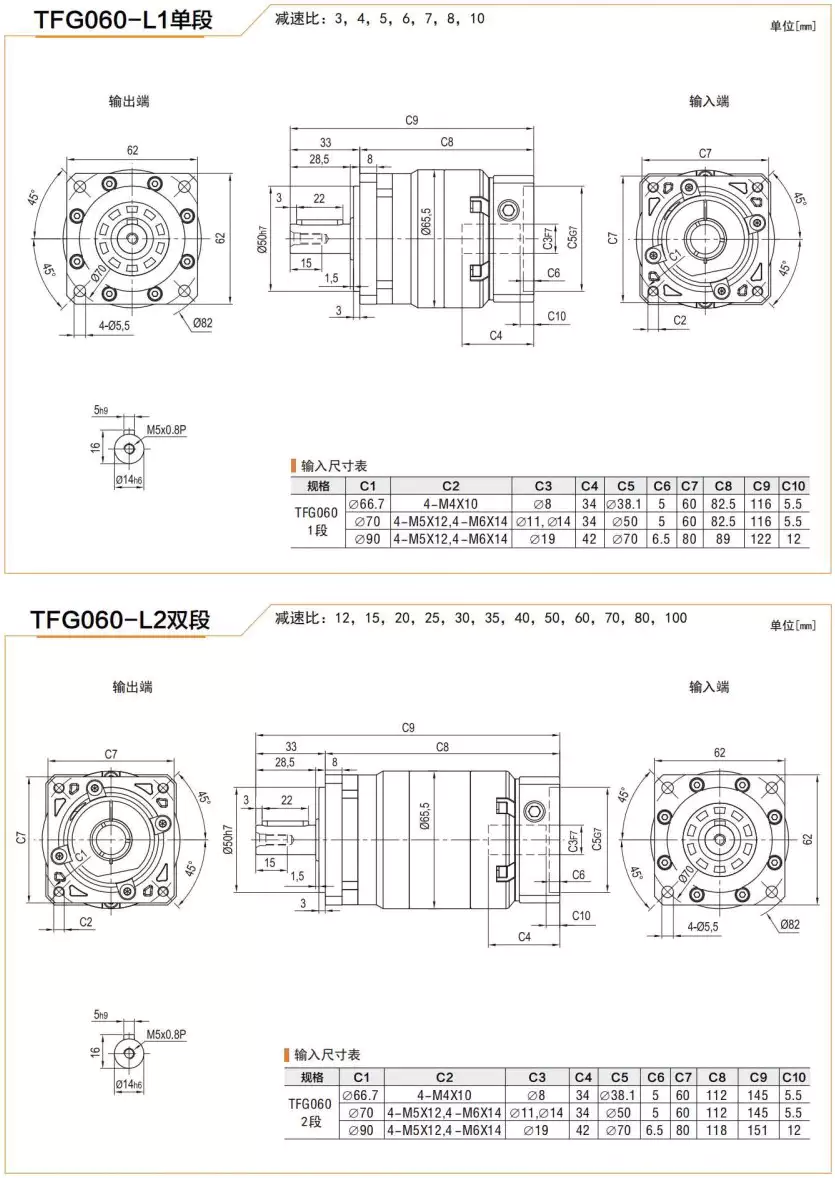

TFG060 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview of TFG060 Series High Precision Planetary Gearbox Helical Gear Reducer

TFG060 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a type of gearbox used for precision motion control applications. It is designed to provide high torque transmission with low backlash and high positioning accuracy. It is widely used in various industries including automation, robotics, medical equipment, aerospace, and automotive manufacturing.

Basic Structure of High Precision Planetary Gearbox

High Precision Planetary Gearbox consists of several components that work together to provide efficient power transmission and motion control. The following are the main components:

• Sun Gear: located at the center of the planetary gearbox and typically connected to the input shaft or fixed on the housing as a stationary component.
• Planet Gears: rotate around the sun gear and are supported and maintained in their relative positions by the planet carrier. Each planet gear meshes with the sun gear and the ring gear, and shares and distributes the load with them.
• Planet Carrier: a structure with multiple planet gear shaft holes that carries the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output element or be connected to another shaft to transmit or receive torque.
• Ring Gear/Annulus: a large diameter ring-shaped gear fixed inside the housing with teeth on both its inner and outer surfaces that meshes with the planet gears. In some applications, the ring gear can also serve as an input or output end.
• Bearings and Shaft System: bearings in the high precision planetary gearbox support the input and output shafts as well as the planet carrier, ensuring stable rotation and smooth operation between all components.
• Housing and Seals: the housing is the external frame of the entire gearbox that protects internal components from external environment and provides installation interfaces. Seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.

Working Principle of High Precision Planetary Gearbox

The working principle of High Precision Planetary Gearbox can be summarized as follows:

• Torque Transmission: When power is input to the sun gear, the planet gears rotate around the sun gear. Since the planet gears mesh with both the sun gear and the ring gear, they rotate around their own axis while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified and evenly distributed to the planet carrier at the output end through the planet gears.
• Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, speed conversion and torque amplification can be achieved between the input and output ends. Generally, when the number of planet gears or the gear ratio increases, the effect of torque amplification becomes more significant, but the output speed decreases at the same time.
• Low Backlash Design: In high precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes use preloading technology to reduce or eliminate clearance between gears, i.e., "zero/low backlash" design.
• Load Distribution and Dynamic Response: One important advantage of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the load capacity and stability of the entire system and optimizing dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

The design and selection of High Precision Planetary Gearbox should take into account the following factors:

Applications of High Precision Planetary Gearbox

High Precision Planetary Gearbox has a wide range of applications in various industries, such as:

• Servo Motor Systems: used for precise speed control and position positioning in industrial automation equipment, such as robot joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, etc.
• Medical Equipment: used for precise motion control and torque amplification in high-end medical equipment, such as CT scanners, MRI machines, surgical robots, etc.
• Aerospace: used for highly reliable and precise performance in aircraft landing gear, flight control system actuators, satellite attitude adjustment devices, etc.
• Precision Instruments: used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc., where high transmission accuracy is required.
• Automotive Manufacturing: used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
• Robotics: used in joint drives of industrial robots, service robots, and special operation robots.
• Logistics Automation: used in automatic storage systems, such as lifters, conveyor drive units, AGV (automatic guided vehicles), etc.

About Our Company

We are a professional manufacturer of power transmission equipment located in Ningbo, Zhejiang. We strictly operate according to the international quality management system standard ISO90012015, and our products have passed the mandatory CCC certification in China and the CE certification of the European Community. Our products are produced according to international IEC standards and have reached the advanced level of similar products in the world.

Our advantages include:

• Advanced production technology and equipment
• Strict quality control system
• Professional R&D team and customized service
• Efficient and timely after-sales service

Author: Miya
