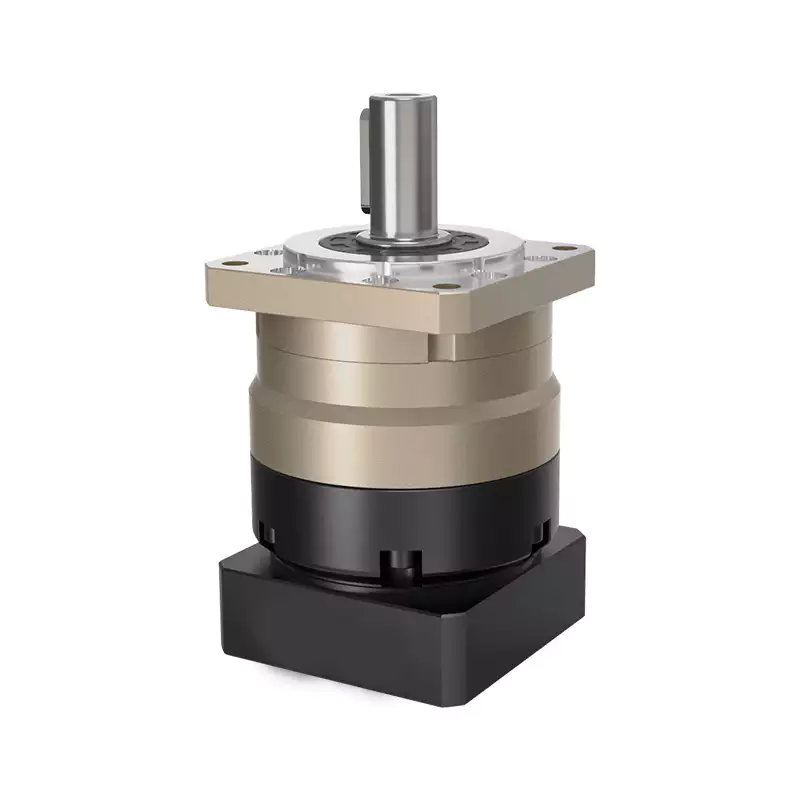

TFG080 Series High Precision Planetary Gearbox Helical Gear Reducer is a precision mechanical component designed to transmit torque and reduce speed between the input and output shafts. It is also known as servo motor planetary gearbox and low backlash planetary gearbox. The gearbox is widely used in various industrial applications such as industrial automation, medical equipment, aerospace, precision instruments, automotive manufacturing, and robotics due to its high precision, high torque capacity, and compact design.

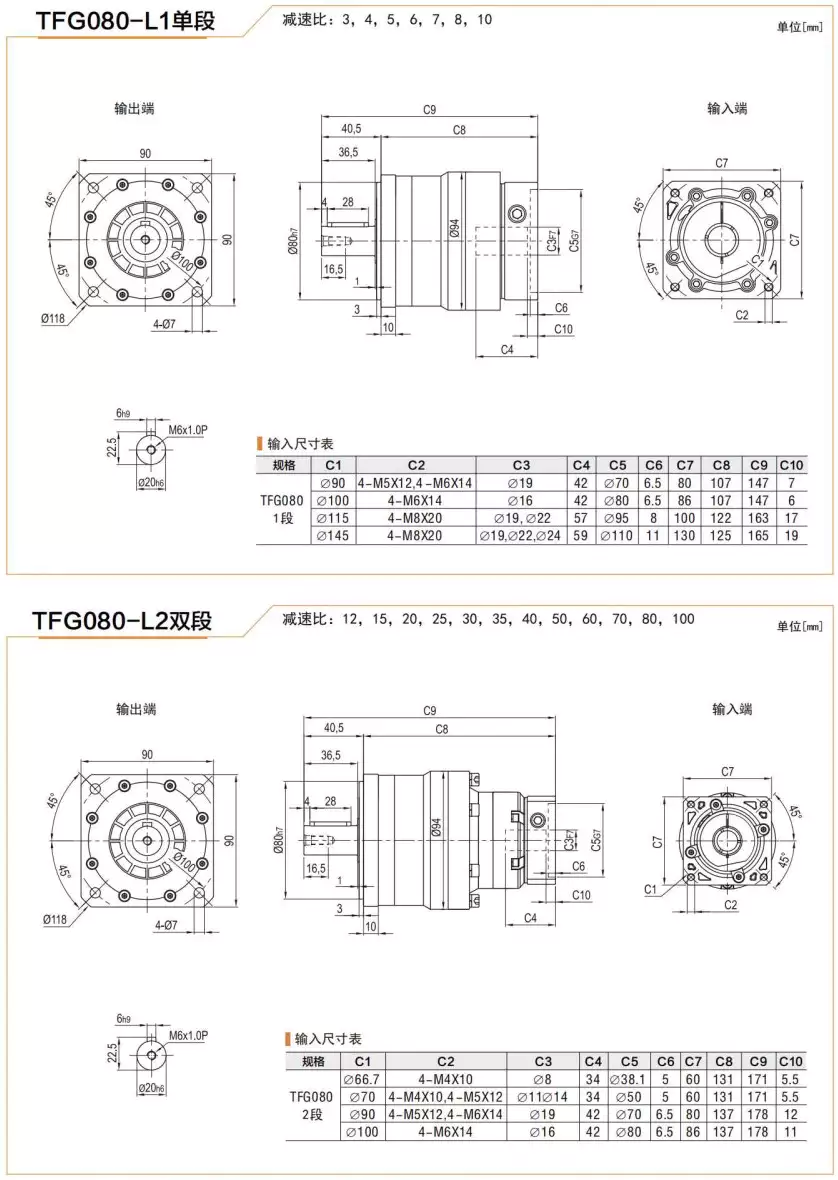

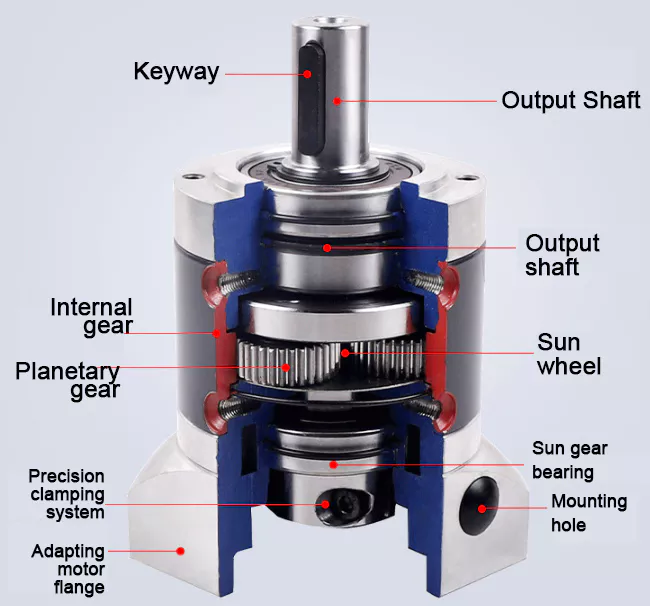

The sun gear is located at the center of the planetary gearbox and is typically connected to the input shaft or fixed to the housing as a stationary component.
The planet gears rotate around the sun gear and are supported and held in relative position to each other by the planet carrier. Each planet gear meshes with both the sun gear and the internal gear, and when power is input, they collectively bear and distribute the load.
The planet carrier is a structure with multiple planet gear shaft holes that supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can serve as an output element or be connected to another shaft to transmit or receive torque.
The internal gear is a large-diameter ring gear fixed inside the gearbox housing, with teeth on both its inner and outer surfaces that mesh with the planet gears. In some applications, the internal gear can also serve as an input or output end.
The bearings in the high-precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation of each component.
The housing is the external framework of the entire gearbox, protecting the internal components from external environmental influences and providing installation interfaces. Seals ensure that the internal lubricant does not leak, while preventing dust and water from entering the gearbox.
When power is input to the sun gear, the planet gears rotate around the sun gear. As the planet gears mesh with both the sun gear and the internal gear, they rotate around their own axes while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear is amplified by the planet gears and evenly distributed to the output end planet carrier.
By adjusting the gear ratio of different components, speed conversion and torque amplification between input and output can be achieved. Generally, increasing the number of planet gears or gear ratios will result in a more significant increase in torque but also a decrease in output speed.
In high-precision applications, to ensure accurate position control and minimal mechanical clearance, high-precision planetary gearboxes use preload technology to reduce or eliminate the gap between gears, known as "zero/low backlash" design.
One of the significant advantages of the planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thereby improving the bearing capacity and stability of the entire system and optimizing dynamic response performance.
| Factor | Description |
|---|---|
| Load Characteristics | Load magnitude, direction, and duty cycle. |
| Speed Ratio | The gear ratio between input and output speed. |
| Output Backlash | The degree of clearance between the output shaft and the driven component. |
| Environmental Factors | Operating temperature, humidity, and dust levels. |
| Noise and Vibration | The impact of gear meshing on the system's noise and vibration levels. |
| Installation Space | The amount of space available for the gearbox installation. |

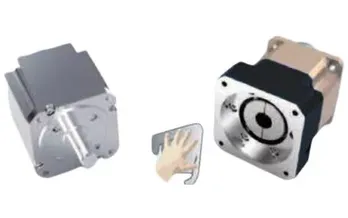

The high precision planetary gearbox is used in conjunction with servo motors for precise speed control and positional accuracy in industrial automation equipment such as robotic joint drives, precision machine tool feed mechanisms, and semiconductor manufacturing equipment, etc.
The high precision planetary gearbox is used in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc. for precise motion control and torque amplification.
The high precision planetary gearbox is used in aircraft landing gear retraction systems, flight control system actuators, satellite attitude adjustment devices, etc. that require high reliability and precision.
The high precision planetary gearbox is used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc. that require high transmission accuracy.
The high precision planetary gearbox is used in the power steering system of new energy vehicles, the drive unit of electric vehicles, and the transmission system of high-performance racing cars, etc.
The high precision planetary gearbox is used in the joint transmission parts of industrial robots, service robots, and special operation robots, etc.
The high precision planetary gearbox is used in automated storage systems such as lifting platforms, conveyor drive systems, and AGVs (Automated Guided Vehicles).
