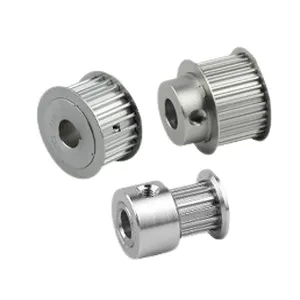

Timing Belt Pulley MXL Type

The timing belt pulley drive is composed of an annular belt with central teeth on the inner peripheral surface and a belt pulley with corresponding teeth. It is a new type of belt drive that integrates the respective advantages of belt drive, chain drive, and gear drive. During operation, the belt teeth mesh with the tooth slots to transmit motion and power.

Product Parameters

Product	Timing Belt Pulley & idler pulley
Teeth type	Normal Torque Drive Type:MXL,XL,L,H,XH,XXHHigh Torque Drive Type:S2M,S3M,S5M,S8M,HTD2M,HTD3M,HTD5M,HTD8M,P2M,P3M,P5M,P8MHigh Precision Position Drive Type:2GT,3GT,5GT,8YULight Load Drive Type:T5,T10,T20Heavy Load Drive Type: AT5, AT10, AT20
Basic shape	Type A,Type B,Type D,Type E,Type F,Type K
surface treatment	Natural color anodizing, Black anodizing, Hard anodizing, Ni-plating, Blackening
Material	6061(aluminum),S45C(45# steel),SUS304(Stainless steel)
Bore	Pilot bore, Taper bore, and Customized bore.
testing equipment	projecting apparatus, salt spray test, durometer, coating thickness tester,2D projector
producing  equipment	CNC machine, automatic lathe machine, stamping machine, CNC milling machine, rolling machine, lasering, tag grinding machine, etc.
Machining Process	Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding, and Gear Lapping
Application industry	Robot industry, Medical industry, Making machine industry, Automation industry,3C industry equipment, Packaging industry, UAV industry, New energy industry.
Advantages	1. High-temperature resistance, Self-lubrication, Wear resistance, Flame retardant properties2. Good quality products3. Competitive prices4. Fast delivery5. Best after-sale service6. OEM/ ODM7. Good service: satisfactory service before and after the sale.8. Direct manufacturers

Types of Timing Belt Pulley

Different timing belt pulleys are available such as pilot bore type, final bore type, taper lock bush type, and QD bush type.

Features of Timing Belt Pulley

Our timing belt pulley is made with teeth or pockets used only for timing. Hence these pulleys are not used for power transmission. These are cast iron and aluminum and primarily used in the textile and automobile industries. So, the features of timing belt pulleys can be mentioned below.

• The existence of belt teeth and pulley tooth helps to eliminate slippage, which is also used to limit speed variation.
• The belt teeth are engaged with the axial pulley groove. This is done exceptionally smoothly and helps lower the friction to the minimum. This also helps to reduce noise or wear.
• These pulleys have high mechanical efficiencies and are available with no friction and elongation. This helps to lower the bearing load and thus helps to enhance the life of the bearing.
• The driving range lies between 10 RPM to 10000 RPM between the spindles.
• There is no need for a lubrication system due to the absence of contact between the metal. Hence there is no need for any oil-related device.

These pulleys are widely used in all types of power transmission indexing and positioning due to the extreme accuracy of the drive.

Application of Timing Belt Pulley

The timing belt pulleys are widely used in various industrial sectors.Engineering: Timing belt pulleys are widely used in machine tools, foundry equipment, painting systems, compressors, and conveyors.Pharmaceuticals & Food Processing: These pulleys are widely used in blowers in pulp mills, warehouse conveyors, bakery machines, machines for labeling, robot, etc.Textile Mills: Timing belt pulleys are widely used in machines like High-speed auto looms, Ruler calendar machines, high-speed winders, looms, wrappers, etc.Printing Machinery: Different plants and machinery have extensive use of these pulleys. These are used in the New paper press, Screen Printer Machine, Linotype machine offset printer, and more.Agriculture Industries: Tractors, cultivators, harvesters, Rice planters, etc. are primary machines used in Agricultural industries. Timing belt pulleys are widely used in these machines too.Paper Industries: There is wide use of timing belt pulleys in paper industries. Cut-off saws, or Edgers or flotation cells, etc., are those machines where these belt pulleys are hugely used.

Advantages of Timing Belt Pulley

Timing belt pulleys are available with lots of advanced features. Hence these pulleys are widely used in various industrial sectors such as textile, paper making, printing machinery, agriculture, and more. So, the advantages that are mainly available from these pulleys are mentioned below.

• These are available with high torque carrying capacity
• These are of robust construction, so there will be no slipping between the belt and the pulley.
• These help in transmitting the power at a constant speed.
• Timing belt pulleys are available at a high strength
• These are resistant to corrosion and available with features for low noise and vibration
• Another essential advantage of this pulley is that it possesses a long life.
• These pulleys are available in the market in varied sizes and models.

Other Related Products

Why Choose Us Timing Belt Pulley?

Timing pulleys are widely used in various equipment where the timing of both drives is precious, and the display ratio is essential. A timing pulley's benefit is eliminating slippage and maintaining constant angular velocity. Timing pulleys are manufactured per international and national standards with carbon steel/alloy steel/aluminum and hardened teeth to provide long life. We have been ranked as the most dependable and leading firm worldwide and actively emerged to offer a wide array of timing belts. Our sophisticated production unit's timing pulleys are fabricated by our skilled personnel using advanced technology.Known for superior sturdiness, dimensional accuracy, and durability, the offered range is manufactured in compliance with industry norms and guidelines. Further, we provide these components in various customized forms according to patrons' specific requirements. Apart from this, these pulleys are quality tested by our quality controllers on different parameters.
