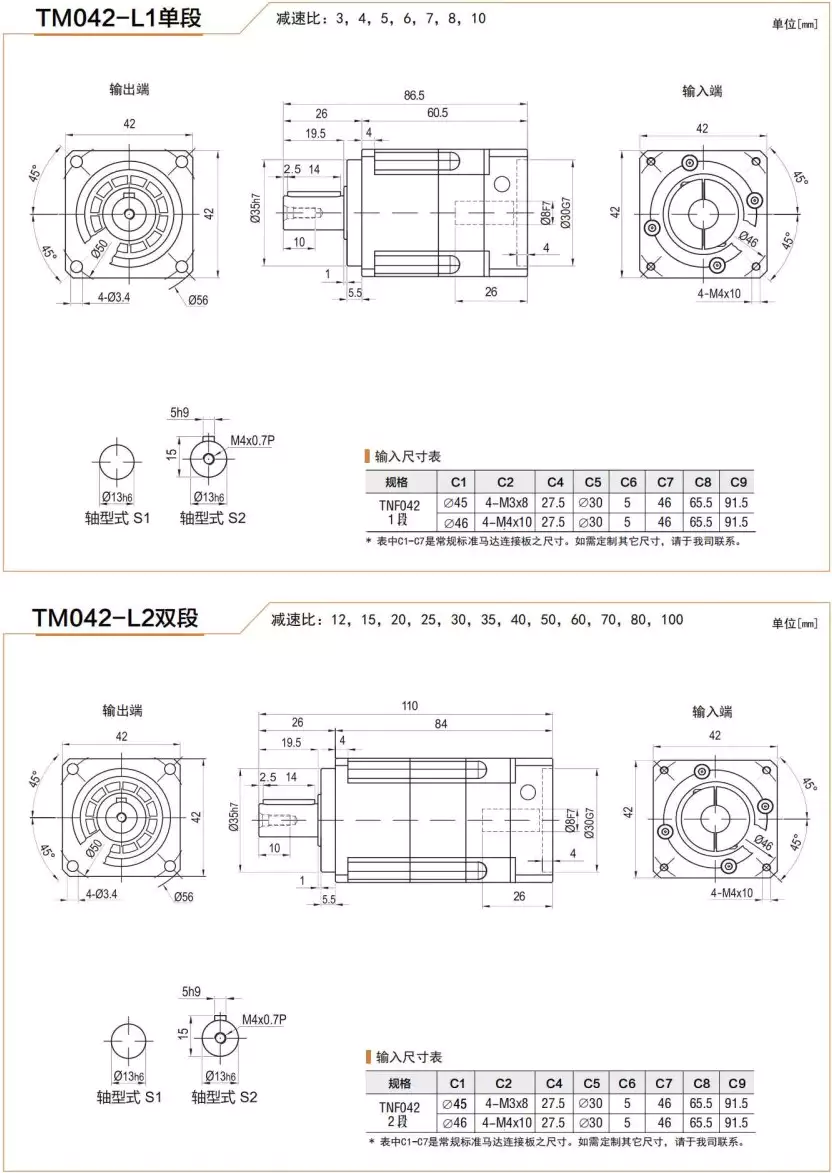

TM042 Series High Precision Planetary Gearbox Helical Gear Reducer

Overview of TM042 Series High Precision Planetary Gearbox Helical Gear Reducer

TM042 Series High Precision Planetary Gearbox Helical Gear Reducer, also known as servo motor planetary gearbox and low backlash planetary gearbox, is a type of gearbox used in various applications that require high precision and low backlash. It is designed to reduce the speed of the input and increase the output torque, while maintaining a high degree of accuracy. The TM042 Series is widely used in industrial automation equipment, medical devices, aerospace, precision instruments, robotics, and other fields.

Basic Structure of High Precision Planetary Gearbox

The high precision planetary gearbox consists of five main components: sun gear, planet gears, planet carrier, ring gear/annulus, bearings and shaft system, and housing and seals. The following is a brief description of each component:

1. Sun Gear: Located in the center of the planetary gearbox, the sun gear is usually connected to the input shaft or fixed to the housing as a static component.
2. Planet Gears: The planet gears rotate around the sun gear and are supported and positioned relative to each other by the planet carrier. Each planet gear meshes with both the sun gear and the ring gear/annulus, and they collectively bear and distribute the load when power is input.
3. Planet Carrier: The planet carrier is a structure with multiple planet gear shaft holes that supports the planet gears and allows them to rotate relative to the sun gear. The planet carrier can function as an output element or be connected to another shaft to transmit or receive torque.
4. Ring Gear/Annulus: The ring gear/annulus is a large-diameter ring-shaped gear fixed inside the housing, with teeth on both the inner and outer surfaces that mesh with the planet gears. In some applications, the ring gear/annulus can also function as an input or output element.
5. Bearings and Shaft System: The bearings in the high precision planetary gearbox support the input shaft, output shaft, and planet carrier, ensuring stable rotation and smooth operation between the components. The shaft system transmits the torque and power within the gearbox.
6. Housing and Seals: The housing is the external frame of the entire gearbox, which protects the internal components from external influences and provides installation interfaces. The seals ensure that the internal lubricant does not leak and prevent dust and water from entering the gearbox.

Working Principles of High Precision Planetary Gearbox

The high precision planetary gearbox works based on the following principles:

1. Torque Transmission: When power is input to the sun gear, the planet gears around it will rotate. Since each planet gear also meshes with the sun gear and the ring gear/annulus, it will perform a self-rotation motion on its own axis while revolving around the center of the sun gear with the planet carrier. In this way, the torque input to the sun gear will be amplified through the planet gears and evenly distributed to the planet carrier at the output end.
2. Speed Conversion and Torque Amplification: By adjusting the gear ratio of different components, speed conversion and torque amplification between the input and output can be achieved. In general, when the number of planet gears increases or the gear ratio becomes larger, the amplification effect on torque will be more significant, but the output speed will decrease accordingly.
3. Low Backlash Design: In high-precision applications, in order to ensure accurate position control and minimum mechanical clearance, high-precision planetary gearboxes adopt preloading technology to reduce or eliminate the clearance between gears, known as "zero/low backlash" design.
4. Load Distribution and Dynamic Response: One of the significant advantages of planetary gear mechanism is that it can evenly distribute the load among multiple planet gears, thus improving the load bearing capacity and stability of the entire system, and optimizing the dynamic response performance.

Design and Selection Considerations of High Precision Planetary Gearbox

Applications of High Precision Planetary Gearbox

The applications of high precision planetary gearbox are wide-ranging and diverse, including:

1. Servo Motor Systems: Used in industrial automation equipment for precise speed control and position positioning, such as robot joint drives, precision machine tool feed mechanisms, semiconductor manufacturing equipment, etc.
2. Medical Devices: Used in high-end medical equipment such as CT scanners, MRI machines, surgical robots, etc., for precise motion control and torque amplification.
3. Aerospace: Used in aircraft landing gear systems, flight control system actuators, satellite attitude adjustment devices, etc., which require high reliability and precision.
4. Precision Instruments: Used in scientific experimental equipment, precision measuring instruments, optical tracking systems, etc., which have high demands on transmission accuracy.
5. Automotive Manufacturing: Used in power steering systems of new energy vehicles, drive units of electric vehicles, transmission systems of high-performance racing cars, etc.
6. Robotics: Used in the joint transmission part of industrial robots, service robots, and special operation robots.
7. Logistics Automation: Used in automated storage systems such as lifts, conveyor drives, and AGVs.

About Our Company

We are a professional manufacturer of power transmission equipment, located in Ningbo, Zhejiang. Our company operates strictly according to the international quality management system standard ISO9001:2015 and our products have passed the mandatory CCC certification in China and CE certification in the European Union. Our products are produced according to international standards and have reached the advanced level of similar products in the world.

Our advantages include:

• Advanced production equipment and testing instruments
• Experienced technical team and skilled workers
• Strict quality control system and comprehensive after-sales service
• Competitive prices and timely delivery

If you have any questions or inquiries about our products, please feel free to contact us.
